Digital Inspection with Articulating Arm Microscope

Digital Inspection with Articulating Arm Microscope Specification

ISO
Auto

Feature
Articulating Arm, Multi-Angle Observation

Product Type
Digital Inspection Microscope

Sensor
CMOS Image Sensor

Features
Articulating Arm, High Magnification, Adjustable Illumination

View Angle
Multi-Angle (via Articulating Arm)

Sensor Size
1/2.7 inch CMOS

Aperture
Fixed

Technology
Digital Microscopy

Lens
High Precision Objective Lens

Media Type
Digital Output (USB/HDMI)

Flash Point
LED Illumination

Color
Black/Silver

Body Material
Aluminum Alloy

Pixels
2 MP

Screen Size
Not Included

Zoom Option
Continuous Digital Zoom (Max 200x)

Battery
AC Powered

Video Capture
Supported (via PC/Software)

Video Capture Resolution
1920x1080 (Full HD)

Magnification Range
10x 200x

Application
PCB Inspection, Industrial, Research, Education

Software Support
Measurement, Calibration, Image/Video Capture

Stand Type
Flexible Articulating Arm with Heavy Base

Operating System Compatibility
Windows, macOS

Image Output Interface
USB 2.0/HDMI

Working Distance
Up to 150 mm

Focusing Method
Manual Fine/Coarse Focus

Illumination Type
Adjustable LED Ring Light

Frame Rate
Up to 30 fps

Digital Inspection with Articulating Arm Microscope Trade Information

Minimum Order Quantity
12 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About Digital Inspection with Articulating Arm Microscope

JBM-MZD2 Series Monozoom Microscope adopt the advanced multi-layer coating technology. It offers sharp clear images, designed for using with a 4K camera. It is widely used in electronic industry, Metal & RND research for micro-object observation, inspection and measurement.

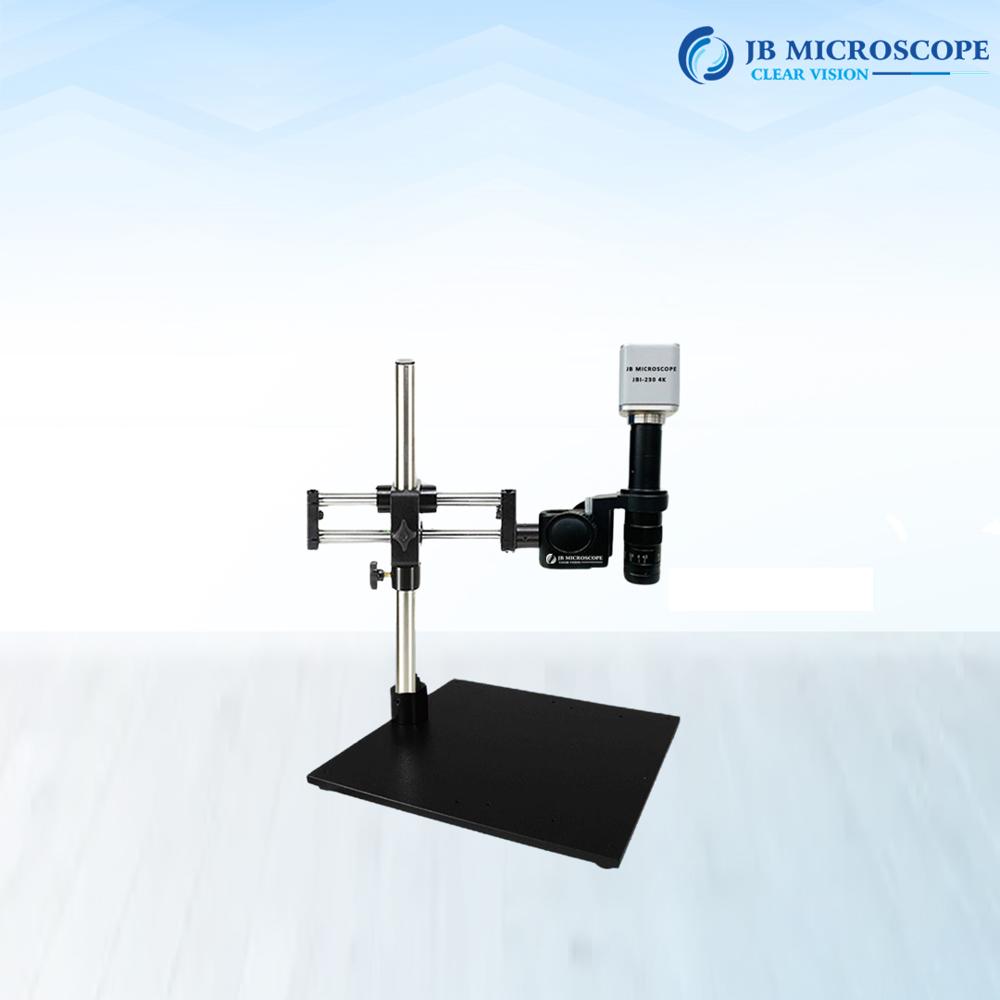

Dual Arm Ball-Bearing Boom Stand with Focusing Mount.
Expand the scope of operation and observe the object in any direction.
Vertical Post : 380mm
Diameter : 32mm
Horizontal moving : 235mm
Base Size : 210x260x50mm

Specification

Magnification : 45x
Eyepiece : 0.5X(standard)
Optional Eyepiece : 0.35X, 0.5X, 1X
Objective : 0.7X-4.5X stereo
zoom; Zoom Ratio:6.4:1
Aux Lens : 0.5X, 1.0X, 2.0X
Focusing Mount : XLB45-A1 focusing mount with vertical working distance 62mm; ID:50mm for lens
Stand : B3 pole stand
Illumination : Fluorescent lamp, LED ring light
Accessories : Can be connected to the cameras and displays.

Versatile Digital Microscopy for Precision Inspection

Designed for demanding inspection tasks, this digital microscope combines high magnification capabilities with a flexible articulating arm, supporting intricate work in diverse environments. Its robust aluminum alloy construction ensures durability, while continuous digital zoom and a high-precision CMOS sensor guarantee crisp images for accurate analysis. Compatible with most modern operating systems, it seamlessly integrates with digital workflows for enhanced productivity.

Flexible Viewing and High-Definition Output

A heavy-base articulating arm delivers stable, multi-angle positioning, perfect for inspecting large or oddly shaped objects. The 2 MP sensor provides Full HD (1920x1080) images and videos, while adjustable LED illumination adapts to various sample types. Connect via USB or HDMI for direct output to computers or displays and leverage advanced measurement and calibration tools for comprehensive digital documentation.

Ideal for PCB, Industrial, and Educational Use

Engineered for applications such as PCB inspection, industrial quality control, scientific research, and classroom demonstration, this microscope brings advanced imaging capabilities wherever detailed observation is needed. Its combination of manual fine/coarse focus and continuous zoom ensures users can quickly achieve the desired level of detail and clarity for any inspection task.

FAQ's of Digital Inspection with Articulating Arm Microscope:

Q: How does the articulating arm benefit microscope inspections?

A: The articulating arm allows for flexible, multi-angle positioning, making it easier to inspect hard-to-reach areas or larger samples without repositioning the object. This enhances user comfort and improves observation efficiency.

Q: What applications are suitable for this digital microscope?

A: This microscope is suitable for PCB inspection, various industrial tasks, scientific research, and educational purposes. Its high magnification and adjustable illumination make it ideal for any context requiring detailed observation and documentation.

Q: What is the process for capturing images and videos?

A: Users can capture images and videos directly via the included software when connected to a computer through USB 2.0, or output live video using the HDMI port. The software supports measurement, calibration, and media management functions.

Q: Which operating systems are compatible with this microscope?

A: The microscope supports both Windows and macOS, enabling seamless integration with most modern computers for comprehensive digital inspection and data recording.

Q: What advantages does adjustable LED ring lighting offer during inspections?

A: Adjustable LED ring lighting allows users to control brightness and reduce shadows, enhancing visibility and image contrast across different types of samples for more accurate analysis.

Q: How is focus adjusted on this microscope?

A: Focus is manually adjusted using fine or coarse controls, allowing precise and quick adaptation to different magnification levels and sample depths during inspection.

Q: Where can this microscope be sourced in India?

A: This digital inspection microscope is available through authorized dealers, importers, manufacturers, retailers, suppliers, traders, and wholesalers across India, ensuring wide accessibility for various industries and institutions.
