ESD Microscope

ESD Microscope Specification

Usage
Industrial

Operate Method
Manual

Material
MS

Features
Good Quality

Voltage
110-215 Volt (v)

ESD Microscope Trade Information

Minimum Order Quantity
7 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About ESD Microscope

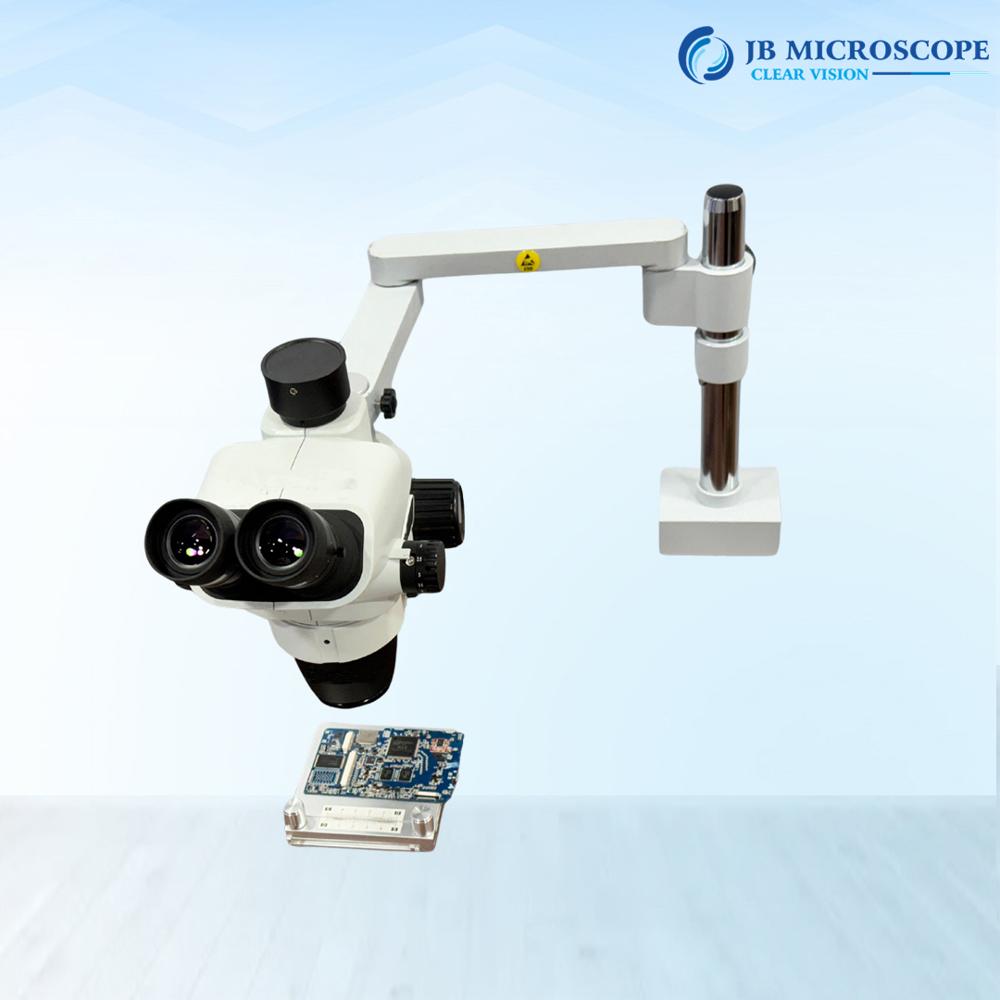

JB Microscopes ESD Safe series models feature high-quality achromatic lenses with anti-reflective coatings for superior visual clarity. You can choose the best microscope for yourneed by Series, or if you specifically require an ESD-safe solution. JB Microscopes provide superior quality and performance for the demands of industrial inspection, assembly, rework and quality control environments.JBM-EPL-45is the newest addition to our industry renowned, ergonomic microscope for Electronic Industries. The ergonomic features of the System JBM-EPL45 are ideal for prolonged use and offer added flexibility for multiple operator usage. Distortion free viewing through a high quality, 22mm optics system provides a 0.67X-45X magnification range. Easy to adjust, tilting binocular eye tube can be inclined from 0 to 30 and the ocular can be rotated 180 to increase the height by an additional 3 inches.

OPTICS:pl10X/eyepieces, 22mm field of view.
MAGNIFICATION:0.67X 45X and 186mm of working distance with 0.5X Auxiliary lens (included).
LENSES:High-quality achromatic lenses with anti-reflective coatings.
ERGONOMICS:Eye tubes tilt 0 to 30 and rotate 180 allowing for a 3-inch increase in height. 360 head rotation in its focus mount.
ZOOM:0.67X 4.5X zoom range controlled by dual graduated knobs. Click-Stop positions located on both sides of the head.
CONSTRUCTION:Polymer/Metal body (2 part).
MOUNTING:Stereo Microscopes
JBM-EPL45binocular models are available with the Ball Bearing Boom Stand with base or Articulating Arm with Vertical Extension and edge clamp.
LIGHTING:LED ring light or the High Output Dimmable LED ring light

Superior ESD Safety

Constructed from ESD-safe coated aluminum alloy and equipped with a reversible stage plate, this microscope provides excellent shield against electrostatic discharge, essential for safeguarding sensitive electronic assemblies during inspection.

Universal Compatibility

With its power supply supporting AC 100240V at 50/60Hz, the microscope is suited for deployment across varied electrical setups throughout India, enhancing flexibility for different workplaces.

Optimal Imaging and Ergonomics

Up to 4x digital zoom and an ergonomically designed body allow users to conduct thorough analysis, capturing minute details while maintaining comfortable operation over extended sessions.

FAQs of ESD Microscope:

Q: How does the ESD Microscope protect sensitive components during inspection?

A: The microscopes body features an ESD-safe coated aluminum alloy, complemented by a stage plate and build that conform to ANSI/ESD S20.20 standards. This minimizes electrostatic discharge, safeguarding delicate microelectronics during use.

Q: What is the process for setting up the ESD Microscope in a laboratory environment?

A: Simply connect the unit to a power source within the universal AC 100-240V range, position the reversible ESD-safe plate as required, and adjust the operating parameters within the recommended temperature and humidity settings. Digital zoom can be configured via the camera software.

Q: When is digital zoom most beneficial on the ESD Microscope?

A: Digital zoom, up to 4x via integrated software, is most useful when inspecting fine features of electronic components, supporting detailed visual examination without physically moving the sample closer to the lens.

Q: Where can this ESD Microscope be purchased or sourced in India?

A: Interested customers in India can acquire the microscope through dealers, importers, manufacturers, retailers, suppliers, traders, or wholesalers specializing in electronic and laboratory equipment.

Q: What are the benefits of the microscopes reversible ESD-safe stage plate?

A: The black and white reversible ESD-safe plate offers flexibility for observing samples with varying contrast and surface properties, while also maintaining electrostatic protection.

Q: How is humidity control important during the operation of the ESD Microscope?

A: Operating within 30% to 80% relative humidity (non-condensing) ensures optimal viewing conditions, preserving microscope performance and preventing condensation that could damage samples or equipment.
