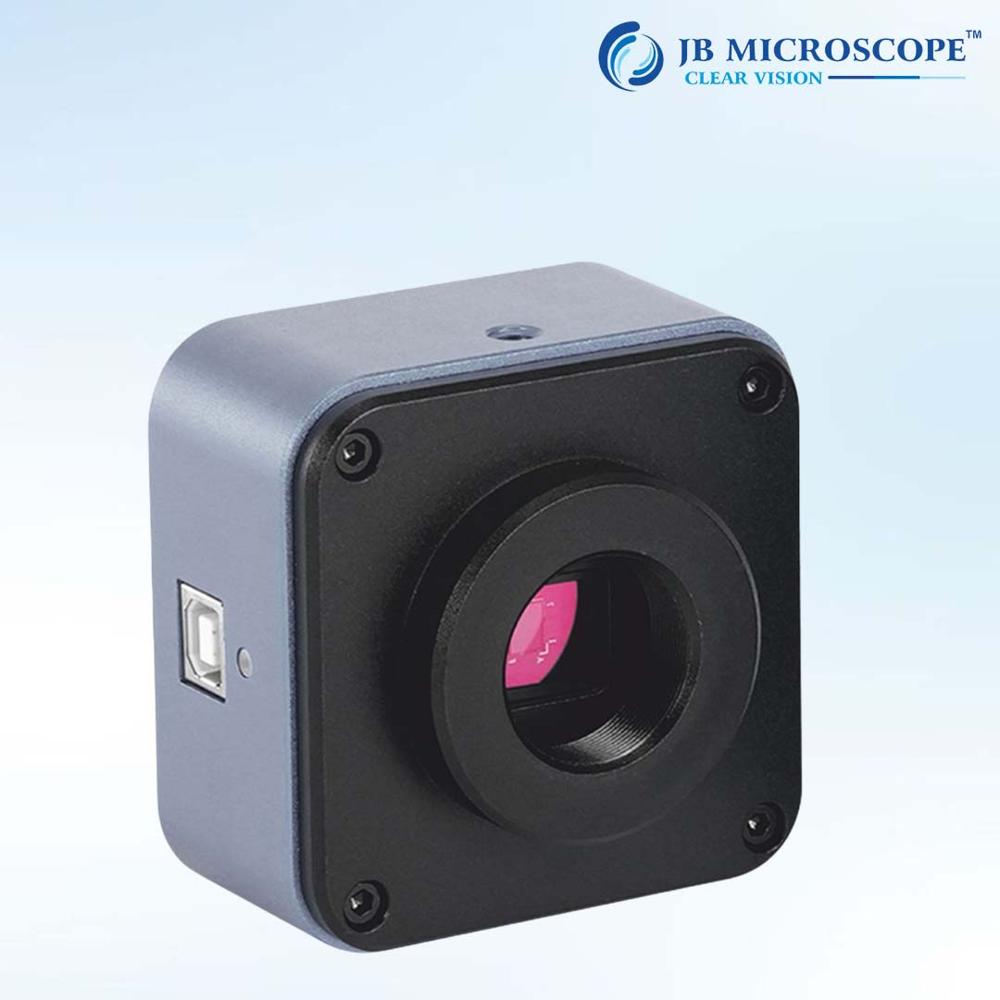

5MP Digital Microscope Camera JBM-500

5MP Digital Microscope Camera JBM-500 Specification

Lens
C-mount interchangeable lens support

Sensor
CMOS

ISO
Auto / Manual

Media Type
Digital

Feature
Photo & Video Capture

Aperture
Variable, Lens Dependent

Technology
Digital Microscope Camera

View Angle
Adjustable

WiFi
NO

Product Type
Microscope Camera Module

Sensor Size
1/2.5 inch CMOS

Features
Plug and Play, High Resolution, USB Output

Color
Blue/Silver

Body Material
Metal & Plastic

Pixels
5 Megapixels

Screen Size
External PC Display Required

Zoom Option
Digital Zoom

Memory Card Type
No memory card slot (Data transfer via USB)

Battery
USB Powered

Video Capture
Yes

Video Capture Resolution
1920 x 1080 Full HD

Still Image Resolution
2592 x 1944

Mounting
Standard C-Mount

Interface
USB 2.0

Power Supply
5V DC via USB

Frame Rate
Up to 30fps

Storage Temperature
-20C - 60C

White Balance
Automatic

Weight
Approx. 300g

Software Included
Microscope imaging software

Operating Temperature
0C - 40C

Dimensions
Approx. 68mm x 70mm x 65mm

Operating System Compatibility
Windows, Mac OS, Linux

5MP Digital Microscope Camera JBM-500 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-10 Days

About 5MP Digital Microscope Camera JBM-500

Sensor resolution	5 MP
Resolution	5MP
Sensor size	1/2.8 inch
Output interface	USB 3.0
Frame rate	30 fps
Mount type	C mount
Colour type	Color
Model Name/Number	JBM-M500
Camera type	CMOS camera
PC software	Windows Mac, Windows
Power supply	5 V DC
Country of Origin	Made in India

Minimum order quantity: 1 Piece

USB2.0 HIGH SPEED TRANSMISSION INTERFACE, SIMPLE AND CONVENIENT AT THE SAME TIME TO ENSURE STABLE HIGH TRANSMISSION
RATE FULL RESOLUTION CAN REALIZE 30 FRAMES/S FAST IMAGING.

PRODUCT PARAMETER

Brand : JB MICROSCOPE
Model: JBM-500 (USB 3.0) 5MP
Camera pixel:5 Mega Pixel
Chip mode: IMX335
Optical Size : 1/2.8 inch
Image size :2.0mX2.0m
Resolution :2952(H)X 1944(V)
Camera frame rate :up to 30 fps
Output Interface :USB2.0high speed output
External Device: Desktop PC or PC Notebook
Optical Interface: Standard C connector
Auto Settings: Exposure, Brightness, White Balance
Manual Settings: Exposure, Gain, Noise Reduction, Gamma

Versatile Compatibility and Easy Integration

The JBM-500 microscope camera operates seamlessly across Windows, Mac OS, and Linux platforms. With its standard C-mount and USB 2.0 interface, setup is straightforward and fast, catering to diverse professional and academic environments. Plug and play convenience means you can begin imaging without complicated installation processes.

Exceptional Image Quality and Performance

Equipped with a 5MP CMOS sensor, the JBM-500 delivers clear, highly detailed photographs and Full HD video. The automatic white balance and digital zoom capabilities ensure accurate color reproduction and flexibility in imaging, making this camera suitable for both simple and complex microscopy tasks.

Rugged and User-Friendly Design

Constructed with metal and plastic for durability and a sleek finish in blue or silver, the JBM-500 is compact and lightweight at approximately 300g. Designed for straightforward operation, it features an easily adjustable viewing angle, interchangeable C-mount lens support, and is fully powered via USB-ideal for on-the-go and stationary setups.

FAQ's of 5MP Digital Microscope Camera JBM-500:

Q: How do I set up the JBM-500 Digital Microscope Camera with my computer?

A: To set up the JBM-500, simply connect it to your Windows, Mac OS, or Linux computer using the included USB 2.0 cable. The camera is plug and play, and the microscope imaging software provided allows easy control over photo and video capture.

Q: What software is needed to operate the JBM-500 camera, and is it included?

A: The JBM-500 comes with dedicated microscope imaging software for image and video capture, enhancement, and analysis. Installation is straightforward-just follow the instructions provided in the package.

Q: Where can the JBM-500 camera be used most effectively?

A: This digital microscope camera is ideal for laboratories, educational institutions, research centers, industrial inspection, and quality control environments. Its clear imaging and simple integration make it versatile for various applications.

Q: What benefits does the high 5MP resolution provide in microscopy work?

A: The 5MP resolution delivers crisp, detailed images and Full HD videos, enabling precise observation and documentation. This level of detail is particularly valuable for analysis, presentations, and archiving microscopy results.

Q: Can I use different lenses with the JBM-500 camera?

A: Yes, the camera supports C-mount interchangeable lenses, allowing users to adapt the camera for specific magnification and field-of-view requirements.

Q: What is the process for capturing and saving images and videos with this camera?

A: All image and video data is transferred directly to your connected PC via USB. The provided software facilitates real-time capture, adjustment, and saving of media with no need for memory cards.

Q: Is the JBM-500 camera suitable for extended use, and what are its operating conditions?

A: Yes, the camera is designed for reliable, extended use, with an operating temperature range of 0C to 40C. Its robust build and USB-powered operation make it a durable choice for routine or field microscopy tasks.
