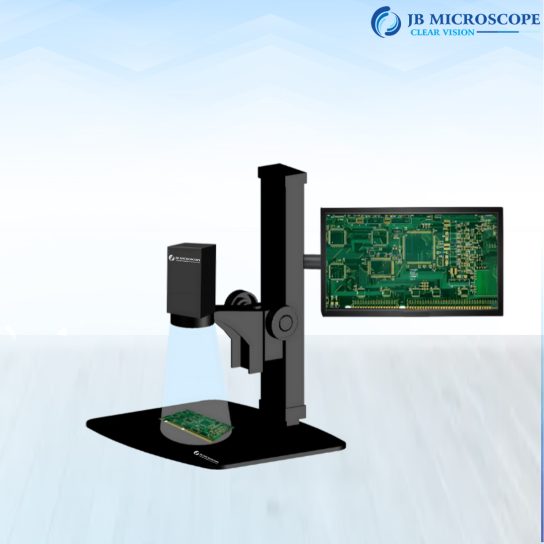

Auto Focus 40x Industrial Microscope Camera

Auto Focus 40x Industrial Microscope Camera Specification

Features
Auto focus, digital display, remote operation

Spare Parts
Power Adaptor, USB Cable, HDMI Cable, Objective Lenses

View Head
Trinocular

Focus System
Auto-Focus Motorized

Theory
Auto Focus Industrial Microscope Camera

Drawtube
Trinocular

Sensor
High-definition CMOS

Resolution
1920 x 1080p

Interface
HDMI, USB

Frame Rate
30fps at Full HD

Focal Distance
Adjustable, 55mm - 200mm

Magnification
40x

Dimensions
320 x 250 x 430 mm

Focus Range
Automatic, up to 150mm

Eyepieces
10x/20mm

Eyepiece Tube
Trinocular Tube

Illumination
LED, Adjustable Intensity

Coarse Adjustment Range
30mm

Fine Adjustment Range
2mm

Working Stage
Mechanical Stage with X-Y Movement

Still Image Capture Resolution
1920 x 1080p

Video Capture Resolution
1080p

Image Format
JPEG, BMP

Interpupillary Distance
55mm 75mm adjustable

Objective Achromatic
4x, 10x, 40x Achromatic Objectives

Condenser
Abbe Condenser N.A. 1.25

Light Source
Built-in LED

Auto Focus 40x Industrial Microscope Camera Trade Information

Minimum Order Quantity
25 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Domestic Market
All India

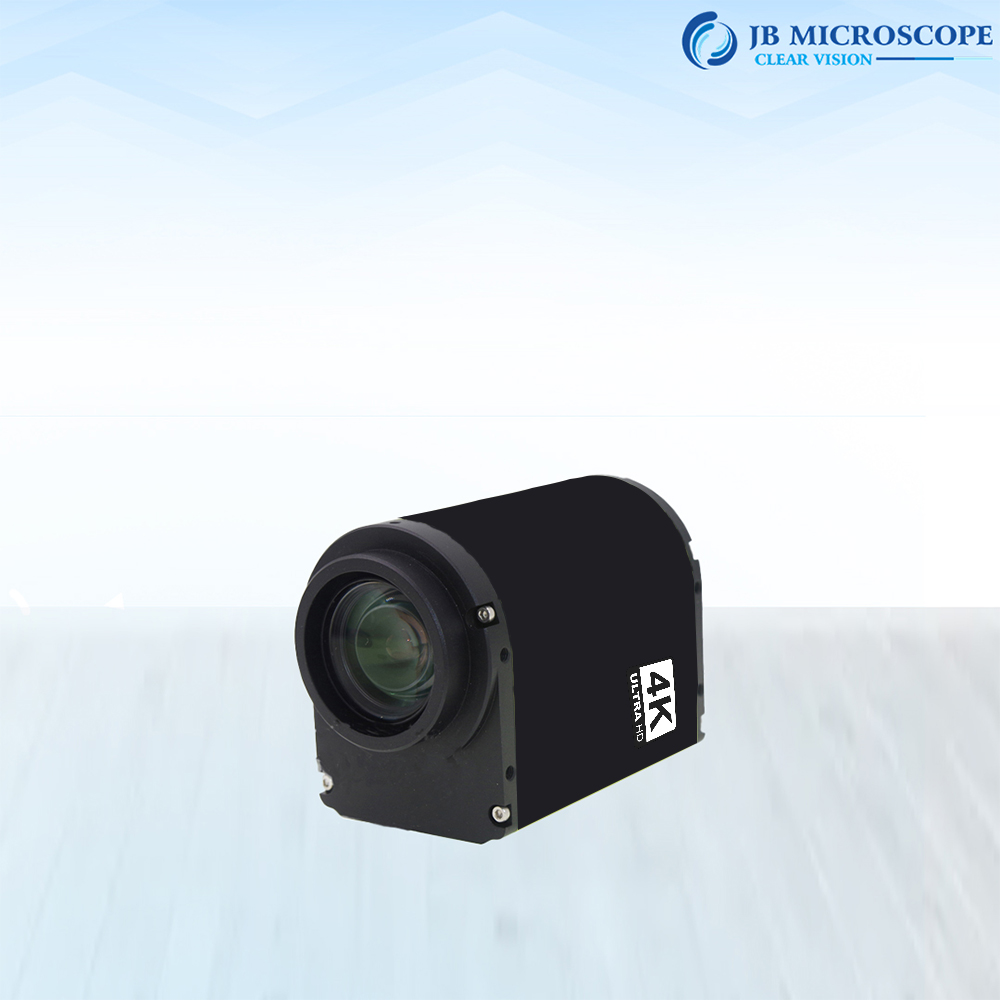

About Auto Focus 40x Industrial Microscope Camera

4K HDMI video output
High-performance and fast-response video
4K/1080P switch adaptively, Preview frame rate 30fps, max recording frame rate: 30fps
SONY Sensor, sensor size:1/2.8
Pixel(m) : 1.451.45
Resolution: 4K Ultra HD (8mp 38402160)
Preview frame rate 4K@30fps / 1080P@30fps
Support U disk storage
Method of Operation : Mouse
Power DC : DC12V
Video Output method : HDMI
White Balance : Auto / Manual / One-push control
Exposure : Auto / Manual
Scanning method: Line by line scanning
Operating Temperature: 050
Magnification / Zoom: Support
Menu language: English

Magnification	Working distance:10 CM	Working distance:30 CM
1X	172mmX93mm	421mmX231mm
2X	88mmX51mm	195mmX109mm
3X	71mmX41mm	151mmX85mm
4X	59mmX34mm	116mmX66mm
5X	53mmX29mm	102mmX57mm
14X	24mmX13mm	46mmX25mm

Advanced Imaging Capabilities

This microscope camera features a high-definition CMOS sensor and motorized auto-focus, delivering clear, sharp images and videos at 1080p resolution. Built-in real-time image adjustment and automatic white balance ensure accurate color reproduction and optimal viewing under various conditions.

Versatile Connectivity and Control

Equipped with HDMI, USB 2.0, and SD Card outputs, this device supports direct display on an LCD monitor, PC integration, and convenient data storage. Optional wireless remote control adds operational flexibility, while support for Windows, Mac, and Linux systems enables seamless integration into any workflow.

Operator-Focused Design

User comfort and efficiency are paramount with the trinocular view head and adjustable interpupillary distance. The mechanical stage with X-Y movement, variable focal distance (55mm-200mm), and LED illumination with adjustable intensity combine to provide a smooth, intuitive microscopy experience for professional and industrial environments.

FAQ's of Auto Focus 40x Industrial Microscope Camera:

Q: How does the auto-focus feature work in this industrial microscope camera?

A: The motorized auto-focus system continuously adjusts the focal length, ensuring sharp, clear images without manual intervention. It operates within a focus range of up to 150mm, making it ideal for inspecting samples with varying heights or fine details.

Q: What output options are available for displaying and saving images?

A: This microscope camera supports display via an LCD monitor using HDMI, USB 2.0, and SD Card for data storage. You can view real-time images, capture still photos and videos in JPEG or BMP format, and easily transfer files to your computer or other devices.

Q: When should I use digital zoom and what are its benefits?

A: Digital zoom, which goes up to 16x, is beneficial when you need a closer view of fine structural details without physically adjusting the objective lenses. It allows for flexible examination and documentation of minute features during inspection or analysis.

Q: Where is this microscope camera suitable for use?

A: Designed for industrial, laboratory, and quality control environments, the camera operates optimally between 0C and 40C and can be stored from -10C to 50C. Its robust construction and adaptable mounting enable deployment in workshops, cleanrooms, and research labs.

Q: What is the process for capturing and processing images?

A: Simply position the sample, utilize the auto-focus feature or manual adjustments as needed, and capture images or videos using the built-in display controls or optional remote. Real-time image processing ensures optimal results with minimal manual adjustment required.

Q: How does the built-in LED illumination benefit users?

A: The adjustable built-in LED provides consistent and customizable lighting for a variety of samples, enhancing image clarity and contrast. This ensures accurate observation and documentation across diverse applications and sample types.
