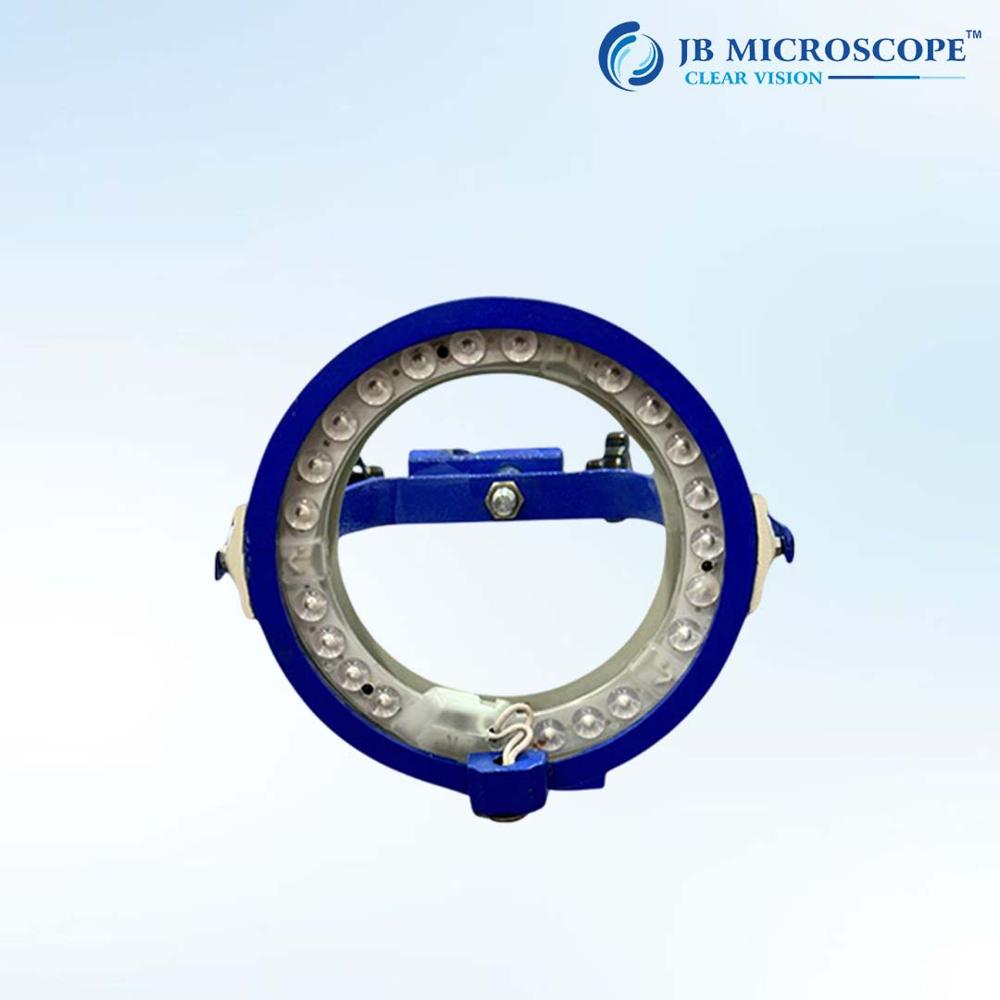

Inspection LED Magnifying Lamp JBM-20X

Inspection LED Magnifying Lamp JBM-20X Specification

Features
Portable, high-brightness LED, ergonomic handle

Spare Parts
LED rings, lens cover, electric cord

View Head
Adjustable arm with magnifier

Focus System
Manual focusing arm

Theory
Used for inspection and precision work with enhanced LED illumination and magnification capabilities.

Drawtube
Fixed

Focal Distance
160 mm

Magnification
20x

Dimensions
Approx. 330 mm (L) x 150 mm (W) x 420 mm (H)

Focus Range
Adjustable

Eyepieces
Large viewing diameter with magnification

Eyepiece Tube
Single

Illumination
LED ring light, energy-efficient, uniform illumination

Coarse Adjustment Range
Smooth manual adjustment

Fine Adjustment Range
Manual precise tuning

Working Stage
Circular base platform

Objective Achromatic
Achromatic lens for clear distortion-free viewing

Light Source
LED 220V

Cable Length
1.5 meters

Material
Metal arm, ABS plastic housing

Switch Type
Inline On/Off Switch

Lens Diameter
125 mm

Operating Temperature
0C - 40C

Arm Extension Length
Up to 800 mm

Power Supply
AC 220V/50Hz

Color Temperature
6000-6500K (Cool White)

Weight
Approx. 2.3 kg

Mounting Type
Table clamp

Usage
Laboratories, electronics repair, jewelry inspection

Inspection LED Magnifying Lamp JBM-20X Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About Inspection LED Magnifying Lamp JBM-20X

Magnification	20x
Light type	LED
Magnification Power	20x
Number Of Dioptre	3D
Body Material	Iron
Wattage	5 W
Mounting	Table base
Arm type	Fixed arm
Lens Diameter	120 mm
Color	White
Rotation Angle	360 Degree
Model Name/Number	Magnifying Lamp
Color temp	4000 K
Lens material	Optical glass
Lens size	6"
Voltage	220V
Size/Diameter	1x1 ft
Magnifying Lamp	4500
magnifying lamp	4500

Bench Magnifier are designed of specialized inspection requirements in the different industries under specific applications. These magnifiers have maximum magnification upto 5x (Approx.).The magnification is without any chromatic or spherical aberration over the entire field of view, providing perfect strain-free vision.
Magnacope - Magnigying Lamp
Lens Size - 4" / 5" / 8"
Light - CFL round light (Better Illumination)
Uses - Inspection of PCB, Metal part

Enhanced Precision and Clarity

The JBM-20X features a 20x achromatic lens with a large 125 mm viewing diameter, providing crystal-clear images for detailed tasks. Enhanced with a cool white LED ring light, it delivers uniform, shadow-free illumination essential for inspection and quality control work.

Ergonomic and Flexible Design

Built for professional comfort, the lamp's metal arm extends up to 800 mm and easily positions the magnifier for optimal use. Its table clamp ensures stability, while the adjustable view head and manual focus make it adaptable to various working conditions and surface types.

Energy-Efficient & Durable Construction

The energy-saving LED system runs efficiently on AC 220V, producing minimal heat over prolonged use. A sturdy ABS plastic housing, coupled with a robust metal arm, extends the product's lifespan, making it suitable for continuous use in demanding settings.

FAQ's of Inspection LED Magnifying Lamp JBM-20X:

Q: How does the JBM-20X magnifying lamp benefit inspection and repair work?

A: The 20x achromatic lens and 125 mm diameter provide high magnification and clear, distortion-free viewing. The cool white LED ring light ensures objects are brightly illuminated, improving fault detection and precision work in laboratories, electronics, and jewelry tasks.

Q: What is the mounting process for the JBM-20X lamp?

A: This model uses a secure table clamp for stable mounting. Simply attach the clamp to your workbench or table edge and tighten, ensuring the lamp remains steady during use. This setup allows for easy transport and repositioning.

Q: Where can the JBM-20X be used most effectively?

A: The lamp is best suited for environments where detailed visual tasks are performed, such as laboratories, electronics repair shops, jewelry inspection counters, and quality control stations. Its durable build also suits demanding industrial settings.

Q: What adjustments can be made during use?

A: You can extend the metal arm up to 800 mm, manually adjust focus for sharp images, and swivel the view head for different angles. Both coarse and fine focusing are available for precise visual adjustment.

Q: How does the LED illumination improve the inspection process?

A: The integrated LED ring light produces a cool white (6000-6500K) light that is energy-efficient, provides consistent brightness, and minimizes shadows. This enhances visibility of minute details, especially in intricate inspection and assembly work.
