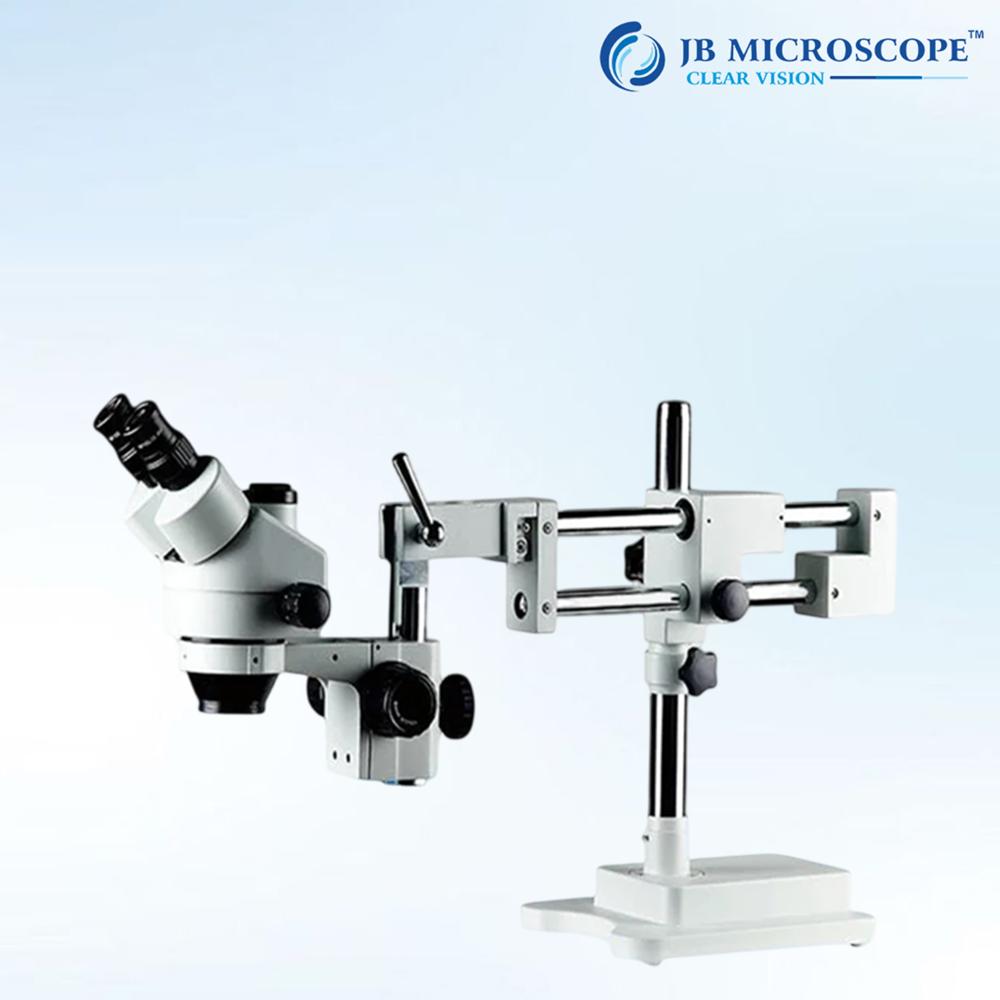

STEREO ZOOM MICROSCOPE

• Coarse Adjustment Range
• Available; enables large movement for primary focusing.

• Condenser
• Not applicable (stereo microscope).

• Dimensions
• Approximate base size: 380mm x 240mm; Boom arm length: 345mm.

• Drawtube
• Trinocular

• Eyepiece Tube
• Binocular, inclined at 45, interpupillary adjustment.

• Eyepieces
• Widefield WF10x/20mm (pair), eyepiece tubes with diopter adjustment.

• Features
• Heavy-duty boom stand, wide zoom range, high optical clarity, ideal for inspection and repair applications.

• Fine Adjustment Range
• Not available.

• Focal Distance
• 100 mm (approximate working distance).

• Focus Range
• Up to 100 mm with coarse focusing mechanism.

• Focus System
• Coarse focusing mechanism with rack and pinion drive.

• Frame Rate
• Not applicable (no imaging sensor).

• Illumination
• External illumination required; supports ring light or fiber optic light guide (not included).

• Image Format
• Optical image (no digital capture).

• Interface
• Not applicable (no digital interface).

• Interpupillary Distance
• Adjustable from 55mm to 75mm.

• Light Source
• External; provision for attaching ring or separate illumination (optional).

• Magnification
• 7X-45X

• Objective Achromatic
• Zoom objective 0.7x to 4.5x.

• Resolution
• Sharp and high-contrast optical clarity depending on selected magnification.

• Sensor
• Not applicable (optical microscope).

• Spare Parts
• Eyepieces, objectives, focusing rack, protective eye guards available.

• Still Image Capture Resolution
• Not applicable (no camera).

• Theory
• Stereo Microscope

• Video Capture Resolution
• Not applicable (no camera).

• View Head
• Binocular stereoscopic head, 45 inclined, 360 rotatable.

• Working Stage
• Flat base with boom stand for large object viewing.

• Coarse Adjustment Range
• 50 mm coarse movement.

• Condenser
• Not required (uses incident and transmitted LED illumination).

• Dimensions
• Approx. 320 mm (H) 250 mm (W) 220 mm (D).

• Drawtube
• Trinocular

• Eyepiece Tube
• Binocular, 45 inclined, 360 rotatable.

• Eyepieces
• Widefield 10X (paired), 20mm field of view.

• Features
• Zoom magnification, LED lighting, ergonomic design, robust metal construction, widefield optics for clear images.

• Fine Adjustment Range
• None (Coarse focus mechanism only).

• Focal Distance
• 100 mm (working distance with 1X objective).

• Focus Range
• 50 mm (coarse adjustment movement).

• Focus System
• Coarse focusing mechanism with rack and pinion movement.

• Frame Rate
• Not applicable (no integrated camera).

• Illumination
• LED

• Image Format
• Not applicable unless digital camera is fitted.

• Interface
• Not Applicable (Optical only, can be fitted with camera adapters)

• Interpupillary Distance
• 55-75 mm adjustable.

• Light Source
• LED illumination, top and bottom, with adjustable intensity.

• Magnification
• 6X-45X

• Objective Achromatic
• Zoom objective 0.7x to 4.5x, Achromatic design.

• Resolution
• Sharp, high-resolution observation based on optical system. (Digital resolution not applicable)

• Sensor
• Not Applicable (Optical microscope, standard version without camera attachment).

• Spare Parts
• Eyepieces, objectives, stage plates, LED light modules (available separately).

• Still Image Capture Resolution
• Not applicable unless digital camera is fitted.

• Theory
• Stereo Microscope

• Video Capture Resolution
• Not applicable unless digital camera is fitted.

• View Head
• Binocular, 45 inclined, 360 rotatable.

• Working Stage
• Round black/white stage plate, 95 mm diameter, with stage clips.

• Coarse Adjustment Range
• 35 mm

• Drawtube
• Other

• Eyepiece Tube
• Inclined at 45, 360 rotatable

• Eyepieces
• Wide Field 10x (paired)

• Features
• Zoom magnification, trinocular observation, sturdy stand, dual illumination, ergonomic design

• Focal Distance
• 100 mm Millimeter (mm)

• Focus Range
• 45 mm Millimeter (mm)

• Focus System
• Rack and pinion focusing mechanism

• Illumination
• Incident and transmitted illumination with built-in halogen lamp or LED options

• Interpupillary Distance
• 54-76 mm Millimeter (mm)

• Light Source
• Built-in halogen or optional LED

• Magnification
• 7X-50X

• Objective Achromatic
• Zoom Objective 0.7x - 5x (Achromatic)

• Spare Parts
• Available on request

• Theory
• Stereo Microscope

• View Head
• Trinocular, inclined 45, rotatable 360

• Working Stage
• Rectangular stage with frosted glass plate and black/white plate Square Millimeter (mm2)

• Coarse Adjustment Range
• 50mm

• Dimensions
• Base: 285mm x 235mm, Height: 380mm (approx.)

• Drawtube
• Other, Binocular, 45 inclined, 360 rotatable

• Eyepiece Tube
• Diopter adjustment provided on one tube

• Eyepieces
• Paired 10X Wide Field (WF10X) eyepieces, 20mm field of view

• Features
• Complete with anti-fungus treated optics, ergonomic operation, maintenance free LED, robust metal body

• Focal Distance
• 100mm

• Focus Range
• 50mm

• Focus System
• Coaxial focus system with adjustable tension

• Illumination
• Incident and transmitted LED illumination with built-in intensity control

• Interpupillary Distance
• 55mm to 75mm adjustable

• Light Source
• Built-in long-life LED (Incident & Transmitted illumination)

• Magnification
• 7X-45X

• Objective Achromatic
• Zooming objective 0.7X to 4.5X, achromatic-corrected

• Spare Parts
• Supplied with dust cover, fuse, and instruction manual

• Theory
• Stereo Microscope

• View Head
• Binocular head

• Working Stage
• Rectangular base with frosted glass and black/white stage plate

• Coarse Adjustment Range
• Approx. 50 mm

• Dimensions
• Approx. 28 cm (H) x 18 cm (W) x 25 cm (L)

• Drawtube
• Other

• Eyepiece Tube
• Binocular, adjustable with diopter adjustment

• Eyepieces
• Wide Field WF10x/20mm, paired (standard inclusion)

• Features
• High clarity optics, continuous zoom, dual illumination, robust metal body, ergonomic design

• Focal Distance
• 100 mm (approximate working distance)

• Focus Range
• Vertical movement approx. 50 mm

• Focus System
• Coarse focusing mechanism with rack and pinion drive

• Illumination
• Incident (top) and transmitted (bottom) 12V/10W halogen illumination

• Interpupillary Distance
• 55 mm - 75 mm adjustable

• Light Source
• Halogen bulb 12V/10W for both incident and transmitted illumination

• Magnification
• 7X-45X

• Objective Achromatic
• Zoom objective 0.7x to 4.5x, achromatic type

• Spare Parts
• Extra pair of eyecups, glass stage plate, black/white stage plate, halogen bulb

• Theory
• Biological Microscope

• View Head
• Binocular, 45 inclined, 360 rotatable

• Working Stage
• Large rectangular stage with frosted glass plate

• Coarse Adjustment Range
• 45 mm travel (approx.).

• Condenser
• Not required (used for observation without transmitted light).

• Dimensions
• Approx. 370 mm x 250 mm x 430 mm.

• Drawtube
• Other, Trinocular or digital head with integrated LCD screen.

• Eyepiece Tube
• Inclined at 45 for comfortable viewing.

• Eyepieces
• 10x widefield eyepieces (optional WF15x/WF20x).

• Features
• On-screen measurement, image and video capture, 360 rotating base, ergonomic design.

• Fine Adjustment Range
• Precise focusing mechanism for sharp imaging.

• Focal Distance
• 76 mm (standard working distance).

• Focus Range
• Manual coarse focusing, adjustable based on sample size.

• Focus System
• Manual fine focus knob.

• Frame Rate
• 30 fps (Full HD video recording).

• Illumination
• Built-in top and bottom LED illumination, adjustable brightness.

• Image Format
• JPEG, BMP (image capture).

• Interface
• USB 2.0, HDMI output.

• Interpupillary Distance
• 55 - 75 mm adjustable.

• Light Source
• High-intensity LED, with external power supply.

• Magnification
• 7x - 45x (Zoom Objective), up to 180x with additional eyepieces.

• Objective Achromatic
• Zoom objective 0.7x - 4.5x continuous.

• Resolution
• 1920 x 1080 pixels (Full HD).

• Sensor
• High-resolution CMOS digital sensor.

• Spare Parts
• Replacement eyepieces, objective lens, auxiliary lens, stage plate, dust cover.

• Still Image Capture Resolution
• Up to 1920 x 1080 pixels.

• Theory

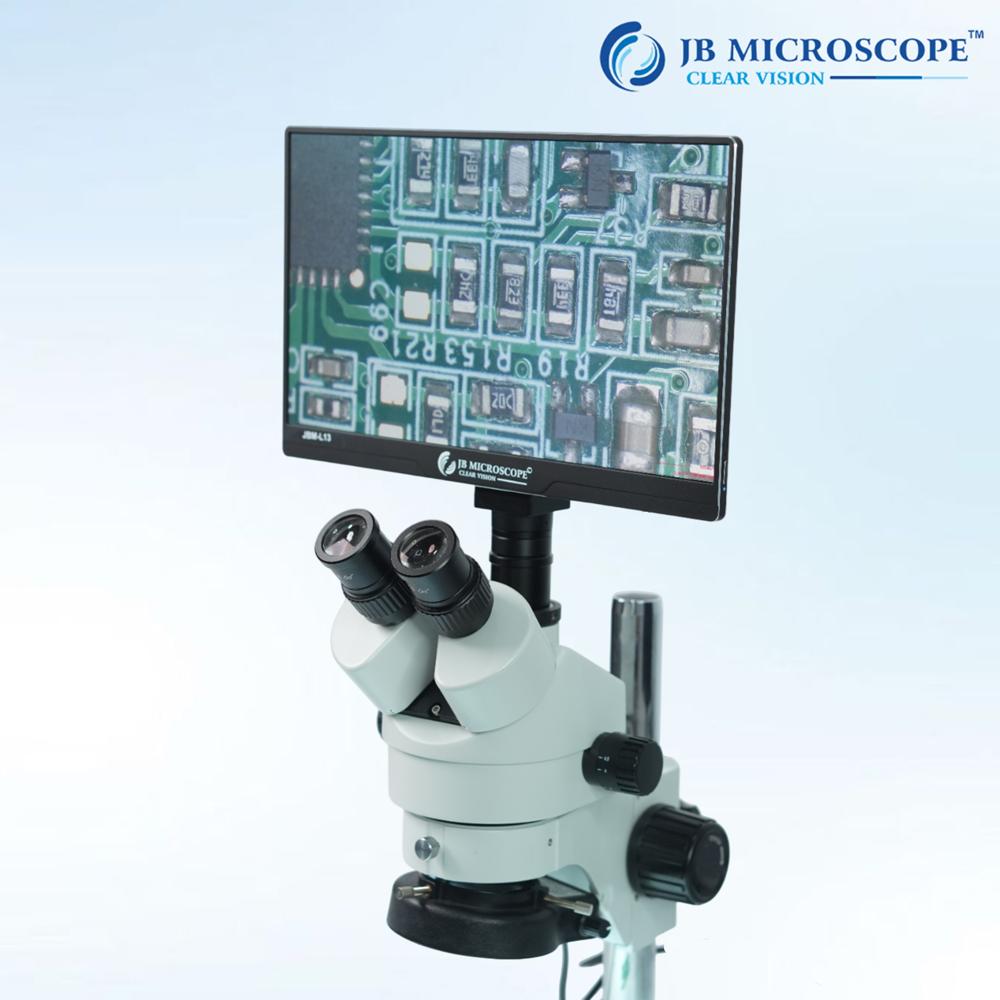

• Other, Stereo Zoom Microscope for PCB Inspection, integrated with digital imaging and display module.

• Video Capture Resolution
• 1920 x 1080 @ 30fps.

• View Head
• Integrated LCD digital display, 7-inch (touch LCD optional).

• Working Stage
• Large metallic base plate with frosted and black/white working plates.

• Coarse Adjustment Range
• 50 mm via rack and pinion mechanism

• Condenser
• Not included

• Dimensions
• Approx. 260 x 185 x 340 mm (L x W x H) Centimeter (cm)

• Drawtube
• Other

• Eyepiece Tube
• Inclined at 45, rotatable 360

• Eyepieces
• WF10x/20 mm paired, adjustable

• Features
• Ergonomic design, high depth of field, high-quality optics, ESD safe, suitable for biological, industrial, and educational use

• Focal Distance
• 100 mm Millimeter (mm)

• Focus Range
• 50 mm Millimeter (mm)

• Focus System
• Rack and pinion coarse focusing

• Frame Rate
• Not applicable (optical microscope)

• Illumination
• Incident and transmitted LED illumination, with independent controls

• Image Format
• Direct visual observation, optional imaging with camera adapter

• Interface
• Mechanical focusing; optional camera port available

• Interpupillary Distance
• 55 mm - 75 mm adjustable Millimeter (mm)

• Light Source
• Top and bottom LED illumination

• Magnification
• 7X-50X

• Objective Achromatic
• 0.7x - 4.5x continuous zoom objective

• Resolution
• Observation dependent on eyepiece and objective combination

• Sensor
• Not applicable (optical microscope)

• Spare Parts
• Optional eyepieces, objectives, stage plates, bulbs available

• Still Image Capture Resolution
• Dependent on optional camera

• Theory
• Stereo Microscope

• Video Capture Resolution
• Dependent on optional camera

• View Head
• Binocular, 45 inclined, 360 rotating

• Working Stage
• Flat black and white stage plate with specimen clips Square Millimeter (mm2)

• Dimensions
• Packing size: 32*22*23cm

• Drawtube
• Other, Trinocular tube for camera attachment

• Eyepiece Tube
• Head mounting size: 76mm diameter

• Eyepieces
• WF10X/22mm

• Features
• Dust cover included

• Fine Adjustment Range
• Not included

• Focal Distance
• Working Distance: 100mm

• Focus Range
• Focus travel: 50mm

• Focus System
• Coarse focus with body holder

• Illumination
• External light source optional

• Image Format
• Not included

• Interface
• Not included

• Interpupillary Distance
• Adjustable

• Light Source
• Not specified (reflective light based on image)

• Magnification
• 7x-50x

• Objective Achromatic
• 0.7-5.0X Zoom Objective

• Resolution
• Not included

• Sensor
• Not included

• Spare Parts
• Dust cover

• Still Image Capture Resolution
• Not included

• Video Capture Resolution
• Not included

• View Head
• Binocular (stereo head as per image)

• Working Stage
• Base size: 320x260x16mm

• Coarse Adjustment Range
• Approx 50 mm vertical movement.

• Dimensions
• Approx 260 190 340 mm. Millimeter (mm)

• Drawtube
• Other

• Eyepiece Tube
• Binocular, 45 inclined.

• Eyepieces
• Widefield WF10x paired (20mm field of view), Interchangeable.

• Features
• Sharp stereoscopic images; rugged all-metal construction; energy-efficient LED lighting.

• Focal Distance
• 100 mm standard working distance. Millimeter (mm)

• Focus Range
• 78 mm (approx). Millimeter (mm)

• Focus System
• Rack and pinion drive mechanism with tension adjustment.

• Illumination
• LED

• Interpupillary Distance
• Adjustable, 54-76 mm. Millimeter (mm)

• Light Source
• LED illumination, both reflected and transmitted.

• Magnification
• 45X

• Objective Achromatic
• Zoom objective 0.7x to 4.5x, achromatic.

• Spare Parts
• Supplied with dust cover, eyecups, and fuse.

• Theory
• Other

• View Head
• Binocular, 45 inclined, 360 rotatable.

• Working Stage
• Glass and black/white contrast plate, 95 mm diameter. Square Millimeter (mm2)

• Coarse Adjustment Range
• 50mm focusing stroke.

• Condenser
• N/A (Not available on stereo models).

• Dimensions
• Approx. 300mm x 250mm x 400mm (H x W x D).

• Drawtube
• Other, Binocular, inclined at 45 for comfortable viewing.

• Eyepiece Tube
• Binocular, 45 inclined, 360 rotatable.

• Eyepieces
• Wide field 10x (Paired)

• Features
• Stereo image, zooming function, large working distance, dual LED illumination, rugged metal stand.

• Fine Adjustment Range
• N/A (No fine adjustment available).

• Focal Distance
• 100mm working distance.

• Focus Range
• Travel range 50mm (coarse adjustment).

• Focus System
• Rack and pinion focusing mechanism.

• Frame Rate
• N/A (Not applicable, no camera included).

• Illumination
• Incident and transmitted LED illumination, adjustable intensity.

• Image Format
• N/A (Optical, not digital).

• Interface
• N/A (Purely optical, no digital interface).

• Interpupillary Distance
• Adjustable 55-75mm.

• Light Source
• LED top (incident) and bottom (transmitted) illumination.

• Magnification
• Zoom ratio 7x to 45x (zoom objective 0.7x to 4.5x, eyepiece 10x WF).

• Objective Achromatic
• Zoom objectives, fully achromatic, 0.7x - 4.5x.

• Resolution
• N/A (Dependent on eyepiece and objective lens combination).

• Sensor
• N/A (Not applicable, as this is an optical model).

• Spare Parts
• Paired eyepiece, glass plate, dust cover.

• Theory
• Other, Stereo observation with zoom magnification system for clear, three-dimensional viewing of objects.

• View Head
• Binocular, stereo angle, 360 rotatable.

• Working Stage
• Glass stage plate: 95mm diameter with frosted and black/white contrast plate.

• Coarse Adjustment Range
• 45 mm

• Condenser
• Not applicable (for stereo microscopes)

• Dimensions
• Base size approx. 250 mm x 200 mm; height approx. 350 mm

• Drawtube
• Trinocular

• Eyepiece Tube
• Diopter adjustment provided

• Eyepieces
• 10X

• Features
• Trinocular head for camera integration; high-quality optics; long working distance; precision zoom controls; dual LED illumination; 360 rotatable head

• Fine Adjustment Range
• Not provided (coarse focusing only)

• Focal Distance
• 100 mm working distance (with 1x objective)

• Focus Range
• 45 mm

• Focus System
• Rack and pinion focusing mechanism

• Frame Rate
• Depends on camera used (optional)

• Illumination
• Incident (reflected) and transmitted LED illumination with variable intensity

• Image Format
• Dependent on camera (optional accessory)

• Interface
• Camera port for C-mount or similar digital cameras

• Interpupillary Distance
• 55 - 75 mm adjustable

• Light Source
• LED, both transmitted and reflected, brightness adjustable

• Magnification
• 7X-45X

• Objective Achromatic
• Zoom objectives 0.7x - 4.5x (achromatic)

• Resolution
• N/A (Dependent on attached camera)

• Sensor
• N/A (Optional camera attachment supported)

• Spare Parts
• Eyepieces, auxiliary objectives, glass stage plate, bulbs, fuses

• Still Image Capture Resolution
• Dependent on camera (optional)

• Theory
• Stereo Microscope

• Video Capture Resolution
• Dependent on camera (optional)

• View Head
• Trinocular, 45 inclined, 360 rotatable

• Working Stage
• Stage plate with black/white contrast and frosted glass disc; stage size approx. 95 mm

• Eyepiece Tube
• Eye tubes tilt 0-30, rotate 180

• Eyepieces
• PL10X/eyepieces, 22mm

• Focal Distance
• 120 mm

• Illumination
• LED ring light or High Output Dimmable LED ring light

• Light Source
• LED (top and bottom illumination)

• Magnification
• 40x

• Objective Achromatic
• 0.7-4.5x high-quality achromatic lenses with anti-reflective coatings

• View Head
• Trinocular

• Working Stage
• Articulated stand
