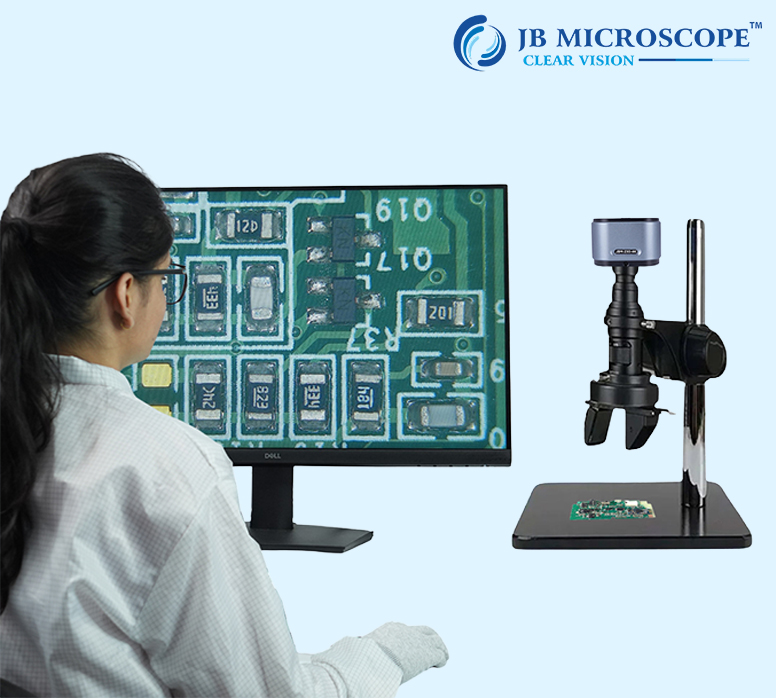

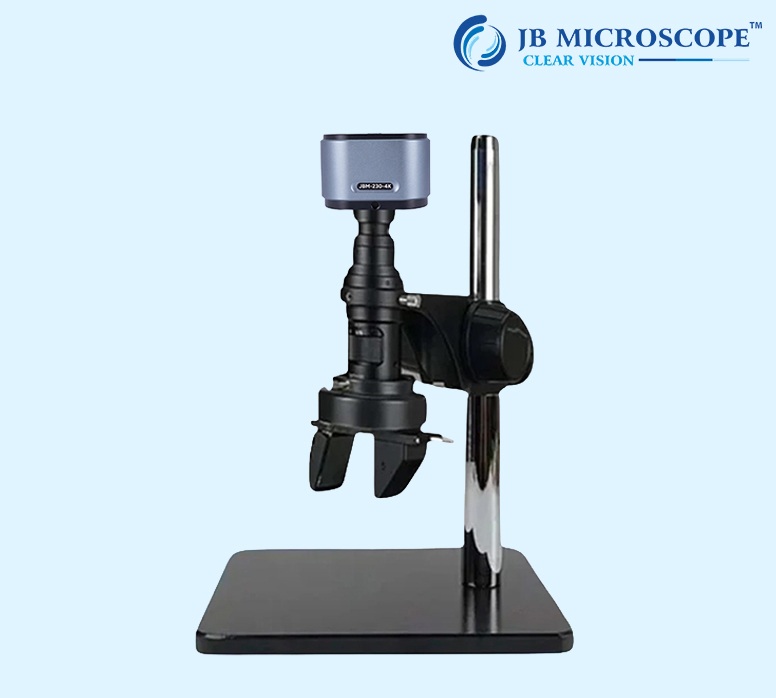

3D Microscope for PCB Inspection JBM-MZ3D

Send Inquiry

Request To Call Back

3D Microscope for PCB Inspection JBM-MZ3D

Price 138000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3D Microscope for PCB Inspection JBM-MZ3D Specification

Focus System
Coarse and fine focusing, rack & pinion mechanism

Spare Parts
Dust Cover, Power Adapter, Spare Bulb, Stage Clips

Features
HDMI real-time output, USB image capture, easy-to-use software, ergonomic design for long observation sessions.

View Head
360 rotatable, trinocular head

Theory
Other

Drawtube
Other

Sensor
CMOS HD Sensor

Resolution
1920 x 1080 (Full HD)

Interface
HDMI, USB 2.0/3.0 (varies with model)

Frame Rate
60 fps (Full HD)

Focal Distance
75 mm - 200 mm (adjustable depending on zoom and model) Millimeter (mm)

Magnification
10X - 300X (digital + optical)

Dimensions
390 mm x 290 mm x 480 mm Millimeter (mm)

Focus Range
50 mm - 150 mm (coarse/fine adjustable) Millimeter (mm)

Eyepieces
WF10X/20mm

Eyepiece Tube
Inclined 45 trinocular tube

Illumination
Adjustable high-brightness LED ring light

Coarse Adjustment Range
30 mm - 60 mm (depends on configuration)

Fine Adjustment Range
2 mm - 4 mm

Working Stage
Large mechanical stage with X/Y coaxial controls (180 mm x 155 mm) Square Millimeter (mm2)

Still Image Capture Resolution
Maximum 5 MP (interpolated)

Video Capture Resolution
1920 x 1080 (Full HD)

Image Format
JPEG, BMP, PNG (image); AVI, MP4 (video)

Interpupillary Distance
55 mm - 75 mm adjustable Millimeter (mm)

Objective Achromatic
Plan Achromatic 4X, 10X, 20X, 40X (reverse nosepiece)

Condenser
Abbe condenser N.A. 1.25, with iris diaphragm

Light Source
High power white LED, adjustable intensity

Software
Compatible with Windows 7/8/10, image analysis, measurement, and annotation functions

Video Output
Supports direct connection to HDMI monitors and PC

Operating Temperature
0C - 40C

Power Supply
100-240V AC, 50/60Hz universal adapter

Stage Movement Range
X-axis: 75 mm, Y-axis: 50 mm

Body Material
High grade cast aluminum alloy

Color System
True color reproduction, automatic white balance

Camera Control
Via onboard buttons or PC software

Storage Temperature
-20C - 60C

3D Microscope for PCB Inspection JBM-MZ3D Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About 3D Microscope for PCB Inspection JBM-MZ3D

Take advantage of a pivotal deal with the Digital Video Microscope JBM-HD3D-a cost-effective solution for ace-level analysis in research and industrial settings. Impeccable image clarity is ensured with a CMOS HD sensor, true color reproduction, and ergonomic design, delivering maximum comfort for extended operations. Featuring versatile connectivity via HDMI and USB, robust cast aluminum alloy construction, and powerful, adjustable LED illumination, this microscope supports comprehensive image analysis, measurement, and annotation. Suitable for diverse applications, the JBM-HD3D is the ace tool for professionals seeking uncompromised precision.

Versatile Application & Usage

The Digital Video Microscope JBM-HD3D is designed for professionals engaging in scientific research, industrial inspection, and detailed observation. Suited for laboratory, manufacturing, and quality control settings, it supports both direct HDMI viewing and PC-based image analysis. Its straightforward application method-controlled by onboard buttons or PC software-makes it ideal for tasks such as measurement, documentation, and annotation. This makes the JBM-HD3D an essential choice where impeccable accuracy and flexibility are required.

Payment Terms & Delivery Process

For the Digital Video Microscope JBM-HD3D, we offer convenient payment terms tailored to meet industry needs. Before dispatching your order, sample policies allow you to experience the ace features at the lowest price. Handover and delivery are expedited, ensuring prompt availability for your projects. Our focused dispatching mechanism guarantees that products arrive intact and on schedule, keeping your operations seamless and cost-effective.

FAQ's of Digital Video MicroscopeJBM-HD3D:

Q: How does the Digital Video Microscope JBM-HD3D benefit scientific and industrial applications?

A: The JBM-HD3D provides full HD resolution, image analysis, measurement, and annotation functions, making it pivotal for precise observation and documentation in research, quality control, and industrial inspection.

Q: What is the process for controlling the camera and capturing images?

A: Users can control the camera either through onboard buttons or intuitive PC software. Captured images and videos can be saved in multiple formats, supporting direct output via HDMI or USB.

Q: Where can the JBM-HD3D be used?

A: This microscope is suitable for laboratories, research institutions, manufacturing floors, and quality assurance departments, covering a wide area of scientific and industrial applications.

Q: When can customers expect the delivery after placing an order?

A: Once the payment is processed and any sample verification is completed, dispatching typically occurs swiftly. Customers can expect a quick handover, depending on logistic arrangements and location.

Q: What are the application benefits of the ergonomic and adjustable design?

A: The ergonomic build, adjustable LED ring light, and rotatable view head ensure comfortable long-term usage, while the adjustable stage and focusing options support diverse specimen types and applications.
