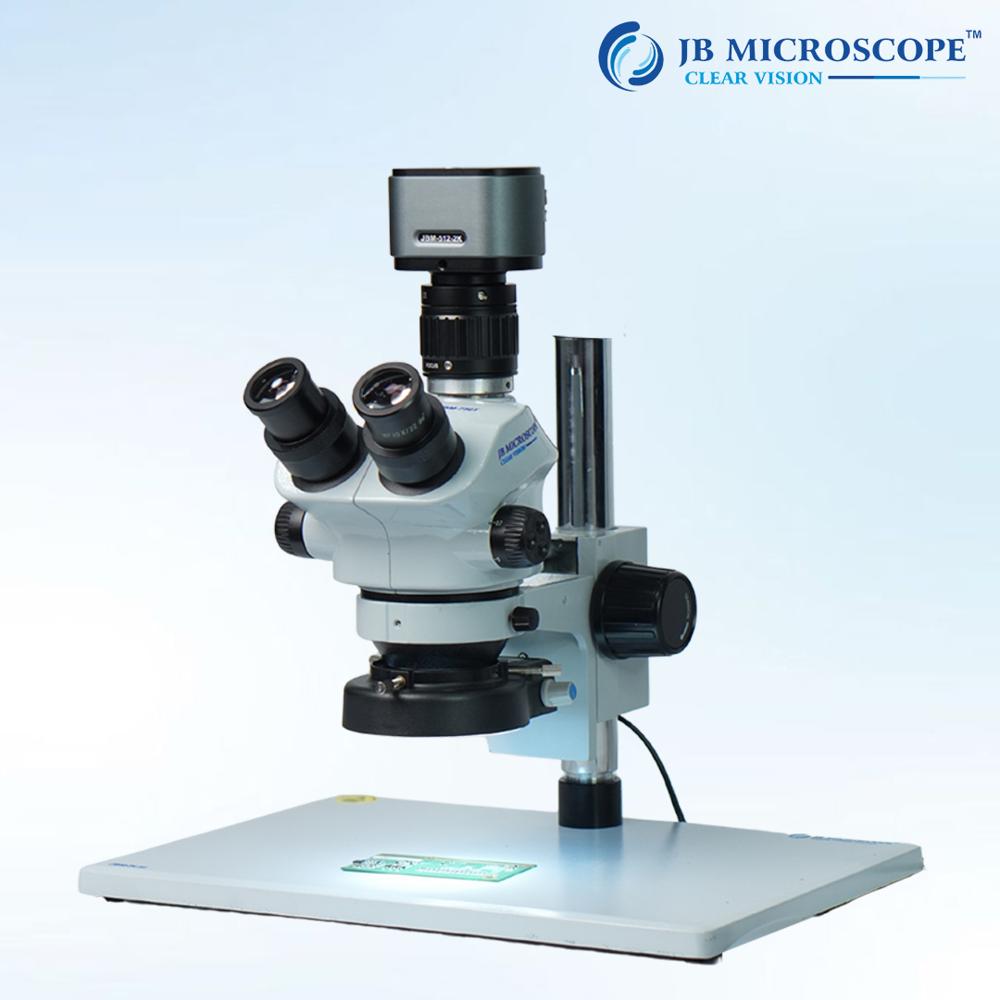

Stereo Zoom Microscope JBM-750T

Name: Stereo Zoom Microscope JBM-750T
Brand: JB INSTRUMENTS PVT LTD
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stereo Zoom Microscope JBM-750T Specification

Focus System
Rack and pinion focusing mechanism

Spare Parts
Available on request

Features
Zoom magnification, trinocular observation, sturdy stand, dual illumination, ergonomic design

View Head
Trinocular, inclined 45, rotatable 360

Theory
Stereo Microscope

Drawtube
Other

Focal Distance
100 mm Millimeter (mm)

Magnification
7X-50X

Focus Range
45 mm Millimeter (mm)

Eyepieces
Wide Field 10x (paired)

Eyepiece Tube
Inclined at 45, 360 rotatable

Illumination
Incident and transmitted illumination with built-in halogen lamp or LED options

Coarse Adjustment Range
35 mm

Working Stage
Rectangular stage with frosted glass plate and black/white plate Square Millimeter (mm2)

Interpupillary Distance
54-76 mm Millimeter (mm)

Objective Achromatic
Zoom Objective 0.7x - 5x (Achromatic)

Light Source
Built-in halogen or optional LED

Weight
Approximately 6 kg (with base)

Head Movement
Head can be rotated 360 for flexible viewing

Stage Size
115mm x 105mm

Stand
Pillar stand with coarse focusing system

Voltage
220V/110V (depending on model)

Application
Ideal for precision assembly, inspection, research labs, electronics, entomology, and educational use

Body Material
All metal construction for durability

Stereo Zoom Microscope JBM-750T Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About Stereo Zoom Microscope JBM-750T

Magnification range	7X 50X
Magnification	50X
Zoom ratio	7x
Head type	Trinocular
Illumination type	LED
Working distance	110 mm
Stand type	Table stand
Model Name/Number	JBM-750T
Eyepiece	WF 10x22mm
Objective	0.7x-50x
Eyepiece magnification	10x
Features	High Quality Stereo Microscope
Reflected light	Top bottom light
Interpupillary Distance	150mm
Application	Jewellery, Industrial, PCB inspection, Research
Warranty	12 months

Minimum order quantity: 1 Piece

Specification :

Brand	JB Microscope
Eyepiece	WF10X/22mm
Zoom Objective	0.7-5.0X
Zoom Range	7.1 : 1
Working Distance	100mm
Head Mounting Size	76mm in diameter
Dust cover	Yes (Included)
Packing size	322223cm/1.77kg (one set)

Flexible and Ergonomic Viewing

The JBM-750T's trinocular, 360 rotatable, 45 inclined head provides versatile and comfortable observation from different angles, minimizing strain during long hours of use. Its adjustable interpupillary distance and paired wide field 10x eyepieces accommodate diverse users, making it ideal for collaborative environments in laboratories or educational settings.

Superior Magnification and Clarity

Equipped with a zoom objective ranging from 0.7x to 5x and magnification up to 50X, this microscope delivers crisp, detailed images. Achromatic objectives enhance image quality by correcting color distortions. Dual illumination (incident and transmitted) with halogen or optional LED ensures accurate visualization of both transparent and opaque samples.

Durable, Versatile, and Easy to Use

Constructed from all-metal materials, the JBM-750T offers durability and longevity. The coarse focusing system, robust pillar stand, and spacious rectangular stage (115mm x 105mm) with frosted and black/white plates support a range of applications-from electronics inspection to precision assembly and research. Spare parts and dealer support are available throughout India.

FAQ's of Stereo Zoom Microscope JBM-750T:

Q: How does the zoom magnification system benefit users of the JBM-750T?

A: The microscope's zoom magnification (7X-50X) enables smooth transition between low and high magnification, allowing users to examine specimens in detail without losing context. This flexibility is essential for applications requiring both overview and close-up inspection, such as electronics assembly or biological research.

Q: What applications is the JBM-750T Stereo Zoom Microscope best suited for?

A: This microscope is ideal for precision assembly, inspection tasks, research laboratories, electronics work, entomological studies, and educational use. Its range of magnification and ergonomic design make it suitable for environments requiring accurate observation and plenty of user comfort.

Q: Where can the JBM-750T be purchased in India?

A: The JBM-750T is available through authorized dealers, importers, manufacturers, retailers, suppliers, traders, and wholesalers across India. Customers can contact these distributors for purchase, spare parts, and service support.

Q: How is specimen illumination achieved on this microscope?

A: The JBM-750T uses both incident and transmitted illumination, achieved with a built-in halogen lamp or an optional LED system. This dual lighting enables detailed observation of both opaque and transparent specimens, enhancing the versatility of the microscope.

Q: What durable features does the JBM-750T offer?

A: Built with all-metal construction, the microscope provides solid durability. Its sturdy pillar stand ensures stability during use, and the rack and pinion focusing mechanism delivers reliable, long-lasting performance.

Q: What is the process for adjusting focus and magnification?

A: Users can easily adjust magnification using the zoom objective knob (from 0.7x to 5x). The coarse focusing system, driven by a rack and pinion mechanism, allows for quick and precise focus adjustments within a 45 mm range and a 100 mm focal distance.

Q: When is it beneficial to use the trinocular port on the JBM-750T?

A: The trinocular port is especially useful when users need to connect a camera for image or video documentation while simultaneously observing through the eyepieces. This enhances research, teaching, and record-keeping applications.
