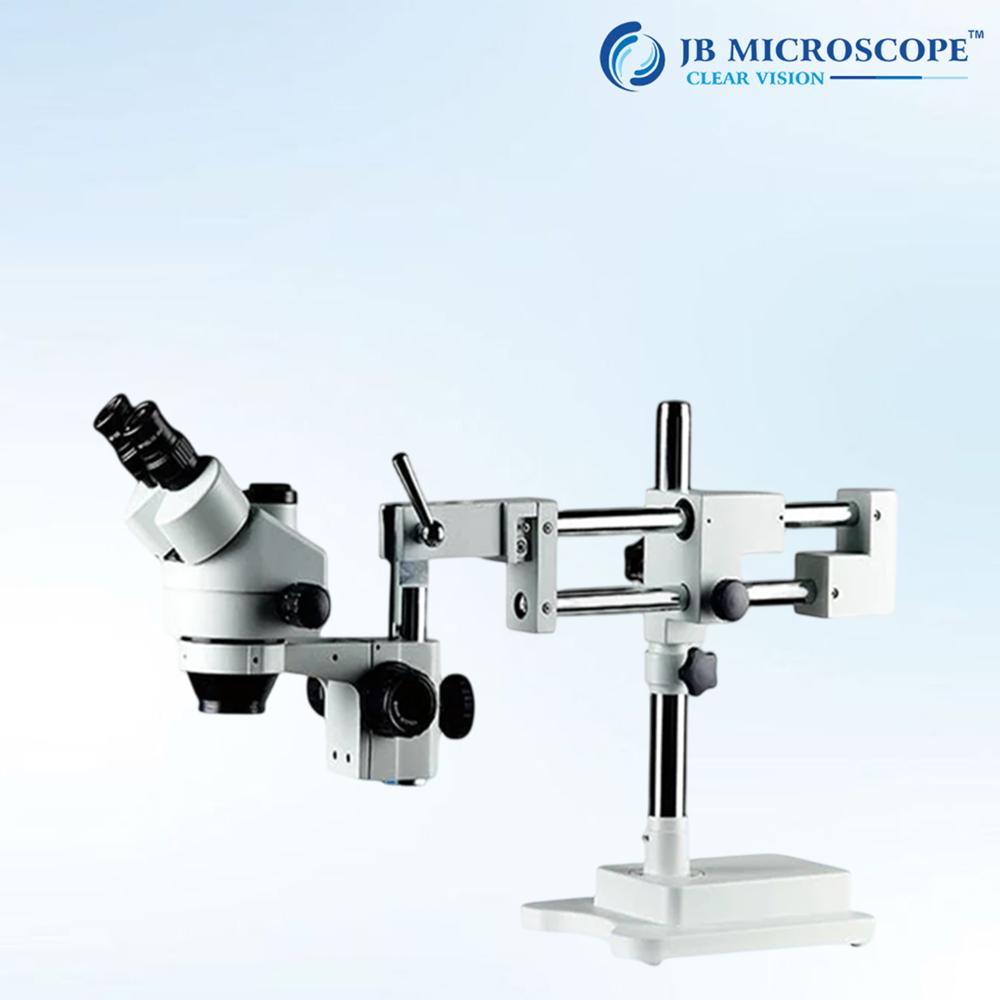

Stereo Zoom With Boom Stand JBM-BS45

Name: Stereo Zoom With Boom Stand JBM-BS45
Brand: JB INSTRUMENTS PVT LTD
Price: 45000.0 INR
Availability: InStock

Price 45000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stereo Zoom With Boom Stand JBM-BS45 Specification

Features
Heavy-duty boom stand, wide zoom range, high optical clarity, ideal for inspection and repair applications.

View Head
Binocular stereoscopic head, 45 inclined, 360 rotatable.

Focus System
Coarse focusing mechanism with rack and pinion drive.

Spare Parts
Eyepieces, objectives, focusing rack, protective eye guards available.

Theory
Stereo Microscope

Drawtube
Trinocular

Sensor
Not applicable (optical microscope).

Resolution
Sharp and high-contrast optical clarity depending on selected magnification.

Interface
Not applicable (no digital interface).

Frame Rate
Not applicable (no imaging sensor).

Focal Distance
100 mm (approximate working distance).

Magnification
7X-45X

Dimensions
Approximate base size: 380mm x 240mm; Boom arm length: 345mm.

Focus Range
Up to 100 mm with coarse focusing mechanism.

Eyepieces
Widefield WF10x/20mm (pair), eyepiece tubes with diopter adjustment.

Eyepiece Tube
Binocular, inclined at 45, interpupillary adjustment.

Illumination
External illumination required; supports ring light or fiber optic light guide (not included).

Coarse Adjustment Range
Available; enables large movement for primary focusing.

Fine Adjustment Range
Not available.

Working Stage
Flat base with boom stand for large object viewing.

Still Image Capture Resolution
Not applicable (no camera).

Video Capture Resolution
Not applicable (no camera).

Image Format
Optical image (no digital capture).

Interpupillary Distance
Adjustable from 55mm to 75mm.

Objective Achromatic
Zoom objective 0.7x to 4.5x.

Condenser
Not applicable (stereo microscope).

Light Source
External; provision for attaching ring or separate illumination (optional).

Weight
Approx. 8 kg gross (may vary with configuration).

Diopter Adjustment
Adjustment provided on left eyepiece tube for comfort.

Body Material
All-metal sturdy construction for durability.

Optical System
Greenough optical system for true stereoscopic effect.

Base Type
Rectangular heavy metal base with anti-skid supports.

Dust Cover
Supplied for microscope protection.

Eyepiece Reticle Support
Eyepiece tubes accommodate measuring reticle (optional).

Finish
Anti-reflection, chemical-resistant coating.

Accessory Compatibility
Compatible with various camera adapters, auxiliary objectives, and illumination modules.

Boom Arm Movement
Horizontal and vertical movement for easy positioning.

Usage
Electronics assembly, precision engineering, gemstone evaluation, biological sample examination.

Magnification Change
Continuous variable zoom control.

Stand Type
Industrial heavy-duty boom stand for stable and versatile positioning.

Revolving Head
360 rotatable for flexible viewing angles.

Stereo Zoom With Boom Stand JBM-BS45 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About Stereo Zoom With Boom Stand JBM-BS45

Grab the magnificent Stereo Zoom With Boom Stand JBM-BS45-your paragon for high-precision inspection! Built with an all-metal, anti-reflection, chemical-resistant body, this ravishing instrument delivers sharp, high-contrast true stereoscopic viewing from 7X to 45X magnification. The industrial heavy-duty boom stand offers stable, versatile positioning for ultimate user comfort. Enjoy continuous variable zoom, 360 revolving head, and a generous 100mm working distance. Compatible with camera adapters and auxiliary objectives, this model radiates excellence in electronics assembly, gemstone evaluation, biology, and more. Order yours now and experience unrivaled clarity!

Advantage & Versatile Applications of JBM-BS45

The Stereo Zoom With Boom Stand JBM-BS45 excels in providing stable, reliable, and flexible viewing with its robust heavy-duty boom stand. Its wide 7X-45X magnification range suits electronics assembly, PCB inspection, jewellery assessment, precision engineering, and biological sample examination. Designed to accommodate both small and large object surfaces, the adjustable arm and trinocular head deliver comfort and adaptability in industrial and research environments. Grab this paragon for all detailed inspection and analysis needs.

Certifications, Payment, and Export Markets

JBM-BS45 is recognized across domestic markets and international domains for meeting stringent quality certifications. Purchase Orders are accepted from dealers, suppliers, and institutions, ensuring seamless payment terms for a smooth transaction. Packing & Dispatch procedures are meticulously followed to guarantee safe delivery. The main export markets include India, Asia, and emerging global industrial sectors. With every order, you receive assured excellence and prompt customer support for a hassle-free experience.

Magnification range	7x 45x
Magnification	45x
Zoom ratio	6.3x
Head type	Trinocular
Illumination type	LED
Stand type	Boom stand
Model Name/Number	JBM-BS45
Eyepiece magnification	10x
Reflected light	Top bottom light
Application	PCB inspection, Jewellery, Education, Research, Industrial
Viewing Head	Trinocular head, Inclined 45 Degree.
Working Distance	100mm
Zoom Objective	0.7-4.5X
Zoom Range	6.5:1
Head Mounting Size	76mm in diameter
Vertical Post:	380mm
Diameter	32mm
Horizontal moving	235mm
Base Size	210x260x50mm

FAQ's of Stereo Zoom With Boom Stand JBM-BS45:

Q: How does the JBM-BS45 ensure stable and versatile positioning during use?

A: The JBM-BS45 features a heavy-duty industrial boom stand with anti-skid supports and a rectangular metal base, providing exceptional stability and flexible movement for various viewing angles and workpieces.

Q: What types of applications is this stereo zoom microscope suitable for?

A: This model is ideal for PCB inspection, electronics assembly, jewellery evaluation, precision engineering, biological sample examination, research, and educational purposes due to its wide magnification range and robust design.

Q: When should I use the continuous variable zoom control feature?

A: You should use the variable zoom control when you need to dynamically adjust magnification levels for detailed inspection or comparison, allowing precise and effortless switching between broader overviews and fine details.

Q: Where can this microscope be used effectively?

A: The JBM-BS45 can be effectively used on laboratory benches, manufacturing lines, research institutions, educational settings, and gemstone or jewellery workshops, thanks to its heavy-duty boom stand and adaptable design.

Q: What accessories are compatible with JBM-BS45?

A: It is compatible with a range of camera adapters, auxiliary objectives, measuring reticles, and external illumination modules like ring lights and fiber optic light guides, enhancing its functionality for different tasks.

Q: How does the anti-reflection finish benefit users during inspection?

A: The anti-reflection, chemical-resistant coating minimizes glare and enhances visual clarity, allowing users to observe fine details with high contrast, even under various lighting conditions.
