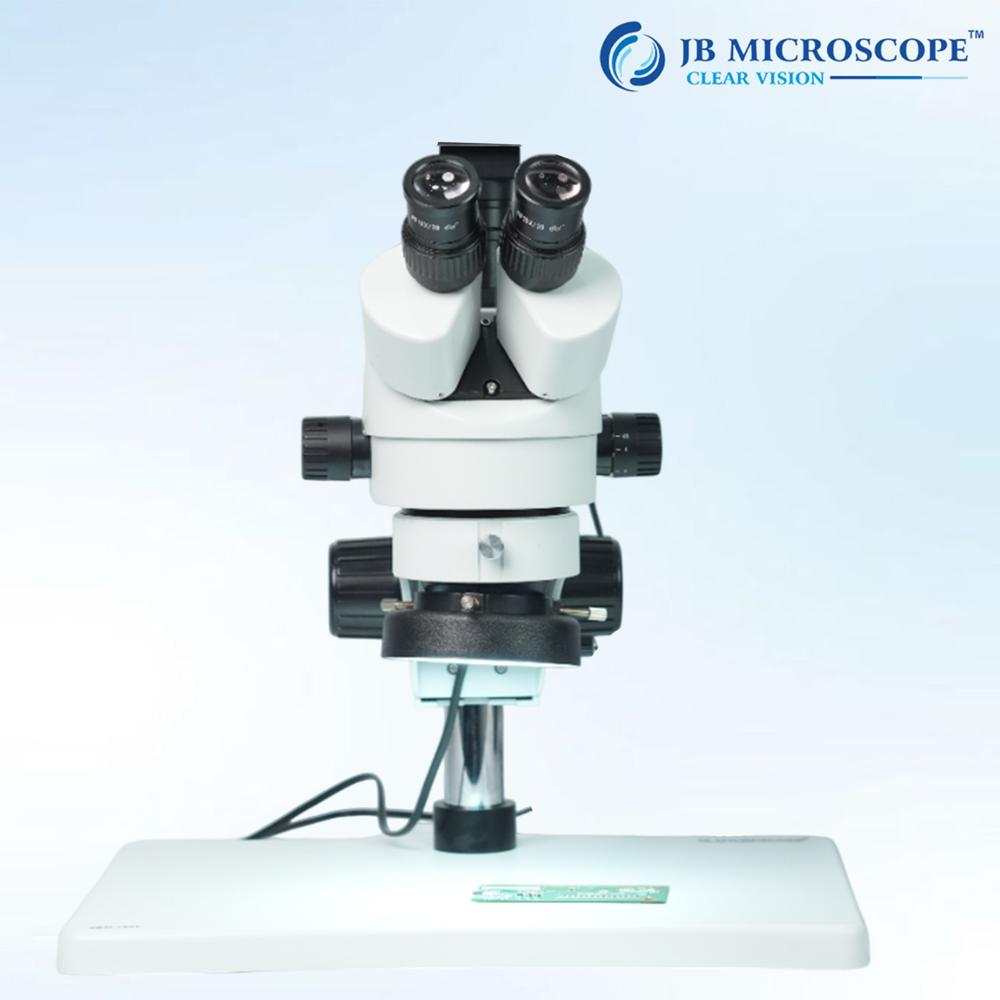

TrinocularStereo Zoom Microscope JBM-745T

TrinocularStereo Zoom Microscope JBM-745T Specification

Focus System
Rack and pinion focusing mechanism

Features
Trinocular head for camera integration; high-quality optics; long working distance; precision zoom controls; dual LED illumination; 360 rotatable head

Spare Parts
Eyepieces, auxiliary objectives, glass stage plate, bulbs, fuses

View Head
Trinocular, 45 inclined, 360 rotatable

Theory
Stereo Microscope

Drawtube
Trinocular

Sensor
N/A (Optional camera attachment supported)

Resolution
N/A (Dependent on attached camera)

Interface
Camera port for C-mount or similar digital cameras

Frame Rate
Depends on camera used (optional)

Focal Distance
100 mm working distance (with 1x objective)

Magnification
7X-45X

Dimensions
Base size approx. 250 mm x 200 mm; height approx. 350 mm

Focus Range
45 mm

Eyepieces
10X

Eyepiece Tube
Diopter adjustment provided

Illumination
Incident (reflected) and transmitted LED illumination with variable intensity

Coarse Adjustment Range
45 mm

Fine Adjustment Range
Not provided (coarse focusing only)

Working Stage
Stage plate with black/white contrast and frosted glass disc; stage size approx. 95 mm

Still Image Capture Resolution
Dependent on camera (optional)

Video Capture Resolution
Dependent on camera (optional)

Image Format
Dependent on camera (optional accessory)

Interpupillary Distance
55 - 75 mm adjustable

Objective Achromatic
Zoom objectives 0.7x - 4.5x (achromatic)

Condenser
Not applicable (for stereo microscopes)

Light Source
LED, both transmitted and reflected, brightness adjustable

Auxiliary Objectives Compatibility
0.5x and 2x auxiliary objectives supported

Package Includes
Microscope, dust cover, stage plates, power cord, operation manual

Body Material
Cast metal with scratch-resistant enamel finish

Environmental Conditions
0 - 40C operating temperature, non-condensing humidity

Power Supply
AC 220V/50 Hz or DC (via adapter)

Application
Widely used in electronics, precision engineering, biology, gemology, and educational research

Stage Plate Diameter
95 mm (frosted glass and black/white plates included)

Head Movement
Vertical movement with smooth rack and pinion system

Zoom Ratio
6.4:1

TrinocularStereo Zoom Microscope JBM-745T Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About TrinocularStereo Zoom Microscope JBM-745T

Magnification range	7x 45x
Magnification	45x
Zoom ratio	6.3x
Head type	Trinocular
Brand	JB MICROSCOPE
Illumination type	LED
Working distance	110 mm
Stand type	Pole stand
Model Name/Number	JBM-745T
Eyepiece magnification	10x
Reflected light	Top bottom light
Application	Research, Education, Jewellery, PCB inspection, Industrial
Country of Origin	Made in India

Minimum order quantity: 1 Piece

JBM-745 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

Is It Portable	Portable
Magnification	45x
Angle	45 Degree
Model Name/Number	JBM-745
Eyepiece	Standard: 10X/22mm, high eyepoint, wide angle, wide field eyepiece
Objective	Zoom Range 0.67X-4.5X (Standard), Zoom Ratio: 6.7:1, ensure parfocality of the image plane
Warranty	1 Year
Country of Origin	Made in India
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Focusing Mount	A1 focusing mount with vertical working distance 50mm
Stand	B1 pole stand, for more options.
Illumination	Fluorescent lamp, LED ring light, for more option.

Versatile Applications Across Multiple Fields

The JBM-745T is widely embraced in electronics, precision engineering, biology, gemology, and educational research. Its flexible magnification and camera compatibility make it indispensable for tasks demanding detailed observation and documentation, such as PCB inspection, gemstone grading, and microscopic analysis in laboratories.

Enhanced Visual Precision and Comfort

Experience optimal ergonomics with a 45 inclined, 360 rotatable trinocular head. The microscope's adjustable interpupillary distance and diopter ensure user comfort and sharp focus. Precision zoom controls and a long working distance facilitate convenient manipulation of samples during extended sessions.

Flexible Illumination and Power Options

Dual LED illumination, incident and transmitted, provide variable intensity lighting for different specimens. The microscope runs on both AC and DC (via adapter) power, offering adaptability in diverse operating conditions. Its robust metal body ensures longevity, suitable for demanding environments.

FAQ's of TrinocularStereo Zoom Microscope JBM-745T:

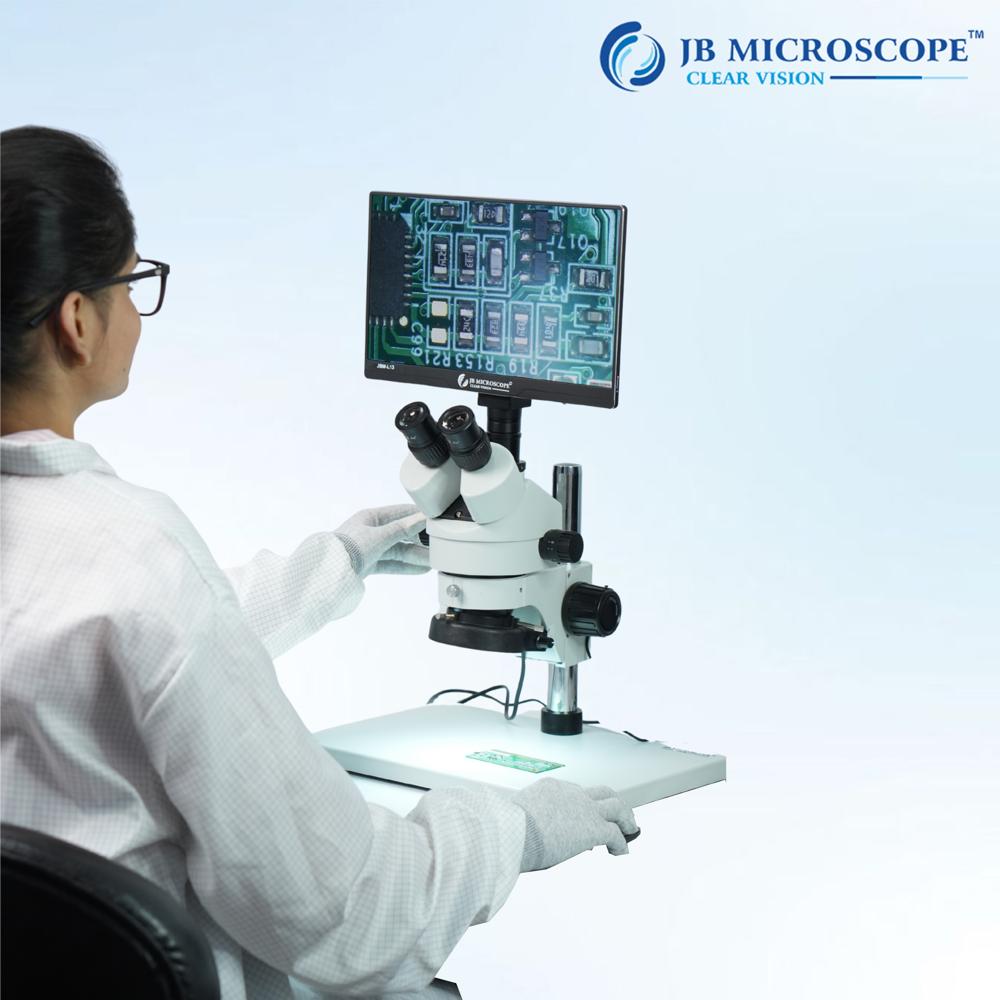

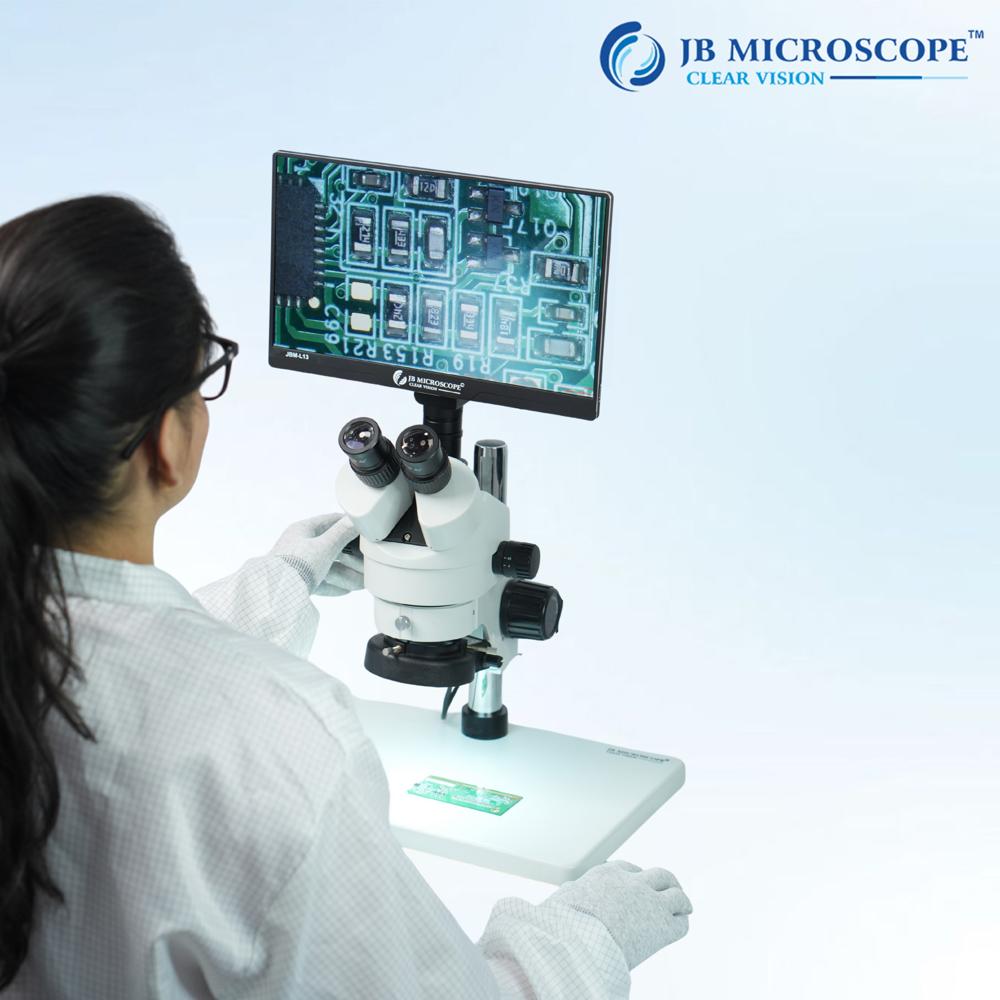

Q: How is the Trinocular Stereo Zoom Microscope JBM-745T best utilized in a laboratory or industrial environment?

A: This microscope excels in environments where detailed stereoscopic imaging is required, such as electronics repair, quality control, biological research, and gemology. Its precision optics, adjustable illumination, and camera integration make it ideal for close examinations, measurement, and documentation.

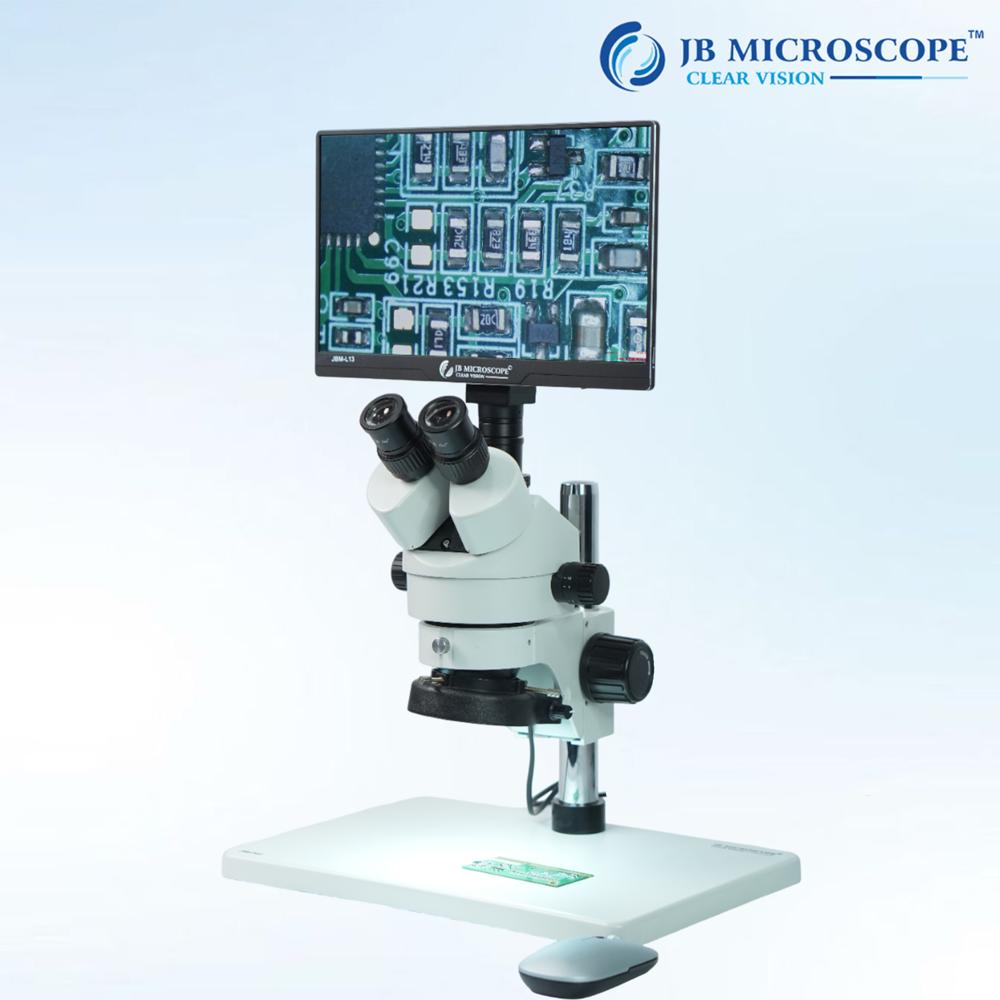

Q: What is the process for attaching a camera to the trinocular port of the JBM-745T?

A: Simply connect any compatible C-mount or similar digital camera to the dedicated trinocular camera port. Follow the operation manual for secure mounting. Camera selection determines image quality and frame rate, enabling still or video capture for documentation and analysis.

Q: When should auxiliary objectives be used with this microscope?

A: Auxiliary objectives, such as 0.5x and 2x, are recommended when you need to alter the microscope's magnification range or expand your working distance. Switching them allows you to adapt the JBM-745T for various specimen sizes or observation needs, enhancing its versatility.

Q: Where can the JBM-745T operate effectively in terms of environmental conditions?

A: This microscope performs reliably in operating temperatures between 0 to 40C with non-condensing humidity, making it suitable for most indoor laboratory and workshop settings across India.

Q: What benefits does the dual LED illumination system offer for specimen observation?

A: The dual LED system provides both incident (reflected) and transmitted light, with variable intensity adjustment. This flexibility enables clear viewing of opaque, transparent, or semi-transparent samples, supporting diverse research and inspection applications.

Q: How does the rack and pinion focusing system enhance user operation?

A: The rack and pinion mechanism allows precise vertical movement of the microscope head, offering coarse focus adjustments over a 45 mm range. This stable and smooth operation ensures users can obtain sharp images quickly and with minimal effort.
