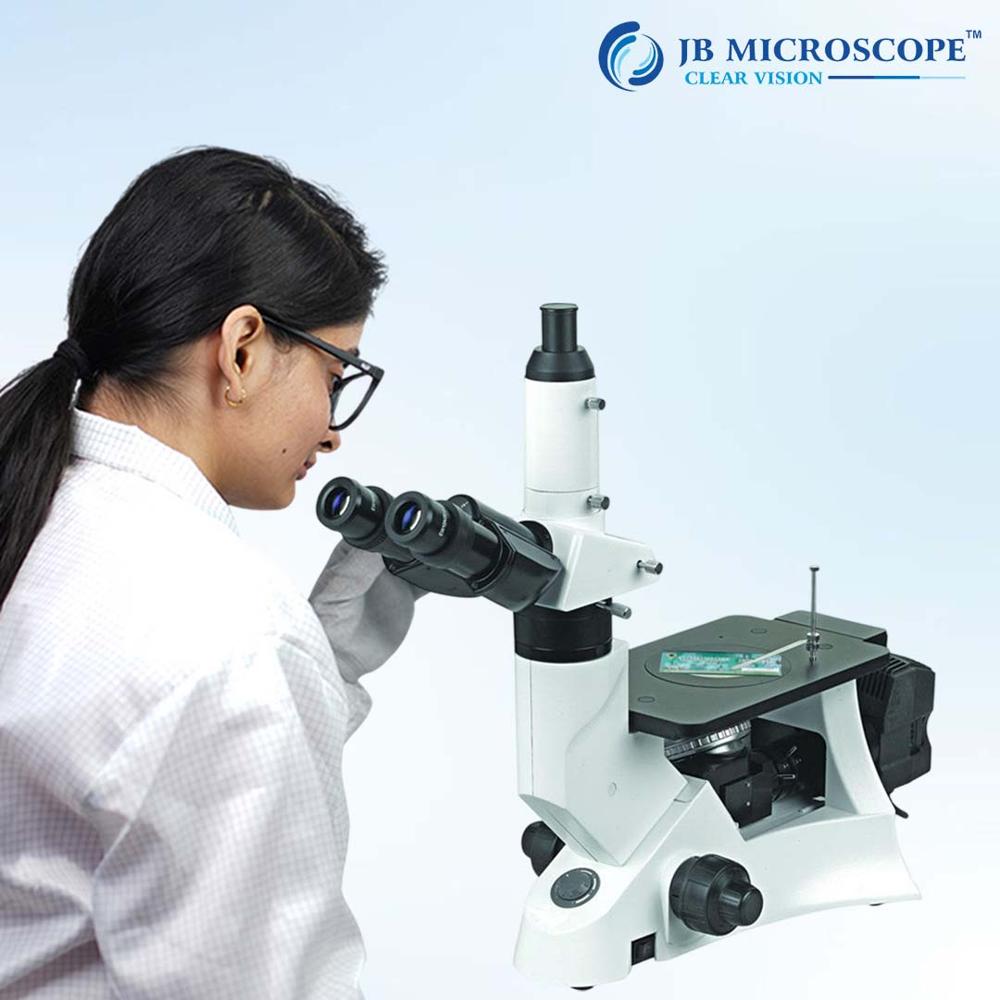

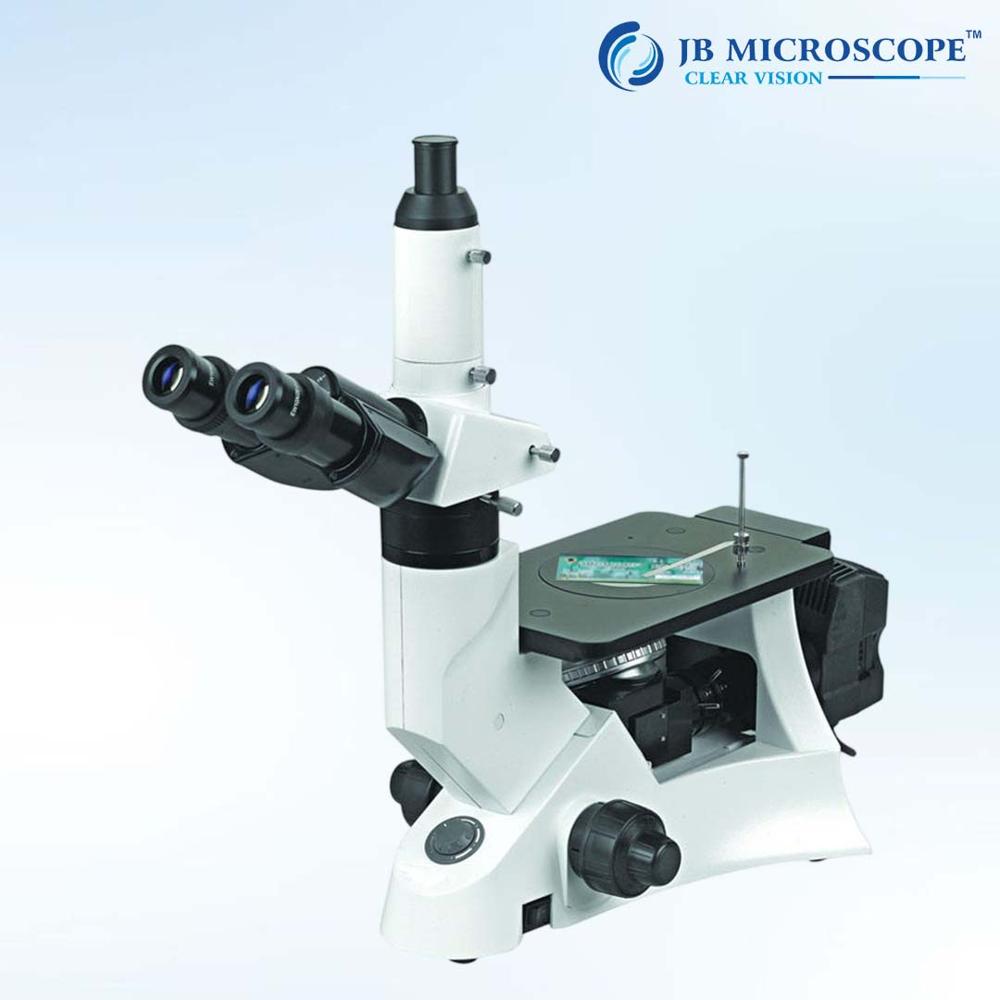

Inverted Metallurgical Microscope JBM MM16

Inverted Metallurgical Microscope JBM MM16 Specification

Focus System
Coaxial coarse & fine adjustment, vertical movement of nosepiece

View Head
Trinocular, rotatable, 45 inclined

Features
Suitable for observation of metallographic structure, large sample accommodation, trinocular for digital imaging, ergonomic design

Spare Parts
Halogen bulbs, fuses, eyepiece, objectives, stage plate

Theory
Inverted microscopy for metallurgical sample observation with transmitted and reflected light.

Drawtube
Trinocular, 45 inclined, 360 rotatable

Sensor
N/A (Eyepiece observation, camera port available)

Resolution
Dependent on camera attachment, eyepiece: 10x, 12.5x

Interface
Trinocular port for camera attachment, standard mechanical interfaces

Frame Rate
Dependent on camera (not included)

Focal Distance
Working distance up to 7mm (objective dependent)

Magnification
50x to 400x (depends on objective & eyepiece combination)

Dimensions
Approx. 400mm x 230mm x 480mm

Focus Range
Coarse and Fine focus, focusing stroke: 7mm

Eyepieces
WF 10x (paired), with rubber eyeshields

Eyepiece Tube
Trinocular, inclined at 45

Illumination
Reflected high brightness halogen lamp, 6V/20W adjustable

Coarse Adjustment Range
30mm

Fine Adjustment Range
2m precision

Working Stage
Mechanical stage, 120x140mm, X-Y movement 30x30mm

Still Image Capture Resolution
Dependent on camera attachment

Video Capture Resolution
Dependent on camera attachment

Image Format
Depends on camera used; trinocular port supports video and still image output

Interpupillary Distance
55mm to 75mm adjustable

Objective Achromatic
Plan achromatic objectives: 10x/0.25, 20x/0.40, 40x/0.65 (BD)

Condenser
Built-in condenser (N.A. 0.4), for 5x~40x objectives

Light Source
6V/20W Halogen bulb

Application Fields
Metallurgy, material science, electronics, engineering, quality control

Power Supply
AC 220V/50Hz or 110V/60Hz (optional)

Body Material
Heavy-duty metal base and arm for vibration-free performance

Objective Nosepiece
Quadruple (revolving) nosepiece

Camera Adaptability
Supports digital camera (C-mount/suitable adapters necessary)

Stage Plate
Recessed glass and metal plate provided

Stage Movement
Coaxial low-positioned X-Y controls, range 30 x 30mm

Stage Vernier
Graduated vernier scale for precise sample positioning

Sample Capacity
Accepts samples up to 50mm height

Inverted Metallurgical Microscope JBM MM16 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About Inverted Metallurgical Microscope JBM MM16

Experience astonishing image clarity and value with the Inverted Metallurgical Microscope JBM MM16. Designed for metal analysis research, this superb instrument features impeccable stage movement, plan achromatic objectives, and a heavy-duty frame for vibration-free performance. Its trinocular head and camera adaptability enable advanced digital imaging, satisfying the needs of metallurgy, material science, electronics, and engineering quality control. Buy online today for precise results, ergonomic comfort, and reliable operation. Order now for exceptional results, delivered with assurance by India's leading dealer, manufacturer, and supplier.

Commercial Applications and Distinctive Features

The JBM MM16 is essential for metallurgy, material science, and electronics industries-delivering unbeatable precision and reliability for sample analysis and quality control. Special features include a robust mechanical stage with 30 x 30mm coaxial controls, plan achromatic objectives, and a flexible trinocular optical head for unrivaled viewing. Ergonomically engineered for demanding research environments, this microscope offers a high-brightness LED light source and accommodates samples up to 50mm, ensuring versatility for a variety of commercial investigations.

Sample Availability, Payment, and Certifications

For your convenience, JBM MM16 sample demonstrations are available with a modest outlay. Flexible payment terms are offered to suit institutional and bulk orders. Each microscope is delivered with nationally recognized certifications, ensuring impeccable quality and compliance. Reliable delivery is available across India, backed by a comprehensive warranty and responsive after-sales support. Rest assured that your order is processed efficiently, and your investment is safeguarded from the moment it's delivered.

Magnification	500x
Application	Metallurgy
Magnification range	50x to 500x
Illumination	LED
Light Source	LED
Observation head	Trinocular
Stage size	120x120 mm
Objective type	Plan achromatic
Brand	JB Microscope
Model Name/Number	JBM-V100
Usage/Application	Metal Analysis Research
Stage type	Mechanical insert
Features	Inverted Type
Camera port	0.5x adapter, C mount port
Imaging port	Camera port
Drawtube	For Camera
Warranty	1 Year
Material	Metal
Is It Portable	Non Portable
Country of Origin	Made in India
Metallurgical Microscope	140000

FAQ's of Inverted Metallurgical Microscope JBM MM16:

Q: How do I operate the stage movement on the JBM MM16 microscope?

A: The JBM MM16 features coaxial low-positioned X-Y controls, allowing smooth and precise 30 x 30mm sample movement for effortless observation and positioning.

Q: What are the main commercial uses of the Inverted Metallurgical Microscope JBM MM16?

A: This microscope is primarily used for metallurgical analysis, material science studies, electronics inspection, engineering, and quality control tasks in industrial and research settings.

Q: When can I expect delivery after placing my online order?

A: Delivery times vary by location, but your JBM MM16 is typically dispatched promptly and delivered within the estimated window provided at checkout. Bulk and institutional orders may have special delivery arrangements.

Q: Where can I attach a camera for digital imaging?

A: The JBM MM16 is equipped with a trinocular port supporting digital cameras via C-mount or suitable adapters for effortless digital imaging and documentation.

Q: What is the process for getting a product demo or sample?

A: Contact the supplier or authorized dealer to schedule a demonstration. Samples for evaluation are available on request, subject to a nominal outlay and mutual arrangements.

Q: How does the warranty and certification benefit my purchase?

A: Every unit is backed by a one-year warranty and comes with recognized national certifications, ensuring your investment is protected and that the microscope meets industry quality standards.

Price 190000.0 INR/ Piece

Minimum Order Quantity
1 Piece

Delivery Time
4 Days
