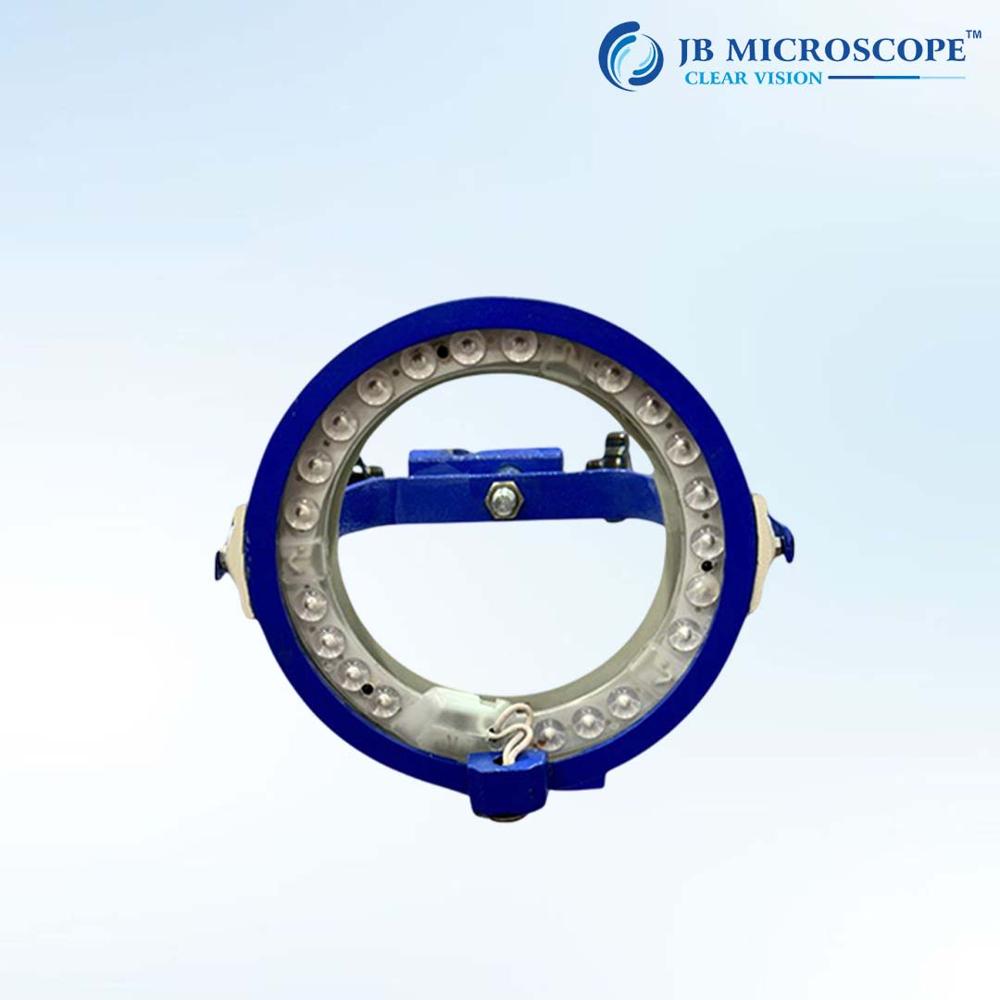

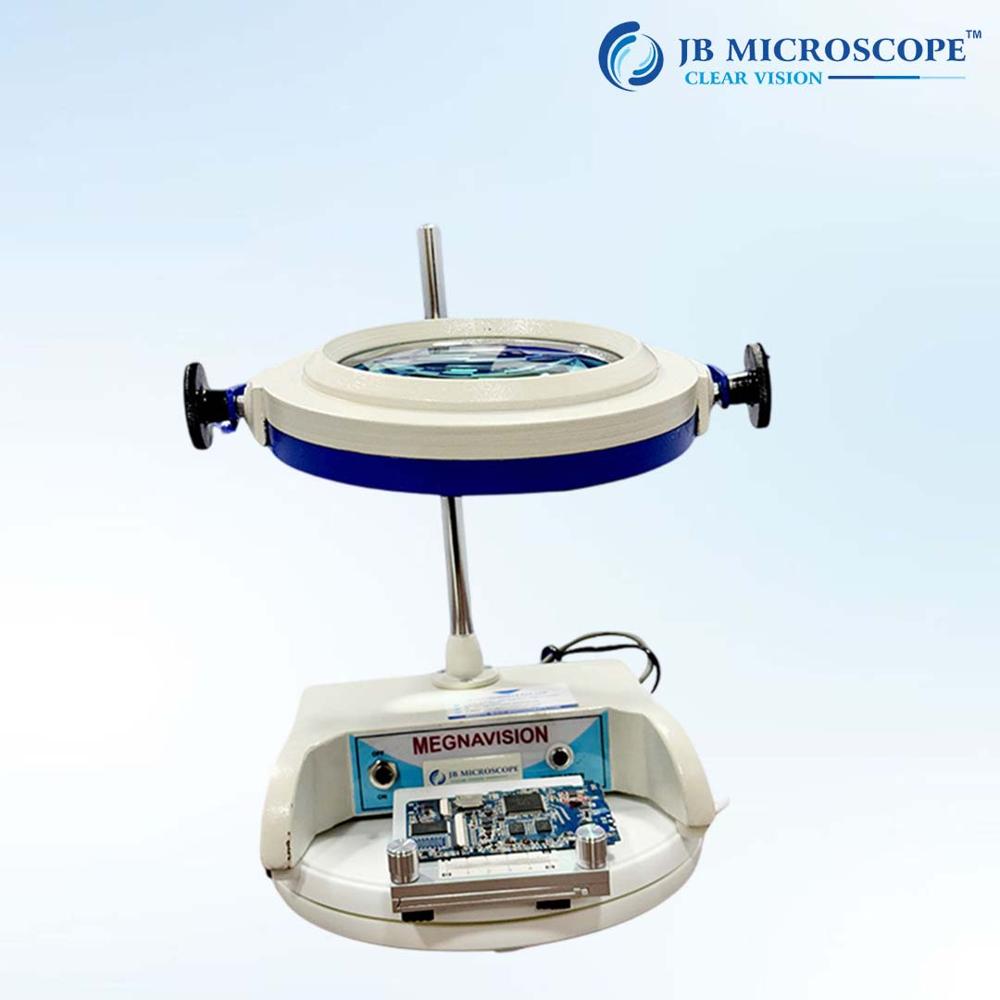

Magnifying Glass Lamp JBM-10X

Magnifying Glass Lamp JBM-10X Specification

Focus System
Manual

Features
Adjustable arm, clamp mount, dust cover included, anti-static body

Spare Parts
Replacement fluorescent lamp

View Head
Single glass lens

Theory
Other

Drawtube
Other

Focal Distance
180 mm (approximate)

Magnification
10x

Dimensions
Diameter of lens: 127 mm (5 inch); Overall arm length: approx. 36-38 inches

Focus Range
Manual adjustment

Eyepieces
Lens (not an eyepiece-type instrument)

Illumination
Circular fluorescent tube

Working Stage
Work table clamp/flexible arm

Image Format
Visual observation only

Light Source
22W circular fluorescent lamp

Power Supply
220V AC

Lens Material
Optical glass

Color
White

Model
JBM-10X

Application
Electronic assembly, jewellery, laboratory inspection, reading

Mounting
Table clamp, adjustable arm

Lens Diameter
127 mm (5 inch)

Magnifying Glass Lamp JBM-10X Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Magnifying Glass Lamp JBM-10X

Magnification	10x
Light type	LED
Number Of Dioptre	3D
Wattage	8 W
Body Material	Iron
Mounting	Table base
Arm type	Fixed arm
Power (W)	50 W
Usage/Application	Inspection
Light Source	220V
Type	Magnifying Glass
Lens Diameter	100mm
Portable	Yes
Mounting Type	Stand Type
Rotation Angle	360 Degree
Lighting Type	LED
Color temp	4000 K
Head Type	Circular
Lens material	Optical glass
Brand	JBM
Material	Metal and optical
Lens Size	4" OR 5" OR 8"
Color	White and blue
Voltage	220V
Size/Diameter	1x1 ft

Minimum order quantity: 1 Piece

Bench Magnifier are designed of specialized inspection requirements in thedifferent industries under specific applications. These magnifiers havemaximum magnification upto 5x (Approx.).The magnification is without anychromatic or spherical aberration over the entire field of view, providing perfectstrain-free vision.
Magnacope - Magnigying Lamp
Lens Size - 4" / 5" / 8"
Light - CFL round ligh (Better Illumination)
Uses - Inspection of PCB, Metal part

Superior Magnification and Visual Clarity

Outfitted with a high-quality 127 mm (5-inch) optical glass lens, the JBM-10X offers 10x magnification suitable for intricate electronic assembly, jewelry inspection, laboratory work, or reading. Its manual focus system and circular fluorescent illumination provide sharp detail and reduced eye strain, ensuring comfort even during extended use.

Robust Flexibility and Secure Mounting

The lamp's adjustable arm offers precise positioning over your work area. The secure table clamp allows stable attachment to desks or benches, making it suitable for diverse work settings. Combined with a flexible arm, you can direct the light and magnifier exactly where you need, improving productivity and workflow.

Designed for Durability and Ease of Use

Engineered with an anti-static body and supplied with a dust cover, the JBM-10X is tailored for protection and reliability. The easily replaceable 22W circular fluorescent lamp and manual focus adjustment ensure long-lasting performance with convenient maintenance.

FAQ's of Magnifying Glass Lamp JBM-10X:

Q: How do I install the Magnifying Glass Lamp JBM-10X on my workspace?

A: To install, simply use the table clamp to attach the lamp securely to the edge of your work table. Adjust the flexible arm to position the lens and illumination over your desired area, and plug it into a 220V AC power outlet. The process takes only a few minutes and requires no specialized tools.

Q: What is the benefit of using a 10x optical glass lens for inspection or assembly tasks?

A: A 10x optical glass lens provides high magnification and distortion-free viewing, enabling you to clearly observe fine details during electronic assembly, jewellery inspection, laboratory analysis, or reading. This reduces eye fatigue and enhances accuracy, making your work more precise and efficient.

Q: When should I consider replacing the fluorescent lamp?

A: Replace the 22W circular fluorescent lamp when you notice reduced illumination, flickering, or uneven light. Regular inspections will help maintain optimal brightness for detailed work, and spare lamps are readily available for this model.

Q: What surfaces are suitable for mounting the lamp's clamp?

A: The sturdy table clamp can be mounted on most standard workbenches, desks, or tables with sufficient edge thickness (usually up to 2 inches). Choose a stable, flat surface for best results, and avoid mounting on uneven or fragile edges.

Q: How do I manually adjust the focus for different tasks?

A: Position your workpiece under the lens and move it up or down until the desired section appears sharp. The manual focus mechanism allows for quick and easy adjustments to accommodate objects of different heights within the approximate 180 mm focal distance.

Q: Where is the Magnifying Glass Lamp JBM-10X commonly used?

A: This lamp is widely used in electronics assembly, jewellery making, precision laboratory inspections, and reading applications. Its portability and versatility make it popular among professionals, retailers, and hobbyists throughout India.

Q: What are the maintenance steps to ensure long-term performance?

A: To maintain the JBM-10X, regularly wipe the optical glass lens with a soft cloth, cover the lamp with the included dust cover when not in use, and check the lamp and clamp assembly for tightness. Replace the fluorescent lamp as needed for consistent illumination.
