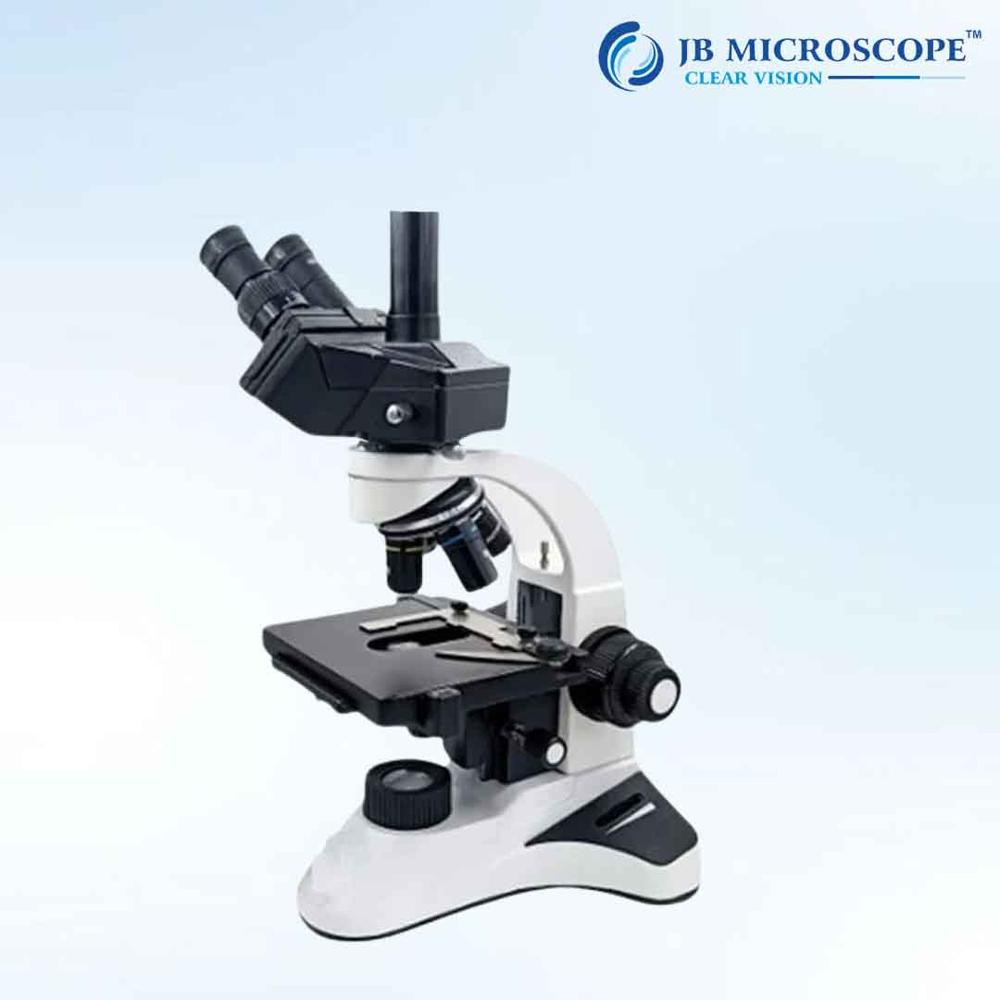

Trinocular Biological Research Microscope JBM-SM05T

Trinocular Biological Research Microscope JBM-SM05T Specification

Spare Parts
Spare bulb, fuse, immersion oil, dust cover provided

View Head
Trinocular, 360 rotatable, 45 inclined

Features
Anti-fungal optics, precise mechanical movements, ergonomic viewing

Focus System
Coaxial coarse & fine focusing controls

Theory
Designed for advanced biological research applications

Drawtube
Trinocular

Sensor
Not included; compatible with optional camera adapters

Resolution
Depends on attached camera

Interface
Standard C-mount for camera attachment

Frame Rate
Depends on attached camera

Focal Distance
160 mm (standard optical length) Millimeter (mm)

Magnification
40x to 1000x (Standard), up to 1600x with optional accessories

Dimensions
Approx. 370 x 270 x 420 mm Millimeter (mm)

Focus Range
Coarse and fine focusing system Millimeter (mm)

Eyepieces
Wide Field 10x paired (optional: 15x/20x)

Eyepiece Tube
Inclined at 45, rotatable 360

Illumination
Built-in Halogen Lamp (6V/20W) with adjustable brightness

Coarse Adjustment Range
30 mm

Fine Adjustment Range
0.002 mm precision

Working Stage
Mechanical double-layer stage, 140 x 140 mm with 75 x 50 mm movement Square Meter (m2)

Still Image Capture Resolution
Depends on attached camera

Video Capture Resolution
Depends on attached camera

Image Format
Depends on camera attachment (JPG, PNG, TIF typically supported)

Interpupillary Distance
55 - 75 mm adjustable Millimeter (mm)

Objective Achromatic
4x, 10x, 40x (S), 100x (S, Oil)

Condenser
Abbe condenser NA 1.25 with iris diaphragm

Light Source
Halogen, 6V/20W, adjustable

Revolver Nosepiece
Quadruple; ball bearing, backward facing

Stage Scale Division
0.1 mm graduation

Power Supply
AC 220V / 50Hz or 110V / 60Hz

Safety Feature
Overheating protection for illumination system

Stage Clips
High-tension, replaceable

Stage Movement Control
Coaxial XY control knobs

Objective Mounting
RMS standard threads

Weight
Approx. 7.2 kg

Blue Filter
Included for optimal color rendition

Body Material
Sturdy die-cast metal frame with anti-rust paint

Trinocular Biological Research Microscope JBM-SM05T Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Trinocular Biological Research Microscope JBM-SM05T

Model Name/Number	JBM-SM05T
Magnification range	40x to 1000x
Illumination	LED Light
Observation head	Trinocular
Objective type	Plan achromatic
Eyepiece	WF10x
Light Source	LED
Usage/Application	Laboratory Use
Is It Portable	Non Portable
Microscope Type	Laboratory Trinocular Microscope
Stage type	Mechanical
Draw Tube	Trinocular
Condenser	Fixed condenser
Digital Imaging	Yes
Focusing	Coaxial
Magnification	1000x

JBM-SM05T Trinaculor Microscope features of Standard Laboratory Microscopes. The objectives are high grade IMPORTED Achromats Semi Plan, very well CENTRED & PARAFOCAL, a feature not found in other Indian make microscopes. All the features such as mechanical stage, coaxial coarse & fine focusing mechanism, Illumination system & Sub-stage Condenser on Rack & Pinion offered in these models are the same as in other JBI Microscope: hence these offer excellent performance at lowest price.

Stand- Sturdy stand anti rust materials. Extended base. Viewing Bodies- Trinacular Head in 30 inclined, 360 rotatable dovetail, Inter papillary distance 54 - 74mm Eyepiece- Wide Field eyepiece WF10x/18mm, with foldable eye guard, anti-fungus coating - locked in ocular tube. Nosepiece- Quadruple nosepiece (Ball bearing type) Objectives- Semi-Plan Achromatic objectives 10x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating. Par-centered & Para focal. Mechanical Stage- Mechanical stage with Co-axial drive, highly smooth on ball slides, stainless steel holder for slide movement X-Y = 75mm x 50mm.

Precision Optics and Easy Camera Integration

The JBM-SM05T features RMS standard thread objective mounting and a standard C-mount interface for camera connectivity, making it adaptable for image capture or live observation. This setup benefits researchers by providing high-resolution observation and the flexibility to document findings digitally through compatible camera adapters.

Ergonomically Designed for Extended Use

The frame is constructed from sturdy die-cast metal with an anti-rust finish and ergonomic design, ensuring durability and comfortable use over long sessions. The trinocular head, inclined at 45 and rotatable 360, accommodates users of varied heights and preferences, reducing fatigue during detailed work.

Enhanced Stage Control and Accurate Measurement

Equipped with a mechanical double-layer stage measuring 140 x 140 mm, with 75 x 50 mm movement and 0.1 mm graduation, the JBM-SM05T enables precise sample placement and measurement. Coaxial XY control knobs facilitate seamless, accurate movement, essential for advanced biological research and microanalysis.

FAQ's of Trinocular Biological Research Microscope JBM-SM05T:

Q: How is the magnification range achieved on the JBM-SM05T microscope?

A: The microscope provides a standard magnification range of 40x to 1000x using achromatic objectives (4x, 10x, 40x (S), and 100x (S, Oil)) and paired Wide Field 10x eyepieces. Optional 15x/20x eyepieces or additional accessories can further extend magnification up to 1600x.

Q: What safety features are included with the illumination system?

A: The JBM-SM05T is equipped with an overheating protection feature to safeguard the built-in 6V/20W halogen lamp during use, ensuring safe operation even in prolonged research sessions.

Q: When should the blue filter be used and what is its benefit?

A: The included blue filter is recommended during observation under halogen illumination, as it enhances color reproducibility and minimizes yellowish tones, which is especially beneficial for critical diagnostics or photography.

Q: Where can this microscope be utilized for best results?

A: The JBM-SM05T is ideal for research laboratories, universities, medical institutions, and industrial settings where advanced biological investigations and high-resolution imaging are required.

Q: How does the stage scale division support sample analysis?

A: The 0.1 mm graduated stage scale enables precise sample measurements and positioning, which is vital in quantitative research, allowing for detailed mapping and comparative studies of specimens.

Q: What process is involved in attaching a camera to this microscope?

A: A compatible camera can be connected via the standard C-mount provided on the trinocular head. This allows for image or video capture, with the camera's resolution defining the digital output. Adapters may be needed depending on the camera model.
