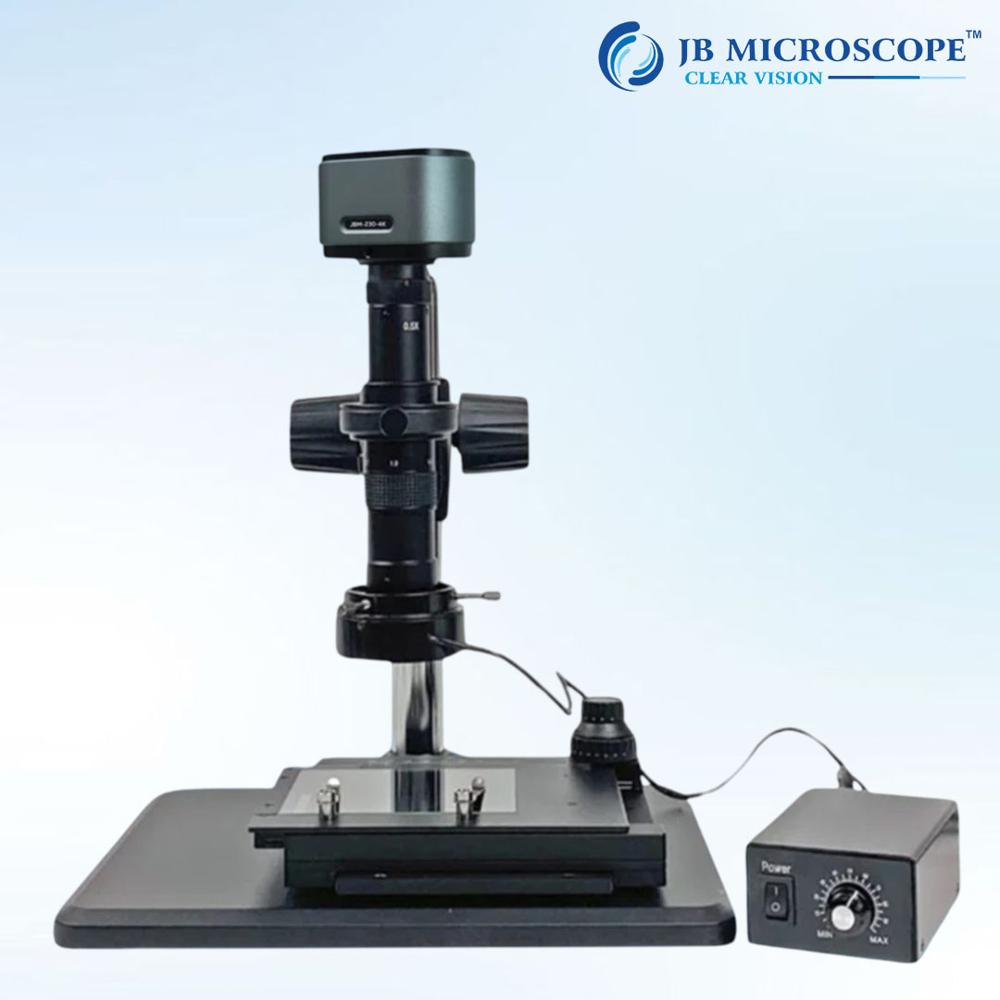

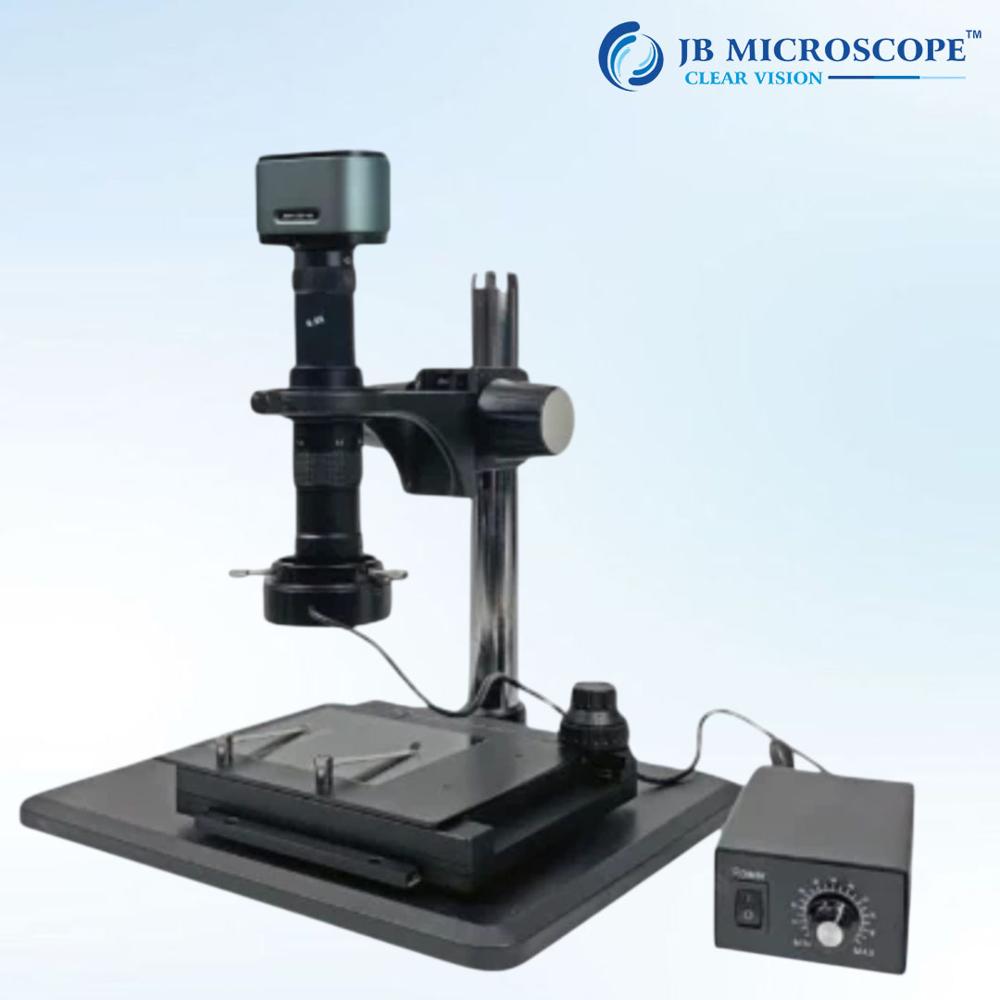

50X Digital Inspection Video Microscope JBM-MZ2i

Name: 50X Digital Inspection Video Microscope JBM-MZ2i
Brand: JB INSTRUMENTS PVT LTD
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

50X Digital Inspection Video Microscope JBM-MZ2i Specification

Focus System
Manual Focusing rack & pinion

View Head
Monocular, LCD/PC Display Output

Spare Parts
Power Adapter, USB Cable, Calibration Scale, Instruction Manual

Features
High Definition Imaging, Adjustable Illumination, Real-Time Video, Still Image Capture, Wide Working Space, Portable Design.

Theory
Digital Inspection Microscope for electronic and industrial inspection.

Drawtube
Other

Sensor
High-Performance CMOS Sensor

Resolution
1080p Full HD

Interface
USB 2.0/3.0, HDMI Output

Frame Rate
60fps (Max)

Focal Distance
10mm - 300mm adjustable

Magnification
45X

Dimensions
Approx. 200mm x 130mm x 380mm (L x W x H)

Focus Range
Manual, 0mm-50mm

Eyepieces
0.5X

Eyepiece Tube
Digital Video Tube

Illumination
Adjustable LED Ring Light

Coarse Adjustment Range
0-50mm (Manual)

Fine Adjustment Range
0-2mm (Knob)

Working Stage
Large Metal Stage with Measurement Grid

Still Image Capture Resolution
1920 x 1080 pixels

Video Capture Resolution
1920 x 1080 pixels

Image Format
JPEG, BMP

Interpupillary Distance
Not applicable (digital view)

Objective Achromatic
Fixed objective lens

Condenser
Not required for digital imaging

Light Source
LED Illuminator with adjustable intensity

Output Display
Supports external monitor or computer display up to 24 inches.

Display Compatibility
Compatible with Windows, Mac OS, HDMI monitors and PCs.

Power Supply
DC 5V Adapter or USB powered.

Humidity
0% - 85% non-condensing

Language Support
Multi-language user interface

Software Included
Measurement and analysis software for Windows.

Material
Aluminium Alloy Frame with Plastic Components

Operating Temperature
0C to 40C

Weight
Approx. 2.1 kg

Usage
PCB, circuit board inspection, soldering, quality control, watch repair, research labs.

Image Storage
Captures and saves directly to connected PC or USB storage device.

50X Digital Inspection Video Microscope JBM-MZ2i Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
3 Days

About 50X Digital Inspection Video Microscope JBM-MZ2i

Discover the featured 50X Digital Inspection Video Microscope JBM-MZ2i, a rare and sought-after solution for quality control, research labs, watch repair, and electronics inspection. This dazzling device offers a valuable combination of high-definition 1080p imaging, wide compatibility (Windows, Mac OS, HDMI), and user-friendly measurement software. Capture real-time video or still images with best price performance, while the adjustable LED ring light and aluminium alloy frame ensure durability and flexibility. Elevate your inspection process with this advanced, portable microscope-ideal for dealers, suppliers, and manufacturers in India.

Versatile Applications in Diverse Fields

The JBM-MZ2i Digital Inspection Video Microscope shines in a variety of applications. Beyond PCB and circuit inspection, it excels in plant sample studies, biological research, and materials science. Its wide field of view and adjustable illumination make it suitable for industrial manufacturing, gemstone evaluation, forensics, and educational use. The valuable versatility of the JBM-MZ2i provides researchers and technicians the ability to examine intricate details across multiple disciplines, making it an indispensable tool for countless professionals.

Supply, Export Market & Certifications

Enjoy seamless order completion and after-sale support when acquiring the JBM-MZ2i, handed over to customers at a competitive sale price. With robust supply ability and quick shipping, this digital microscope reaches key export markets including Asia, Europe, and the Middle East. The product comes with essential certifications, ensuring compliance and quality. Whether for dealers, wholesalers, or direct importers, the order process is managed efficiently, supporting high-volume and specialized demands globally.

Microscope type	Digital
Magnification	45x
Magnification range	7x to 45x
Illumination	LED ring
Working distance	200 mm
Observation head	Video only
Mounting type	Bench stand
Model Name/Number	Monozoom Microscope JBM-MZ2i
Camera	HDMI camera, C mount camera, USB camera
Field of view	25 mm
Eyepiece	0.5X
Capture Resolution	5MP
Frame Rate	HDMI
Inside Diameter	35mm
Outside Diameter	68mm

FAQ's of 50X Digital Inspection Video Microscope JBM-MZ2i:

Q: How is the JBM-MZ2i microscope powered for flexible usage?

A: The JBM-MZ2i can be powered either through a DC 5V adapter or via USB, offering convenience for various settings and ensuring continuous operation during inspections.

Q: What are the main benefits of using the JBM-MZ2i for electronic and industrial inspection?

A: This microscope provides high-definition imaging, real-time video output, and adjustable illumination, making it ideal for detailed quality control, soldering, and fault detection in manufacturing and research environments.

Q: Which types of external displays are compatible with the JBM-MZ2i?

A: The JBM-MZ2i supports HDMI monitors and computers up to 24 inches, and is compatible with both Windows and Mac OS, enhancing flexibility in display options.

Q: Where can captured images from the JBM-MZ2i be stored?

A: Images can be saved directly onto a connected PC or USB storage device, streamlining documentation and analysis workflows.

Q: What is the process for adjusting focus and working distance on the JBM-MZ2i?

A: Focus and working distance can be manually adjusted with a coarse/fine focusing system, allowing for precise control over magnification (7x to 45x) and image clarity for various specimen sizes.
