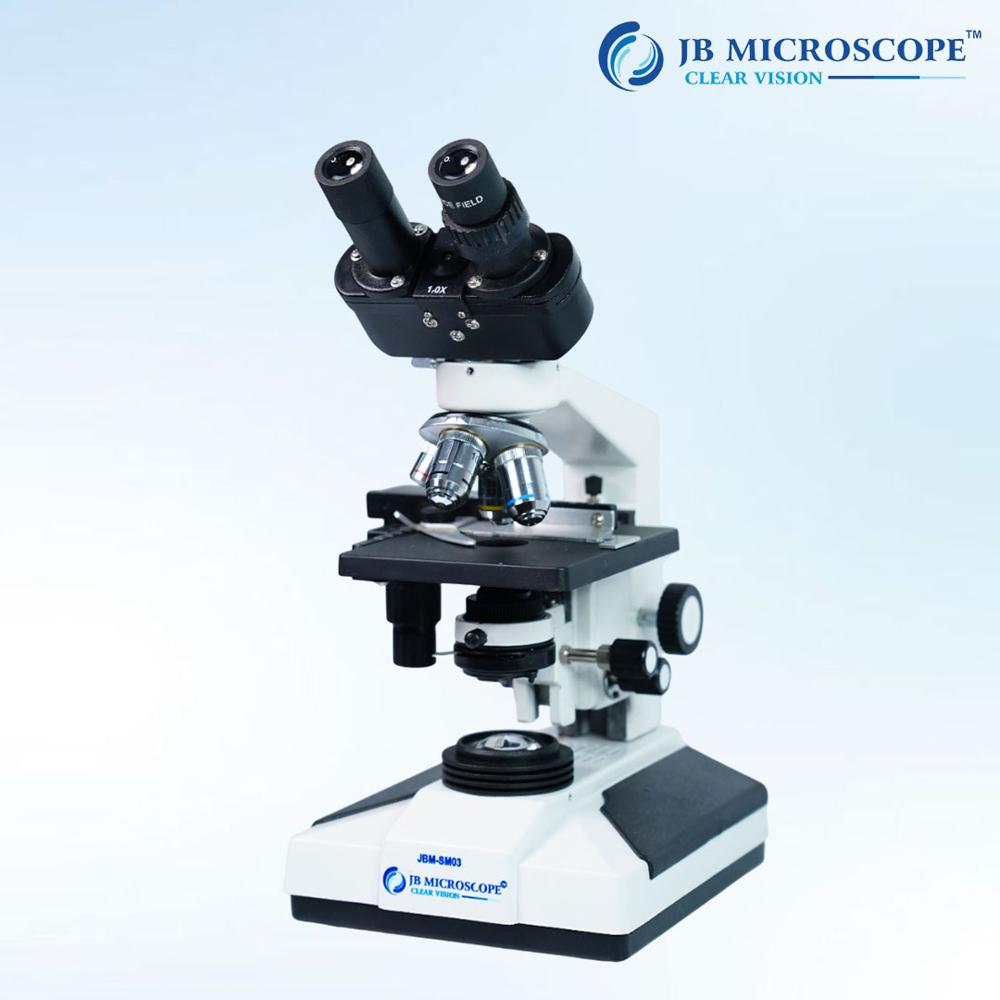

Binocular Microscope JBM-SM03

Binocular Microscope JBM-SM03 Specification

Theory
Biological Microscope

Drawtube
Binocular

Magnification
100x 1000x

Eyepieces
10X

Illumination
Illumination system 6V-20W Halogen with intensity control. Power Input 220V AC

Binocular Microscope JBM-SM03 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Indian

Supply Ability
1000 Pieces Per Week

Delivery Time
3 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

About Binocular Microscope JBM-SM03

Light Source	LED
Model Name/Number	JBM-SM03
Eye Pieces	10x 20mm
Interpupillary Distance Adjustable	37.7mm
Double Layer Graduated Mechanical Rectangular Stage Size	Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls
Optional Swing Out Abbe Condenser	yes
Interpupillary distance	48mm to 75mm

Inter-pupillary distance from 48mm to 75mm. Eyepiece (Anti fungus coated)

Wide Field 10X (paired) F.O.V 20mm. Objectives (Anti fungus coated)

S-Plan Achromatic 4X S-Plan Achromatic 10X

S-Plan Achromatic 40X(S.L.)

S-Plan Achromatic 100X Oil(S.L.) Mechanical Body

Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING. The slow motion has 1Div=0.002mm.

Quadruple nosepiece revolves on ball bearing.

Double plate mechanical stage size 140mm X 132mm having low positioned co-axial controls. Coarse stroke 37.7mm/rotation, fine division 0.002mm

Cross movement 78mm X 54mm. Sub Stage Condenser

Abbe condenser N.A.1.25 swing out filter holder, iris diaphragm. Illumination System

Built-in-base illumination system with 3W LED bulb and adjustable brightness.

Superior Optics and Magnification

The JBM-SM03 Binocular Microscope is engineered for high performance in biological investigations. Its advanced optical system delivers clear, high-contrast images at magnifications ranging from 100x up to 1000x, making it suitable for examining a variety of specimens in detail.

Reliable Illumination

This microscope features a robust 6V-20W halogen light source with adjustable intensity control, ensuring consistent and optimized lighting conditions. The system uses standard 220V AC input, providing reliability for educational and professional settings.

Comfortable Binocular Viewing

With its ergonomic binocular drawtube and dual 10X eyepieces, the JBM-SM03 allows for comfortable, fatigue-free observation during extended sessions. This design enhances user experience and promotes precise sample analysis.

FAQ's of Binocular Microscope JBM-SM03:

Q: How do I adjust the magnification on the JBM-SM03 Binocular Microscope?

A: You can change the magnification by selecting different objective lenses in combination with the standard 10X eyepieces, allowing you to achieve total magnifications between 100x and 1000x. Rotate the nosepiece to switch objectives for the desired level.

Q: What is the benefit of the halogen illumination system in this microscope?

A: The built-in 6V-20W halogen illumination with intensity control delivers bright, consistent lighting, improving image clarity and making it easier to view specimens in detail, even at high magnifications.

Q: Where can I purchase or source the JBM-SM03 Binocular Microscope in India?

A: This microscope is available throughout India and can be obtained via authorized dealers, suppliers, retailers, manufacturers, importers, traders, and wholesalers.

Q: When is this microscope best suited for use?

A: The JBM-SM03 is ideal for use in biology labs, schools, colleges, research facilities, and any setting requiring accurate, detailed microscopic examination of biological samples.

Q: What is the process for setting up the microscope for observation?

A: First, connect the microscope to a 220V AC power outlet. Place your specimen slide on the stage, adjust the objective lens, and use the intensity control knob to set the desired illumination for optimal viewing.

Q: How does the binocular drawtube enhance the microscope's usability?

A: The binocular drawtube enables viewing with both eyes, reducing eyestrain and providing a more natural and comfortable experience during lengthy observation sessions.

Q: What are the advantages of dealers, suppliers, and wholesalers offering this microscope in India?

A: Having multiple channels such as dealers, wholesalers, and suppliers ensures better accessibility, after-sales support, and competitive pricing for customers across India.
