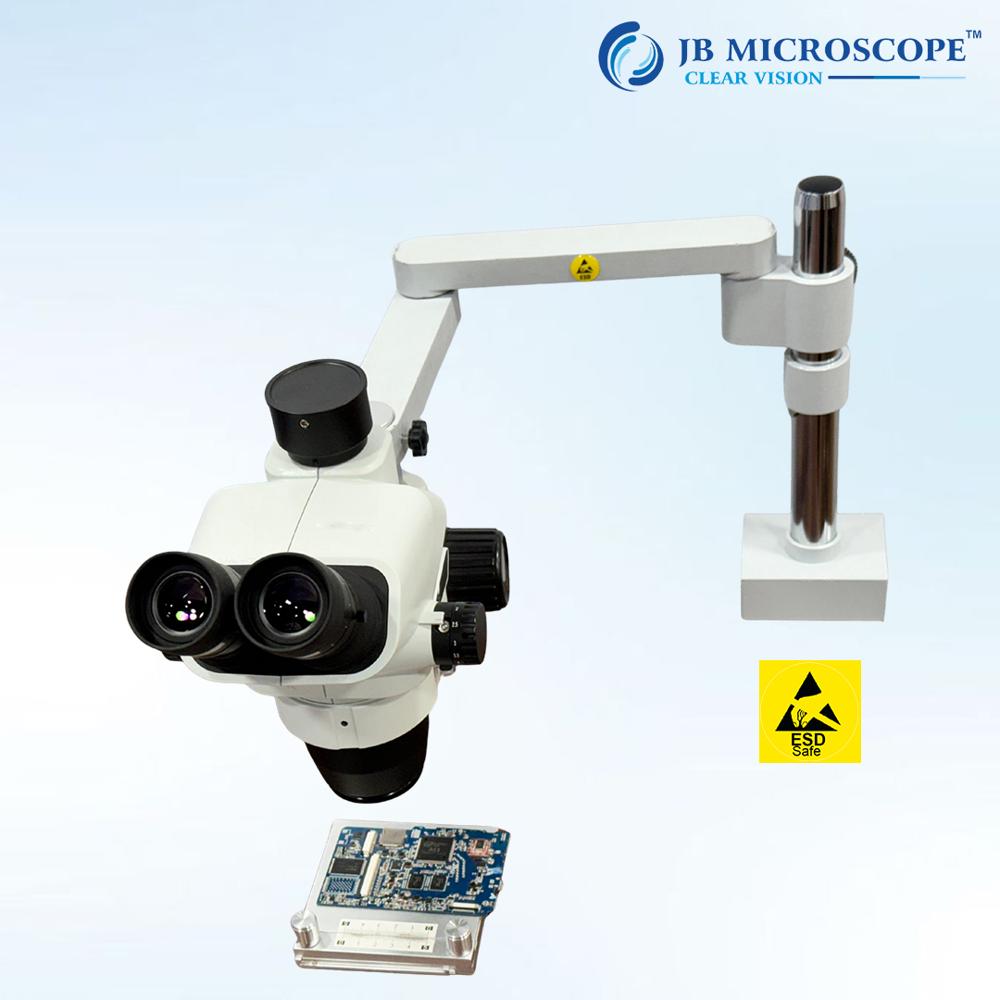

ESD Boom Stand Stereo Zoom Microscope JBM-EPL45

ESD Boom Stand Stereo Zoom Microscope JBM-EPL45 Specification

View Head
Binocular, 45 inclined, 360 rotatable

Spare Parts
Optional: auxiliary objectives, different eyepieces, camera adapter, replacement bulbs, ESD stage plate

Focus System
Rack and pinion focusing system with tension adjustment

Features
ESD-safe structure, continuous zoom, high depth of field, crisp stereo images, rugged metal boom stand for stability, adjustable interpupillary distance

Theory
Stereo Zoom Microscope offers high-quality, three-dimensional viewing with continuous zoom capabilities for detailed inspection.

Drawtube
Binocular, 45 inclined, 360 rotatable

Sensor
Not applicable (optical device - no built-in camera)

Resolution
Depends on eyepiece and auxiliary lens used; up to 100 lp/mm

Interface
Compatible with optional camera adapter for digital imaging integration

Frame Rate
Depends on attached camera (not standard)

Focal Distance
100 mm (standard working distance)

Magnification
Zoom range 7X to 45X (can be extended to 3.5X-180X with optional eyepieces and auxiliary lenses)

Dimensions
Boom arm length 320 mm, height 380 mm, base 245 mm x 225 mm

Focus Range
50 mm

Eyepieces
WF10X/20mm (Widefield), can be changed to WF15X or WF20X

Eyepiece Tube
Binocular, 45 inclined, 360 rotatable, adjustable diopter

Illumination
Top and bottom LED illumination (incident and transmitted lighting), ESD safe

Coarse Adjustment Range
50 mm

Working Stage
Large anti-static ESD stage platform, 180 mm x 225 mm

Still Image Capture Resolution
Depends on attached camera

Video Capture Resolution
Depends on attached camera

Image Format
Depends on attached camera

Interpupillary Distance
54-76 mm, adjustable

Objective Achromatic
Zoom objective 0.7X-4.5X achromatic

Light Source
High-intensity LED ring light, incident and transmitted

Base Plate
Anti-static, scratch-resistant base

Microscope Head Movement
360 rotation on boom for versatile positioning

Voltage
100-240V AC universal input with adapter for LED illumination

Weight
Approx. 10 kg (stand and microscope)

Auxiliary Objectives
Available: 0.5X, 2X for higher/lower magnification and working distance

Applications
PCB inspection, electronics, precision assembly, quality control, industrial labs

Body Material
EPOXY powder coated heavy-duty alloy body

Stand Type
Heavy-duty ESD-safe boom stand

Color
Black/Grey professional anti-static finish

ESD Boom Stand Stereo Zoom Microscope JBM-EPL45 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About ESD Boom Stand Stereo Zoom Microscope JBM-EPL45

The ESD Boom Stand Stereo Zoom Microscope JBM-EPL45 combines radiant performance with a heavy-duty, ESD-safe boom stand to ensure precise and safe electronic inspections. Boasting favorable reviews, this robust microscope delivers a soaring zoom range from 7X to 45X (extendable to 180X), offering perfect, crisp stereo images with high depth of field. The alloy body, epoxy-coated for an anti-static finish and durability, is designed for industrial labs, PCB quality control, and research. Enjoy an ephemeral hot deal backed by versatile movement, LED illumination, and adaptable magnification options.

Versatile Usage and Machine Features

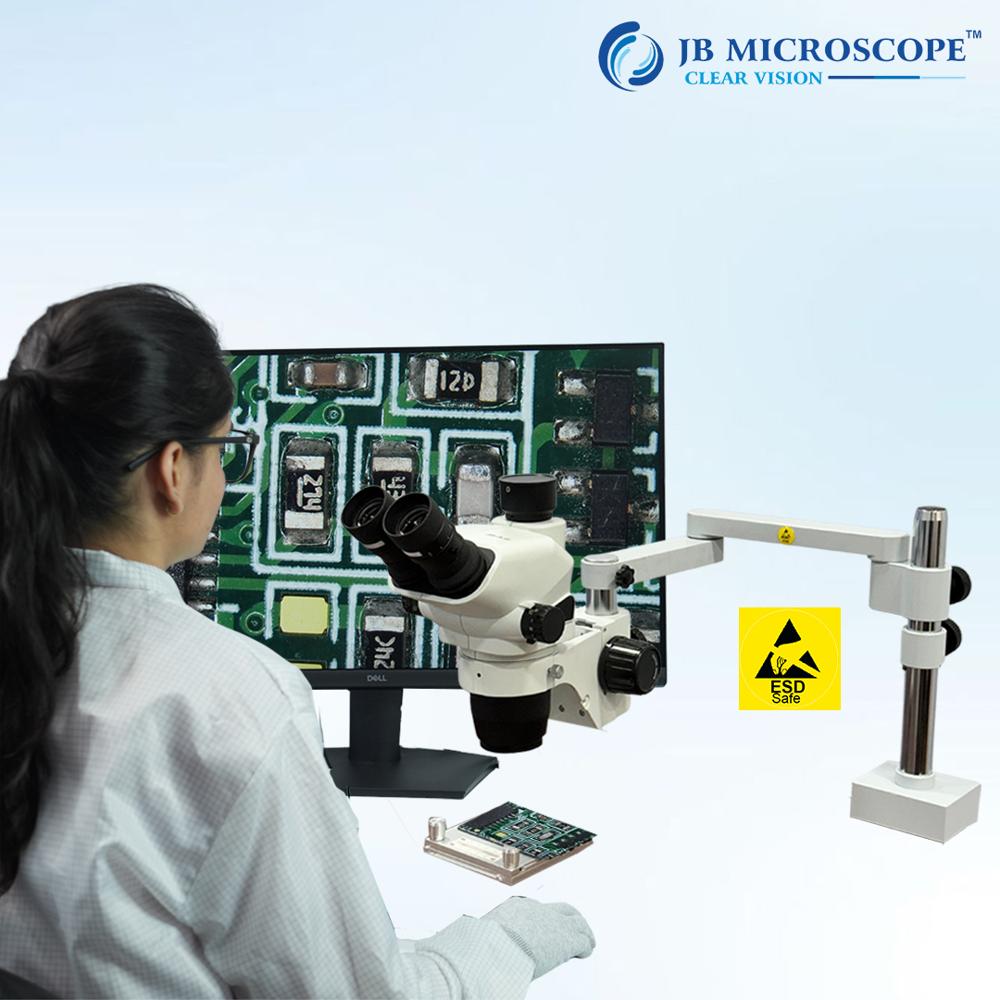

Ideal for industrial use, PCB inspection, precision assembly, and research, the ESD Boom Stand Stereo Zoom Microscope JBM-EPL45 offers seamless direction of use with its 360 rotatable microscope head and trinocular viewing. Features include high-quality achromatic lenses, top-and-bottom LED lighting, and a heavy-duty articulated stand. The modular construction and ergonomic design ensure comfortable, efficient operation for long periods. Its anti-static stage and universal voltage compatibility further enhance this microscope's performance for professional environments.

Supply Ability, Sample Policy, and Export Markets

We proudly offer a reliable exchange rate for supply and swift sample policy for the JBM-EPL45. Samples are provided at a nominal charge, subject to availability and prior order confirmation. Our supply capacity ensures steady inventory to meet bulk orders, guaranteeing timely deliveries. Major export markets include Asia and upcoming regions worldwide, with consistently competitive rates and excellent aftersales support, making us a preferred source for dealers, retailers, and traders seeking advanced stereo zoom microscopy equipment.

Magnification range	7x 45x
Zoom ratio	6.3x
Head type	Trinocular
Illumination type	LED
Working distance	120 mm
Stand type	Articulated stand
Eyepiece	PL10X/eyepieces, 22mm
Objective	0.7-4.5x
Reflected light	Top bottom light
Application	Industrial, PCB inspection, Research
ZOOM	0.67X - 4.5X
LENSES	High-quality achromatic lenses with anti-reflective coatings
ERGONOMICS	Eye tubes tilt 0 to 30 Degree and rotate 180 Degree
CONSTRUCTION	Polymer/Metal body (2 part).
LIGHTING	LED ring light or the High Output Dimmable LED ring light
Magnification	40x
Eyepiece magnification	10x

FAQ's of ESD Boom Stand Stereo Zoom Microscope JBM-EPL45:

Q: How does the ESD Boom Stand Stereo Zoom Microscope JBM-EPL45 enhance PCB inspection and assembly?

A: With its high-quality achromatic lenses, wide zoom range (7X-45X, extendable to 180X), and anti-static boom stand, the JBM-EPL45 ensures precise, clear, and safe inspection of PCBs and electronic components, minimizing static damage risk during sensitive work.

Q: What are the main features that make the JBM-EPL45 suitable for industrial and research applications?

A: The JBM-EPL45 boasts a heavy-duty ESD-safe construction, continuous zoom, 360 head rotation, bright LED illumination, adjustable interpupillary distance, ergonomic tilt, and modular accessories-making it radiant and reliable for industrial, laboratory, and research settings.

Q: Where can I use the JBM-EPL45, and what types of samples does it accommodate?

A: This microscope is perfect for electronics factories, research labs, quality control rooms, and industrial assembly lines. It supports inspection of PCBs, micro-components, biological samples, and small industrial parts requiring detailed three-dimensional analysis.

Q: What is the process for obtaining a sample of the JBM-EPL45, and is there a charge?

A: To request a sample, contact our sales team or authorized distributor. There is a nominal sample charge, and supply is subject to availability. Samples are often exchanged with preliminary agreements prior to large-scale order placement.

Q: How can magnification be adjusted on the JBM-EPL45, and what accessories are available?

A: Magnification is adjusted using the continuous zoom objective (0.7X-4.5X) and by changing eyepieces or adding auxiliary lenses (0.5X, 2X). Additional accessories include camera adapters, replacement bulbs, and specialized ESD stage plates for versatile usage.
