LCD Microscope Digital Camera JBM-L13

LCD Microscope Digital Camera JBM-L13 Specification

Product Type
LCD Digital Microscope Camera

Sensor
CMOS Active Sensor

ISO
Auto/Manual

Technology
Digital LCD Microscope Technology

Feature
High Resolution, LCD Display, Portable

Flash Point
No Built-In Flash

Aperture
F2.0

Lens
Adjustable Objective Lens

Media Type
TF Card / MicroSD Supported

Features
Snapshot, Video Recording, Adjustable LED Lights

View Angle
Adjustable (mechanical) View

WiFi
NO

Sensor Size
1/3 inch CMOS

Color
Black and Silver

Body Material
ABS Plastic

Pixels
12 Megapixels (Max Interpolated)

Screen Size
4.3 inch LCD Display

Zoom Option
Up to 1000x Digital Zoom

Memory Card Type
MicroSD (up to 32GB)

Battery
Lithium-ion, 3.7V 1500mAh

Video Capture
Yes, with Sound

Video Capture Resolution
1080p Full HD

Supported Operating Systems
Windows, Mac OS

Focus Range
Manual, 1mm to 80mm

Video Format
AVI

Application
PCB Inspection, Education, Jewelry, Lab Work

Dimensions
Approx. 150mm x 105mm x 30mm

Weight
Approx. 260g

Working Distance
3mm to 60mm

Image Format
JPG

Operating Time
Up to 4 hours per charge

Frame Rate
30 FPS (Max)

Illumination
8 Adjustable Built-in LEDs

Output Interface
USB 2.0, TV Output (AV Cable)

LCD Microscope Digital Camera JBM-L13 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
3 Days

About LCD Microscope Digital Camera JBM-L13

Magnification	10x
Resolution	8MP
Brand	JB MICROSCOPE
Model Name/Number	JBM-L13
Country of Origin	Made in India

Minimum order quantity: 1 Piece

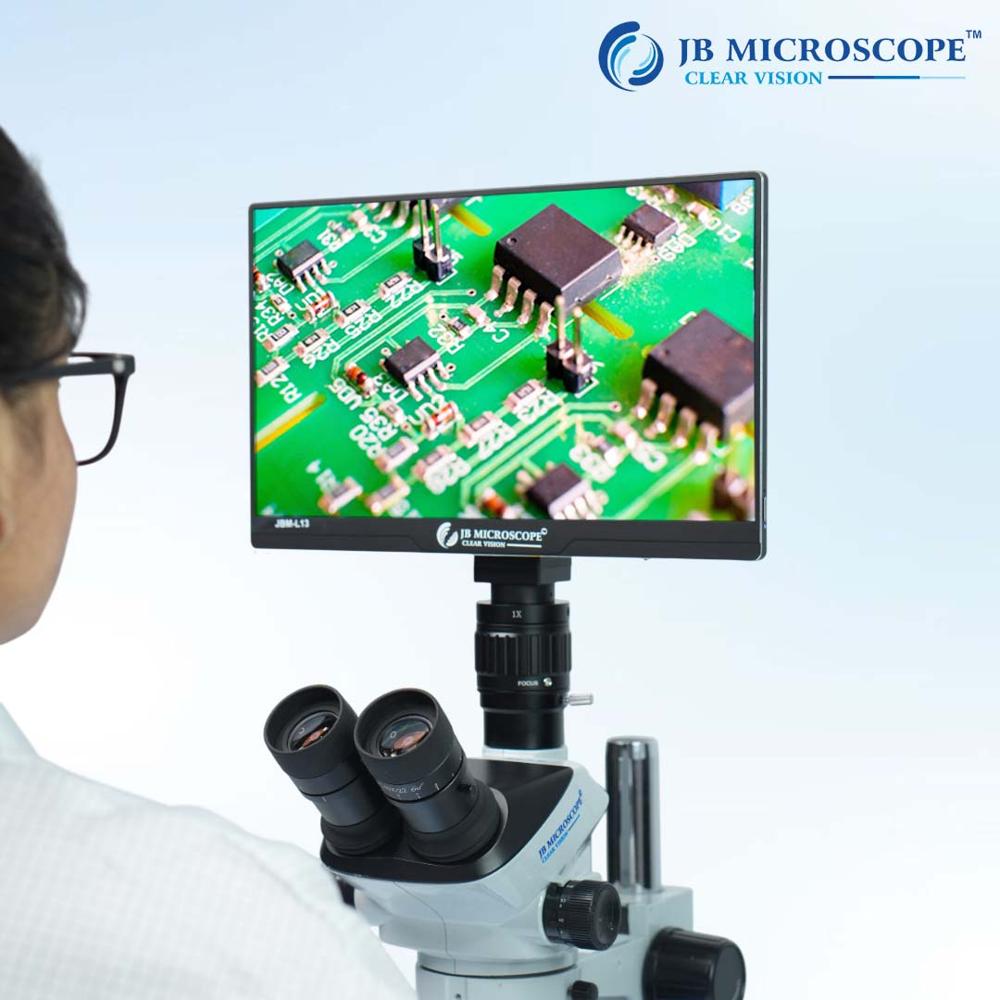

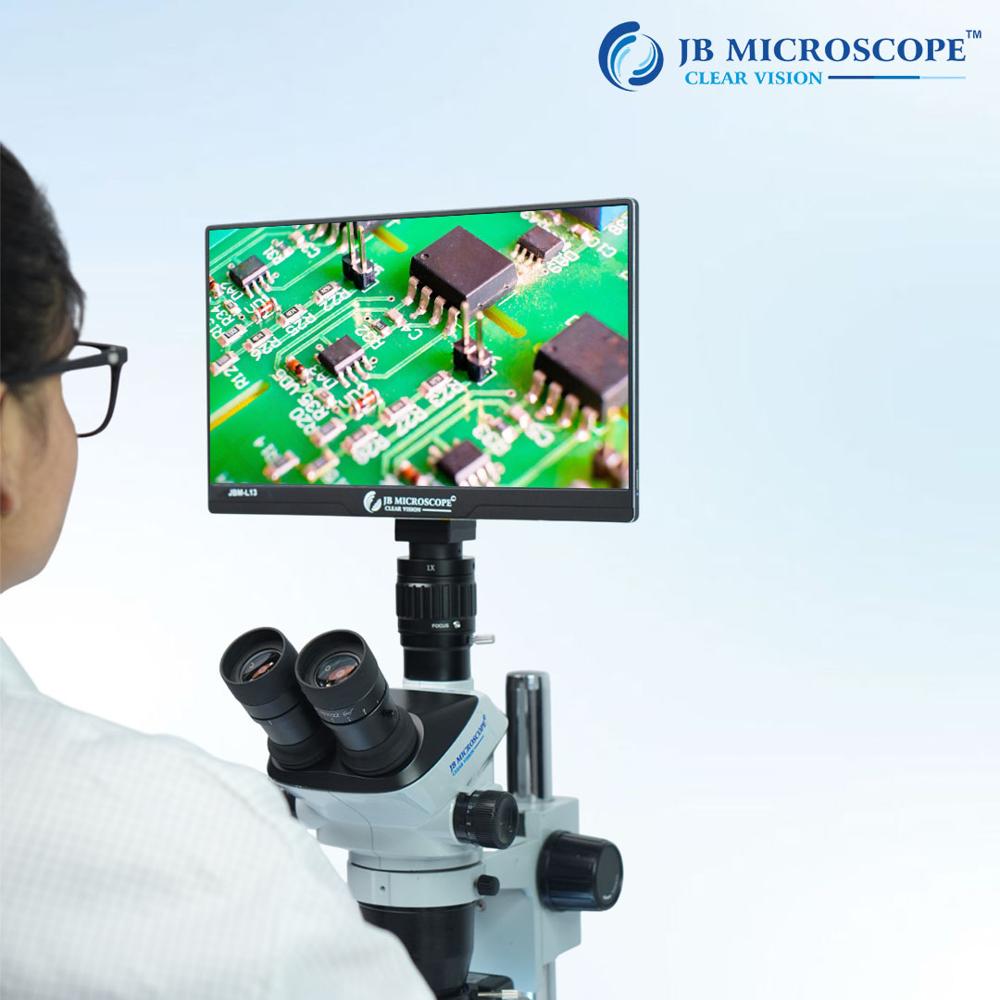

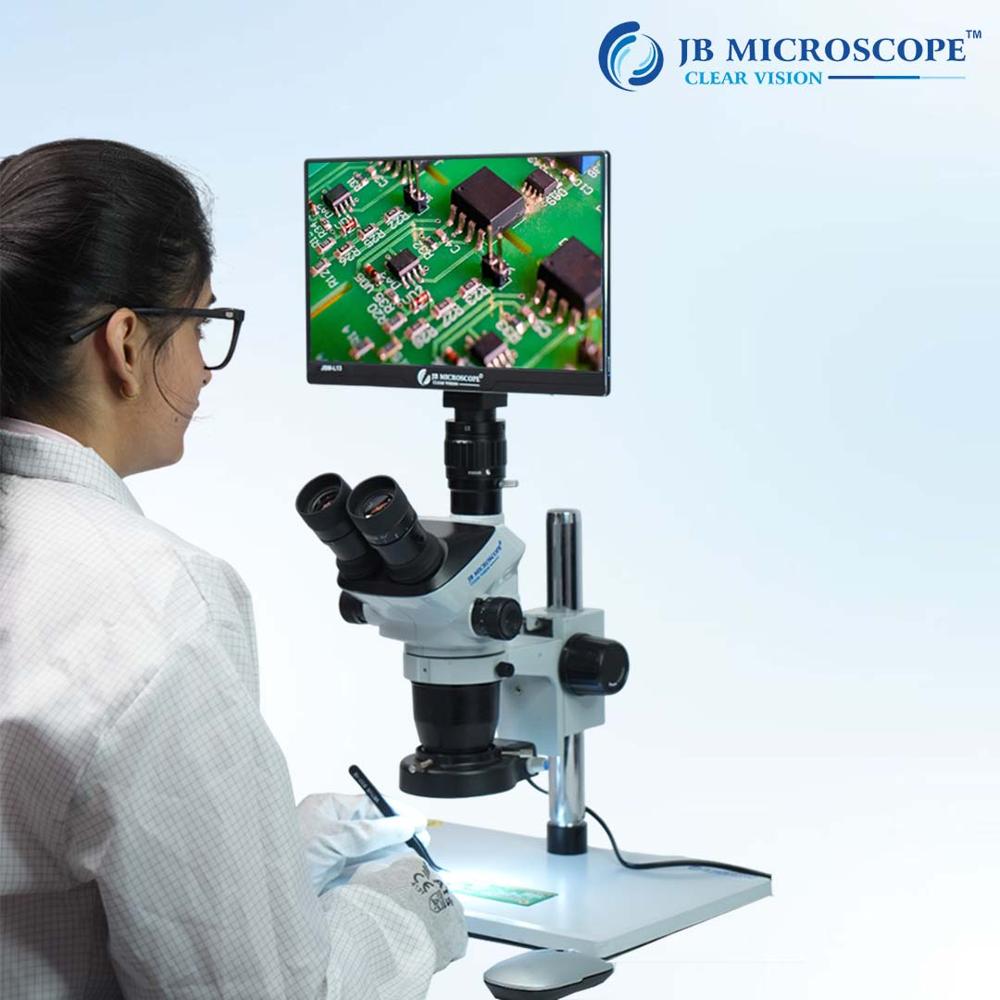

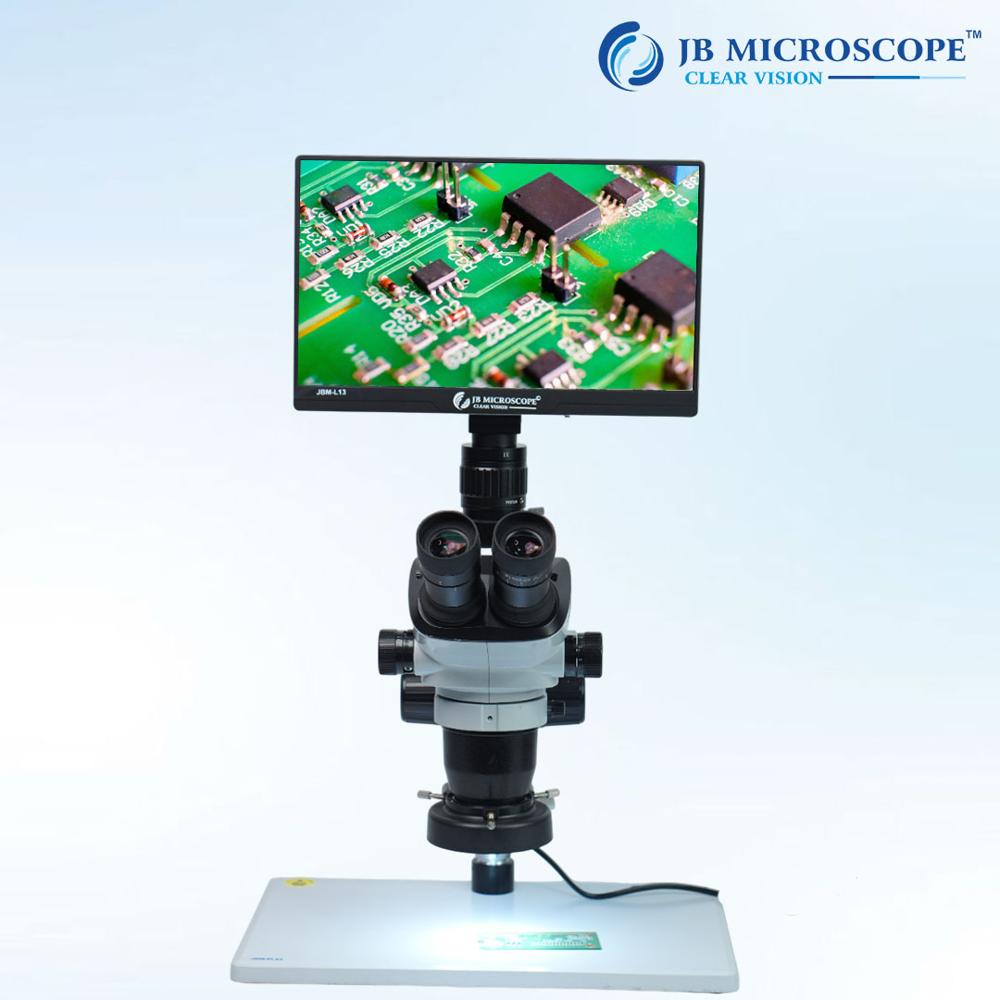

LCD is a multifunctional all-in-one camera that integrates a 13.3-inch display screen and a 4K image acquisition and processing system for capturing digital images of stereo microscopes, biological microscopes, or online interactive teaching. The basic characteristic is listed as follows:

Specification:

LCD screen size: 13.3inch (L*W306.7*184)
Sensor Size(mm): Sony IMX678(C), 1/1.8(7.684.32)
Pixel(m): 2.02.0
G Sensitivity/Dark Signal: 3541mv with 1/30s, 0.15mv with 1/30s
Sensor Output, (FPS/Resolution): 60@3840*2160
Binning: 11
Exposure (MS): 0.0191000
Video Saving (FPS/Resolution): 60@fps3840*2160, 60@fps1920*1080
Video format: 8M (3840*2160) H264/H265 encoded MP4 file
HDMI 2.0 (FPS/Resolution): 60@3840*2160, 60@1920*1080
USB 3.0 (FPS/Resolution): 30@3840*2160, 45@2688*1512, 60@1920*1080
Wi-Fi (FPS/Resolution): 30@3840*2160, 60@1920*1080, 60@1280*720

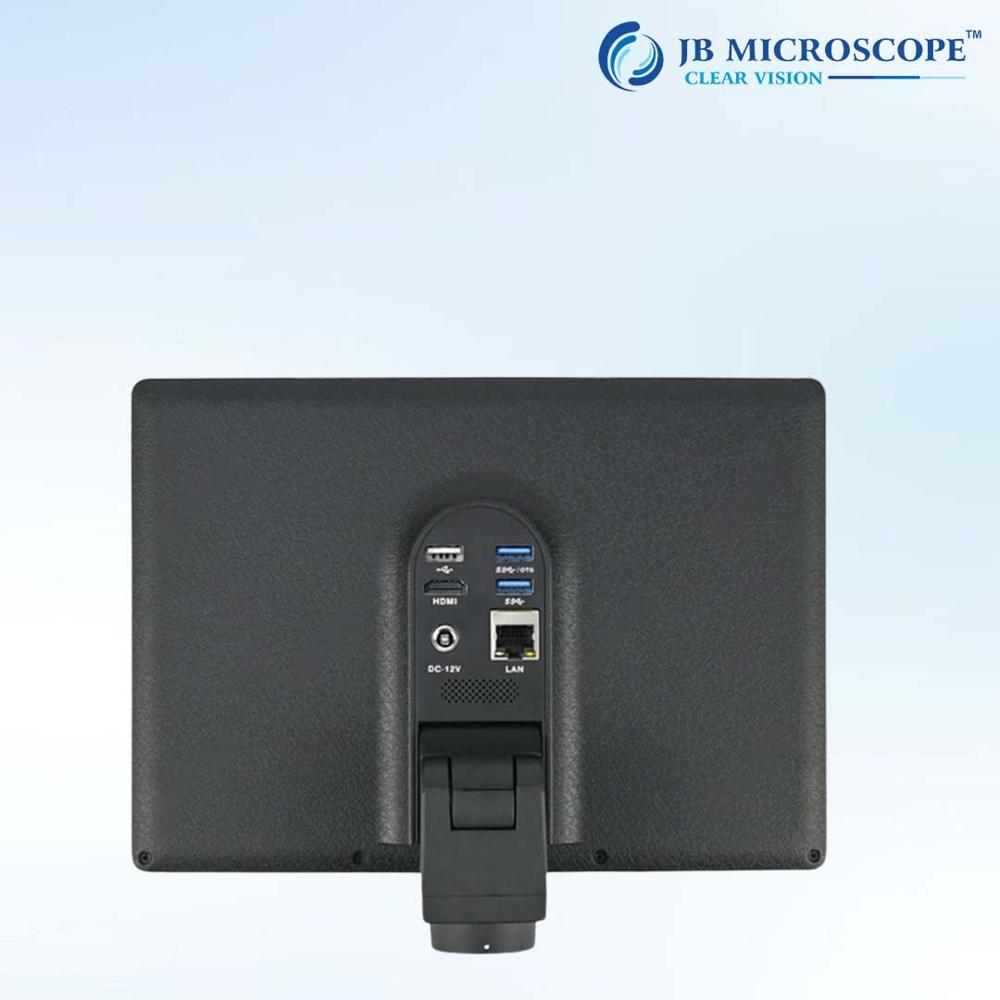

Video image output: HDMI, USB 3.0, Wi-Fi, or USB flash drive
Image Capture: 8M (3840*2160) JPEG/TIFF image in USB flash drive
Measurement Saving:
Measurement information saved in different layers with image content
Measurement information is saved together with image content in burn-in mode
ISP: Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
Software: Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Video EDF, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, Picture EDF, Image Processing), Measurement Function

Advanced Digital Imaging

With a 12MP CMOS sensor and high-resolution LCD screen, the JBM-L13 delivers crisp, vibrant images and videos. The adjustable LED lights enhance clarity, making even the finest details stand out during microscopic examination. Coupled with up to 1000x digital zoom, users can analyze specimens, circuitboards, or jewelry with remarkable precision.

User-Friendly Operation

The JBM-L13's interface is intuitive, allowing both beginners and experts to capture snapshots or videos effortlessly. Manual focus adjustment and a simple control system make operation straightforward, while the AV and USB outputs provide flexible viewing and data transfer options for seamless workflow integration.

Portability and Versatility

Designed for mobility, the JBM-L13 weighs only 260g and comes with a rechargeable lithium-ion battery that supports up to 4 hours of continuous operation. Its compact size and robust ABS plastic body ensure durability-ideal for fieldwork, academic settings, or workspace analysis without the need for constant power supply.

FAQ's of LCD Microscope Digital Camera JBM-L13:

Q: How do I adjust the illumination on the JBM-L13 Microscope Digital Camera?

A: The JBM-L13 is equipped with 8 built-in LED lights that are fully adjustable. You can change the brightness by using the dedicated LED control, ensuring clear visualization for different samples and environments.

Q: What operating systems are compatible with the JBM-L13?

A: This microscope camera supports both Windows and Mac OS. Simply connect via USB 2.0 or use the AV cable for TV output to transfer or display your videos and images.

Q: When should I use manual focus on this microscope camera?

A: Manual focus allows precise adjustment of the focus range from 1mm to 80mm. It is recommended when you need fine control over image clarity for detailed tasks such as PCB inspection, jewelry examination, or educational demonstrations.

Q: Where can the images and videos be stored?

A: Media can be saved directly onto a MicroSD or TF card (up to 32GB). This makes it convenient to transfer and store captured content for later review or analysis.

Q: What is the process for capturing video with sound on the JBM-L13?

A: To record video with sound, simply press the corresponding video record button on the unit. All footage will be saved in AVI format onto your inserted MicroSD card, making it easy to replay or transfer to your computer.

Q: How does the adjustable view angle feature benefit users?

A: The JBM-L13's mechanically adjustable view angle allows users to reposition the camera for optimal visualization. This flexibility is particularly useful for inspecting hard-to-reach areas or accommodating multiple users during educational sessions.
