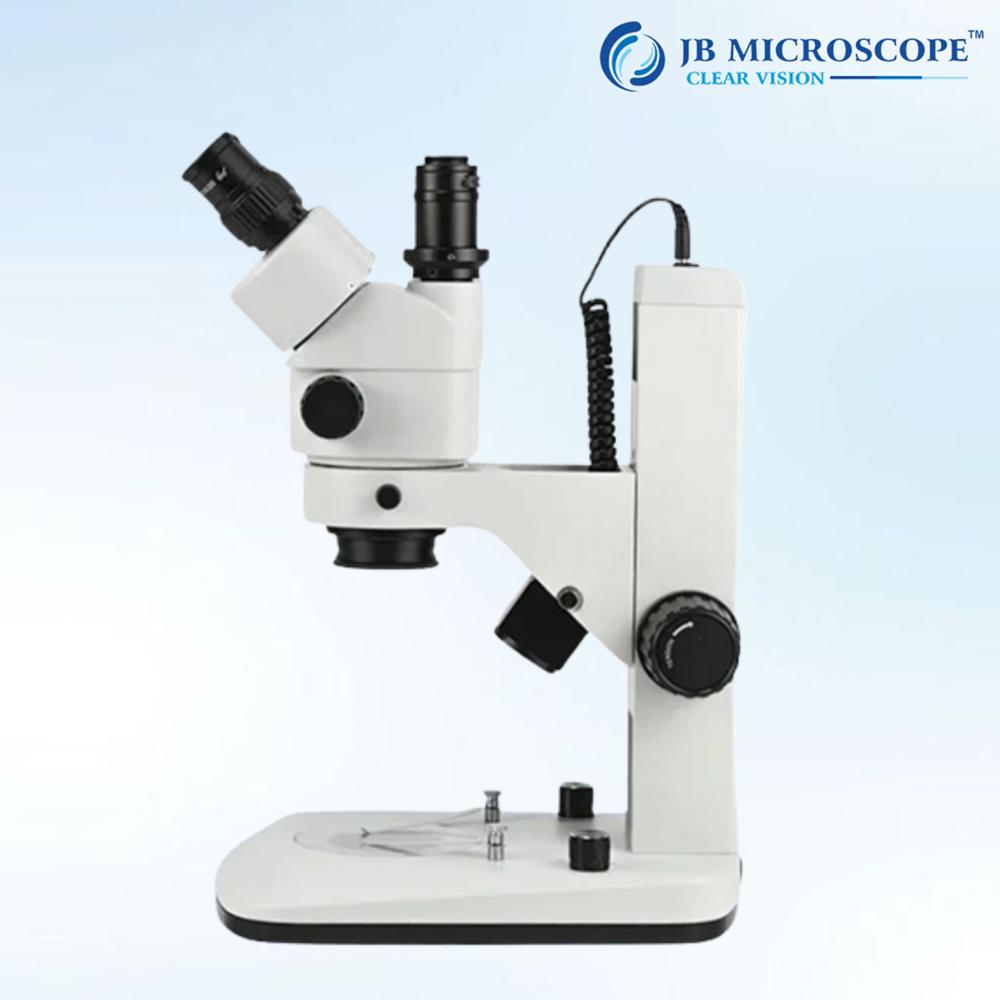

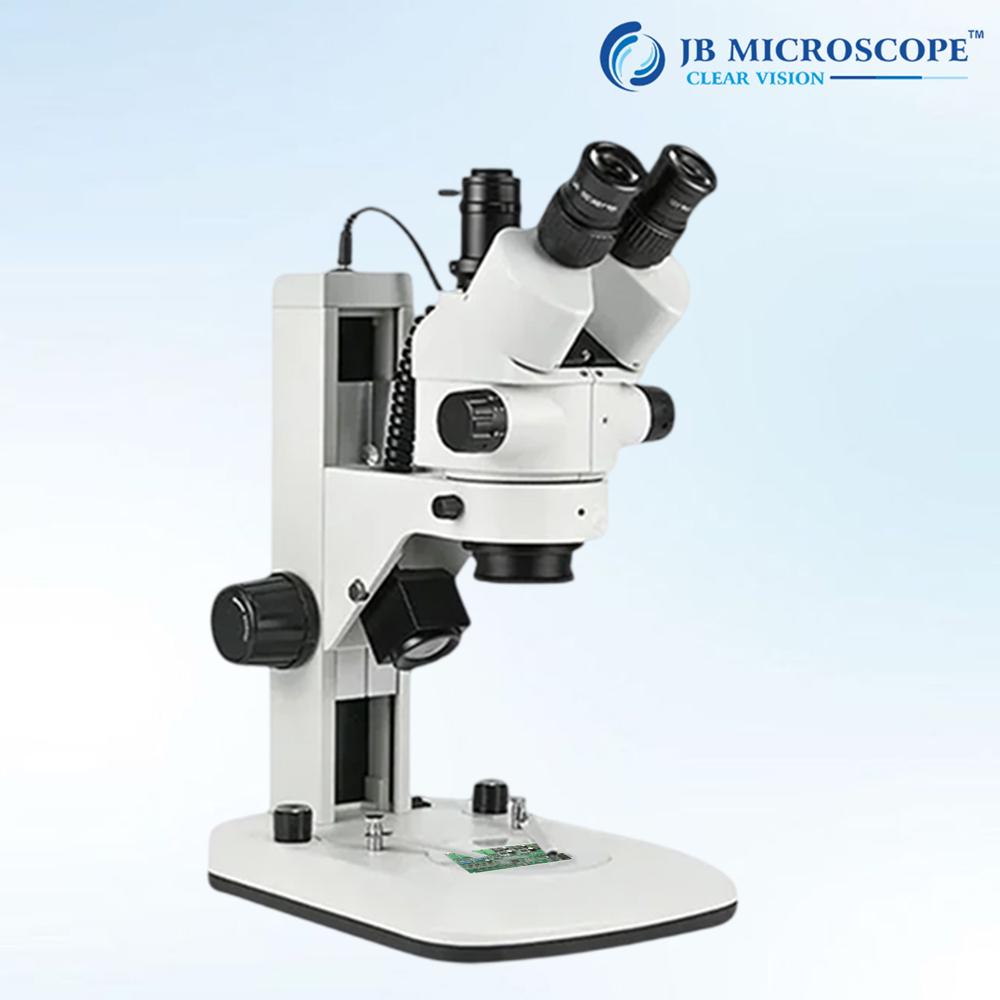

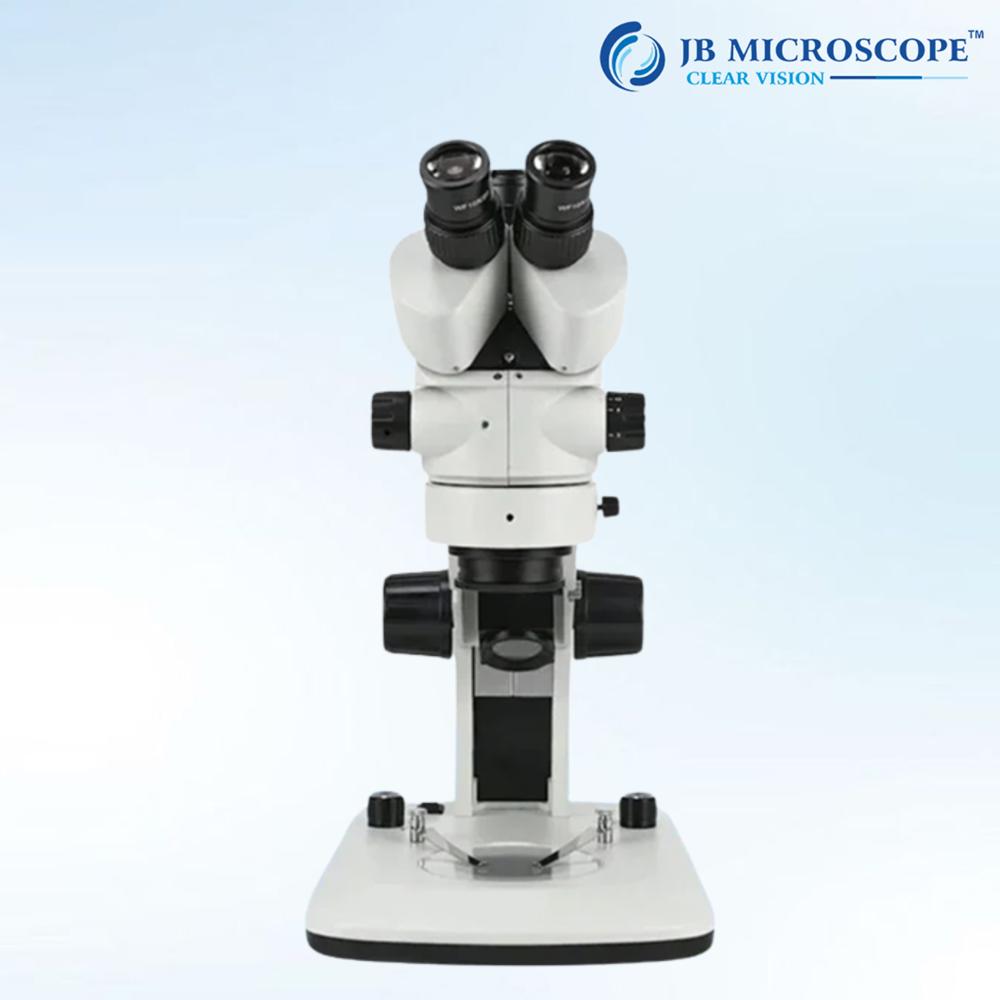

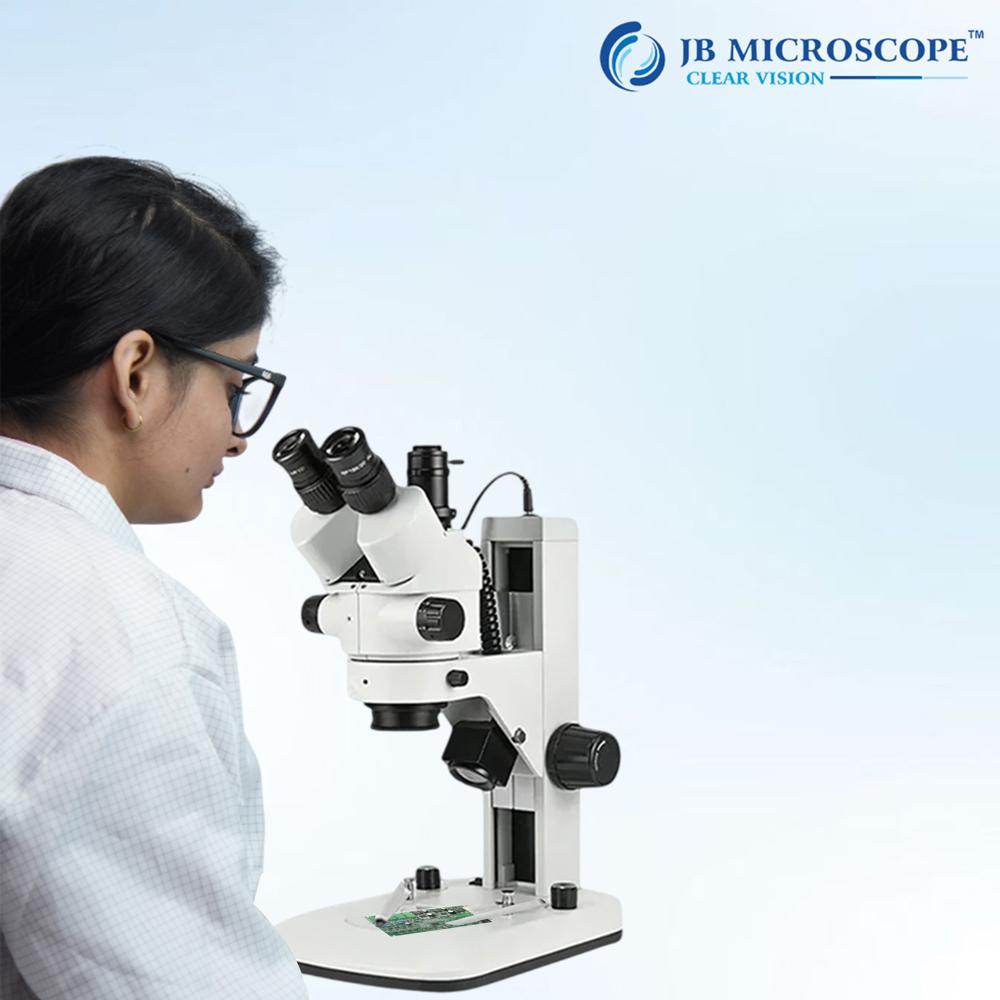

Stereo Zoom MicroscopeJBM -745BL

Stereo Zoom MicroscopeJBM -745BL Specification

View Head
Binocular head

Focus System
Coaxial focus system with adjustable tension

Spare Parts
Supplied with dust cover, fuse, and instruction manual

Features
Complete with anti-fungus treated optics, ergonomic operation, maintenance free LED, robust metal body

Theory
Stereo Microscope

Drawtube
Binocular, 45 inclined, 360 rotatable

Focal Distance
100mm

Magnification
7X-45X

Dimensions
Base: 285mm x 235mm, Height: 380mm (approx.)

Focus Range
50mm

Eyepieces
Paired 10X Wide Field (WF10X) eyepieces, 20mm field of view

Eyepiece Tube
Diopter adjustment provided on one tube

Illumination
Incident and transmitted LED illumination with built-in intensity control

Coarse Adjustment Range
50mm

Working Stage
Rectangular base with frosted glass and black/white stage plate

Interpupillary Distance
55mm to 75mm adjustable

Objective Achromatic
Zooming objective 0.7X to 4.5X, achromatic-corrected

Light Source
Built-in long-life LED (Incident & Transmitted illumination)

Stage Plate Options
Supplied with both black/white and frosted glass plates

Power Supply
AC 220V/110V, 50/60Hz or rechargeable battery operation

Packaging
Supplied in thermocol/foam fitted sturdy card board box

Weight
Approx. 6.5 Kg

Body Material
Die-cast metal body with durable epoxy powder finish

Stereo Zoom MicroscopeJBM -745BL Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Stereo Zoom MicroscopeJBM -745BL

Capitalise on remarkable precision with the Stereo Zoom Microscope JBM-745BL - your crowning solution for Fresh insights in PCB inspection, research, jewellery, and industrial applications. Masterful engineering includes a die-cast, epoxy-coated metal body, ergonomic operation, and anti-fungus optics. Utilise the offer of dual LED illumination (top and bottom) with intensity control for clarity, and zoom from 7X to 45X seamlessly. Its robust binocular head is both 45 inclined and 360 rotatable for viewing comfort. Delivered in a sturdy, foam-fitted box for total safety.

Extraordinary Features & Versatile Applications

The Stereo Zoom Microscope JBM-745BL is masterful in delivering high-resolution, wide-field imaging for detailed observation. With a robust, maintenance-free design and anti-fungus treated optics, it's ideal for both general and specialised uses, including PCB inspection, jewellery analysis, and research. The microscope's advantage lies in its flexibility-supplied with stage plate options, adjustable illumination, and ergonomic features, making it remarkable for precise and comfortable usage in diverse laboratories and industries alike.

Supply Process & Delivery Commitment

We ensure Fresh and secure supply of the Stereo Zoom Microscope JBM-745BL across India. Packing & dispatch are accomplished swiftly, utilising sturdy thermocol or foam-fitted boxes to prevent damage. Estimated delivery time is typically prompt, tailored to customer location and order quantity. Our microscopes are provided with necessary certifications and tested for quality. FOB Port details and further shipping preferences are handled efficiently through our established logistics network, guaranteeing timely and reliable delivery.

Magnification range	7x 45x
Magnification	45X
Zoom ratio	6.3x
Head type	Trinocular
Illumination type	LED
Working distance	100 mm
Stand type	Table stand
Model Name/Number	Stereo Zoom Microscope - JBM 745BL
Eyepiece	WF10x/20mm
Objective	0.7x-4.5x
Eyepiece magnification	10x
Reflected light	Top bottom light
Interpupillary Distance	55-75mm
Application	PCB inspection, Research, Jewellery, Industrial
Base size	205x275x40mm

FAQ's of Stereo Zoom MicroscopeJBM -745BL:

Q: How does the Stereo Zoom Microscope JBM-745BL benefit industrial and research users?

A: This microscope provides remarkable clarity and flexibility for PCB inspection, research, jewellery analysis, and industrial quality control. Its wide magnification range and robust construction ensure reliable, long-term use.

Q: What are the unique features of the JBM-745BL's illumination system?

A: The JBM-745BL is equipped with both incident (top) and transmitted (bottom) LED illumination, each with built-in intensity control, supplying Fresh, adjustable lighting for all specimen types.

Q: What is the usage process for setting up and operating the microscope?

A: Simply place the microscope on a stable table stand, connect power via AC supply or rechargeable battery, select the desired stage plate, adjust the eyepiece and interpupillary distance, and use the zoom objective for clear viewing.

Q: Where is the Stereo Zoom Microscope JBM-745BL supplied from?

A: We distribute and supply these microscopes from multiple locations across India through a reliable network of dealers, manufacturers, importers, retailers, and wholesalers.

Q: When can I expect delivery after placing an order?

A: Delivery timelines are estimated based on your specific location and order volume, but we aim for prompt packing and dispatch to ensure minimal wait times. All orders are packed securely for safe transit.
