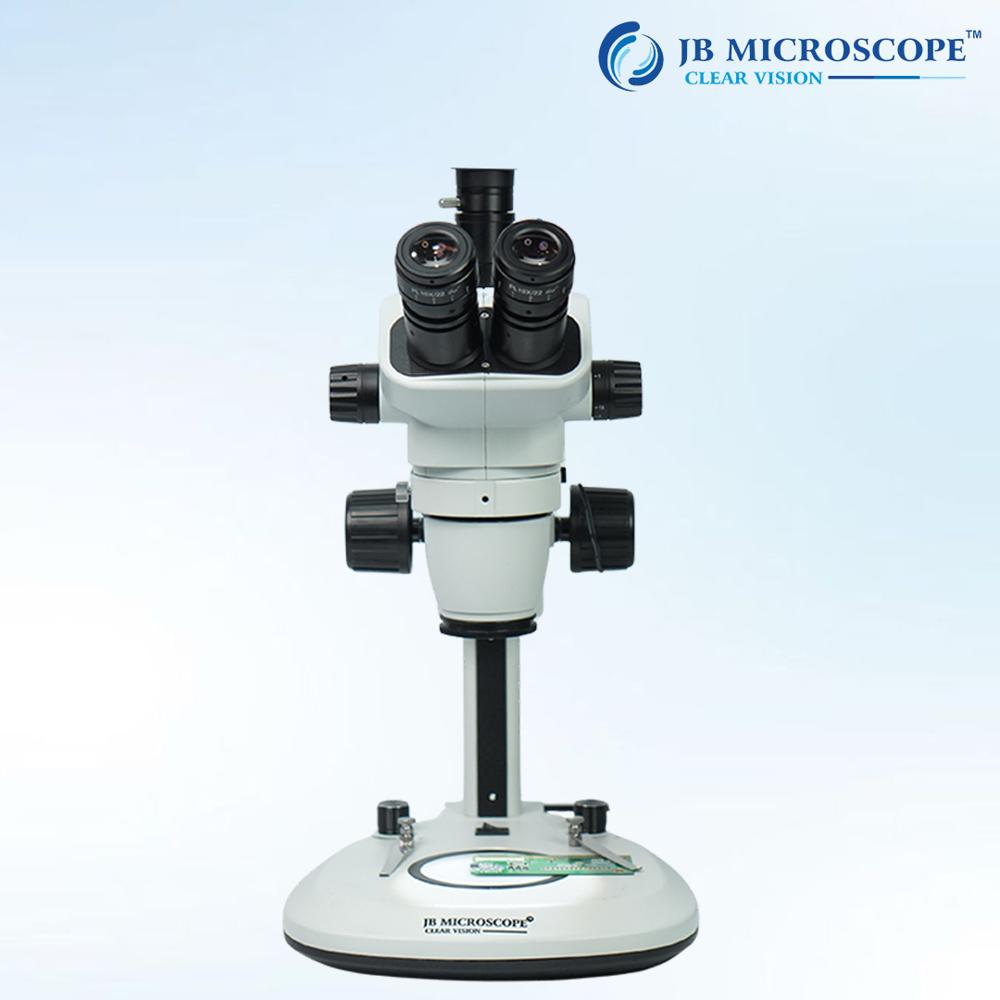

Stereo zoom microscope JBM-45

Stereo zoom microscope JBM-45 Specification

View Head
Binocular, 45 inclined, 360 rotatable.

Focus System
Coarse focusing mechanism with rack and pinion movement.

Features
Zoom magnification, LED lighting, ergonomic design, robust metal construction, widefield optics for clear images.

Spare Parts
Eyepieces, objectives, stage plates, LED light modules (available separately).

Theory
Stereo Microscope

Drawtube
Trinocular

Sensor
Not Applicable (Optical microscope, standard version without camera attachment).

Resolution
Sharp, high-resolution observation based on optical system. (Digital resolution not applicable)

Interface
Not Applicable (Optical only, can be fitted with camera adapters)

Frame Rate
Not applicable (no integrated camera).

Focal Distance
100 mm (working distance with 1X objective).

Magnification
6X-45X

Dimensions
Approx. 320 mm (H) 250 mm (W) 220 mm (D).

Focus Range
50 mm (coarse adjustment movement).

Eyepieces
Widefield 10X (paired), 20mm field of view.

Eyepiece Tube
Binocular, 45 inclined, 360 rotatable.

Illumination
LED

Coarse Adjustment Range
50 mm coarse movement.

Fine Adjustment Range
None (Coarse focus mechanism only).

Working Stage
Round black/white stage plate, 95 mm diameter, with stage clips.

Still Image Capture Resolution
Not applicable unless digital camera is fitted.

Video Capture Resolution
Not applicable unless digital camera is fitted.

Image Format
Not applicable unless digital camera is fitted.

Interpupillary Distance
55-75 mm adjustable.

Objective Achromatic
Zoom objective 0.7x to 4.5x, Achromatic design.

Condenser
Not required (uses incident and transmitted LED illumination).

Light Source
LED illumination, top and bottom, with adjustable intensity.

Weight
Approximately 4.8 kg.

Head Rotation
360 rotatable head for flexible viewing.

Power Supply
220V AC/50Hz or with universal adapter for worldwide use.

Body Material
Powder-coated metallic stand for stability and durability.

Stage Plate
Supplied with both glass and black/white contrast plates.

Observation Method
Three-dimensional stereoscopic viewing.

Base
Heavy, sturdy base with anti-skid pads.

Eyepiece Reticle
Eyepiece can accept optional measuring reticle.

Optional Accessories
Camera adapters, supplementary objectives, additional eyepiece options.

Stereo zoom microscope JBM-45 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About Stereo zoom microscope JBM-45

Magnification range	6x to 45x
Magnification	45x
Zoom ratio	6.3x
Head type	Trinocular
Brand	JB MICROSCOPE
Illumination type	LED
Working distance	110 mm
Stand type	Track stand
Model Name/Number	JBM-45
Is It Portable	Non Portable
Eyepiece magnification	10x
Reflected light	Top bottom light
Application	Research, PCB inspection, Industrial, Education, Jewellery
Country of Origin	Made in India

Minimum order quantity: 1 Piece

Provide high-quality optical system and durable and reliable operating mechanism. The new design presents high-quality resolution and true color images to meet the high precision requirements of modern biomedicine, scientific research, modern electronic industry online detection and other scientific and technological industries

Robust Performance & Versatile Design

The JBM-45's powder-coated metallic construction provides excellent durability for regular lab or field work. A heavy, stable base with anti-skid pads ensures worry-free operation during delicate tasks. The 360 rotatable trinocular head and ergonomic inclined eyepiece design offer flexibility for different users, making the microscope ideal for classrooms, laboratories, and quality control environments alike.

Exceptional Optical Clarity

Utilizing an achromatic zoom objective (0.7x to 4.5x) and widefield 10X eyepieces, the microscope delivers crisp, sharp images across a wide field of view. The stereoscopic optical system ensures natural, three-dimensional observation, which is especially beneficial in dissecting, sorting, or surface inspection tasks.

User-Friendly Controls and Illumination

Coarse focus movement, adjustable 55-75 mm interpupillary distance, and easy-to-switch stage plates make user setup seamless. The JBM-45 is equipped with bright, adjustable LED illumination from both above and below, providing optimal lighting for all specimen types without the need for a condenser.

FAQ's of Stereo zoom microscope JBM-45:

Q: How does the trinocular head on the JBM-45 enhance its usability?

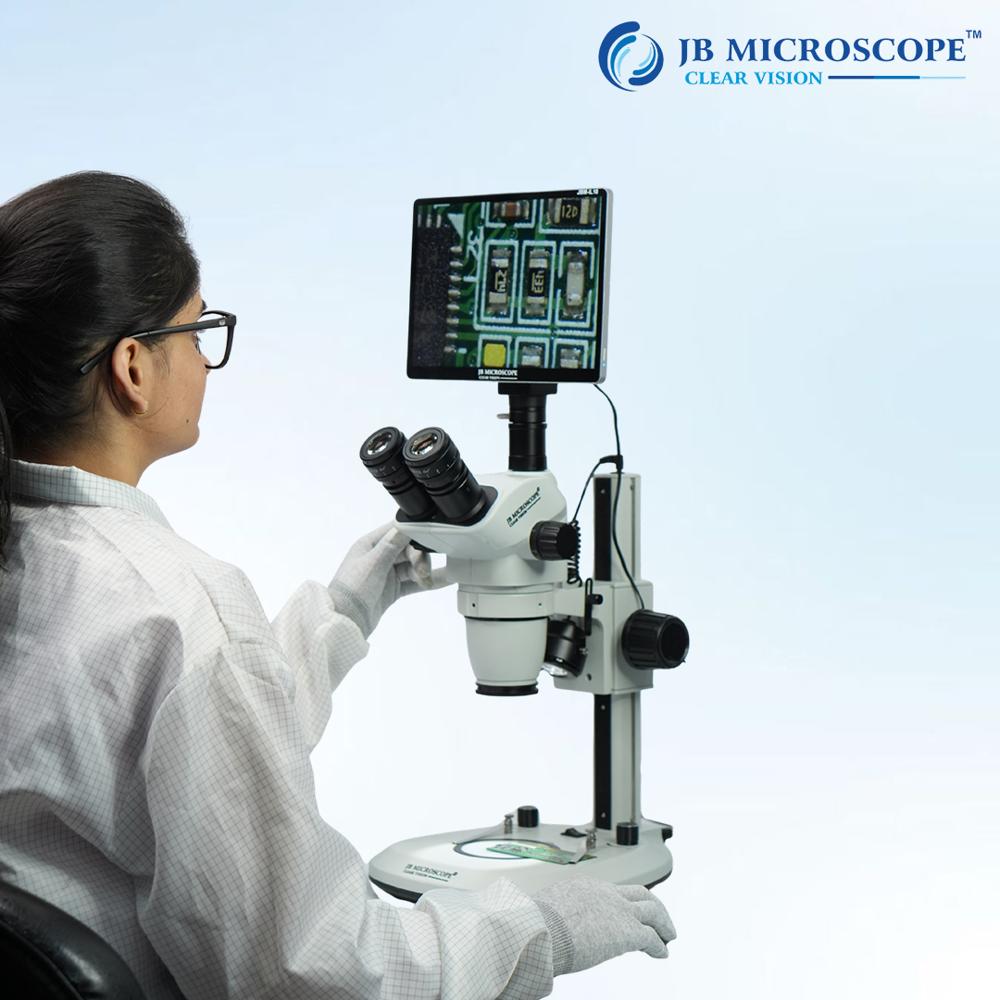

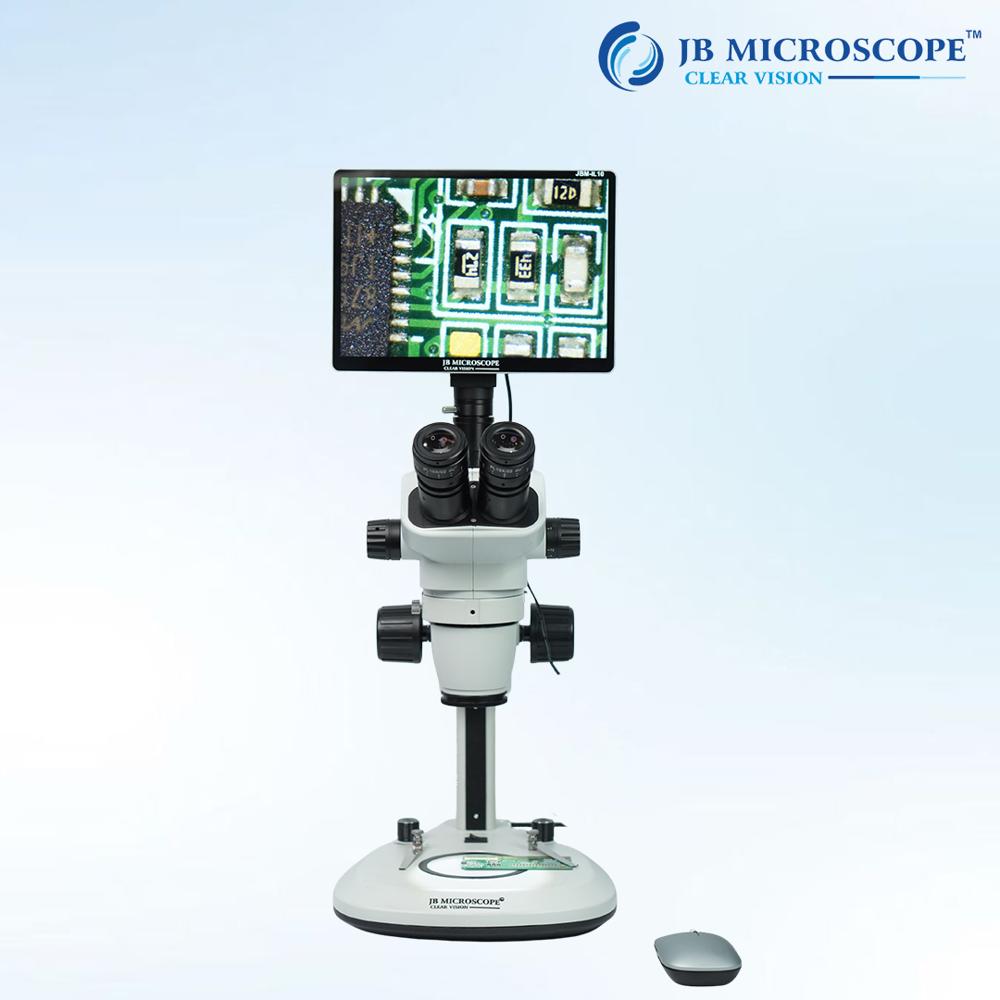

A: The 360 rotatable trinocular head allows users to easily adjust their viewing angle and attach optional camera adapters for documentation or digital imaging, adding flexibility for teaching, presentations, or advanced analysis.

Q: What types of specimens can I observe with the Stereo Zoom Microscope JBM-45?

A: You can examine a wide variety of samples, including biological specimens, circuit boards, minerals, and small mechanical parts. The three-dimensional stereoscopic view and zoom magnification make it suitable for detailed inspection and dissection.

Q: When should the supplied glass and black/white contrast plates be used?

A: The glass stage plate is ideal for transmitted light observation with semi-transparent samples, while the black/white contrast plate is better for opaque objects, enhancing specimen visibility under incident lighting.

Q: Where can additional accessories or spare parts for the JBM-45 be obtained?

A: Spare eyepieces, objectives, stage plates, and LED modules are available through authorized dealers, suppliers, manufacturers, and retailers across India. Contact your supplier for specific accessory needs.

Q: How is the focus system operated on the JBM-45?

A: The microscope uses a rack and pinion mechanism for 50 mm of coarse focus adjustment, allowing users to smoothly bring different sample heights into crisp focus. There is no fine adjustment for this model.

Q: What are the benefits of LED illumination for this microscope?

A: The adjustable LED illumination provides bright, energy-efficient lighting from both above and below the specimen, ensuring clear observation without excessive heat-ideal for extended use and delicate samples.

Q: Can the Stereo Zoom Microscope JBM-45 be used worldwide?

A: Yes, it comes with a 220V AC/50Hz power supply and is also compatible with a universal adapter, making it suitable for use in laboratories and educational settings globally.
