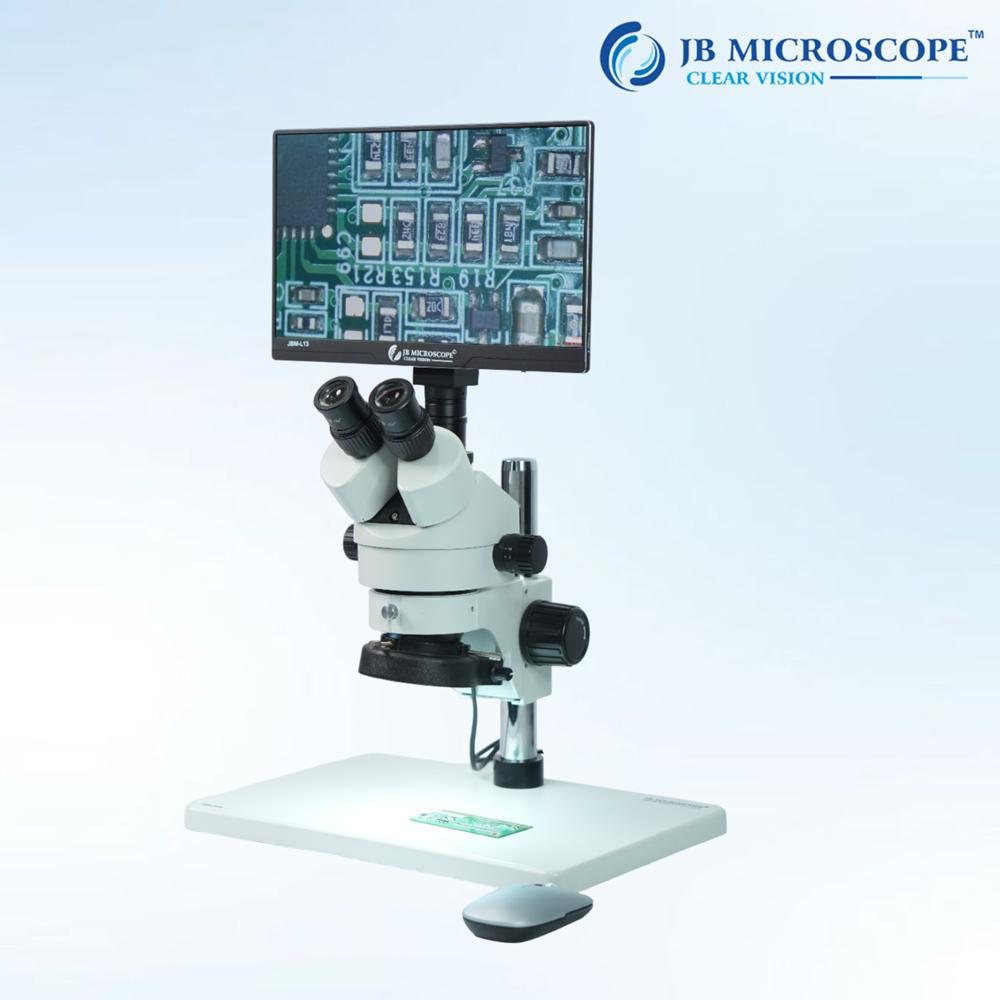

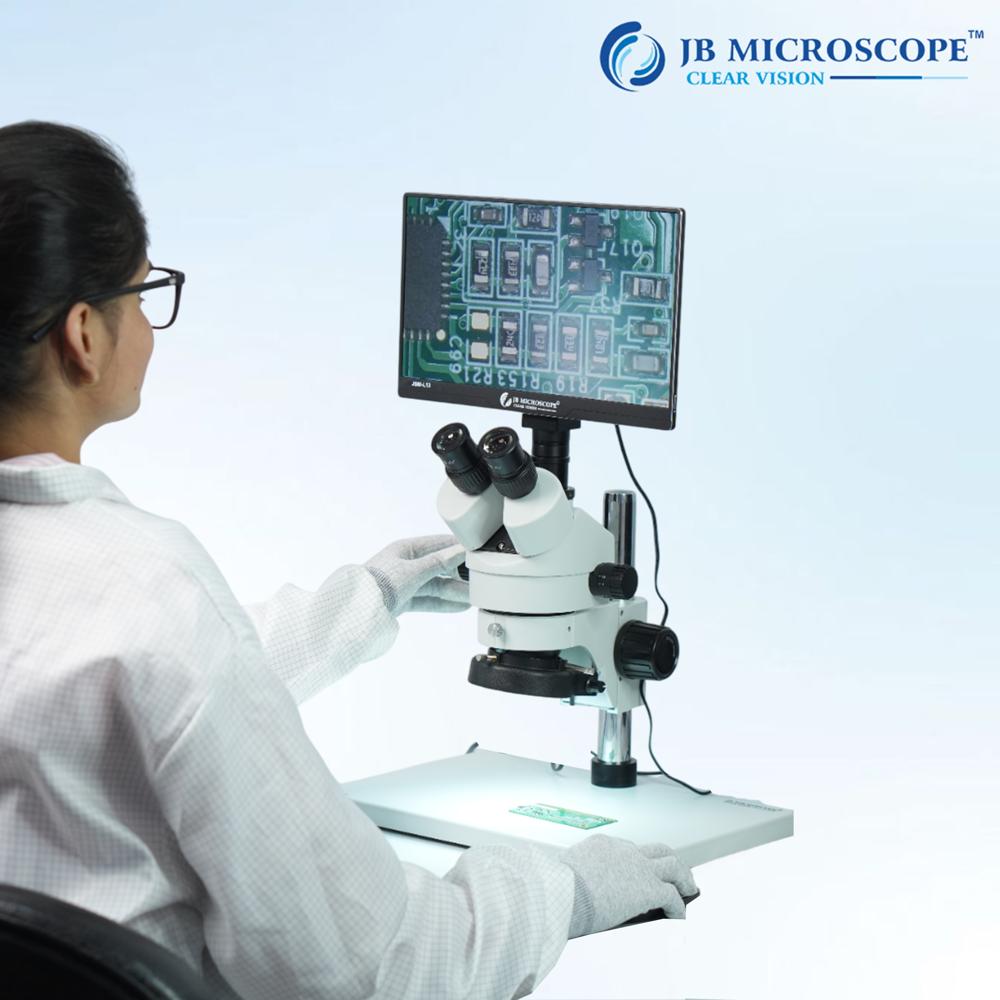

PCB Inspection Stereo Zoom Microscope JBM-LCD2

PCB Inspection Stereo Zoom Microscope JBM-LCD2 Specification

Focus System
Manual fine focus knob.

Features
On-screen measurement, image and video capture, 360 rotating base, ergonomic design.

Spare Parts
Replacement eyepieces, objective lens, auxiliary lens, stage plate, dust cover.

View Head
Integrated LCD digital display, 7-inch (touch LCD optional).

Theory
Stereo Zoom Microscope for PCB Inspection, integrated with digital imaging and display module.

Drawtube
Trinocular or digital head with integrated LCD screen.

Sensor
High-resolution CMOS digital sensor.

Resolution
1920 x 1080 pixels (Full HD).

Interface
USB 2.0, HDMI output.

Frame Rate
30 fps (Full HD video recording).

Focal Distance
76 mm (standard working distance).

Magnification
7x - 45x (Zoom Objective), up to 180x with additional eyepieces.

Dimensions
Approx. 370 mm x 250 mm x 430 mm.

Focus Range
Manual coarse focusing, adjustable based on sample size.

Eyepieces
10x widefield eyepieces (optional WF15x/WF20x).

Eyepiece Tube
Inclined at 45 for comfortable viewing.

Illumination
Built-in top and bottom LED illumination, adjustable brightness.

Coarse Adjustment Range
45 mm travel (approx.).

Fine Adjustment Range
Precise focusing mechanism for sharp imaging.

Working Stage
Large metallic base plate with frosted and black/white working plates.

Still Image Capture Resolution
Up to 1920 x 1080 pixels.

Video Capture Resolution
1920 x 1080 @ 30fps.

Image Format
JPEG, BMP (image capture).

Interpupillary Distance
55 - 75 mm adjustable.

Objective Achromatic
Zoom objective 0.7x - 4.5x continuous.

Condenser
Not required (used for observation without transmitted light).

Light Source
High-intensity LED, with external power supply.

Output
Simultaneous HDMI/USB/LCD output for flexible observation setups.

Display Monitor
Built-in 7-inch HD LCD display.

Operating Temperature Range
0C - 40C.

Storage
Supports SD Card up to 32GB for direct image/video storage.

Base Plate Material
Anti-static, heavy-duty metallic base suitable for electronics inspection.

Application
Precision inspection and documentation for PCBA, electronics, SMD soldering, microassembly, and educational use.

Power Supply
AC 110V-240V, 50/60Hz, DC 12V adapter output.

Digital Zoom
Up to 4x additional digital zoom via software.

Weight
Approx. 7.5 kg.

Software Compatibility
Windows imaging software included; MAC OS compatible via standard drivers.

PCB Inspection Stereo Zoom Microscope JBM-LCD2 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About PCB Inspection Stereo Zoom Microscope JBM-LCD2

Magnification range	7x 45x
Magnification	45x
Zoom ratio	10x
Head type	Trinocular
Light Source	LED
Illumination type	LED
Stand type	Pole stand
Model Name/Number	JBM-SZ-BL-LCD7
Usage/Application	Research and Development
Eyepiece magnification	10x
Reflected light	Top bottom light
Application	Industrial, Research, Jewellery, PCB inspection, Education
Working Distance	220mm
Rotation	360 Degree
llumination	22W Circular Fluorescent tube Dia.216mm
Horizontal Movement	250mm
Field of View	160mm
Effective Lens Dia	135mm

Minimum order quantity: 1 Piece

We innovative video integrated design liberates the operators eyes, directly detects the workpiece through the LCD screen, and has an automatic white balance function, which is convenient for many people to watch at the same time. Ergonomic structural design, horizontal (axial) bilateral setting of the zoom hand wheel, high precision of zooming. Ergonomic structural design, horizontal (axial) bilateral setting of the zoom hand wheel, high precision of zooming

Efficient High-Definition Observation

With its integrated 7-inch HD LCD display and Full HD digital sensor, the JBM-LCD2 provides crystal-clear visuals without the need for eyepieces. View detailed PCB features or electronic assemblies in real-time. Simultaneous HDMI, USB, and direct LCD outputs afford flexible setup for individual or group observation, making it ideal for production lines, quality control, and academic demonstrations.

Versatile Magnification and Ergonomic Design

Achieve precise inspection with 7x-45x zoom (expandable to 180x) and widefield eyepieces. The 45 inclined tube and 360 rotating base ensure comfortable, fatigue-free usage during extended work. Its manual fine/coarse focus and 76mm working distance accommodate various sample sizes. The anti-static metallic base plate protects sensitive electronic assemblies.

Intuitive Documentation and Storage

Capture still images or Full HD videos directly to an SD card (up to 32GB) for instant documentation. On-screen measurement tools and built-in imaging software streamline analysis. The system is compatible with Windows out-of-the-box and works with macOS via standard drivers, so you can easily integrate it into your inspection workflow.

FAQ's of PCB Inspection Stereo Zoom Microscope JBM-LCD2:

Q: How does the JBM-LCD2 microscope assist with PCB and electronics inspection?

A: The JBM-LCD2 combines high-resolution optical zoom (7x-45x, up to 180x with additional eyepieces) and digital imaging to provide clear visual feedback directly on its 7-inch LCD display. Accurate focusing, wide working distance, and anti-static base make it ideal for inspecting fine SMD soldering, microassembly, and other electronics work.

Q: What image and video capture features are included, and how are files stored?

A: The microscope enables you to capture Full HD still images (JPEG/BMP) and 1080p video directly onto an SD card (up to 32GB supported). You can document inspection steps in real-time, and use on-screen tools for precise measurement and analysis, improving quality control and traceability.

Q: Where can I view microscope output, and is simultaneous viewing possible?

A: Output can be displayed directly on the integrated 7-inch LCD, an external monitor via HDMI, or a computer via USB. All outputs can work simultaneously, which is especially useful for collaborative inspection or training sessions in production or classroom environments.

Q: What operating systems is the microscope compatible with?

A: The included imaging software is designed for Windows platforms. On Mac OS, the device is supported through standard drivers, so image and video capture is still accessible, ensuring integration with most IT environments.

Q: What maintenance or replacement parts are available for this microscope?

A: The JBM-LCD2 supports replacement eyepieces, auxiliary lenses, objective lenses, stage plates, and dust covers. This ensures long-term usability and adaptability for different inspection needs without requiring full system replacement.

Q: How can I benefit from the anti-static metallic base?

A: The heavy-duty anti-static metallic base plate provides stability and prevents electrostatic discharge, protecting sensitive electronic assemblies during inspection. This feature is crucial in professional electronics manufacturing and quality assurance.
