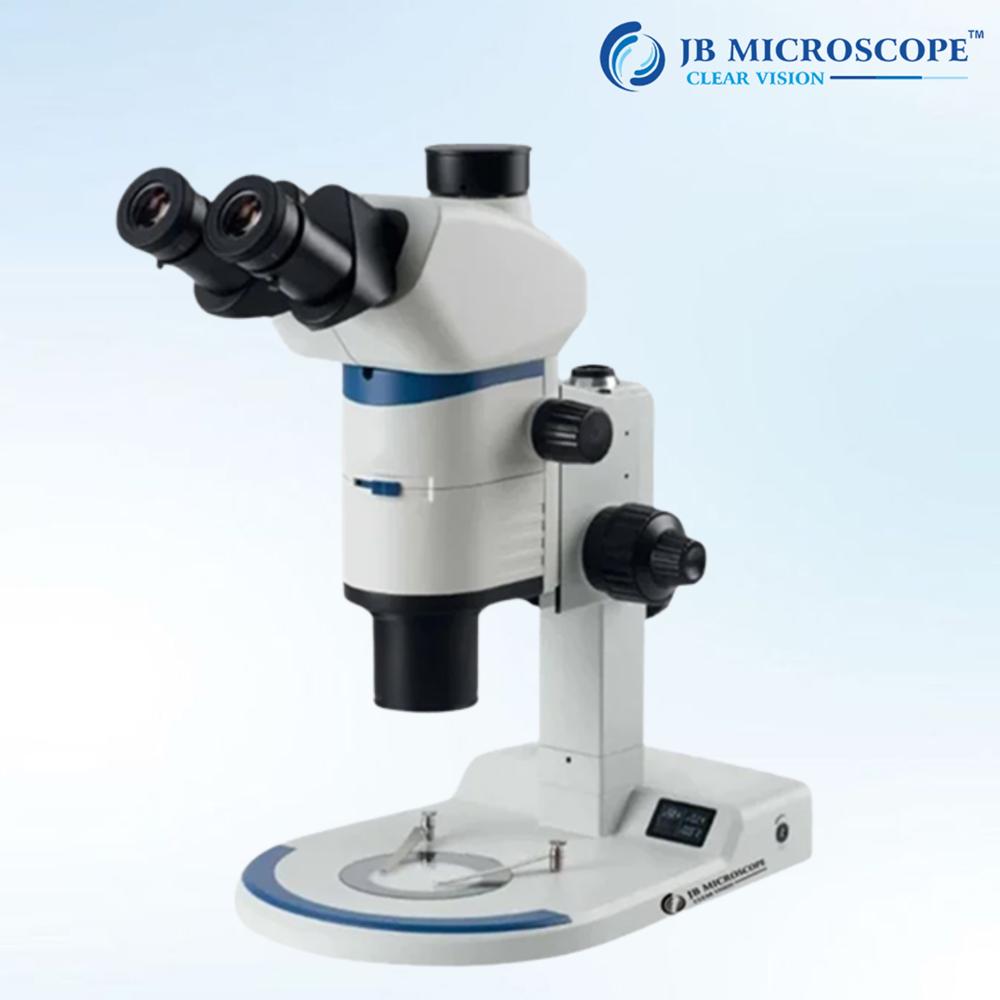

Stereo Zoom MicroscopeJBM-PL12

Name: Stereo Zoom MicroscopeJBM-PL12
Brand: JB INSTRUMENTS PVT LTD
Price: 410000.0 INR
Availability: InStock

Price 410000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stereo Zoom MicroscopeJBM-PL12 Specification

Spare Parts
Paired eyepiece, glass plate, dust cover.

Focus System
Rack and pinion focusing mechanism.

View Head
Binocular, stereo angle, 360 rotatable.

Features
Stereo image, zooming function, large working distance, dual LED illumination, rugged metal stand.

Theory
Stereo observation with zoom magnification system for clear, three-dimensional viewing of objects.

Drawtube
Binocular, inclined at 45 for comfortable viewing.

Sensor
N/A (Not applicable, as this is an optical model).

Resolution
N/A (Dependent on eyepiece and objective lens combination).

Interface
N/A (Purely optical, no digital interface).

Frame Rate
N/A (Not applicable, no camera included).

Focal Distance
100mm working distance.

Magnification
Zoom ratio 7x to 45x (zoom objective 0.7x to 4.5x, eyepiece 10x WF).

Dimensions
Approx. 300mm x 250mm x 400mm (H x W x D).

Focus Range
Travel range 50mm (coarse adjustment).

Eyepieces
Wide field 10x (Paired)

Eyepiece Tube
Binocular, 45 inclined, 360 rotatable.

Illumination
Incident and transmitted LED illumination, adjustable intensity.

Coarse Adjustment Range
50mm focusing stroke.

Fine Adjustment Range
N/A (No fine adjustment available).

Working Stage
Glass stage plate: 95mm diameter with frosted and black/white contrast plate.

Image Format
N/A (Optical, not digital).

Interpupillary Distance
Adjustable 55-75mm.

Objective Achromatic
Zoom objectives, fully achromatic, 0.7x - 4.5x.

Condenser
N/A (Not available on stereo models).

Light Source
LED top (incident) and bottom (transmitted) illumination.

Color
White/Black standard laboratory finish.

Weight
Approx. 6 Kg.

Stage Clips
Provided for secure sample positioning.

Power Supply
AC 220V/50Hz or 110V/60Hz for LED illumination.

Auxiliary Objectives
Optional 0.5x and 2.0x auxiliary objectives for extended magnification range.

Application
Ideal for electronics inspection, biological dissection, educational and industrial observation.

Stand Type
Heavy-duty rectangular base suitable for precision work.

Stereo Zoom MicroscopeJBM-PL12 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Stereo Zoom MicroscopeJBM-PL12

Magnification range	10x 80x
Magnification	10x
Zoom ratio	8x
Head type	Trinocular
Illumination type	Fluorescent
Working distance	120 mm
Stand type	Track stand
Model Name/Number	Stereo Zoom Microscope JBM-PL12
Eyepiece	PL10x22mm
Objective	2x
Eyepiece magnification	10x
Reflected light	Top bottom light
Application	Research, PCB inspection, Industrial
Viewing Head	545 degree adjustable
Illumination	5W LED light box
Camera Adapter	0.5x/0.65x/1x C-mount

Minimum order quantity: 1 Piece

Specification

Brand	JB Microscope
Viewing head	545 degree adjustable
Eyepiece	PL10X23mm
Zoom range	0.63X8X
Main objective	2X main objective
Objective	0.65X-6.5X
Body	Coarse and fine coaxial focus system
Base	Plan base without illumination
Camera	1X C-mount focus

Precision and Comfort for Extended Observations

Designed for sustained use, the JBM-PL12 features a 45-degree inclined, 360-degree rotatable binocular head, ensuring ergonomic comfort over long periods. Adjustable interpupillary distance ensures accommodation for various users, while the robust, heavy-duty base offers rigid support essential for high-precision tasks.

Flexible Magnification for Diverse Applications

This microscope boasts a zoom ratio from 7x up to 45x, enhanced further by optional 0.5x and 2.0x auxiliary objectives. This allows you to tailor magnification for tasks ranging from electronics inspection to biological dissection, making it exceptionally adaptive for research, quality control, or classroom settings.

Reliable Lighting & Rugged Build

With both incident and transmitted LED illumination, the JBM-PL12 delivers bright, adjustable lighting for exceptional clarity. A glass stage plate with contrasting options enhances visibility, while the sturdy metal construction and included accessories, such as eyepiece pairs and dust cover, ensure lasting performance.

FAQ's of Stereo Zoom MicroscopeJBM-PL12:

Q: How do I change the magnification range on the JBM-PL12 microscope?

A: Magnification is adjusted using the zoom knob, which smoothly transitions between 7x and 45x. For extended ranges, you can install optional 0.5x or 2.0x auxiliary objectives, providing more flexibility depending on the observational requirements.

Q: What is the process for setting up the microscope for electronics inspection or biological use?

A: Place the microscope on a stable surface, ensure the sample is positioned securely with the provided stage clips, and adjust lighting with incident and transmitted LEDs. Select your preferred magnification, adjust focus using the coarse knob within the 50mm range, and tailor the viewing angle for comfort using the 360 rotatable, 45 inclined binocular head.

Q: Where can the JBM-PL12 stereo zoom microscope be used effectively?

A: This microscope is ideal for laboratories, educational institutions, electronics assembly lines, and industrial inspection sites across India, thanks to its sturdy base, wide magnification range, and reliable dual LED illumination.

Q: What are the main benefits of using the stereo zoom system compared to standard microscopes?

A: The stereo zoom system delivers three-dimensional, high-resolution images, allowing precise depth perception not possible with standard monocular models. This feature is essential when studying intricate electronics, assembling small components, or observing biological specimens in detail.

Q: How is illumination controlled on this microscope, and what advantages does LED lighting offer?

A: LED illumination is adjustable for both incident (top) and transmitted (bottom) lighting, enabling optimal contrast and clarity for different sample types. LED lights are energy efficient, stay cool during operation, and provide consistent brightness over long periods.

Q: When is it necessary to use the auxiliary objectives, and how do they enhance the microscope's performance?

A: Auxiliary objectives (0.5x or 2.0x) are recommended when a broader field of view or higher magnification is required for specific tasks. They expand the usable zoom range, making the instrument more versatile for both low- and high-detail inspection tasks.
