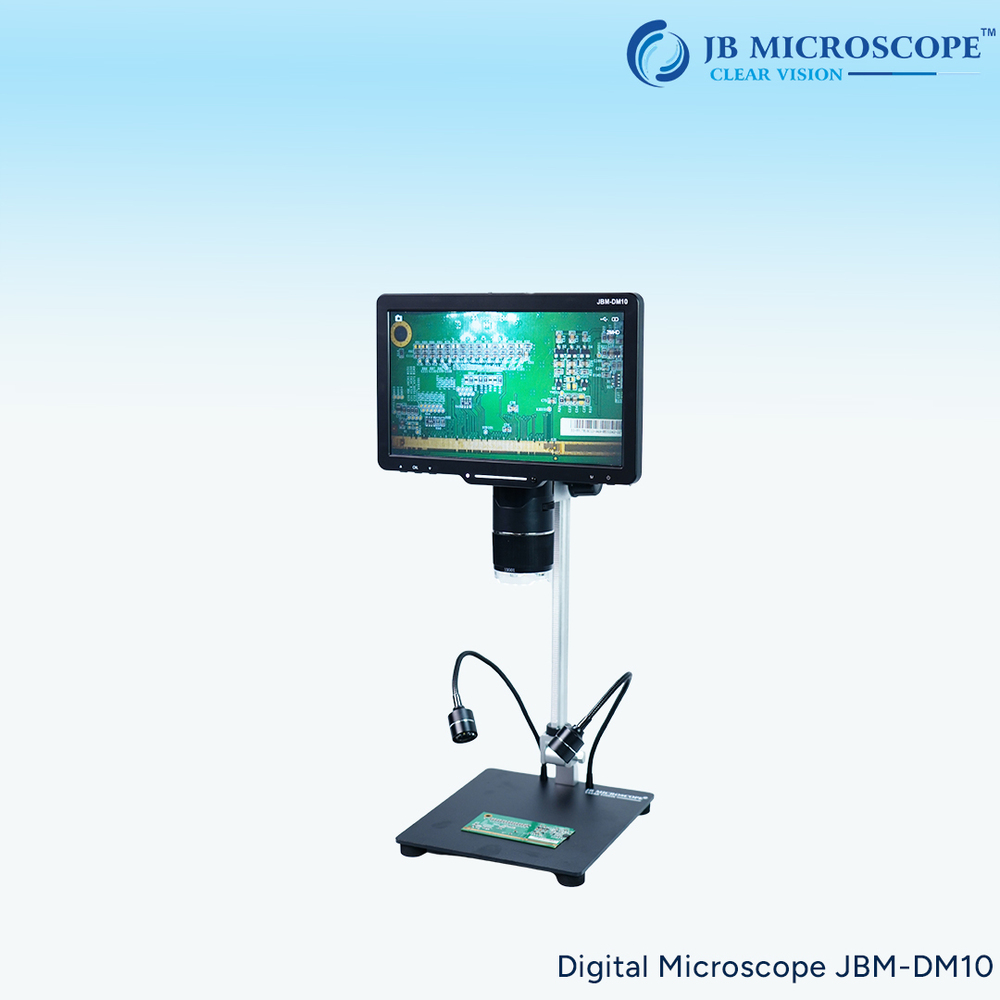

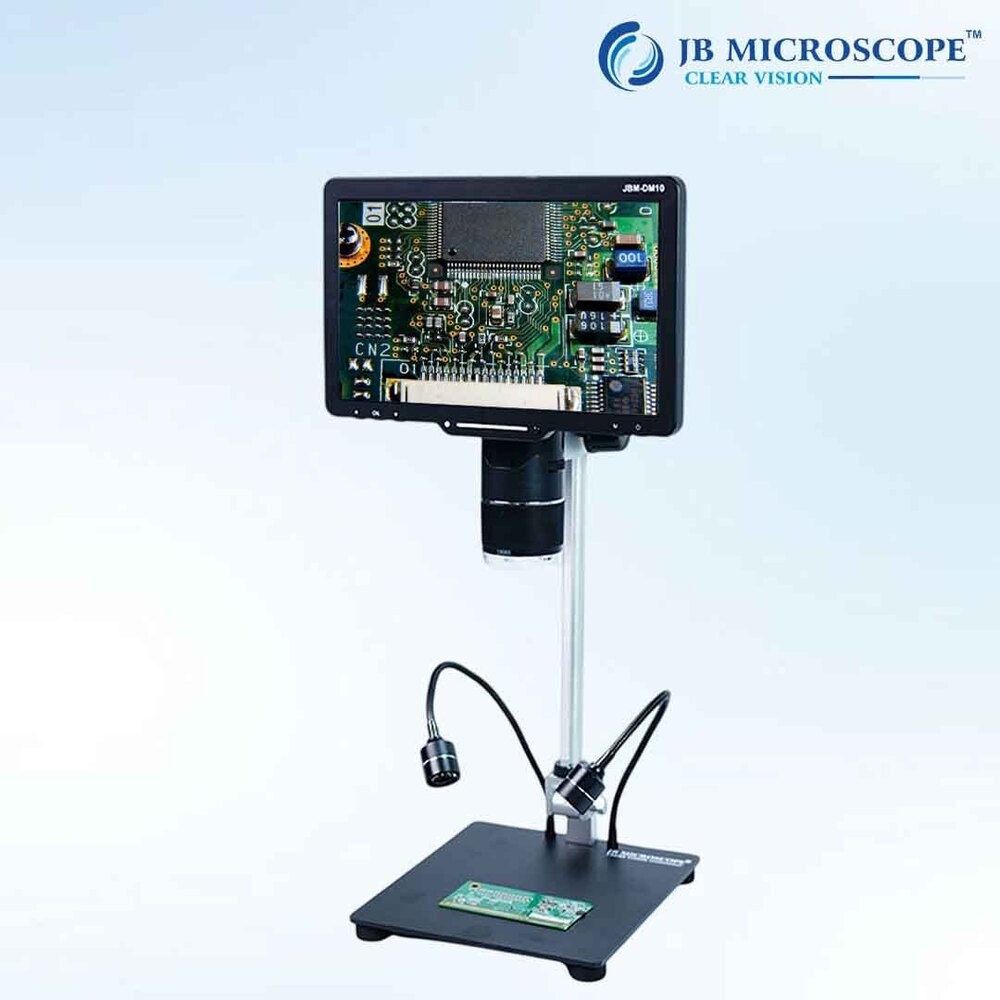

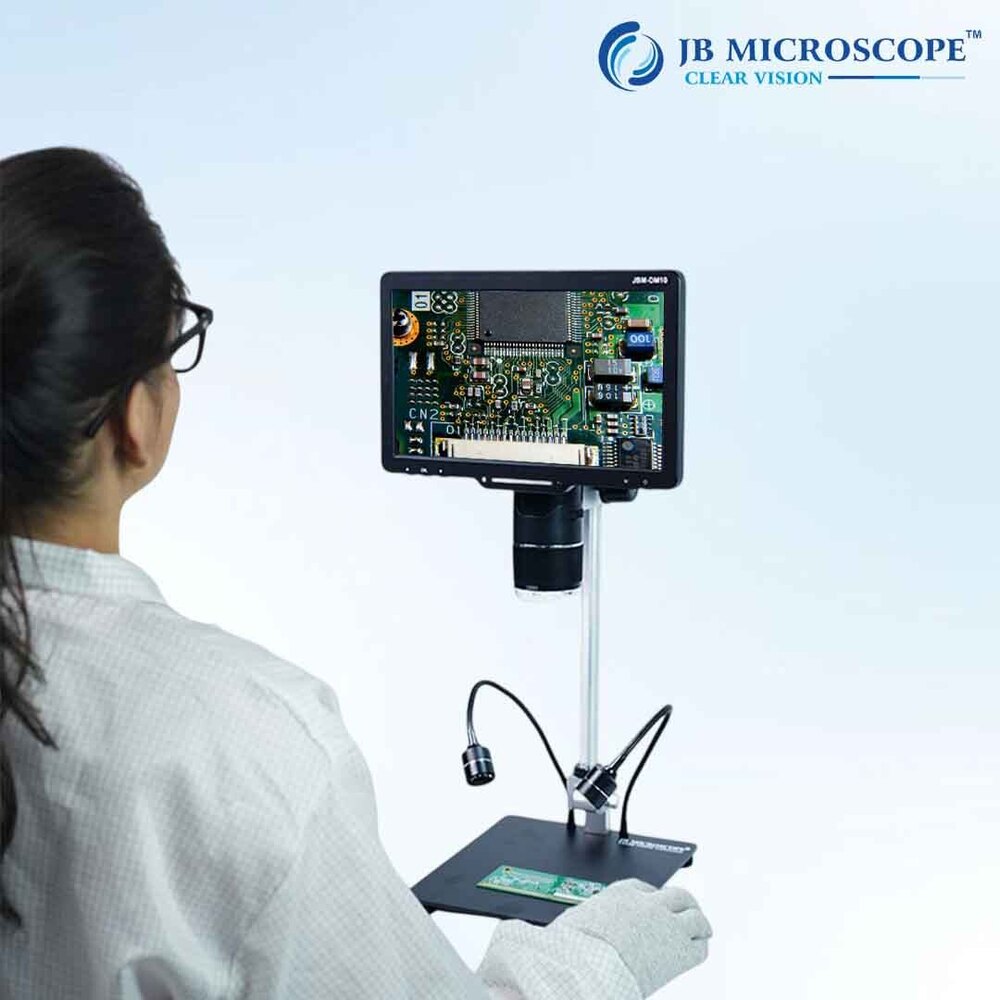

DIGITAL MICROSCOPE JBM-DM10

Name: DIGITAL MICROSCOPE JBM-DM10
Brand: JB INSTRUMENTS PVT LTD
Price: 9500 INR
Availability: InStock

Price 9500 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

DIGITAL MICROSCOPE JBM-DM10 Specification

Spare Parts
Dust cover, Power adapter, User manual

View Head
Trinocular Head, 360 rotatable

Features
High-resolution digital camera, Measurement software bundled, Adjustable brightness, Mechanical stage, Ergonomic design

Focus System
Coarse & Fine Focus

Theory
Digital Microscope with advanced imaging and measurement functions.

Drawtube
Trinocular

Sensor
3.0 MP CMOS

Resolution
2048 x 1536

Interface
USB 2.0

Frame Rate
30fps

Focal Distance
10-50 mm Millimeter (mm)

Magnification
40x-1600x (Digital)

Dimensions
390 mm 270 mm 170 mm Millimeter (mm)

Focus Range
0-30 mm Millimeter (mm)

Eyepieces
WF10X/18mm & WF16X/13mm

Eyepiece Tube
Trinocular head, 30 inclined

Illumination
Built-in LED, adjustable

Coarse Adjustment Range
20 mm

Fine Adjustment Range
2 mm

Working Stage
Double layer mechanical stage 135 x 120 mm Square Meter (m2)

Still Image Capture Resolution
2048 x 1536

Video Capture Resolution
640 x 480

Image Format
JPEG, BMP

Interpupillary Distance
55-75 mm Millimeter (mm)

Objective Achromatic
4X, 10X, 40X(S), 100X(S, Oil)

Condenser
NA 1.25 Abbe condenser with iris diaphragm

Light Source
LED, White light, adjustable brightness

Color Output
True color digital imaging

Body Material
Sturdy metal frame

Software Features
Measurement, Image capture, Annotation, Recording

Humidity
Below 85% RH

Operating Temperature
0C - 40C

Weight
Approx. 7 kg

Operating System Compatibility
Windows XP/Vista/7/8/10

Power Supply
AC 110V/220V, 50/60Hz

Stage Moving Range
75 x 45 mm

USB Cable Length
1.5 meters

DIGITAL MICROSCOPE JBM-DM10 Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
New Delhi

About DIGITAL MICROSCOPE JBM-DM10

brand: JB MICROSCOPE
Theory: Video Microscope
Drawtube : Monocular
Material : ABS
Dimension : 31*29*10cm
Magnification : 2000X
Type : Digital Microscope, Stereo Microscope, Electron Microscope
Screen : 10.1 inches IPS display
Display resolution :1024*600 resolution
Video Maximum Pixel:1080P
Photo Resolution: 20M,16M, 12M, 8M, SM, 2M
Video Resolution:1080P, 720P
Video Format: mp4
PC Resolution and Image Transfer Rate:1280*720/25fps
PC Operating System:Win7, Win8.1, Win10, Mac OS x 12 or higher
Interface and Signal Transmission Mode: Micro / USB 3.0 / HDMI
Polymer lithium battery: 103665-3000mA

Advanced Digital Imaging for Reliable Results

With a high-resolution 3.0 MP CMOS sensor and true color digital output, the JBM-DM10 provides exceptionally detailed imaging. Whether capturing still images or recording video, you benefit from superior resolution and clarity. The bundled measurement software enables image annotation, precise measurements, and easy documentation, streamlining your workflow for research or teaching purposes.

Versatile and Durable Construction

Built on a sturdy metal frame, this microscope features an ergonomic, trinocular head that is 360 rotatable and inclined at 30 for comfortable viewing. The double layer mechanical stage, along with coarse and fine focus adjustments, offers precise sample positioning and sharp focus control. Comprehensive accessories and the durable build ensure longevity, even with frequent use.

FAQ's of DIGITAL MICROSCOPE JBM-DM10:

Q: How do I connect the DIGITAL MICROSCOPE JBM-DM10 to my computer?

A: Connect the microscope to your computer using the included 1.5-meter USB 2.0 cable. Install the bundled software, which is compatible with Windows XP, Vista, 7, 8, or 10. Once connected, you can capture images, record videos, and utilize measurement and annotation features directly on your PC.

Q: What types of imaging capabilities does the JBM-DM10 offer?

A: The microscope delivers true color digital imaging with a still image resolution of 2048 x 1536 pixels and video capture at 640 x 480. You can capture images in JPEG and BMP formats, annotate them, perform measurements, and record videos at 30fps for thorough analysis.

Q: When is the microscope suitable for use based on environmental conditions?

A: The JBM-DM10 operates optimally at temperatures between 0C and 40C and in environments with humidity below 85% RH. This makes it suitable for typical laboratory, educational, and research settings in India.

Q: Where can the DIGITAL MICROSCOPE JBM-DM10 be effectively utilized?

A: This microscope is ideal for use in research laboratories, educational institutions, industrial inspection sites, and healthcare facilities. Its advanced digital capabilities and ergonomic design make it a versatile tool for dealers, importers, manufacturers, retailers, suppliers, traders, and wholesalers.

Q: What is the process for capturing and measuring samples with this microscope?

A: Place your slide on the double layer mechanical stage, use coarse and fine focus adjustments to sharpen the image, and utilize the included software to capture images, record videos, and perform precise measurements or annotations directly on your computer.

Q: How does the adjustable LED illumination benefit users?

A: The built-in, adjustable white LED light source provides bright, consistent illumination, which can be fine-tuned to enhance contrast and clarity according to the sample's requirements. Adjustable brightness ensures optimal imaging under various conditions and with different specimens.
