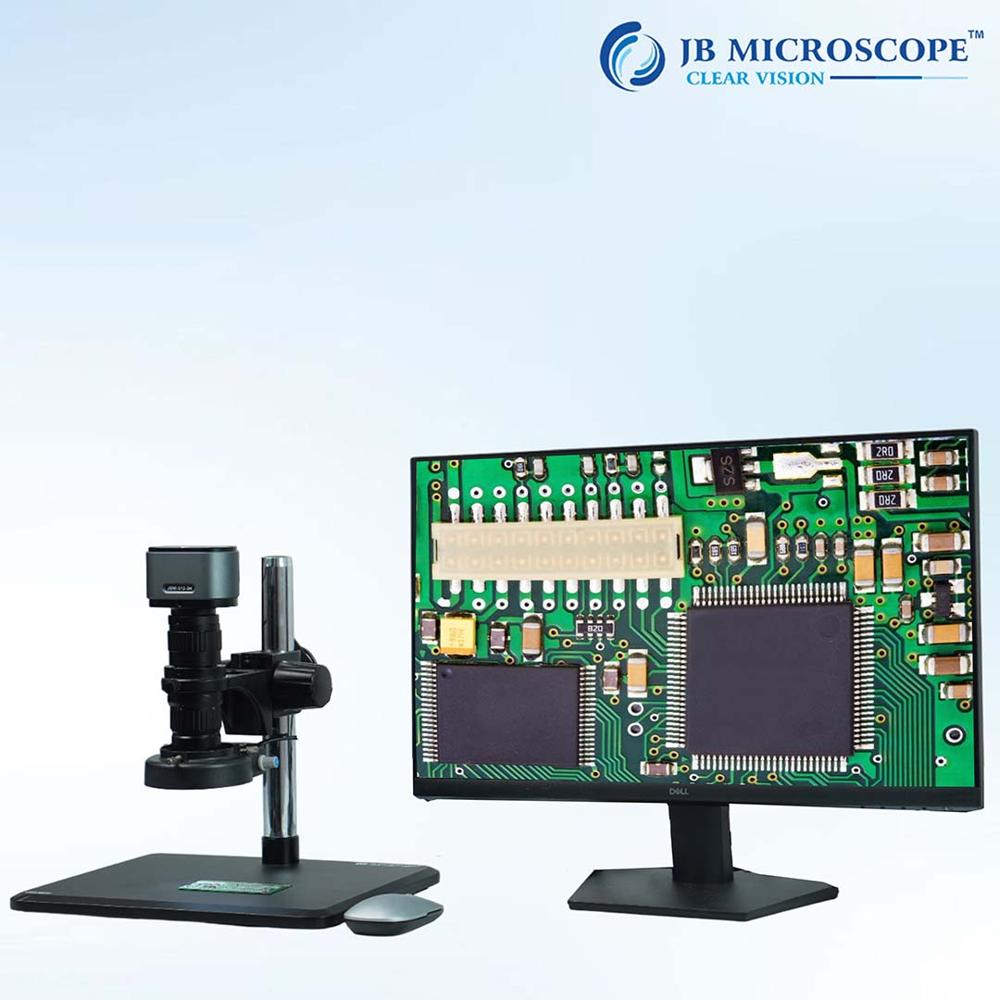

Inspection Digital Video MicroscopeJBM-MZ50

Inspection Digital Video MicroscopeJBM-MZ50 Specification

Features
High-resolution video output, wide field of view, ergonomic design, long working distance, suitable for industrial & research applications.

Focus System
Manual coarse & fine focusing

Spare Parts
Power adapter, calibration slide, dust cover, HDMI/USB cable

View Head
Trinocular with 360 rotatable head

Theory
Other

Drawtube
Trinocular

Sensor
High-sensitivity CMOS sensor

Resolution
1920 x 1080 (Full HD)

Interface
HDMI, USB 2.0

Frame Rate
60fps@1080p

Focal Distance
95mm Millimeter (mm)

Magnification
8X-50X (continuous adjustable)

Dimensions
400mm x 320mm x 500mm Millimeter (mm)

Focus Range
110mm Millimeter (mm)

Eyepieces
WF10X/20mm

Eyepiece Tube
Trinocular

Illumination
Built-in LED ring light with adjustable brightness

Coarse Adjustment Range
100mm

Fine Adjustment Range
0.002mm

Working Stage
Large, flat surface stage, anti-vibration design Square Millimeter (mm2)

Still Image Capture Resolution
1920 x 1080

Video Capture Resolution
1920 x 1080 @60fps

Image Format
JPG, BMP, RAW

Interpupillary Distance
55-75mm Millimeter (mm)

Objective Achromatic
1X, 2X, 4X objective options

Light Source
LED, intensity adjustable

Viewing Angle
45 inclined head for comfortable viewing

Display
Supports external monitors (not included)

Weight
Approx. 7.5kg

Color
White and Black

Body Material
Heavy duty metal frame

Software
Compatible with standard measurement & analysis software (via USB)

Camera Output
Direct HDMI display support

Operating Temperature
0C ~ 40C

Application
PCB inspection, precision engineering, laboratory research, educational demonstration

Power Supply
AC 110-240V, 50/60Hz

Inspection Digital Video MicroscopeJBM-MZ50 Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
3 Days

About Inspection Digital Video MicroscopeJBM-MZ50

Take advantage of the new Inspection Digital Video Microscope JBM-MZ50, engineered to transform your workspace with monumental clarity and precision. Featuring true 4K UHD resolution and a towering field of view, this sublime inspection tool delivers breathtaking imaging for PCB inspection, laboratory research, and precision engineering. Direct HDMI output supports easy connection to external monitors. Its heavy-duty metal frame and anti-vibration stage ensure reliability in industrial environments. Ending soon-this outstanding microscope offers continuous magnification, ergonomic viewing, and seamless integration with measurement software. Elevate your inspection experience today!

Features, Applications & Extra Advantages

The JBM-MZ50 boasts a high-sensitivity CMOS sensor, Full HD and 4K UHD capture, and a 45 inclined trinocular head for ergonomic comfort. Its built-in LED ring light, adjustable brightness, and large anti-vibration stage make it ideal for PCB inspection, educational demonstrations, and precision labs. Applications extend to industrial, manufacturing, and research settings. Integration with standard measurement software via USB ensures seamless workflow and superior image analysis, offering unmatched versatility for professionals.

Sample Policy, Shipping & Delivery Process

All units are delivered in secure packaging with careful handling to ensure damage-free arrival. Exchange options are available if you receive a faulty or incorrect item. Our FOB port is located in India, supporting both domestic and international shipments. Delivery time typically ranges from 7 to 15 business days, depending on location and order volume. Every order is tracked and monitored to guarantee a seamless delivery experience from our facility to yours.

Microscope type	Digital
Resolution	4K UHD (3840 x 2160 pixels)
Magnification	50x
Magnification range	7x-50x
Illumination	LED ring
Observation head	Video only
Mounting type	Bench stand
Model Name/Number	Digital Inspection Video Microscope MZ50
Camera	HDMI camera, USB camera, C mount camera
Field of view	25 mm
Working Distance	100mm
Zoom objective	0.7X-5X
Eyepiece	0.4X
Zoom Ratio	1:7
Base Vertical post height	240mm
Focus travel	50mm
Base size	320x260x16mm

FAQ's of Inspection Digital Video MicroscopeJBM-MZ50:

Q: How do I connect the JBM-MZ50 Digital Video Microscope to external monitors?

A: The JBM-MZ50 supports direct HDMI output, allowing you to connect the microscope easily to any compatible external monitor for instant high-resolution image display.

Q: What applications can the JBM-MZ50 microscope be used for?

A: This microscope is monumental for PCB inspection, laboratory research, precision engineering, and educational demonstration, where detailed image observation and capture are essential.

Q: When will I receive my JBM-MZ50 after placing an order?

A: Delivery typically occurs within 7 to 15 business days, depending on your location and order size. You will receive tracking information once your order is dispatched.

Q: Where is the JBM-MZ50 microscope shipped from?

A: All units are shipped from our facility in India via our designated FOB port, ensuring prompt fulfillment for domestic and international customers.

Q: What features make the JBM-MZ50 ideal for heavy-duty industrial use?

A: The JBM-MZ50's heavy duty metal frame, anti-vibration stage, and high-sensitivity imaging components make it superbly suited for the rigors of industrial and professional laboratory environments.

Q: How can I utilize the image analysis features of the JBM-MZ50?

A: Connect the microscope to your computer using the USB 2.0 interface and use compatible measurement and analysis software to process, analyze, and store captured images efficiently.
