4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10
4K Integrated Microscope JBM-PL4M-10

4K Integrated Microscope JBM-PL4M-10

Price 25000.0 INR/ Piece

MOQ : 1 Piece

4K Integrated Microscope JBM-PL4M-10 Specification

  • Spare Parts
  • LED ring, lens module, LCD panel
  • Focus System
  • Manual & digital focus control
  • Features
  • 4K UHD output, touch-screen interface, fast autofocus, direct image & video export, adjustable lighting, anti-scratch stage, ideal for electronic board inspection
  • View Head
  • Single LCD touch screen
  • Theory
  • Video Microscope
  • Drawtube
  • Other
  • Sensor
  • 8.29 MP Sony CMOS Image Sensor
  • Resolution
  • Ultra HD 4K (3840 2160 @ 30fps)

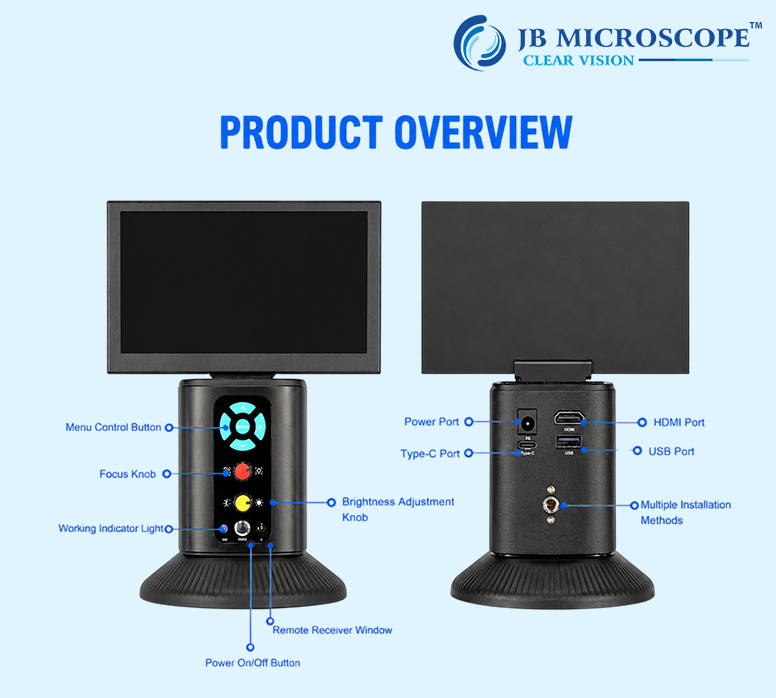

  • Interface
  • HDMI, USB, SD card slot
  • Frame Rate
  • 60 fps (live display)
  • Focal Distance
  • Adjustable for different sample heights
  • Magnification
  • 10X to 200X (digital)
  • Dimensions
  • Height: 37 cm, Base: 28 cm x 21 cm
  • Focus Range
  • Manual focus adjustment from 10 mm to 200 mm
  • Eyepieces
  • Not applicable, digital display only
  • Eyepiece Tube
  • Integrated, not present in traditional form
  • Illumination
  • LED ring light with adjustable brightness
  • Coarse Adjustment Range
  • Vertical movement via rack & pinion (up to 100 mm)
  • Fine Adjustment Range
  • Digital fine-tuning via control buttons
  • Working Stage
  • Large flat metal base, anti-scratch surface
  • Still Image Capture Resolution
  • 4K (3840 x 2160 pixels)
  • Video Capture Resolution
  • 4K@60 fps
  • Image Format
  • JPEG for still images, MP4 for video capture
  • Objective Achromatic
  • Digital lens module with achromatic correction
  • Condenser
  • Not applicable, LED-based illumination

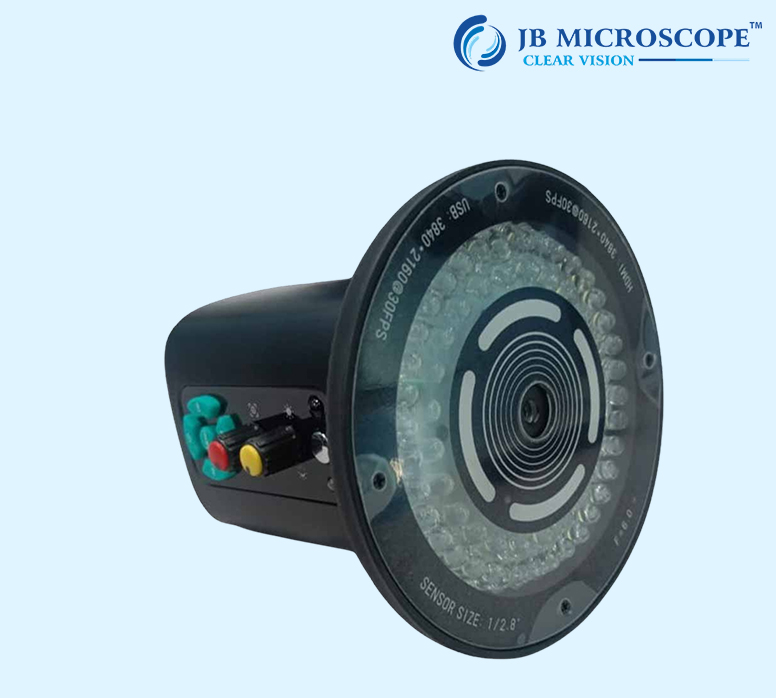

  • Light Source
  • High-intensity LED ring (multi-level adjustable)
  • Weight
  • 4.5 kg (approx.)

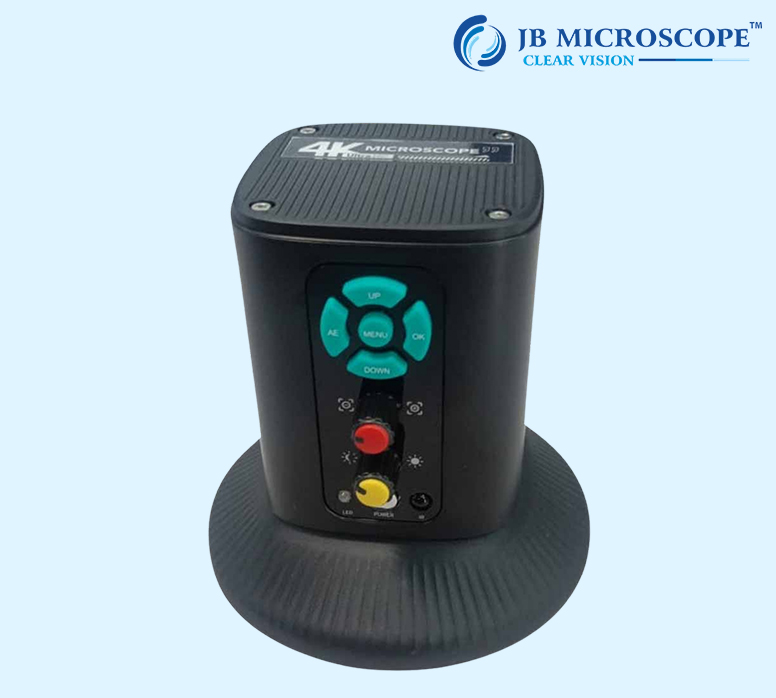

  • Touch Controls
  • Menu navigation, focus, brightness, save/capture
  • Digital Zoom
  • Up to 8X
  • Operating Temperature
  • 5C to 40C

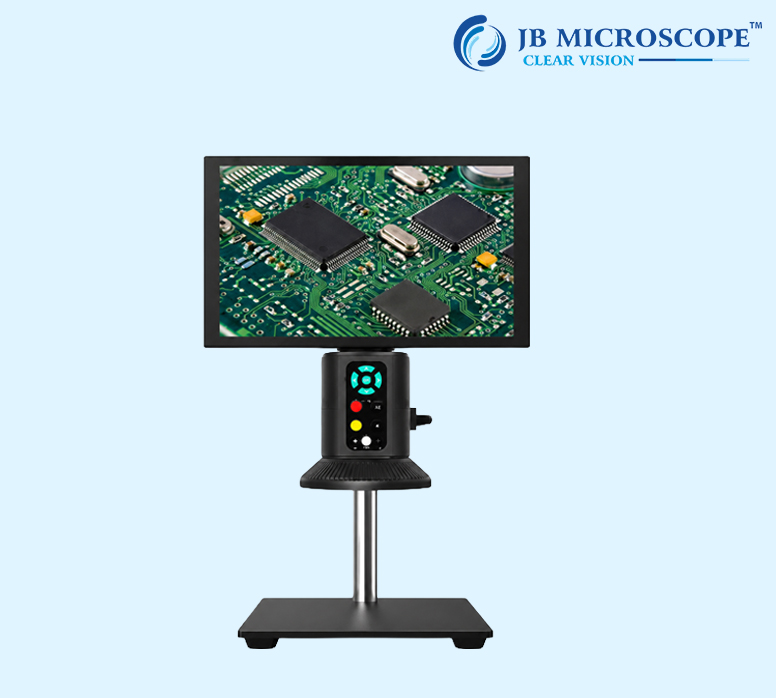

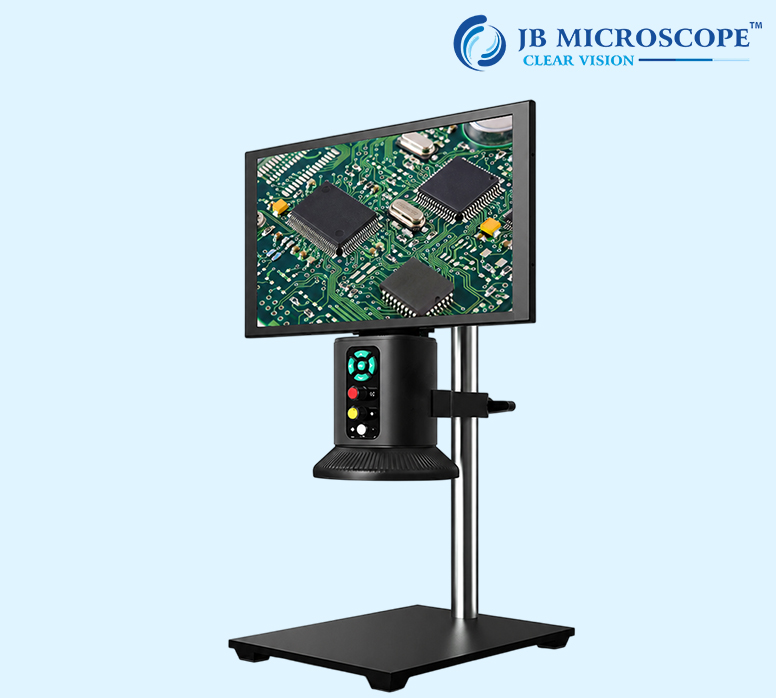

  • Mounting
  • Sturdy vertical stand with anti-slip feet
  • Color Correction
  • Automatic and manual modes
  • Field of View
  • Wide field for PCB and electronic parts
  • Software Support
  • Plug & play, compatible with Windows/Mac
  • Power Supply
  • DC 12V (adapter included)
  • Image Save Options
  • USB drive, SD card, direct HDMI output
  • Display Size
  • 10-inch IPS LCD
  • Camera Module
  • Integrated CMOS sensor


4K Integrated Microscope JBM-PL4M-10 Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About 4K Integrated Microscope JBM-PL4M-10

TheJBM-PL4 4K Integrated Microscopeis a high-performance digital inspection microscope designed for precision imaging in industrial, electronics, PCB, jewellery, quality control, and laboratory applications. Featuring an8.29 MP Sony CMOS sensor, Ultra HD4K resolution, and an integrated display, it delivers crystal-clear images and videos with outstanding color accuracy. Its compact all-in-one design, adjustable LED illumination, and HDMI/USB connectivity provide an efficient, user-friendly solution for professional inspection and documentation.

Ultra HD Visual Clarity

Experience striking clarity with the JBM-PL4M-10's 8.29MP Sony CMOS sensor and ultra-high-definition 4K (3840 x 2160) output. The expansive 10-inch IPS LCD screen ensures precise observation of intricate PCB patterns, electronic parts, or fine samples. Achromatic correction in the digital lens further enhances true-to-life color and detail.


Effortless Operation and Flexibility

Navigate microscope functions with ease using responsive touch controls-menu navigation, focus, brightness, and instant capture or recording are all at your fingertips. Adjustable lighting, digital zoom up to 8X, and manual or automatic color correction provide precision customization for diverse applications.


Stable, Purpose-Built Design

A sturdy vertical stand with anti-slip feet and a large anti-scratch metal working stage ensure robust, shake-free use. The microscope's substantial frame and adjustable rack & pinion movement enable smooth vertical coarse adjustments and fine digital focus, ensuring versatility for a range of sample sizes and inspection tasks.

FAQ's of 4K Integrated Microscope JBM-PL4M-10:


Q: How do I capture and save images or videos on the JBM-PL4M-10 microscope?

A: Images and videos can be captured using the touch screen interface. You can save files directly to a USB drive, SD card, or export via HDMI output. Still images are stored in JPEG format and video recordings in MP4, all at ultra-high-definition resolutions.

Q: What operating systems are compatible with this integrated microscope?

A: The JBM-PL4M-10 is plug-and-play and supports both Windows and Mac operating systems, ensuring hassle-free integration with your existing workflow and equipment setup.

Q: When should I use manual versus automatic color correction?

A: Automatic color correction is suitable for general use and rapidly varying sample conditions, while manual mode allows fine-tuning when precise color representation is essential, such as in defect analysis or quality control.

Q: What is the advantage of the digital zoom and adjustable focal distance?

A: Digital zoom up to 8X and an adjustable focus range from 10 mm to 200 mm allow you to examine small components in great detail or quickly scan larger areas, adapting easily to samples of varying heights and intricacies.

Q: Where is this microscope best suited for use?

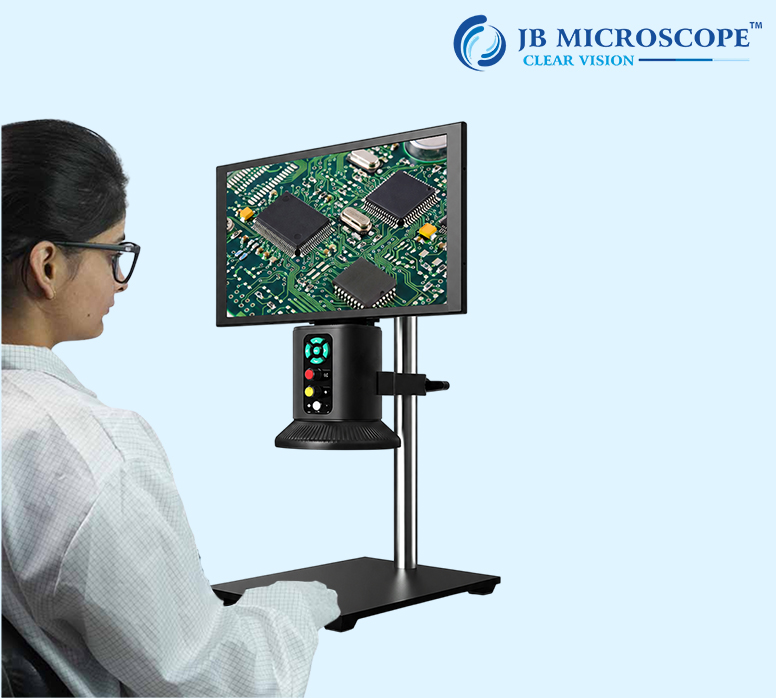

A: With its wide field of view and high-resolution output, the JBM-PL4M-10 is ideal for electronics labs, PCB quality assurance, educational demonstrations, or any setting requiring detailed visual inspection of flat or small components.

Q: How do I adjust the lighting during microscope operation?

A: The high-intensity LED ring light features multi-level adjustable brightness, easily controlled via touch commands to optimize image clarity and contrast based on your sample's characteristics.

Q: What are the key benefits of choosing this digital microscope over traditional optical models?

A: Key benefits include ultra-fast autofocus, hands-on touch controls, wide field of view for PCB/electronics, direct digital export, adjustable LED illumination, plug-and-play software support, and a robust, stable frame-making it a reliable choice for modern inspection environments.
