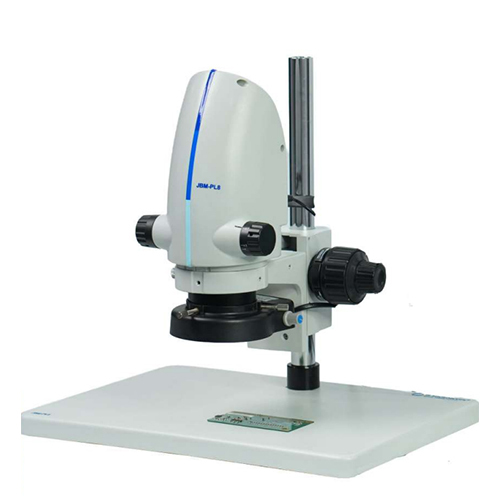

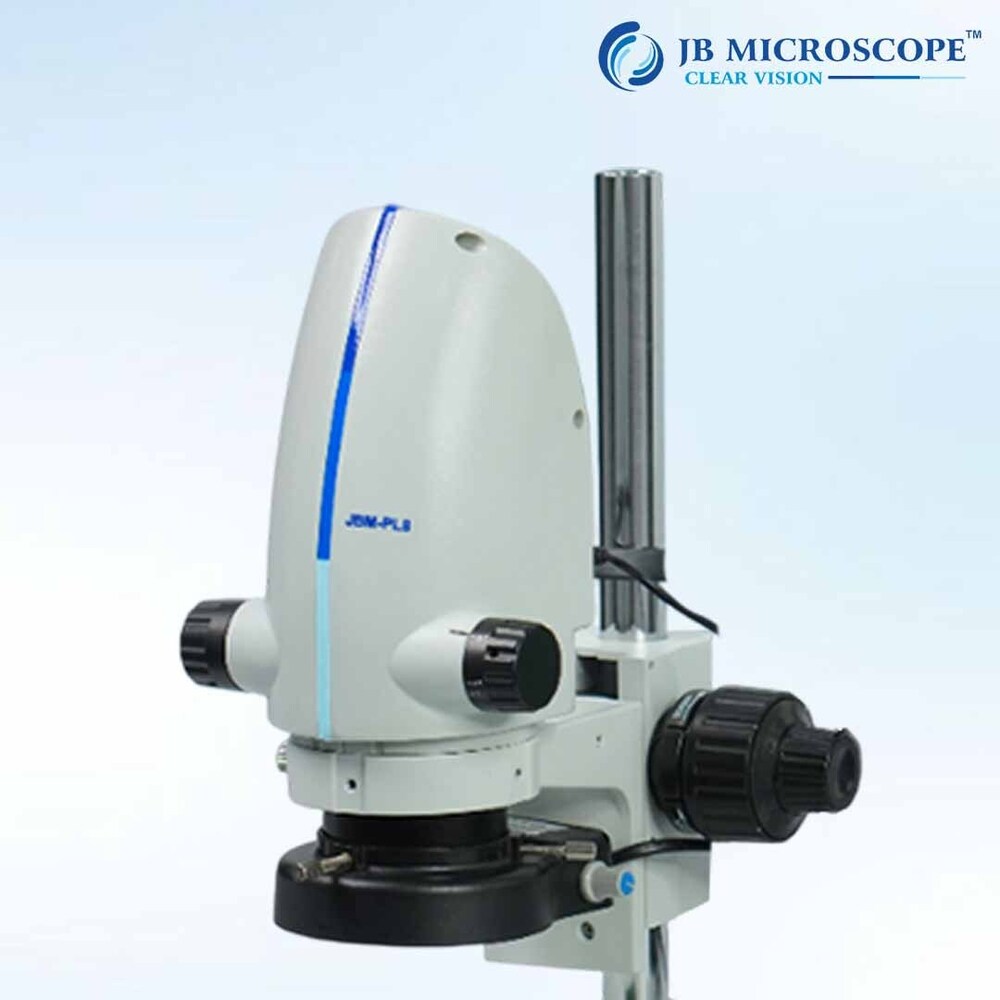

JBM-PL8 Digital Measurement Video Microscope

Send Inquiry

Request To Call Back

JBM-PL8 Digital Measurement Video Microscope

Get a Price/Quote

MOQ : 1 Piece

JBM-PL8 Digital Measurement Video Microscope Specification

Spare Parts
LED ring light, stage plate, power adapter, USB cable, HDMI cable

View Head
Trinocular, 360-degree rotatable

Focus System
Coaxial coarse and fine focusing with tension adjustment

Features
Live measurement software, image stitching, annotation, measurement analysis, USB & HDMI output, high stability frame, easy calibration

Theory
Digital Measurement Video Microscope designed for detailed observation and measurement tasks in microelectronics, precision engineering, biology, and industrial inspection.

Drawtube
Trinocular

Sensor
High-resolution CMOS sensor

Resolution
1920 x 1080 pixels

Interface
USB 2.0/HDMI

Frame Rate
30 FPS (Full HD)

Focal Distance
75 mm Millimeter (mm)

Magnification
8x to 50x (optical), up to 200x (digital)

Dimensions
340 mm x 270 mm x 440 mm Millimeter (mm)

Focus Range
0 - 40 mm Millimeter (mm)

Eyepieces
Not Applicable (video output only)

Eyepiece Tube
Trinocular tube for camera attachment

Illumination
LED ring light, adjustable intensity

Coarse Adjustment Range
40 mm

Fine Adjustment Range
0.002 mm precision

Working Stage
Precision mechanical stage, 220 x 140 mm with X/Y movement Square Meter (m2)

Still Image Capture Resolution
Up to 5 megapixels

Video Capture Resolution
1920 x 1080 (Full HD)

Image Format
JPEG, BMP (still), AVI (video)

Objective Achromatic
Plan achromatic objectives, 1x, 2x, 4x, 6x selectable

Condenser
Fixed condenser (integrated lighting)

Light Source
LED, adjustable, >25,000 hours lifespan

Camera Mount
C-mount compatibility for various camera models

Storage Options
Direct save to USB drive (through camera port)

Calibration Slide
Supplied 0.01 mm precision calibration slide

Software
Measurement, annotation, export, and image analysis functions included

Power Supply
110-240V AC, 50/60Hz universal adapter

Weight
8.5 kg approx.

Operating System Support
Windows 7/8/10, Mac OSX compatible (with software)

Application

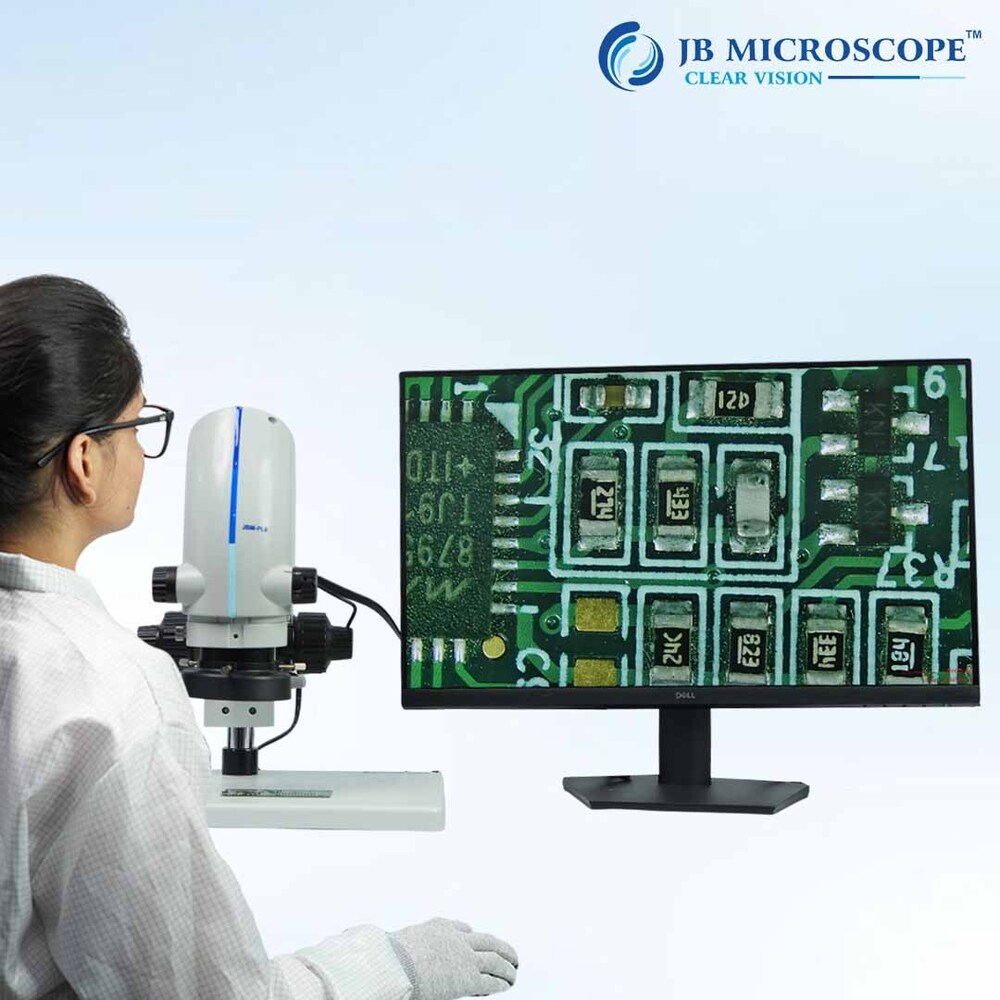

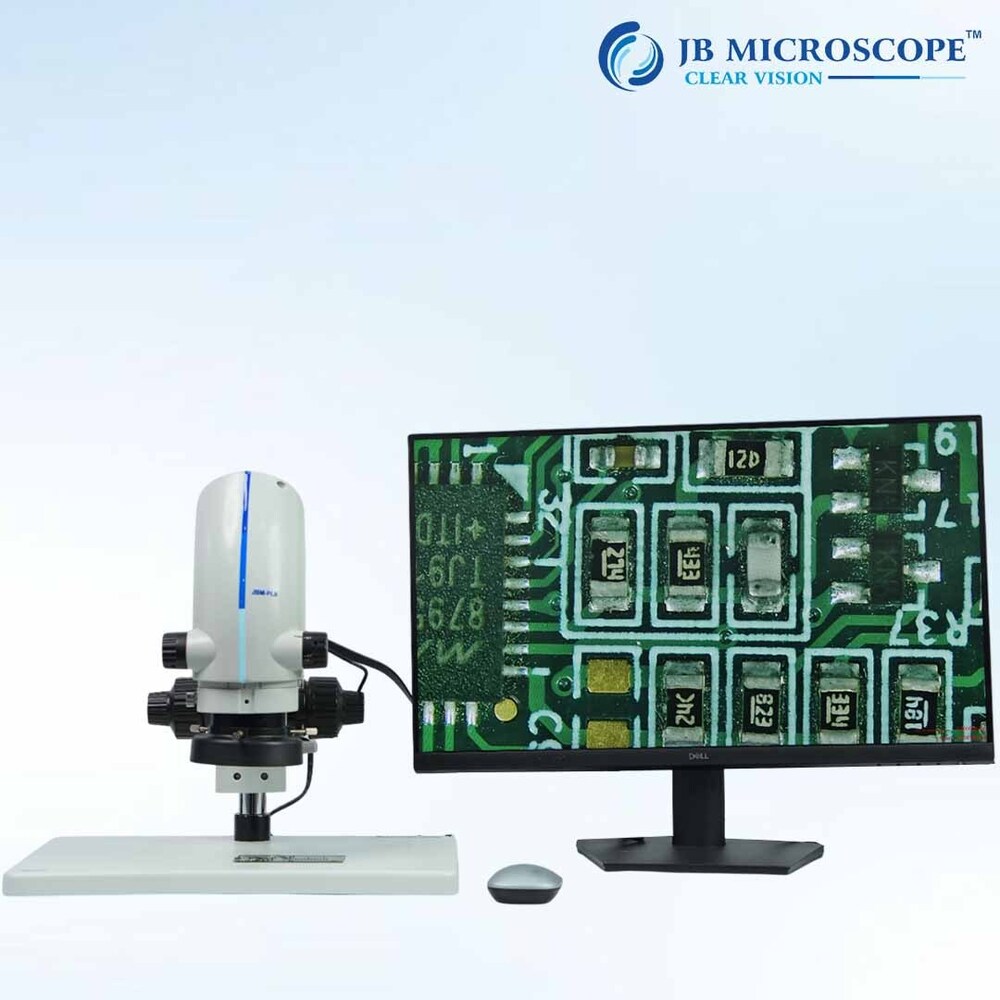

Surface mount device (SMD) inspection, PCB quality control, scientific research, jewelry assessment

JBM-PL8 Digital Measurement Video Microscope Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

JBM-PL8 Digital Measurement Video Microscope About

Experience the unassailable performance of the JBM-PL8 Digital Measurement Video Microscope - your gateway to unrivaled precision. Engineered for exquisite clarity, it boasts a high-resolution CMOS sensor, versatile C-mount compatibility for various cameras, and a comprehensive measurement suite. Enjoy fresh access to advanced features: live annotation, export, and seamless image analysis. With adjustable LED illumination, robust mechanical stage, and Full HD video capture, this powerhouse is ideal for SMD inspection, PCB quality control, scientific research, and jewelry assessment. Elevate your micro-exploration with this exceptional deal, perfectly suited for industry professionals and researchers.

Seamless Operation and Advanced Feature Suite

To use the JBM-PL8 Digital Measurement Video Microscope, simply connect the universal power adapter and position your sample on the precision stage. The microscope features digital measurement, annotation, and direct USB export for quick workflows. Magnification ranges from 8x to 200x, supporting myriad applications-including microelectronics, precision engineering, and biology. Its 360-degree rotatable trinocular head and easy calibration make it an indispensable tool for industrial inspection, quality assurance, and scientific discovery.

Packaging, Sample Policy, and Delivery Insights

JBM-PL8 Digital Measurement Video Microscope is thoughtfully packaged with all spare parts-LED ring light, stage plate, power adapter, USB and HDMI cables-ensuring pristine delivery and market value retention. Sample policies can be tailored to estimate performance prior to bulk order, with transparent communication on list price. Expect prompt delivery timeframes, supporting your workflow demands. Packaging integrity safeguards the product's exquisite build, underscoring our commitment to unrivaled reliability for dealers and professionals across India.

FAQ's of JBM-PL8 Digital Measurement Video Microscope:

Q: How do I install and calibrate the JBM-PL8 Digital Measurement Video Microscope?

A: Installation is simple: connect the universal power adapter and attach your camera to the C-mount. Place the supplied 0.01 mm calibration slide on the stage and use the included software for precise calibration and measurement setup.

Q: What areas of application does this microscope best serve?

A: The JBM-PL8 excels in detailed observation and measurement for SMD inspection, PCB quality control, precision engineering, scientific research, and jewelry assessment, thanks to its clear imaging and flexible magnification.

Q: When will my order be delivered after purchase?

A: Delivery times are consistently prompt and depend on your location and chosen distributor; our logistics team ensures the product reaches you efficiently while retaining its market value and integrity.

Q: Where can I directly save captured images and videos?

A: You can save still images and videos directly to a USB drive via the camera's USB port, making data transfer and storage easy and efficient.

Q: What are the benefits of the included measurement and analysis software?

A: The integrated software allows users to perform live measurements, image annotation, data export, and in-depth image analysis. This streamlines workflows and enhances productivity for both industrial and academic applications.
