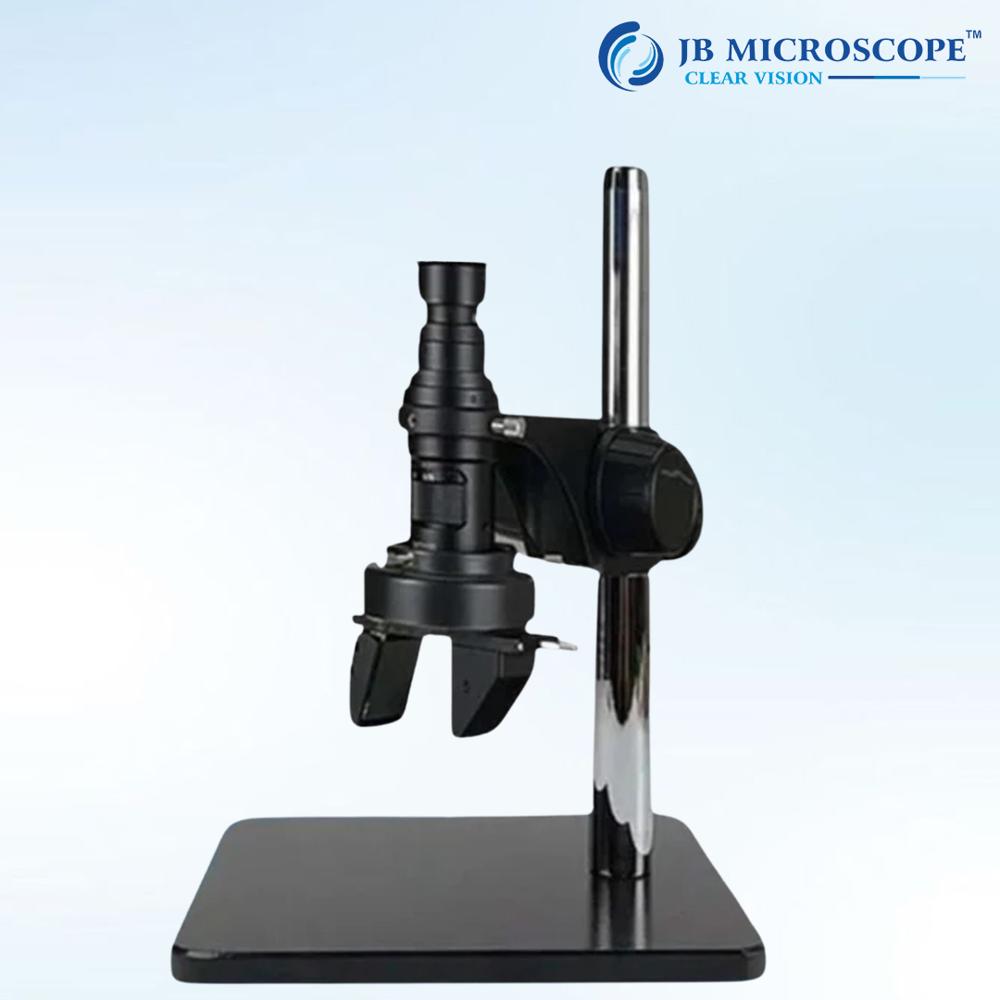

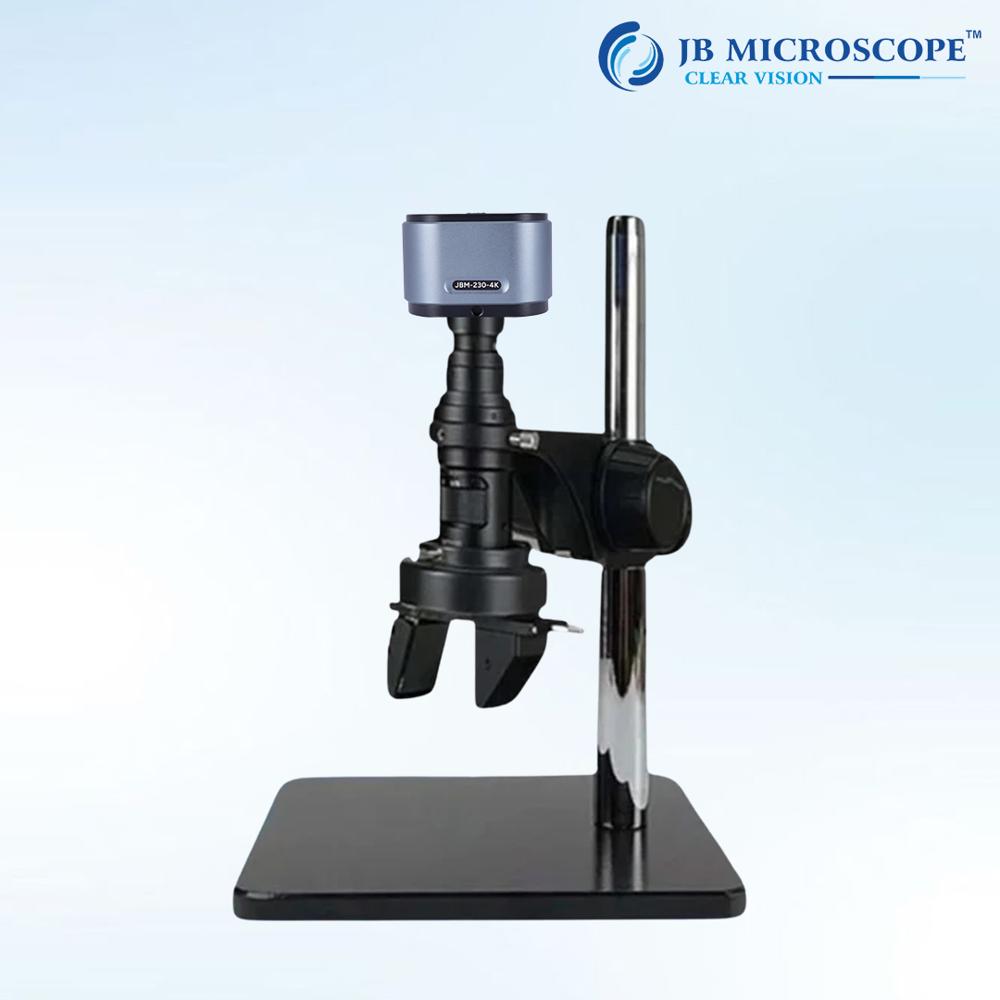

Digital Video MicroscopeJBM-HD3D

Digital Video MicroscopeJBM-HD3D Specification

Features
3D visualization, HDMI output, real-time image/video recording, user-friendly controls, PC connectivity.

View Head
360 rotatable, ergonomic design.

Spare Parts
Power supply adapter, stage clips, dust cover, HDMI cable.

Focus System
Precision coaxial coarse and fine adjustment.

Theory
Digital Video Microscope for real-time observation and detailed analysis of small structures in high definition.

Drawtube
Trinocular or camera port for digital imaging integration.

Sensor
1/2.8 Sony CMOS sensor.

Resolution
1080p Full HD (1920 x 1080 pixels).

Interface
HDMI, USB, and SD card supported.

Frame Rate
60 fps (real-time video output).

Focal Distance
Up to 200 mm (varies based on lens selection).

Magnification
Up to 600x (digital and optical).

Dimensions
Base: 210 x 300 mm, Height: 450 mm.

Focus Range
0-100 mm adjustable.

Eyepieces
Not applicable (video output replaces traditional eyepiece viewing).

Eyepiece Tube
Trinocular tube/adapted camera mount.

Illumination
Integrated adjustable LED ring light.

Coarse Adjustment Range
80 mm.

Fine Adjustment Range
1.0 micron.

Working Stage
Large mechanical stage with slide holder.

Still Image Capture Resolution
Up to 1920 x 1080 pixels.

Video Capture Resolution
1080p @ 60fps.

Image Format
JPEG, BMP (still files); AVI (video capture).

Interpupillary Distance
Not required for digital display model.

Objective Achromatic
4x, 10x, 40x, 100x objectives included.

Condenser
Abbe condenser NA 1.25 with iris diaphragm.

Light Source
High-brightness, long-life LED.

Body Material
Rugged metal alloy frame.

Image Storage
Supports SD memory card up to 32GB.

Color Correction
Built-in digital color correction.

White Balance
Auto/manual selectable.

Power Supply
100-240V AC adapter included.

Camera Control
On-board control panel for camera settings.

Operating System Support
Compatible with Windows and Mac OS for data transfer via USB.

Software
Comes with imaging and measurement software.

Output Device
Connects directly to monitors or projectors via HDMI.

Digital Video MicroscopeJBM-HD3D Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Digital Video MicroscopeJBM-HD3D

Magnification	50x
Focusing System	Manual Focus
Interface	USB and HDMI
Display	External Monitor
Lens Type	Zoom Lens
Brand	JB MICROSCOPE
Resolution	8 MP
Model Name/Number	JBM-MZ3D
Material	Aluminum Alloy
Light Source	LED Ring Light
Microscope Type	Video
Eyepiece	0.4X
Objective	0.7X-5X
Features	Stereo Imaging, High-Resolution Optics, Versatile Illumination
Interpupillary Distance	100mm
Zoom Ratio	1:7
Zoom objective	0.7X-5X
Focus travel	50mm
Base size	320x260x16mm

Minimum order quantity: 1 Piece

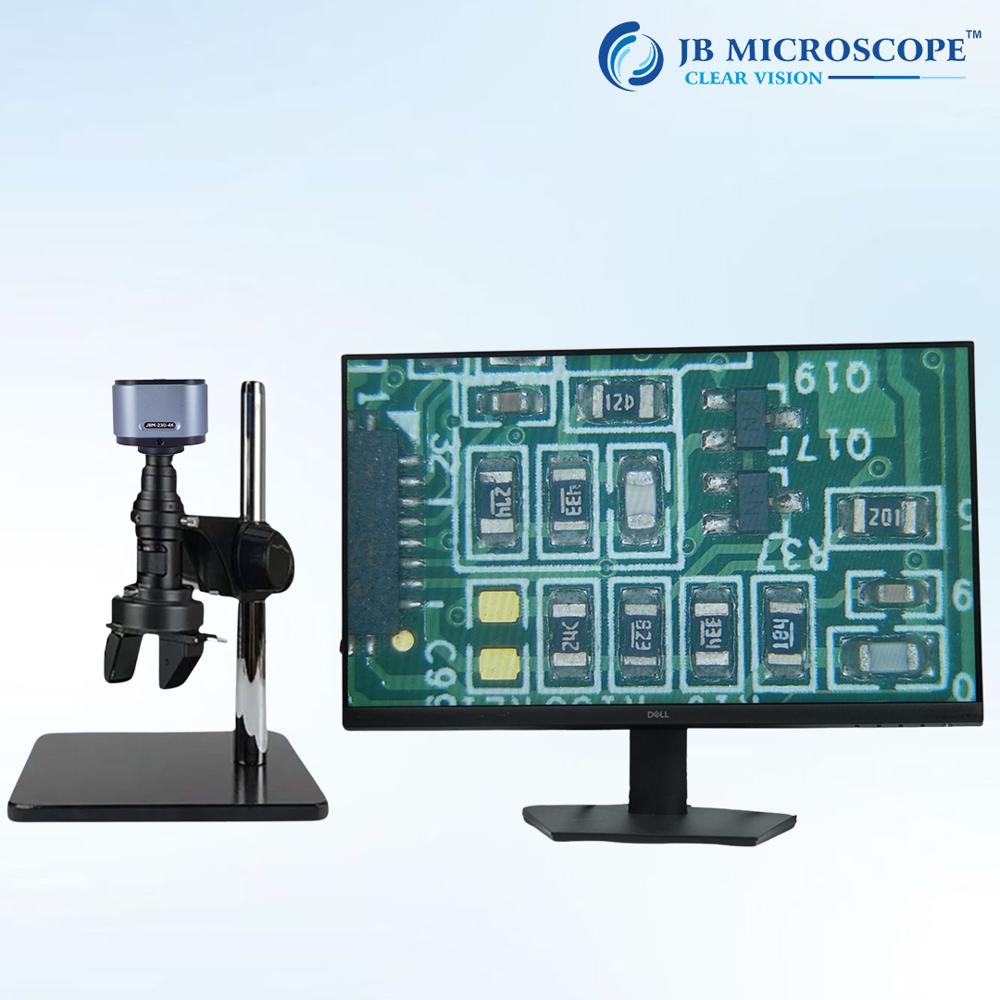

Digital Microscope for PCB InspectionThe Monozoom 3D Microscope represents a cutting-edge advancement in microscopy technology, offering a revolutionary approach to scientific exploration and observation. This sophisticated microscope is designed to provide researchers and scientists with an immersive three-dimensional experience, allowing for unprecedented insights into the microcosms.These are the main functions of a 3D microscope. High-resolution 3D images Capture areas completely in focus Ability to inspect from any angle Advanced 3D measurement capabilities SpecificationZoom lens Specification Zoom Ratio: 1:7 Zoom objective: 0.7X-5X Eyepiece: 0.4X Working Distance: 100mm L1 Base: Vertical post height: 240mm Vertical post diameter: 32mm Microscope body holder: 50mm Focus travel: 50mm Base size: 320x260x16mm Material: Metal LED-144TP Specification Outer diameter: 100mm Inner diameter: 61mm Wattage: 4.5W Input voltage: 90V-264V Output voltage: DC12V Brightness adjust: 0-100% Working distance: 40-250mm Quantity of LED: 144PCS Brightness: 20000Lux at height of 100mm Color of light: 6400K

High-Definition Imaging and Connectivity

Equipped with a 1/2.8 Sony CMOS sensor, the JBM-HD3D delivers crisp 1080p visuals at 60fps. HDMI and USB interfaces enable instant connection to monitors, projectors, or computers, streamlining presentations and image transfer. Integrated SD card support (up to 32GB) allows convenient image and video storage for further analysis or sharing.

Intuitive Operation and Precision Controls

The on-board panel grants direct access to camera settings, while fine and coarse coaxial adjustments deliver accurate focusing. The digital display and trinocular camera port eliminate the need for eyepieces, offering comfortable, fatigue-free operation-ideal for extended laboratory work or classroom demonstrations.

Versatile Applications and Robust Design

Featuring achromatic objective lenses from 4x to 100x, a large mechanical stage, and an efficient LED ring light, the JBM-HD3D suits diverse applications from biological studies to industrial inspection. Its rugged metal alloy frame stands up to regular use by researchers, clinicians, dealers, and educators across India.

FAQ's of Digital Video MicroscopeJBM-HD3D:

Q: How do I connect the Digital Video Microscope JBM-HD3D to my monitor or projector?

A: The microscope connects directly to monitors or projectors using the built-in HDMI port. Simply plug the included HDMI cable into the output port and your display device for instant high-definition video viewing.

Q: What is the process for storing and transferring images or videos?

A: You can save images and videos directly onto an SD memory card (up to 32GB). For further analysis or reports, connect the microscope to a Windows or Mac computer via USB to transfer files quickly using the provided imaging software.

Q: Where can I use the JBM-HD3D digital video microscope?

A: This microscope is suitable for use in laboratories, manufacturing quality control, educational settings, medical diagnostics, or any place requiring detailed visual inspection or documentation of small structures.

Q: What are the benefits of the 3D visualization feature?

A: The 3D visualization offers enhanced depth perception and spatial detail, allowing for more thorough analysis and easier identification of features in biological, industrial, or electronics samples.

Q: How does the adjustable LED ring light help during operation?

A: The integrated LED ring light provides uniform, adjustable brightness to illuminate your specimens clearly, reducing shadows and enhancing image quality for both observation and recording.

Q: When should I use the manual versus auto white balance function?

A: Manual white balance is beneficial when you need consistent color accuracy under atypical lighting conditions. Auto mode is suitable for standard observations, automatically adjusting the image to optimal settings.

Q: What spare parts are included with the microscope?

A: The microscope comes with a power supply adapter, stage clips, dust cover, and HDMI cable to ensure readiness for immediate use and ease of maintenance.
