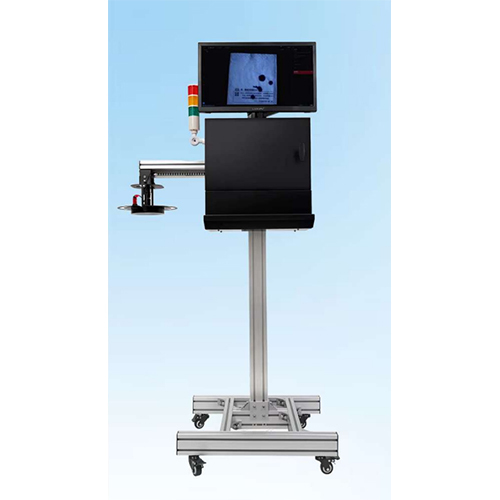

Industrial Visual Inspection System

Industrial Visual Inspection System Specification

Spare Parts
Replacement LED ring, objectives, eyepieces, stage clips.

Focus System
Coarse and fine coaxial focusing.

View Head
360 rotatable, trinocular head.

Features
Real-time defect detection, automatic pass/fail decision, measurement tools, archiving, remote monitoring support.

Theory
Industrial Visual Inspection using digital imaging and computer analysis to identify defects and ensure product quality.

Drawtube
Trinocular drawtube for simultaneous eyepiece and camera viewing.

Sensor
High-sensitivity CMOS sensor.

Resolution
5 Megapixels (2592 x 1944 pixels).

Interface
USB 3.0 for high-speed image transfer.

Frame Rate
30 fps at full resolution.

Focal Distance
Adjustable from 50mm to 200mm.

Magnification
Zoom range 10x to 200x (optical and digital).

Dimensions
380mm (H) x 260mm (W) x 320mm (D).

Focus Range
Manual and motorized adjustment; 0-60mm travel.

Eyepieces
Widefield 10x/22mm anti-fungus coated.

Eyepiece Tube
45 inclined, rotatable; interpupillary adjustment.

Illumination
Integrated LED ring light with adjustable brightness.

Coarse Adjustment Range
70mm vertical movement.

Fine Adjustment Range
0.002mm precision.

Working Stage
Precision XY stage, 150mm x 150mm area.

Still Image Capture Resolution
5MP (2592 x 1944).

Video Capture Resolution
Full HD 1920 x 1080p @30fps.

Image Format
JPEG, BMP, PNG, TIFF.

Interpupillary Distance
50-75mm adjustable.

Objective Achromatic
4x, 10x, 40x achromatic objectives.

Condenser
NA 1.25 Abbe condenser with iris diaphragm.

Light Source
Adjustable 3W LED light source.

Display Output
HDMI port for direct monitor connection.

Camera Mount
C-mount for universal camera compatibility.

Power Supply
110-240V AC, 50/60Hz with external adapter.

Operating System Compatibility
Windows 7/8/10/11, Linux compatible.

Weight
Approx. 8.5 kg.

Environmental Conditions
Operating Temperature: 0C to 40C, Humidity: <80% RH.

Image Processing
Advanced software with edge detection, pattern matching, and measurement functions.

Industrial Visual Inspection System Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About Industrial Visual Inspection System

Utilise this Special Offer on our Polished Industrial Visual Inspection System, meticulously designed for discerning users across India. Experience a Sensational inspection process with a lustrous finish, compatible with Windows and Linux operating systems while ensuring flawless image quality with a 5MP CMOS sensor. The advanced image processing software delivers edge detection, pattern matching, and precise measurements. Enjoy universal C-mount camera compatibility, HDMI output, zoom magnification up to 200x, and a resilient structure ready to perform under diverse environmental conditions.

Explore Special Features and Diverse Applications

This system comes equipped with special features including advanced edge detection, pattern matching, automatic pass/fail assessment, and a real-time defect detection mechanism. Its adjustable magnification and precision focusing make it ideal for quality assurance in electronics, automotive, and manufacturing industries. With universal camera compatibility and advanced imaging capabilities, it's suitable for dealers, importers, manufacturers, retailers, suppliers, traders, and wholesalers seeking reliable inspection tools.

Certifications, Market Presence & FOB Port Details

Our system is certified to meet the highest industrial standards and is widely used in the main domestic market throughout India. Each unit is dispatched from our trusted FOB port at the lowest price possible, minimizing your expenditure. We guarantee rapid delivery times and strong after-sales support, making us the preferred choice among manufacturers, dealers, and wholesalers nationally.

FAQ's of Industrial Visual Inspection System:

Q: How does the Industrial Visual Inspection System support different operating systems?

A: The system is fully compatible with Windows 7, 8, 10, 11, and most Linux distributions, ensuring ease of integration into existing setups.

Q: What image processing features are included in this inspection system?

A: It boasts advanced software for edge detection, pattern matching, and measurement functions, all designed to improve the accuracy of defect identification and quality assessment.

Q: Where is this Industrial Visual Inspection System commonly utilised?

A: It is commonly used in electronics, automotive, and manufacturing industries for real-time inspection, defect detection, and quality control.

Q: What benefits does the adjustable magnification offer?

A: Adjustable magnification from 10x to 200x allows users to examine objects at various scales, making the system versatile for both large assemblies and small components.

Q: How is the device powered and what are the environmental limits?

A: The unit operates on 110-240V AC power with an external adapter and is suitable for use in environments with temperatures from 0C to 40C and humidity below 80% RH.

Q: What is included in the spare parts package?

A: Replacement LED ring lights, objective lenses, eyepieces, and stage clips are included to ensure continuous operation and minimal downtime.
