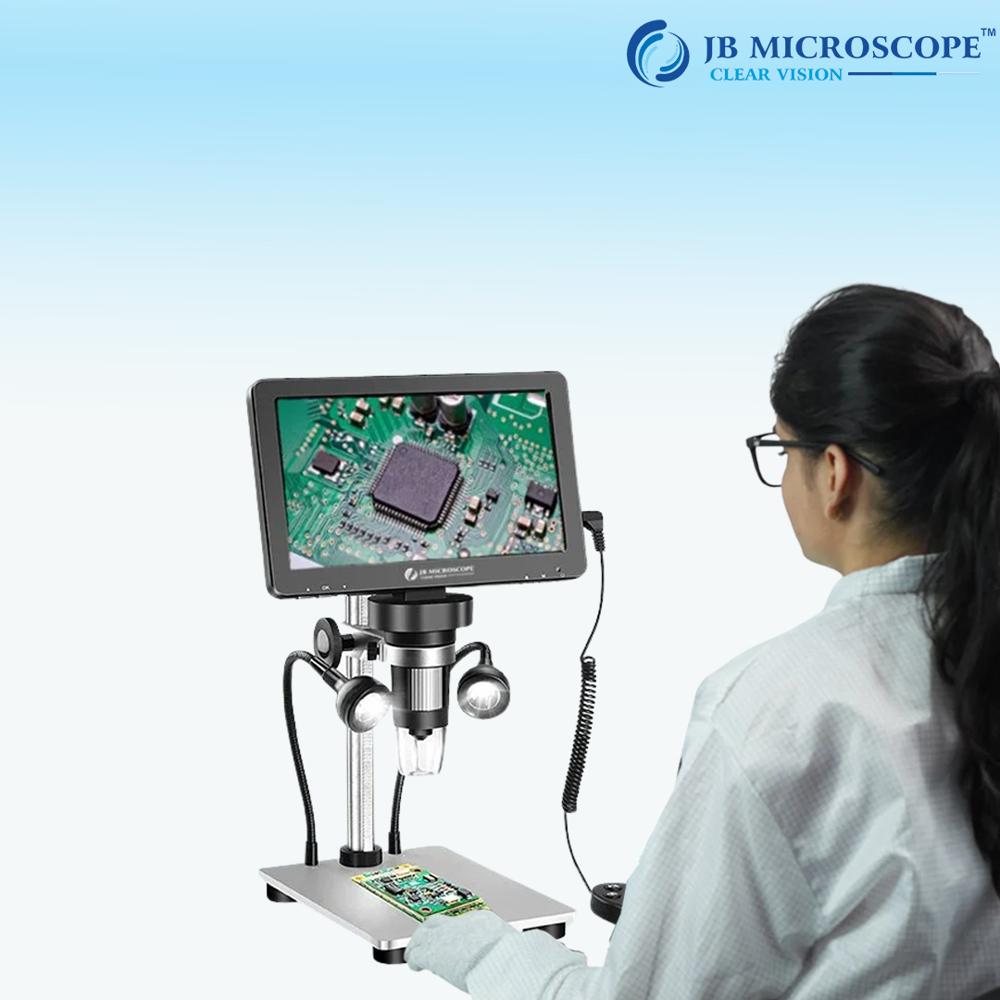

DIGITAL MICROSCOPE JBM-DM6

DIGITAL MICROSCOPE JBM-DM6 Specification

Focus System
Manual focus system with rack and pinion mechanism

Features
Portable design, plug and play support, high-quality imaging, compatible with Windows & Mac systems.

Spare Parts
Power adapter, USB cable, basic software included

View Head
Single monocular, 360 rotational

Theory
Digital imaging, observation, and measurement for biological and industrial samples.

Drawtube
Monocular

Sensor
CMOS

Resolution
640 x 480 pixels

Interface
USB 2.0

Frame Rate
30 fps

Focal Distance
10mm - 500mm adjustable

Magnification
20x - 800x

Dimensions
135 x 100 x 380 mm (approx.)

Focus Range
Manual, 0 - 40 mm

Eyepieces
10x paired eyepieces

Eyepiece Tube
Inclined at 45

Illumination
LED built-in illumination with adjustable brightness

Coarse Adjustment Range
15mm

Fine Adjustment Range
0.002 mm precision

Working Stage
Mechanical stage with slide clips

Still Image Capture Resolution
640 x 480 pixels

Video Capture Resolution
640 x 480 pixels

Image Format
JPEG / BMP / AVI

Objective Achromatic
4x, 10x, 40x Achromatic objectives

Condenser
NA 0.65, Adjustable Iris Diaphragm

Light Source
Rechargeable LED, white light

Operating System Compatibility
Windows XP/7/8/10, Mac OS

Camera Power Supply
USB powered, optional adapter

Package Includes
Dust cover, calibration slide, cleaning cloth, instruction manual

Body Material
High-strength metal alloy with anti-corrosive coating

Weight
Approx. 1.5 kg

Stage Movement
X-Y axis mechanical movement with vernier scale

Working Temperature Range
0C - 40C

DIGITAL MICROSCOPE JBM-DM6 Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
2 Days

About DIGITAL MICROSCOPE JBM-DM6

Brand NameJB MICROSCOPE
Model No:DM6
Theory: Video microscope
Drawtube: Monocular
Product name: 7Inch LCD microscope
color: black
Material: abs+ alluminum alloy
Type: USB+LCD microscope
Light source:8 LED with External 2 super LED Lighti
Magnification:1200X
Warranty:1 Year
Focusing: Manual focus
Function :Magnify,Observe,Measure,Study

Robust Construction & Advanced Optics

The JBM-DM6 features a high-strength metal alloy frame with an anti-corrosive coating, ensuring durability in demanding environments. Its achromatic objectives and monocular, 360-degree rotatable head deliver sharp, distortion-free images. Precision is ensured through adjustable focus, a vernier-scale X-Y mechanical stage, and an iris diaphragm for optimal light control.

Seamless Digital Integration

Designed for modern workflows, the microscope offers USB 2.0 connectivity and is compatible with major Windows and Mac operating systems. Users benefit from real-time viewing, still image, and video capture at 30 fps. The supplied software supports easy data processing, image capture in JPEG/BMP/AVI formats, and precise measurement tasks.

User-Friendly Features & Complete Package

This portable microscope supports plug and play functionality and adjustable LED brightness for efficient use in labs or fieldwork. The package is comprehensive, including a dust cover, cleaning cloth, calibration slide, and instruction manual. Spare parts such as a USB cable and power adapter ensure long-term usability and minimal downtime.

FAQ's of DIGITAL MICROSCOPE JBM-DM6:

Q: How do I power the DIGITAL MICROSCOPE JBM-DM6 and what are the connectivity options?

A: The microscope is primarily USB-powered, drawing energy directly from your computer or laptop. There is also an optional external adapter if needed. It connects via USB 2.0, enabling both power and rapid data transfer for digital imaging.

Q: What operating systems are compatible with the JBM-DM6 digital microscope?

A: The JBM-DM6 works seamlessly with Windows XP, Windows 7, Windows 8, Windows 10, and Mac OS, ensuring broad support whether you're using a PC or a Mac.

Q: Where can this microscope be used, and which applications is it suited for?

A: Its robust metal construction and portable design make the JBM-DM6 equally effective in laboratories, educational settings, industrial facilities, and field analysis. It's suitable for biological sample observation, electronics inspection, and quality control tasks.

Q: What is the process for capturing images and videos with this microscope?

A: Simply connect the microscope to your computer, install the included software, and use the plug-and-play feature to view live images. You can capture still images in JPEG/BMP and videos in AVI format at 640 x 480 pixels, using either the software interface or the hardware controls.

Q: How do I adjust magnification and focus during operation?

A: The JBM-DM6 offers 20x to 800x magnification through user-selectable achromatic objectives and paired 10x eyepieces. Adjust focus manually via the coarse and fine adjusting knobs, enabling precise focusing and detailed sample analysis.

Q: What benefits does the adjustable LED illumination provide?

A: Built-in rechargeable LED illumination with adjustable brightness ensures optimal lighting for various sample types and working conditions, improving image clarity and reducing eye strain during extended viewing sessions.

Q: When should I use the included calibration slide and cleaning accessories?

A: Use the calibration slide before conducting measurements to ensure accuracy. Regularly clean optical surfaces and the stage with the provided cloth to maintain high-quality imaging and prolong the microscope's service life.

Minimum Order Quantity
1 Kilograms

Delivery Time
2 Days
