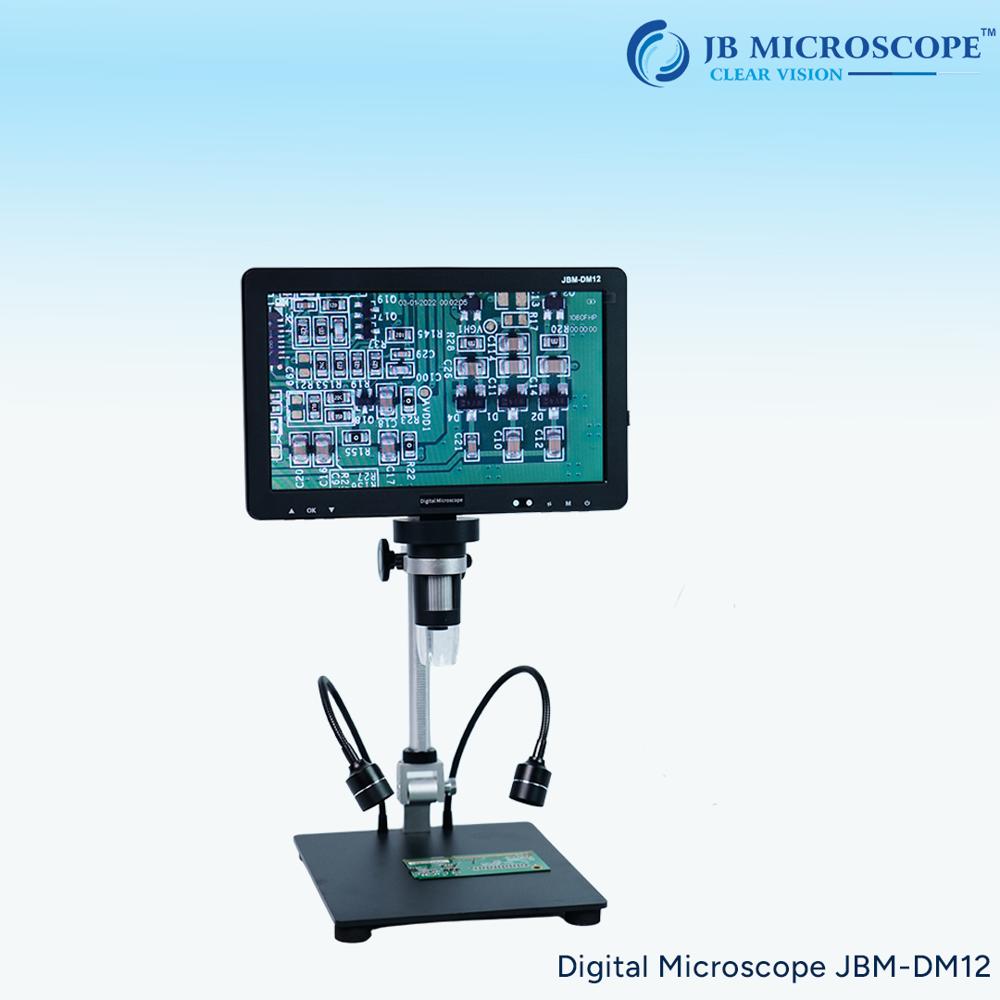

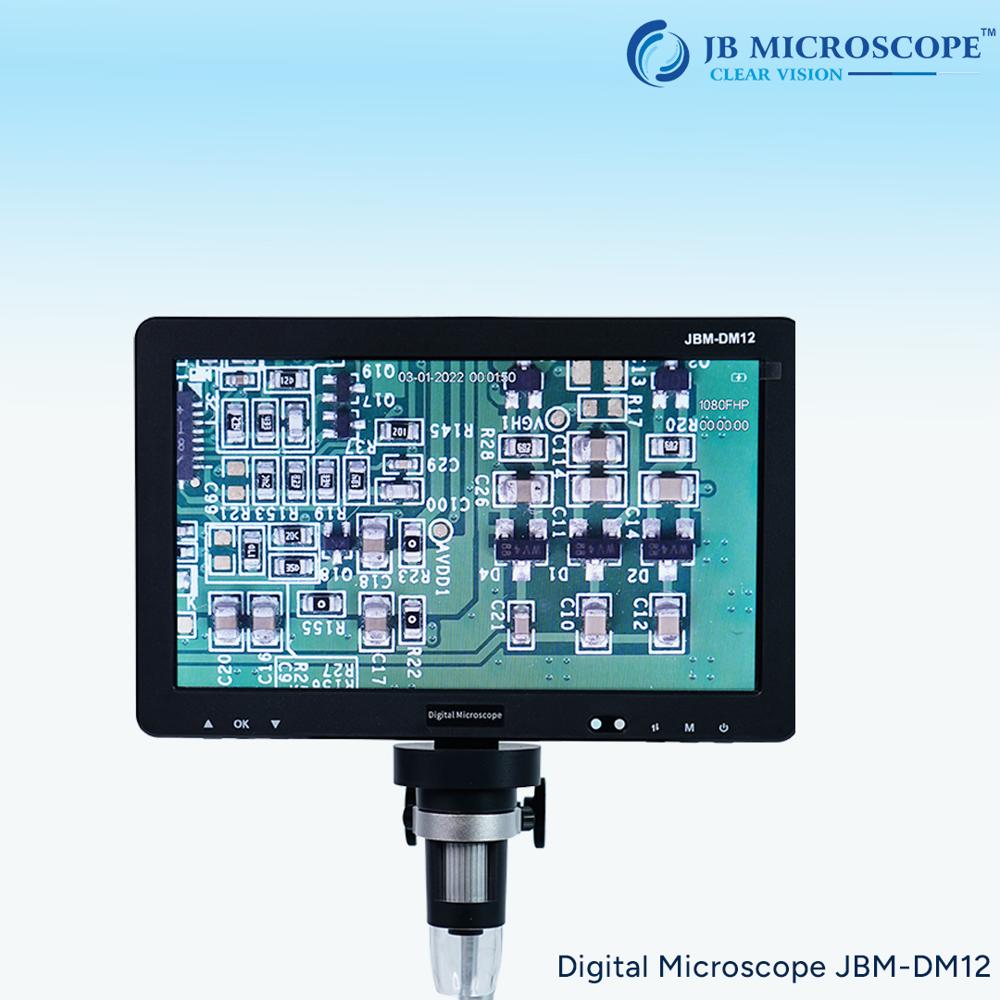

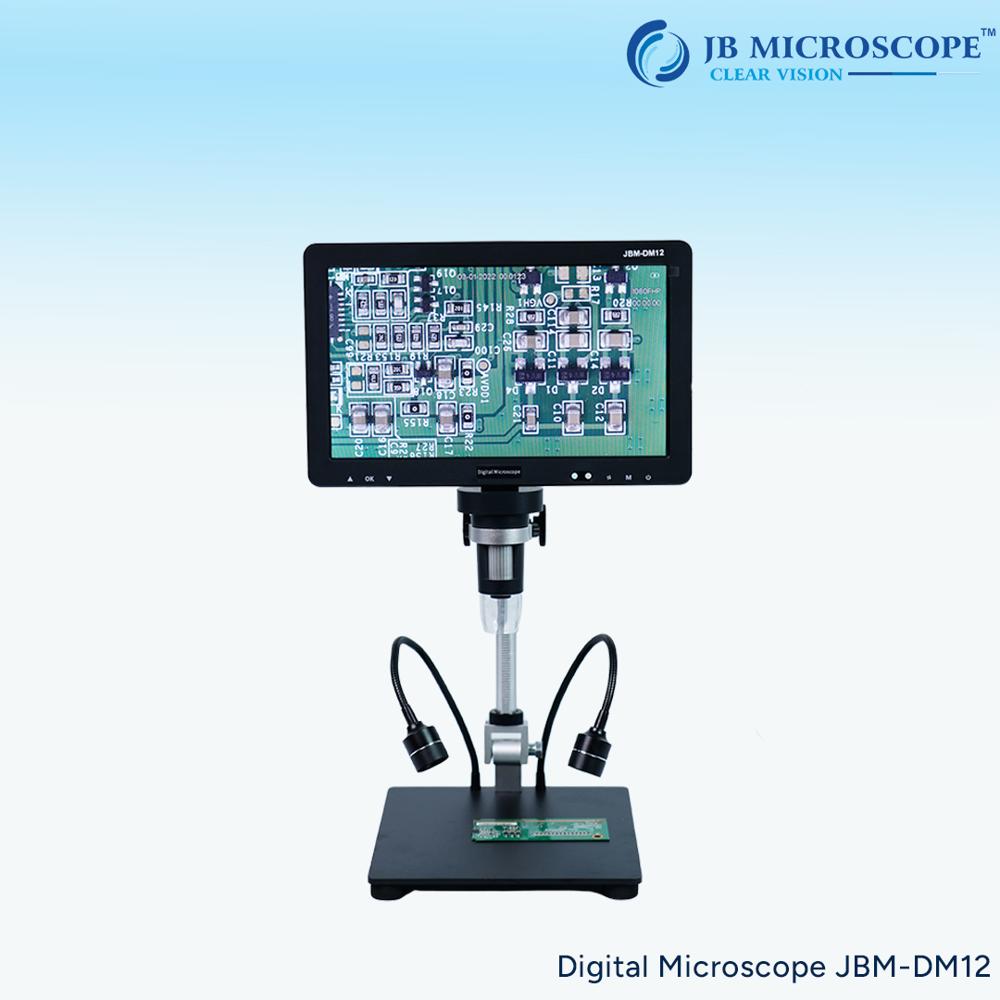

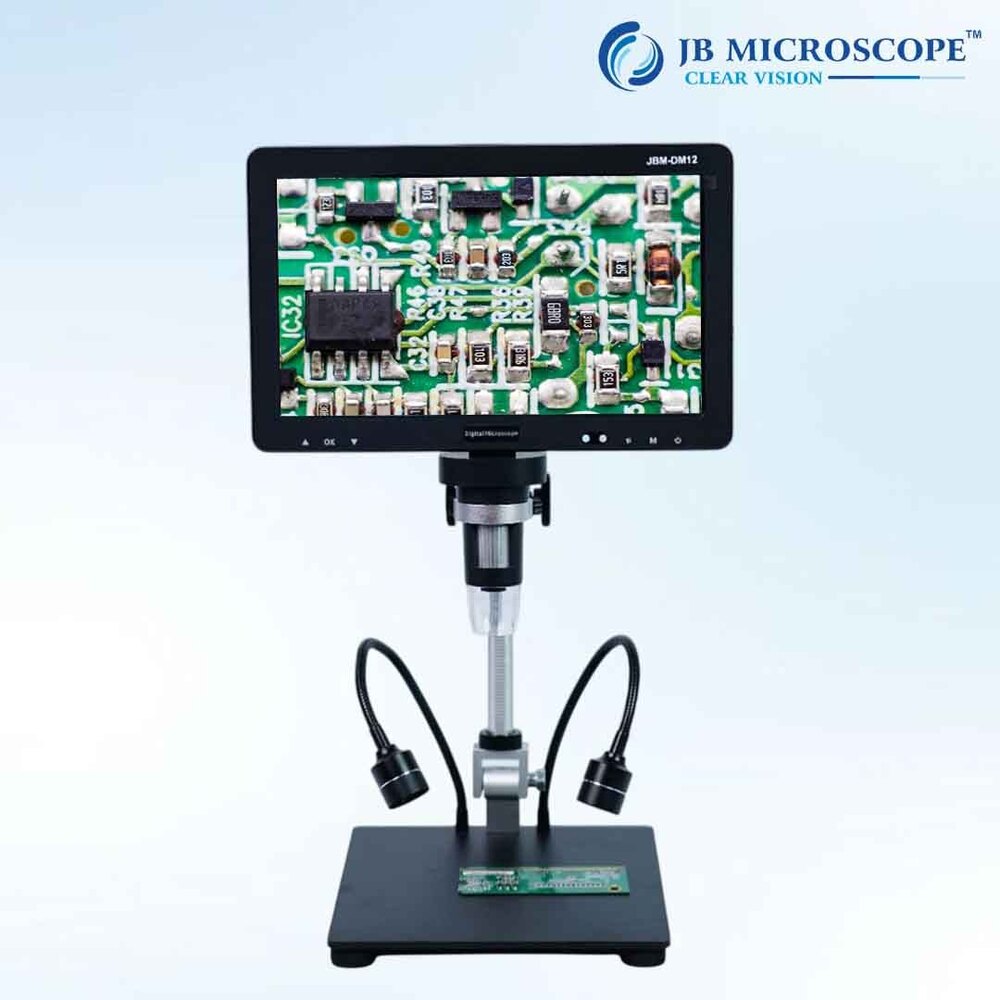

Digital portable Inspection Microscope JBM-DM12

Digital portable Inspection Microscope JBM-DM12 Specification

View Head
Monocular digital

Spare Parts
USB cable, calibration ruler, software CD, user manual

Focus System
Manual rotary focus with adjustable depth

Features
Portable design, high-resolution imaging, measurement software support, adjustable LED illumination, direct USB connection

Theory
Digital portable inspection microscope designed for high-resolution macro and micro observation with instant imaging capabilities.

Drawtube
Monocular digital viewing tube

Sensor
High-definition CMOS sensor

Resolution
1920 x 1080 pixels (Full HD)

Interface
USB 2.0/3.0

Frame Rate
30 FPS at 1920 x 1080 video

Focal Distance
15 mm to 100 mm (adjustable) Millimeter (mm)

Magnification
10x - 220x digital zoom

Dimensions
Approx. 135 mm x 100 mm x 55 mm Millimeter (mm)

Focus Range
Manual focus adjustment, 0 mm to 100 mm Inch (in)

Eyepieces
Digital display only, no traditional eyepieces

Eyepiece Tube
Integrated with digital module

Illumination
Built-in high-intensity LED ring light, adjustable brightness

Coarse Adjustment Range
Adjustable via focus knob for entire focus mechanism

Fine Adjustment Range
Precise fine-tuning via rotary dial

Working Stage
Standard flat stage with scale markings Square Meter (m2)

Still Image Capture Resolution
1920 x 1080 pixels

Video Capture Resolution
1920 x 1080 pixels at 30fps

Image Format
JPEG/PNG for still images

Interpupillary Distance
Not applicable for digital monocular models Inch (in)

Objective Achromatic
Fixed digital objective lens, high-quality glass optics

Condenser
Not applicable (digital system without substage condenser)

Light Source
LED ring (built-in)

Material
Aluminum alloy and ABS plastic body for durability

Storage
Supports microSD card (up to 32GB)

Software Features
Image capture, measurement, annotation, video recording

Operating System Compatibility
Windows, macOS, compatible software included

Display
Integrated 4.3-inch LCD screen for real-time viewing

Application
Electronics inspection, biological observation, educational demonstration, industrial QC

Power Supply
5V DC via USB interface

Working Temperature
0C to 40C

Weight
Approx. 280 grams

Capture Modes
Photo, video, and live view

Calibration
Software-based calibration for measurement accuracy

Digital portable Inspection Microscope JBM-DM12 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Digital portable Inspection Microscope JBM-DM12

Model Number: DM12
Theory: Video Microscope
Drawtube: Monocular
Material: ABS
Dimension: 31*29*10 Cm
Magnification: 2000x
Type: Digital Microscope, Stereo Microscope, Electron Microscope
Screen: 10.1 inches IPS Display
Display Resolution: 1024*600 Resolution
Video Maximum Pixel: 1080p
Photo Resolution:20M,16M,12M,8M,5M,2M
Video Format: MP4
PC Resolution and Image Transfer Rate: 1280*720/25fps
PC Operating System: Win7, Win 8.1, Win10,Mac Os X 12 or higher
Interface and Signal Transmission mode: Micro/USB3.0/HDMI
Polymer Lithium Battery : 103665-3000mah

Instant HD Viewing and Recording

Experience real-time observation with the integrated 4.3-inch LCD display and HD CMOS sensor. Capture sharp Full HD images and videos, with instant storage on a microSD card or computer. The microscope's LED ring light ensures optimal illumination, making it ideal for detailed work in electronics, entomology, material analysis, and classroom demonstrations.

Seamless Measurement and Documentation

Included software enhances productivity by enabling measurement, annotation, and calibration for precise documentation. Compatible with Windows and macOS, the interface supports photo, video, and live view capture, streamlining the inspection process for industrial quality control or academic research.

Portable, Durable, and User-Friendly

Weighing approximately 280 grams and crafted from robust aluminum alloy and ABS plastic, the JBM-DM12 is highly portable and built to withstand demanding environments. The manual focus system, adjustable magnification, and intuitive controls make detailed inspection accessible whether in the lab, classroom, or on-site industrial settings.

FAQ's of Digital portable Inspection Microscope JBM-DM12:

Q: How do I connect the JBM-DM12 microscope to my computer?

A: Simply use the supplied USB cable to connect the microscope to a Windows or macOS computer. With compatible software included, you can view, capture, and analyze images directly from your device.

Q: What applications is this microscope suitable for?

A: The JBM-DM12 is optimized for electronics inspection, biological observation, industrial quality control, and educational demonstrations, offering flexible imaging solutions across many fields.

Q: How is calibration performed for accurate measurements?

A: Calibration is managed through the included software using the calibration ruler (provided). This ensures measurement data remains accurate for documentation and analysis.

Q: Where are captured photos and videos stored?

A: Still images and video files are automatically saved onto an inserted microSD card (up to 32GB supported) or can be transferred to a connected computer via USB.

Q: What is the magnification and focus adjustment range?

A: The microscope offers adjustable magnification from 10x to 220x digital zoom, and the focus can manually be set from 0 mm up to 100 mm using the rotary focus knob.

Q: How is illumination controlled and what conditions can the microscope operate in?

A: A built-in high-intensity LED ring light provides bright, adjustable illumination. The microscope functions reliably between 0C and 40C, suiting most indoor environments.

Q: What are the main benefits of using the JBM-DM12 for inspections?

A: Its seamless HD live viewing, precise measurement capabilities, rugged construction, and easy data transfer make the JBM-DM12 an efficient and versatile tool for fieldwork, laboratory analysis, and instructional purposes.
