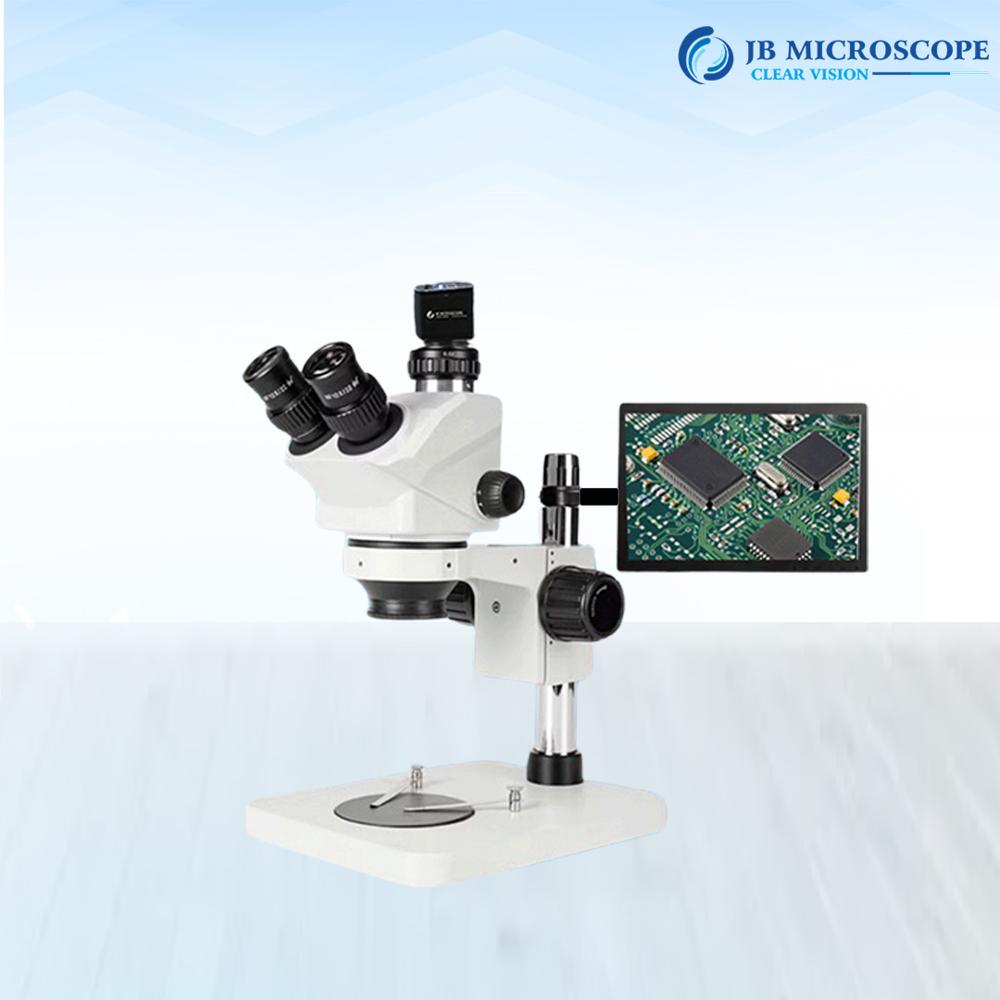

Stereo Zoom Microscope

Stereo Zoom Microscope Specification

Spare Parts
Eyepiece, objective, stage plate, lamp, fuse

View Head
Binocular with diopter adjustment or trinocular

Features
Rugged construction, smooth zoom operation, ergonomic design, coaxial focus mechanism, anti-fungal coated optics

Focus System
Rack and pinion, vertical movement of zoom body

Theory
Stereo vision optical system for detailed three-dimensional observation.

Drawtube
Binocular, inclination 45 (rotatable 360 deg)

Sensor
Not applicable (optical viewing through eyepieces)

Resolution
Depends on eyepiece and objective magnification, visual field clarity.

Interface
Standard mechanical interface, trinocular models support camera mounting (optional).

Frame Rate
Not applicable (unless camera is attached separately)

Focal Distance
Working distance 100 mm (standard objective)

Magnification
Zoom range 7x 45x (using paired eyepiece and objectives)

Dimensions
Base approx. 240 mm x 200 mm, height 350 mm

Focus Range
Up to 50 mm (coarse adjustment)

Eyepieces
WF10x/20mm paired wide field eyepieces

Eyepiece Tube
Inclined at 45, rotatable 360

Illumination
Incident (top) and transmitted (bottom) light, LED or halogen lamp, adjustable intensity

Coarse Adjustment Range
Up to 45 mm

Fine Adjustment Range
Not available (coarse focus only)

Working Stage
Glass and black/white stage plate, 95 mm diameter, with stage clips

Still Image Capture Resolution
Not applicable (unless trinocular with camera)

Video Capture Resolution
Not applicable (unless trinocular with camera)

Image Format
Not applicable (for observation; digital image via camera optional)

Interpupillary Distance
55 mm 75 mm, adjustable

Objective Achromatic
0.7x 4.5x zoom achromatic objective

Condenser
Not required; built-in illumination system

Light Source
LED (white), top and bottom each 3W or halogen lamp (option)

Stereo Zoom Microscope Trade Information

Minimum Order Quantity
12 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About Stereo Zoom Microscope

Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.

Brand : JB Microscope
Eyepiece : WF10X/22mm
Zoom Objective : 0.7-5.0X
Zoom Range : 7.1 : 1
Working Distance : 100mm
Head Mounting Size : 76mm in diameter
Dust cover : Yes (Included)
Vertical post height : 240mm
Vertical post diameter : 32mm
Microscope body holder : 50mm
Focus travel : 50mm

Ergonomic and Durable Design

Constructed with a robust, powder-coated metal base, this microscope resists wear while ensuring stability during use. The anti-mold coated optics safeguard performance in humid conditions, ideal for long-term operation in industrial or biological settings. Its 45 inclined, 360 rotatable binocular tube provides both comfort and flexibility for extended observation.

Precise Optical Performance

The stereo vision optical system, combined with a 1:6.4 zoom ratio and achromatic objectives (0.7x-4.5x), delivers detailed, distortion-free imagery. Wide field WF10x/20mm eyepieces improve clarity and allow for thorough analysis. Users can adjust incident and transmitted LED or halogen illumination for optimal viewing across applications.

Versatile Applications and Easy Operation

Widely used in PCB inspection, gemology, and scientific research, this microscope supports various observation tasks. Coarse rack and pinion focusing, interchangeable stage plates, and optional trinocular camera mounting ensure adaptability for both visual assessment and digital documentation.

FAQ's of Stereo Zoom Microscope:

Q: How does the anti-mold coating benefit users in humid environments?

A: The anti-mold coating on all optical surfaces protects against fungal growth, maintaining clear image quality and prolonging the microscope's lifespan even when used in humid conditions common in many laboratories and industrial sites.

Q: What is the process for adjusting magnification and focus?

A: Adjust magnification by rotating the zoom knob (from 7x to 45x) while focusing is achieved with the coarse adjustment knob, allowing precise control of the working distance up to 50 mm for clear, detailed viewing.

Q: Where can the Stereo Zoom Microscope be used effectively?

A: This microscope is ideal for PCB inspection, gemology, biological dissections, and industrial quality control, making it a versatile choice for educational, manufacturing, and research facilities across India.

Q: When should the illumination be switched between LED and halogen?

A: Use LED illumination for energy-efficient, cool lighting suitable for most samples. Switch to a halogen lamp when higher intensity or warmth is needed for specific observations. Both top and bottom lighting can be adjusted to fit specimen requirements.

Q: What are the main benefits of the ergonomic design and sturdy construction?

A: The ergonomic design with an inclined, rotatable binocular head reduces user fatigue during prolonged observation, while the sturdy metal base and anti-fungal optics ensure stable, reliable performance and long-term durability.

Q: How can images or videos be captured with this microscope?

A: While the standard model is for optical viewing only, trinocular models support camera mounting via the standard mechanical interface. Attaching a camera enables image and video capture for documentation or sharing results.

Q: What spare parts are available and where can they be sourced?

A: Readily available spare parts include eyepieces, objectives, stage plates, lamps, and fuses. These can be sourced through authorized dealers, importers, manufacturers, and suppliers throughout India.
