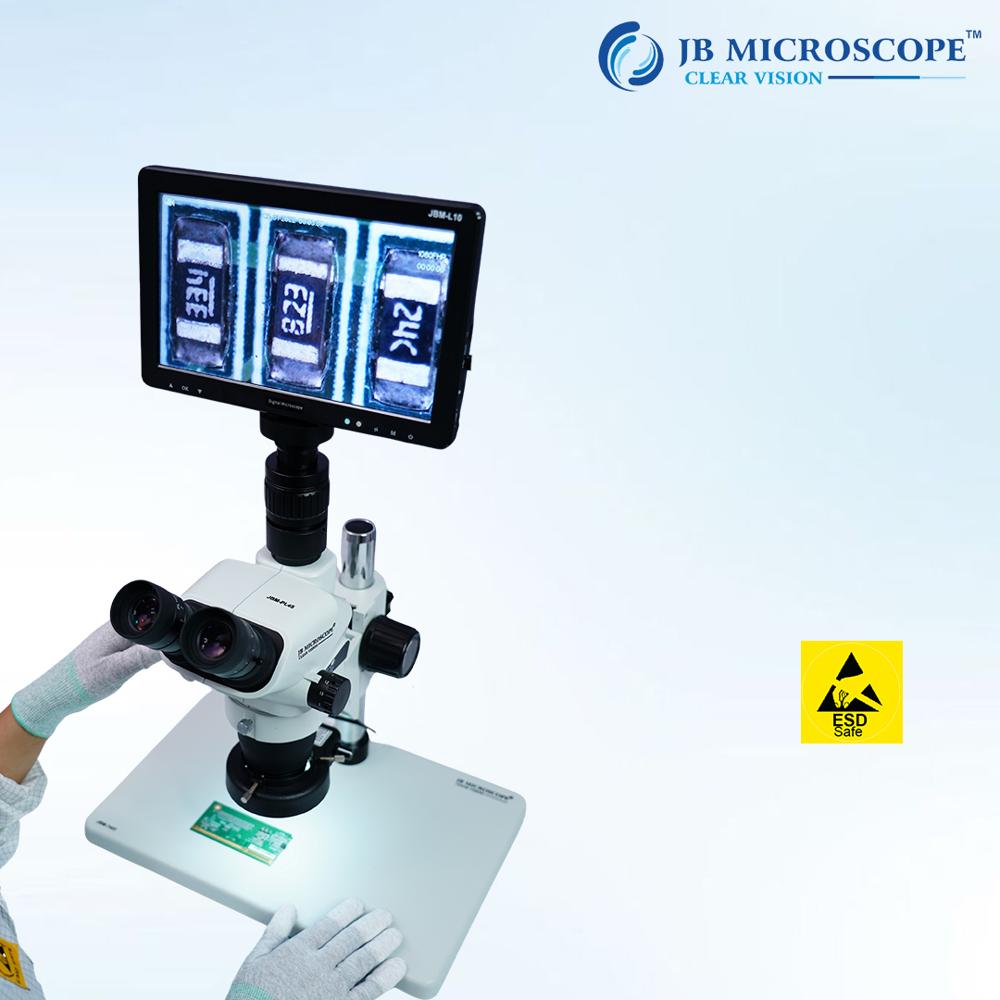

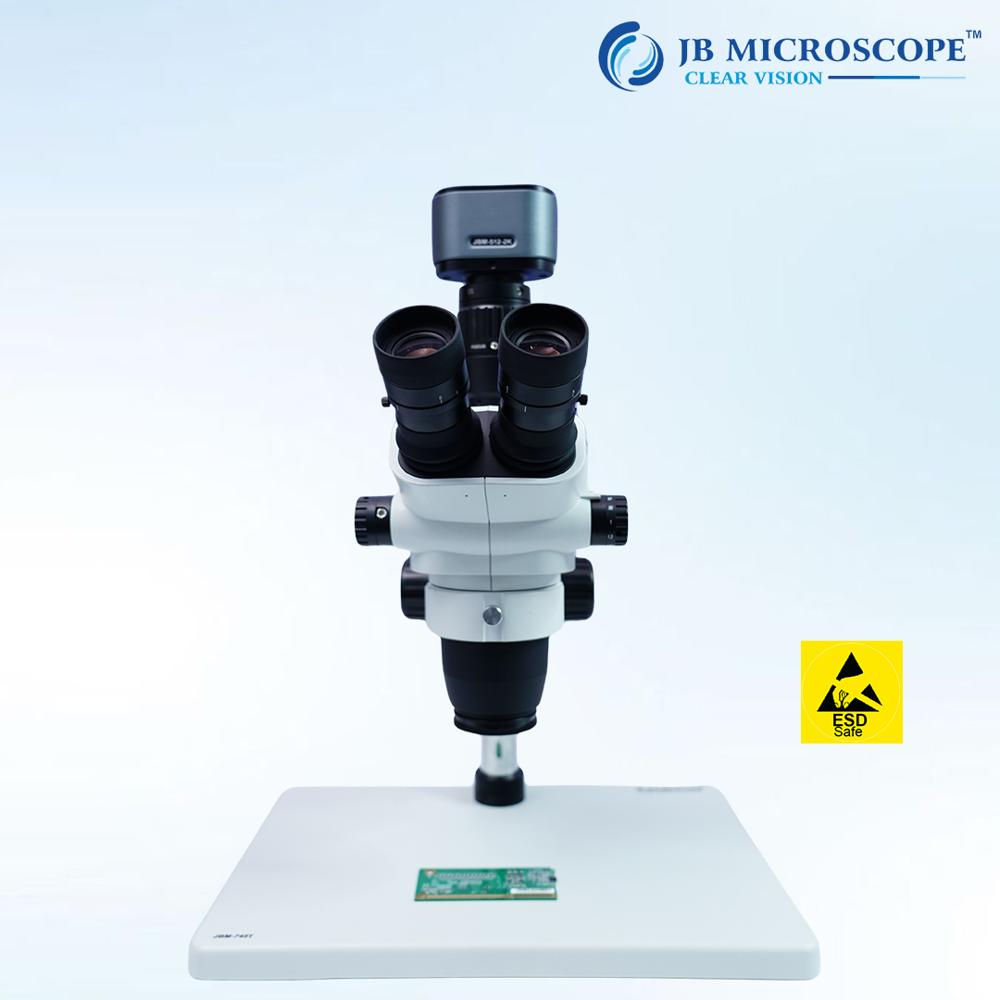

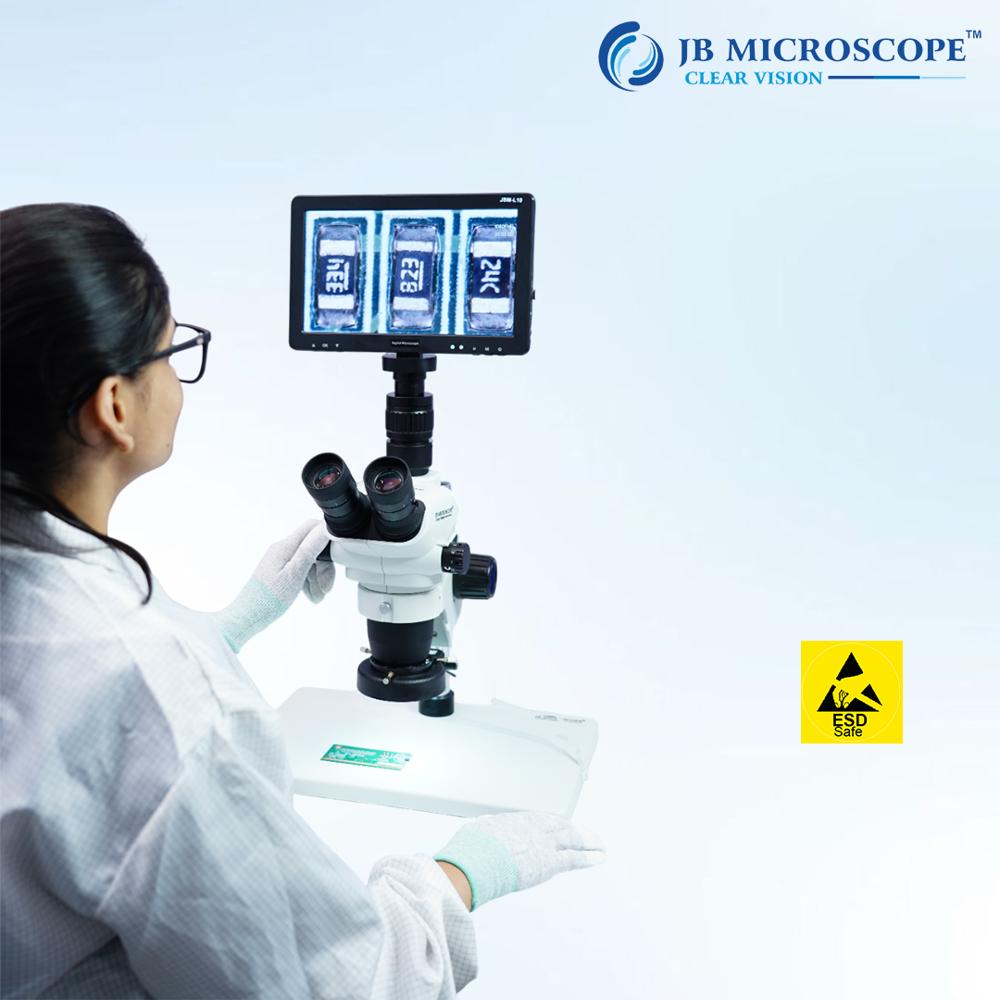

Stereo Zoom Microscope JBM-PL45

Stereo Zoom Microscope JBM-PL45 Specification

View Head
Binocular, 360 rotatable

Features
Sharp stereoscopic 3D view, ergonomically designed, long working distance, maintenance-free LED, anti-fungal optics

Spare Parts
Supplied with paired eyepieces, stage plate, dust cover, and user manual

Focus System
Rack & Pinion movement

Theory
Stereo Zoom Optical System for 3D sample observation

Drawtube
Binocular

Sensor
Not applicable (no camera integrated)

Resolution
Depends on eyepiece and objective combination

Interface
Standard optical, no USB/digital output

Focal Distance
100mm (working distance)

Magnification
7x to 45x continuous zoom

Dimensions
Approx. 260x200x340mm (WxDxH)

Focus Range
45mm

Eyepieces
Wide Field 10x

Eyepiece Tube
Inclined at 45 for comfortable viewing

Illumination
Incident (reflected) and transmitted LED illumination

Coarse Adjustment Range
Provided by rack and pinion focusing mechanism

Fine Adjustment Range
Not available (coarse only)

Working Stage
Glass plate (white & black) with stage clips

Still Image Capture Resolution
Not applicable (no camera onboard)

Video Capture Resolution
Not applicable (no camera onboard)

Image Format
Visual (not equipped for digital imaging)

Interpupillary Distance
Rotary adjustable 55mm - 75mm

Objective Achromatic
Zoom Achromatic Objectives 0.7x - 4.5x

Condenser
Not required for stereo microscopy

Light Source
LED-based with separate controls for top (incident) and bottom (transmitted) lights

Total Magnification Range
Up to 90x (with optional 20x eyepieces)

Diopter Adjustment
Available on left eyepiece tube

Net Weight
Approx. 5.5 kg

Power Supply
Universal 100-240V AC through external adapter

Head Rotation
360 full rotation with lock screws

Stand
Pillar stand with heavy base for stability

Optical Zoom Ratio
6.5:1

Optional Accessories
Auxiliary objectives (0.5x/2x), higher magnification eyepieces (15x, 20x), camera adapter

Stage Plate
Interchangeable glass and black/white plates

Body Material
Sturdy metal construction with powder coating

Stereo Zoom Microscope JBM-PL45 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Stereo Zoom Microscope JBM-PL45

Magnification range	7x 45x
Magnification	0.67X 45X
Zoom ratio	6.3x
Head type	Trinocular
Brand	JB MICROSCOPE
Illumination type	LED
Working distance	120 mm
Stand type	Table stand
Model Name/Number	JBM-PL45
Eyepiece magnification	10x
Reflected light	Top bottom light
Application	Industrial, Research, PCB inspection
Country of Origin	Made in India

Minimum order quantity: 1 Piece

Adopting Greenough optical system, JBM-PL45 with 3D image viewing with high level flatness and depth focusing. Electronic components and PC board with significant depth can be brought into focus from top to bottom for faster and accurate inspection of in industrial field.

Brand	JB Microscope
Viewing Head	45 inclined binocular head with fixed eyepiece tube, inter-pupillary range: 52mm 76mm, with click stop and interlock mechanism
45 inclined trinocular head with fixed eyepiece tube, inter-pupillary range: 52mm 76mm, with click stop and interlock mechanism
Eyepiece	High eye-point wide field plan eyepiece PL10X/22mm, with adjustable diopter.
Main Objective	Zoom objective 0.67X 4.5X,
working distance: Auxiliary Objective	110mm 0.5X/177mm, 0.7X/120mm, 1.5X/47mm
Stand	Arm stand with fixed focus holder
Pillar stand, can be equipped with different focus holders
Base	Plan base
Base with illumination
Camera adapter	0.35X/0.5X/0.65X/1X C-mount adapted
Others	Precision measuring stage, gem clip

Precise 3D Imaging with Versatile Optics

Experience sharp and vivid stereoscopic 3D observation using zoom achromatic objectives ranging from 0.7x to 4.5x. The microscope comes standard with wide field 10x eyepieces, and supports optional higher magnifications to suit diverse applications. The 100mm working distance and interchangeable stage plates are ideal for detailed sample analysis, making it highly adaptable for scientific and industrial needs.

Stable, Ergonomic, and User-Friendly Design

Built with a sturdy metal frame and powder coating for durability, the JBM-PL45 features a pillar stand and heavy base for unwavering stability. The binocular head rotates fully for shared viewing and adjusts comfortably to various users' interpupillary distances. Diopter adjustment on the left eyepiece ensures personalized, strain-free use during prolonged sessions.

Long-Lasting, Efficient LED Illumination

Dual LED incident (top) and transmitted (bottom) lights offer flexibility for different specimen types, featuring separate controls for optimal brightness. The maintenance-free, anti-fungal optical components guarantee consistent performance even in challenging laboratory or field environments, ensuring clear visualization at all times.

FAQ's of Stereo Zoom Microscope JBM-PL45:

Q: How does the Stereo Zoom Microscope JBM-PL45 enhance 3D sample observation?

A: The JBM-PL45 uses a stereo zoom optical system, providing crisp, three-dimensional imaging which makes it suitable for examining fine surface details and textures. Its continuous zoom mechanism allows smooth magnification changes from 7x up to 45x (expandable up to 90x with optional eyepieces), offering flexibility for various research and inspection tasks.

Q: What is the process for changing magnification levels on this microscope?

A: Changing magnification is simple with the continuous zoom knob, allowing smooth transition between 7x and 45x. To reach higher magnifications (up to 90x), you can replace the standard 10x eyepieces with optional 15x or 20x eyepieces. Auxiliary objectives (0.5x/2x) are also available to further adjust the zoom range as needed.

Q: Where can the JBM-PL45 be used, and who typically benefits from it?

A: This microscope is suitable for use in laboratories, educational institutes, quality control stations, and research facilities. It is widely utilized by biologists, material researchers, jewelers, and electronics technicians for its ergonomic design, stable structure, and high-performance optical features.

Q: How do the interchangeable stage plates benefit users?

A: Interchangeable glass and black/white plates provide optimal contrast for different samples. Glass plates are ideal for transmitted light observation, while black or white plates help improve visibility of opaque or colored objects under reflected light, thus enhancing overall usability and image clarity.

Q: What maintenance steps are required for the JBM-PL45?

A: Maintenance is minimal due to its anti-fungal optics and maintenance-free LED illumination. It is recommended to cover the unit with the provided dust cover when not in use and to clean the optics gently using a soft cloth or lens paper. No further routine upkeep is generally necessary.

Q: How does the microscope ensure viewing comfort for different users?

A: The binocular head is inclined at 45 degrees, features 360 rotation with locking screws, and offers interpupillary adjustments from 55mm to 75mm. The left eyepiece tube has a diopter adjustment function, allowing users to fine-tune focus to individual eyesight differences, ensuring clear and comfortable viewing during extended sessions.
