Digital Microscope JBM-AD10

Digital Microscope JBM-AD10 Specification

Features
Plug and play without driver, snapshot and video recording capability, supports measurement software.

Spare Parts
USB cable, adjustable stand, calibration ruler

View Head
Rotatable 360 digital camera

Focus System
Manual focus wheel

Theory
Other

Drawtube
Monocular

Sensor
High-sensitivity CMOS sensor

Resolution
HD 2.0 MP (1920 x 1080)

Interface
USB 2.0

Frame Rate
Up to 30fps under 600 Lux Brightness

Focal Distance
15mm - 40mm Millimeter (mm)

Magnification
1000X

Dimensions
Approx. 135mm x 100mm x 30mm Millimeter (mm)

Focus Range
Manual adjustment 0mm-40mm Millimeter (mm)

Eyepieces
Not applicable (digital display)

Illumination
8 built-in adjustable white LED lights

Coarse Adjustment Range
Not applicable (manual focus via knob)

Working Stage
Integrated base with scale reference Square Millimeter (mm2)

Still Image Capture Resolution
2.0 Megapixels (1920 x 1080)

Video Capture Resolution
1920 x 1080 pixels

Image Format
JPG (still image), AVI (video)

Light Source
8 adjustable high-brightness LED

Compatible Systems
Windows, Mac OS, Linux

Software Included
Measurement software for image analysis

Cable Length
120cm

Operating Temperature
0C - 60C

Installation
Portable with adjustable height stand

Color
Black

Power Supply
USB powered (5V)

Display
Real-time view on computer screen

Weight
Approx. 180g

Digital Microscope JBM-AD10 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Digital Microscope JBM-AD10

Magnification	1000x
Resolution	5 MP
Brand	JB MICROSCOPE
Model Name/Number	JBM-AD10
Is It Portable	Portable
Material	Aluminium and ABS Plastic
Weight	1 kg
Country of Origin	Made in India

Minimum order quantity: 1 Piece

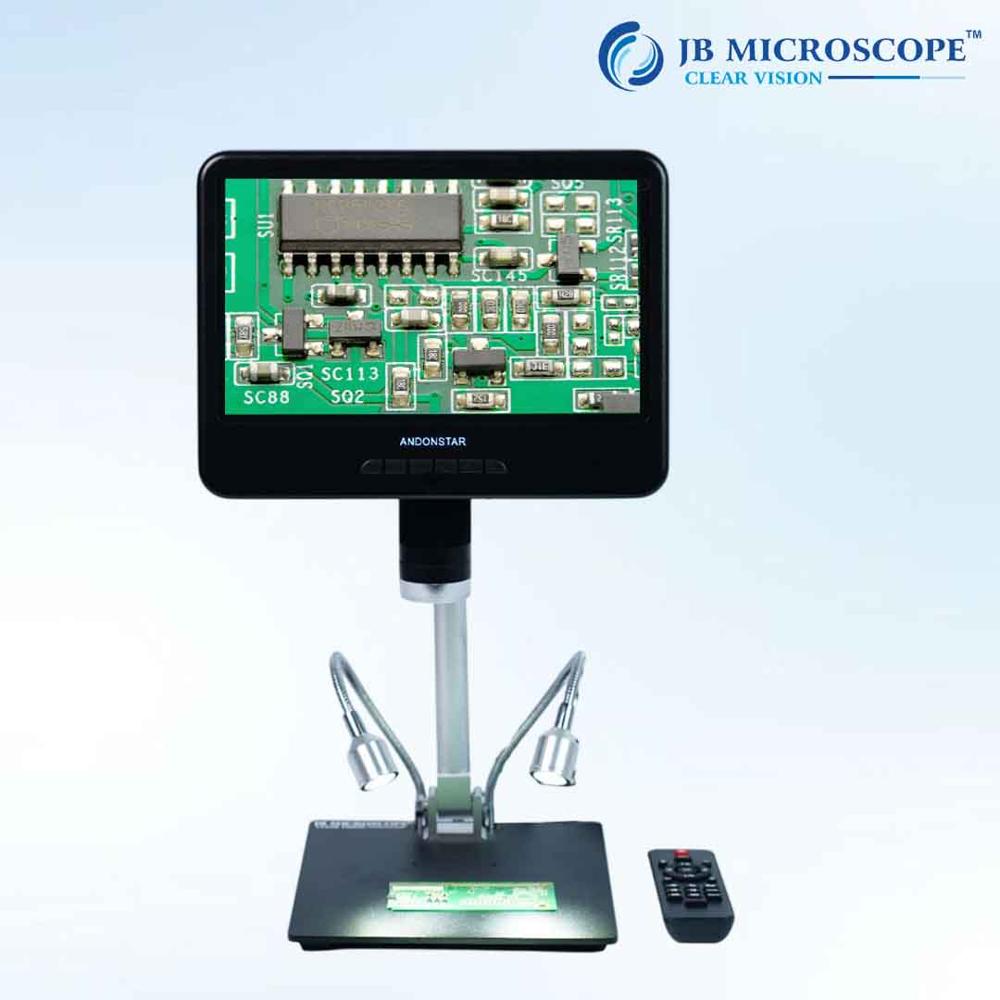

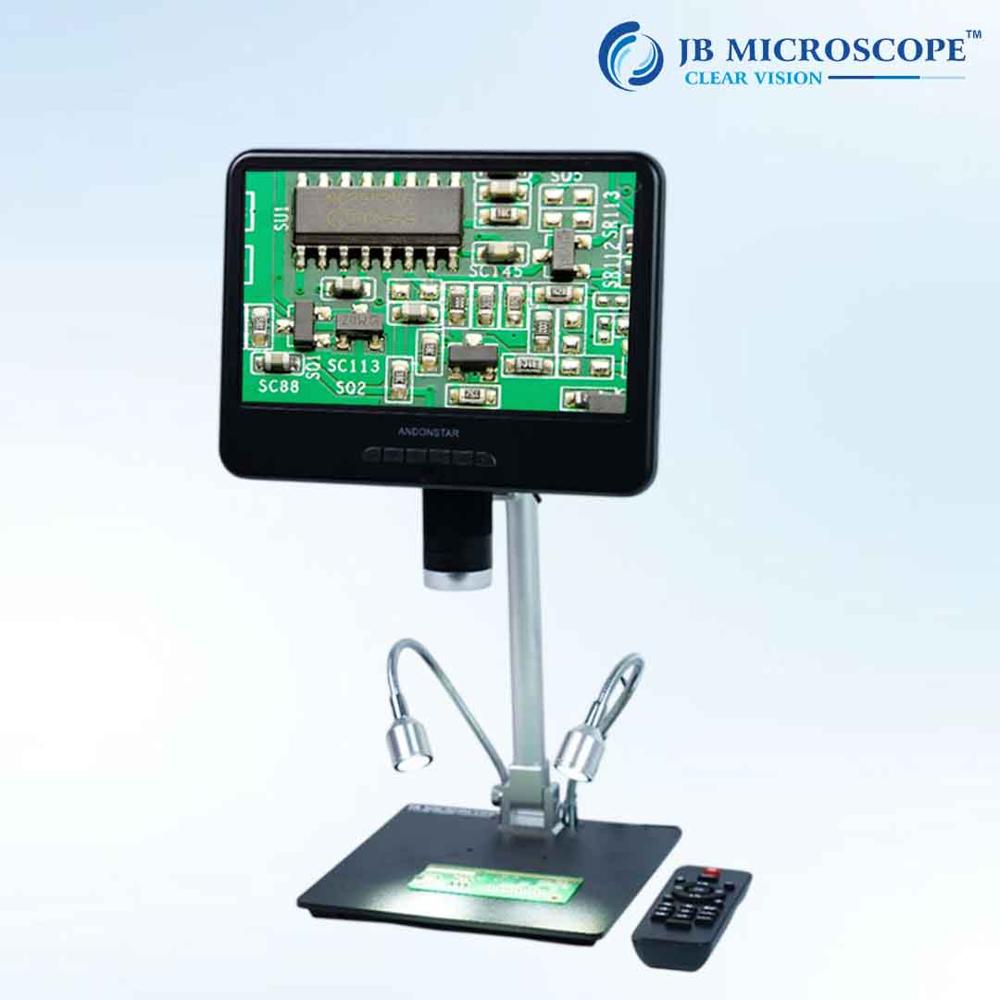

10-inch LCD screen, larger screen, clearer display.
The microscope display Angle can be adjusted to
facilitate multi-angle observation .
The metal bracket is adjustable front and rear for
3D visuals and more room to operate.
Black metal base with clip to hold the viewing item.
Two LED lights are added to the base of the stand to make
the image clearer.
Support memory card records and photos, more convenient to use. Products are widely used: mobile phones, computers and other electronic products repair, anti-counterfeiting identification, prints, textiles, jewelry, factory production lines, tender maintenance, plants and insect observation.

Versatile Magnification for Diverse Applications

With magnification up to 1000X and a high-sensitivity CMOS sensor, the JBM-AD10 is tailored for accurate inspections across fields like electronics repair, education, biological exploration, and numismatics. Its crisp, real-time HD visuals empower users to investigate minute details on a range of sample types and objects.

Easy Plug-and-Play Experience

Designed for seamless integration with Windows, Mac OS, and Linux, the JBM-AD10 requires no additional drivers. Simply connect the USB cable and start utilizing its advanced features, including image and video capture, providing instant, efficient setup for users in labs, workshops, and classrooms.

FAQ's of Digital Microscope JBM-AD10:

Q: How do I install and set up the JBM-AD10 Digital Microscope?

A: The microscope is plug-and-play. Connect it to your computer via the included USB cable (Windows, Mac OS, or Linux), and it will be recognized automatically. Use the included measurement software for advanced image analysis; no special drivers are needed.

Q: What types of applications is the JBM-AD10 suitable for?

A: This microscope is ideal for PCB inspection, coin analysis, biological observation, educational use, and electronic repair work. Its adjustable magnification and built-in LEDs make it versatile for various detailed inspection tasks.

Q: When should I use the adjustment features, including focus and LED brightness?

A: Adjust the manual focus wheel (0-40mm) to bring subjects into sharp clarity depending on their height, and modify the LED brightness to match ambient lighting conditions for optimal image quality during observation or image capture.

Q: Where can I view the real-time images captured by the JBM-AD10?

A: All real-time visuals and live videos are displayed directly on your computer screen (PC or Mac), using the included software for video recording, still shots, and measurement analysis.

Q: What is the process for capturing and saving images or videos with this microscope?

A: Utilize the snapshot and video recording functions within the software to capture still images (JPG format) or videos (AVI at 1080p). These files are then easily saved and accessible on your connected computer for further analysis or sharing.

Q: How does the included measurement software benefit users?

A: The measurement software provides advanced tools for precise image analysis, allowing accurate calibration, measurement of distances, and documentation, making it especially valuable for engineering, quality control, and educational activities.
