4K Digital Microscope Magnification JBM-PL4

4K Digital Microscope Magnification JBM-PL4 Specification

Focus System
Manual Coarse & Fine Focus

Spare Parts
Power adapter, Remote control, USB cable, Calibration ruler

Features
4K UHD digital output, remote control operation, on-screen measurement, adjustable LED lighting, real-time image/video capture, large working platform

View Head
Trinocular Digital

Theory
Other

Drawtube
Trinocular

Sensor
Ultra HD 4K CMOS Sensor

Resolution
5MP

Interface
HDMI, USB, TF card slot

Frame Rate
30 fps (4K), 60 fps (1080p)

Focal Distance
10mm - 150mm Millimeter (mm)

Magnification
200X

Dimensions
295mm x 200mm x 225mm Millimeter (mm)

Focus Range
Manual, 1mm - 150mm Millimeter (mm)

Eyepieces
None (Digital Output)

Illumination
LED Ring Light, Adjustable Intensity

Coarse Adjustment Range
25mm

Fine Adjustment Range
0.002mm

Working Stage
150mm x 110mm Metal Platform Square Millimeter (mm2)

Still Image Capture Resolution
8 MP / 12 MP selectable

Video Capture Resolution
4K UHD, 1080p FHD

Image Format
JPG, BMP, PNG

Objective Achromatic
Fixed CMOS Objective

Light Source
Built-in Adjustable High-intensity LED

Image Processing
Digital zoom, measurement, annotation

Supported Storage
TF card up to 64GB

Operating System Compatibility
Windows, Mac OS (with compatible viewer software)

Gross Weight
Approx. 2.2 kg

Operating Temperature
0C - 50C

Power Supply
DC 12V/2A

Output Display
Supports external HDMI 4K displays/monitors

Application Areas
PCB inspection, biological observation, jewelry, forensic analysis, industrial inspection

Construction Material
Durable alloy body

4K Digital Microscope Magnification JBM-PL4 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4 Days

About 4K Digital Microscope Magnification JBM-PL4

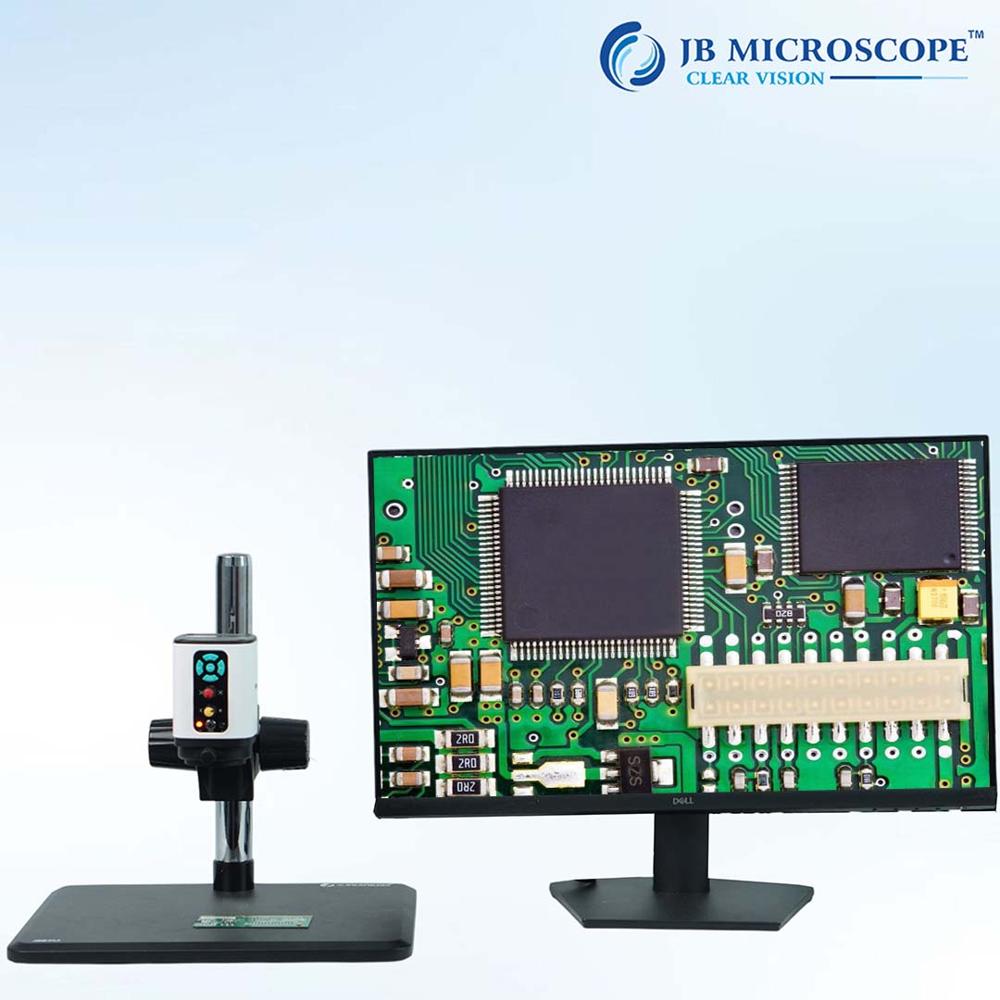

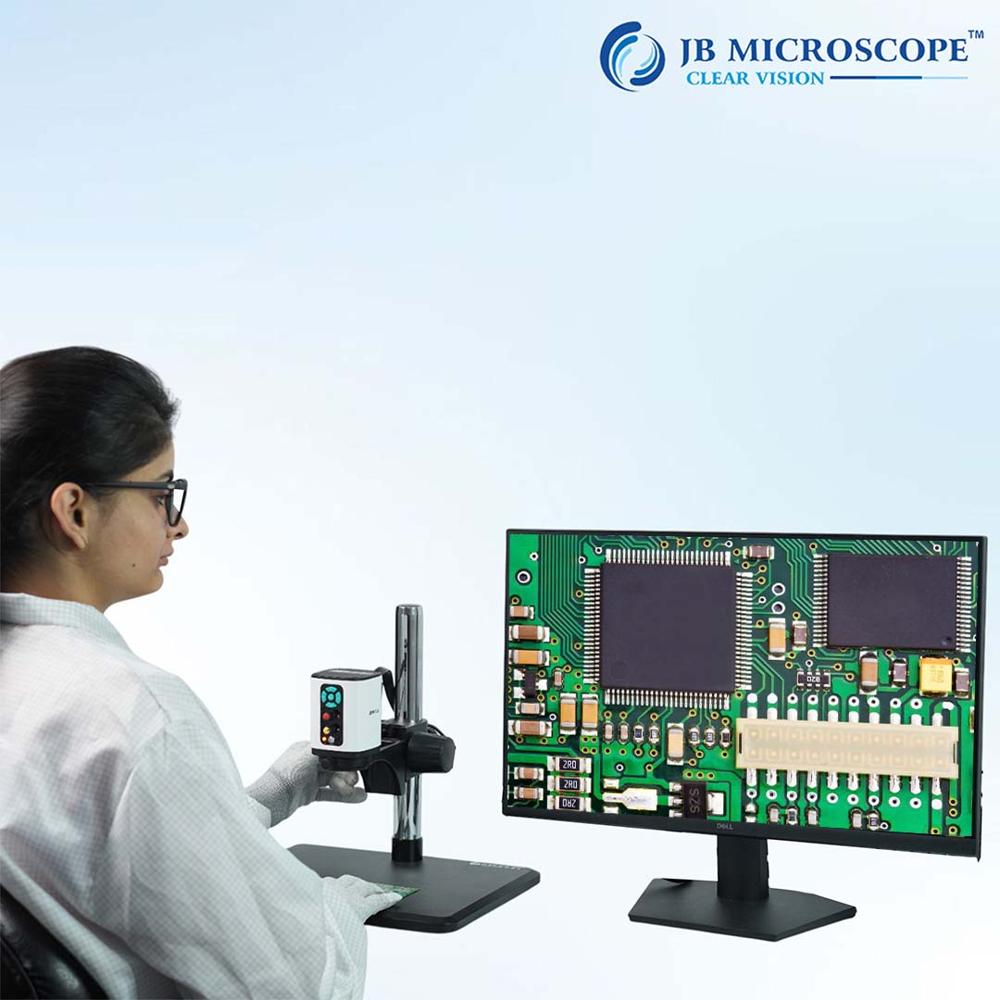

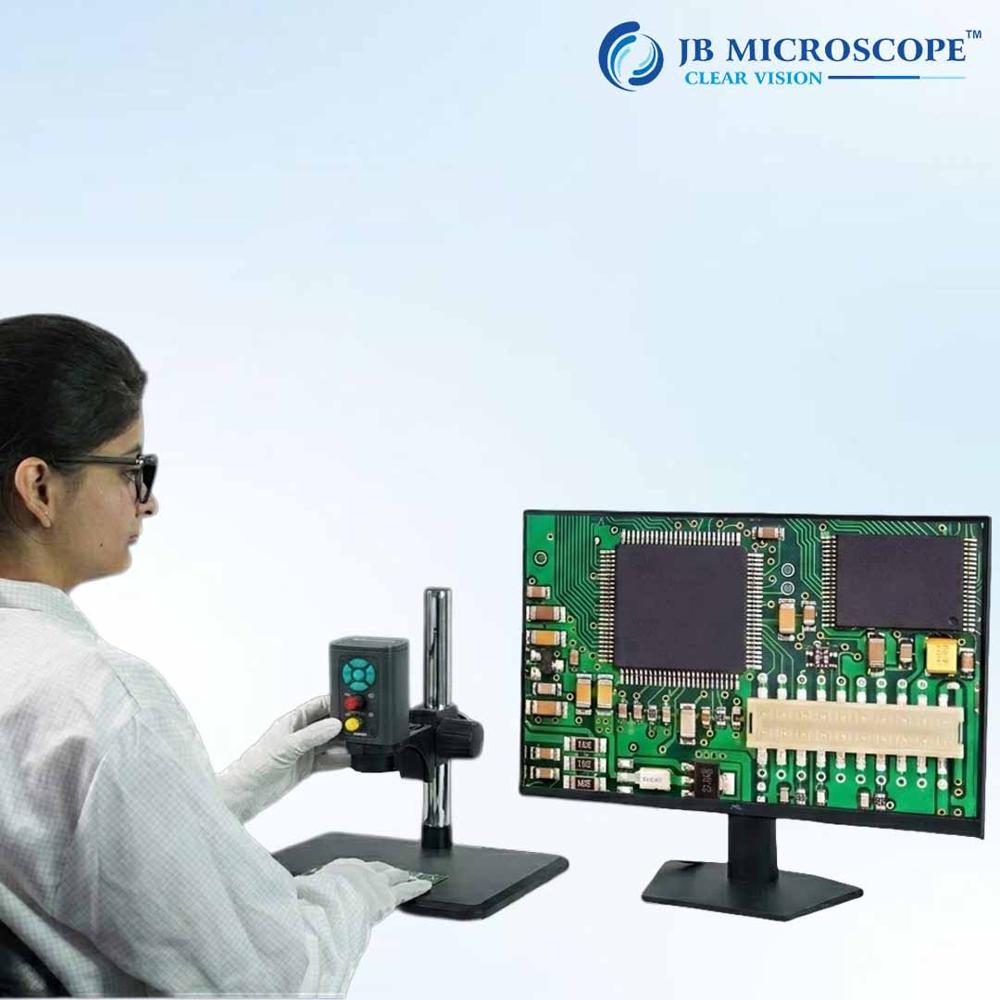

Digital Microscope 4k with 200x Magnification for PCB and Electronic parts Inspecction Microscope.

Adopting 8.29-million-pixel Sony CMOS image sensor.
Adopting a 1/2.8-inch image sensor.
HDMI 3840 * 2160 30 frame/1080P 60 frame image output
USB 2.0 connection to computer driver free output3840 * 2160 30 frame image output
4K video recording
4K photography
One click freeze/thaw function/same screen comparison; 181 Remote focusing without shaking
Electronic zoom function
Supports manual/automatic exposure and exposure compensation value adjustment
Supports manual/automatic white balance, with adjustable red, green, and blue colors
supports USB storage, with a maximum capacity of 64GB
Support remote control operation, taking photos without shaking, resulting in clearer images

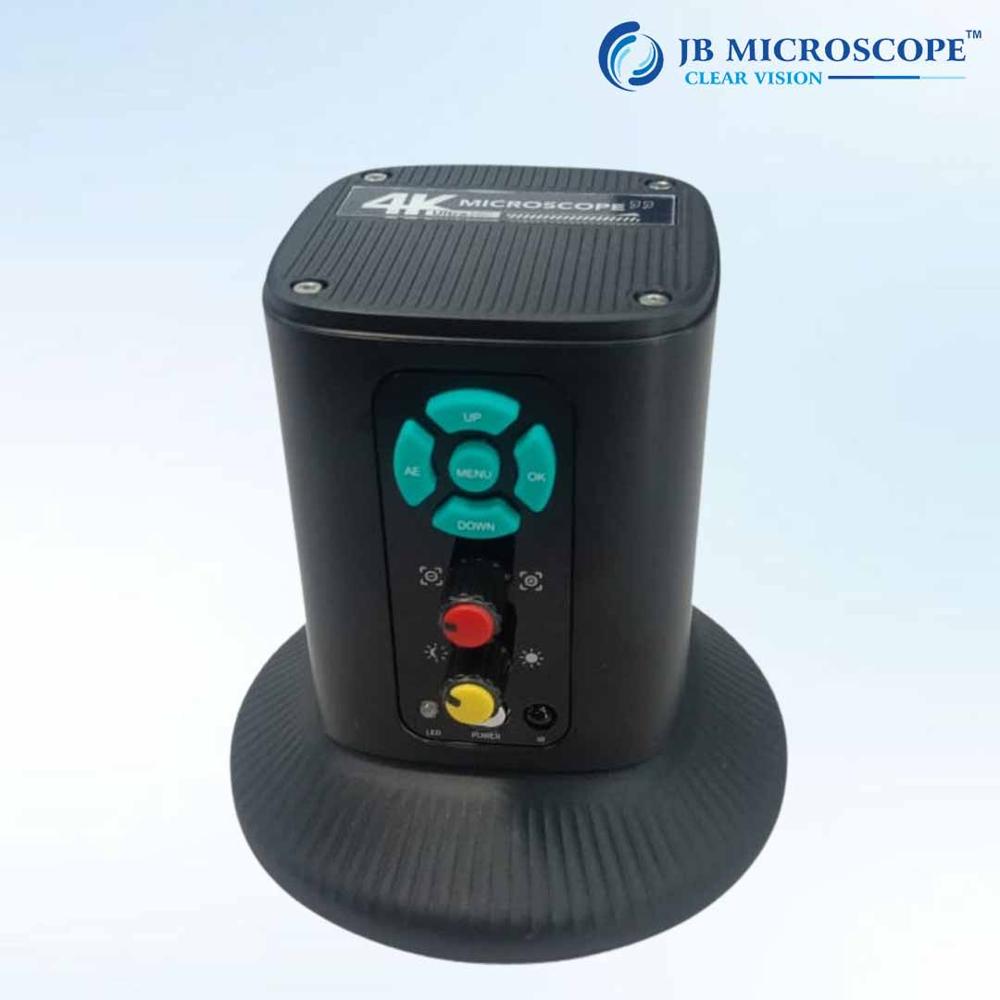

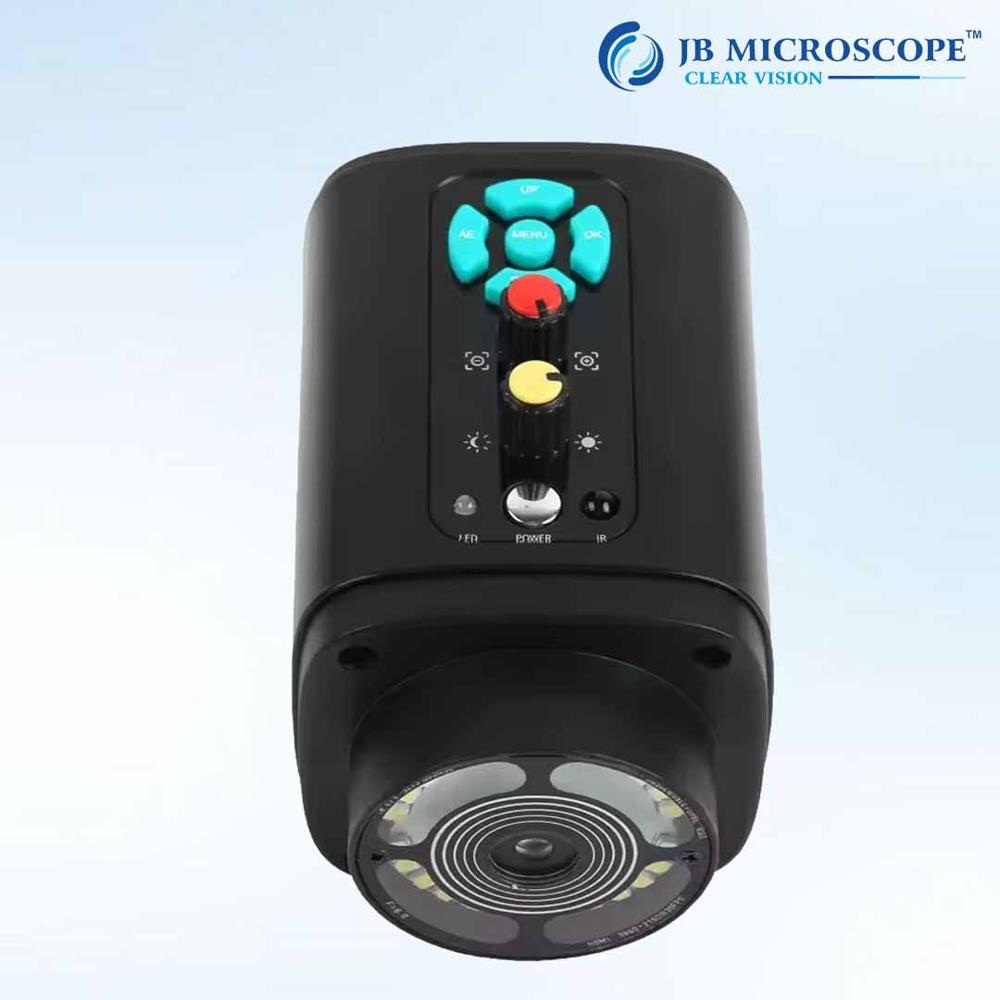

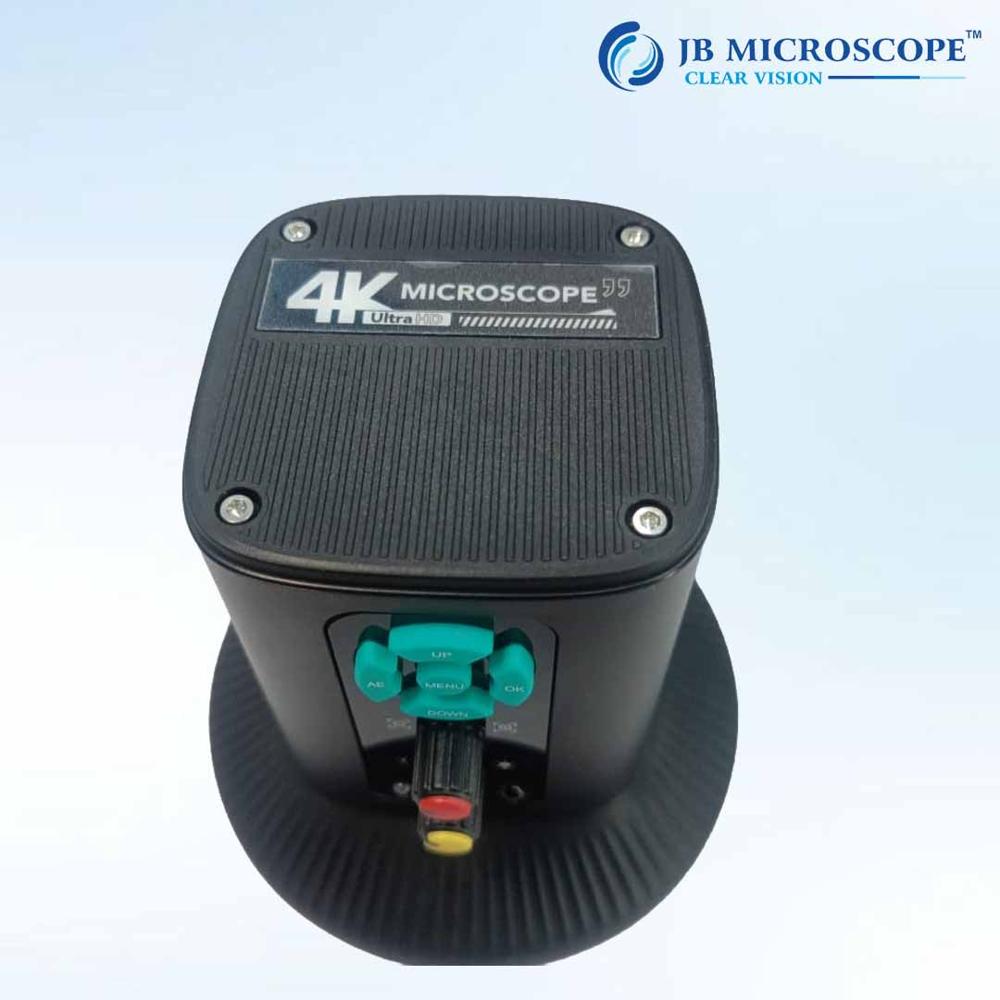

Integrated design, built-in camera, light source, and microscope lens
Support saving shutdown settings parameters

Ultra HD Clarity and Versatile Imaging

Equipped with an ultra HD 4K CMOS sensor, the JBM-PL4 digital microscope delivers exceptional visual fidelity for demanding tasks. With manual coarse and fine focus, real-time 4K video (30 fps), and up to 200X magnification, it is designed for detailed inspection in electronics, biology, jewelry, forensics, and industrial quality control.

Easy Connectivity and Convenient Storage

The JBM-PL4 supports seamless HDMI connectivity for external 4K displays or monitors, along with USB integration and a TF card slot for up to 64GB storage. This ensures quick image and video capture, annotation, and measurement directly on-screen, streamlining documentation and sharing processes.

Ergonomic Design for Professional Use

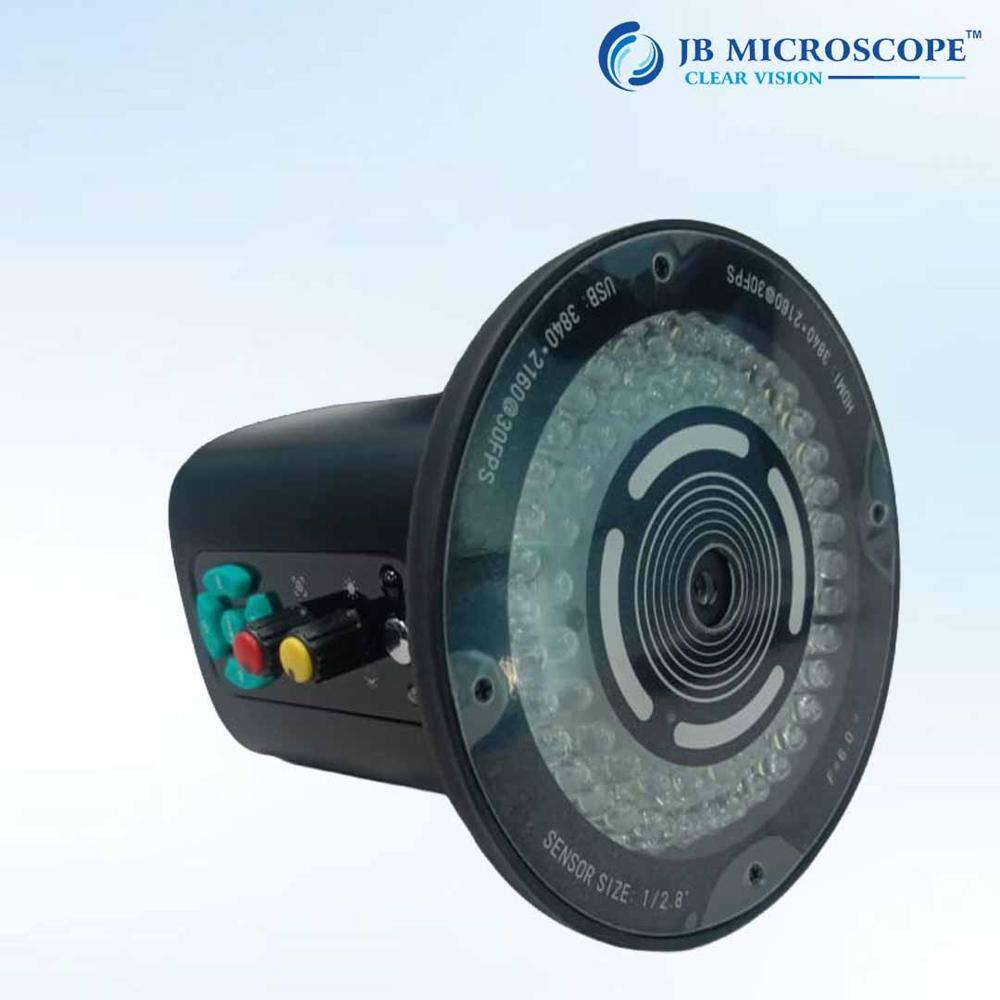

Built with a durable alloy body and a spacious 150mm x 110mm metal platform, this microscope ensures stability and longevity in professional environments. Its adjustable LED ring light, manual focusing, and intuitive controls-enhanced by remote operation-make it user-friendly and efficient for extended use.

FAQ's of 4K Digital Microscope Magnification JBM-PL4:

Q: How do I connect the JBM-PL4 microscope to an external 4K monitor?

A: To connect the JBM-PL4 to a 4K monitor, use the HDMI interface provided on the device. Simply connect an HDMI cable from the microscope to your monitor or display, and select the correct input on the monitor. This will allow real-time viewing of the specimen at full 4K resolution.

Q: What storage options are available for capturing images and videos?

A: The microscope features a TF card slot supporting cards up to 64GB. You can save still images in JPG, BMP, or PNG format and record 4K UHD or 1080p FHD videos directly onto the TF card for efficient data management and backup.

Q: When should I use digital zoom and measurement features?

A: Digital zoom and on-screen measurement are ideal when you need to closely inspect minute details or take precise dimensional readings of objects. These features are particularly useful in PCB inspection, jewelry examination, or industrial quality control processes.

Q: Where is the microscope suitable for professional use?

A: The JBM-PL4 is designed for use in laboratories, manufacturing plants, jewelry workshops, research institutes, and forensic analysis labs. Its robust construction and multiple application areas make it well-suited for both educational and industrial environments across India.

Q: What is the proper way to adjust focus for optimal image clarity?

A: Begin with the manual coarse adjustment (25mm range) to bring your subject into view, then use the fine adjustment knob (0.002mm increments) to achieve sharp, precise focus. This two-step system ensures accuracy when observing delicate features at high magnification.

Q: How does the adjustable LED ring light benefit specimen observation?

A: The built-in high-intensity LED ring light offers adjustable brightness to illuminate specimens evenly. This ensures clear visualization of surface details, minimizes shadows, and enhances contrast, which is crucial for accurate observation and analysis.

Q: What are the main benefits of using the JBM-PL4 for industrial inspection?

A: The JBM-PL4 offers real-time 4K video capture, precise magnification, and on-screen measurement with easy documentation. Its stable, large working platform and durable build make it reliable for repeated use in quality control and defect detection, ultimately streamlining inspection processes and improving productivity.
