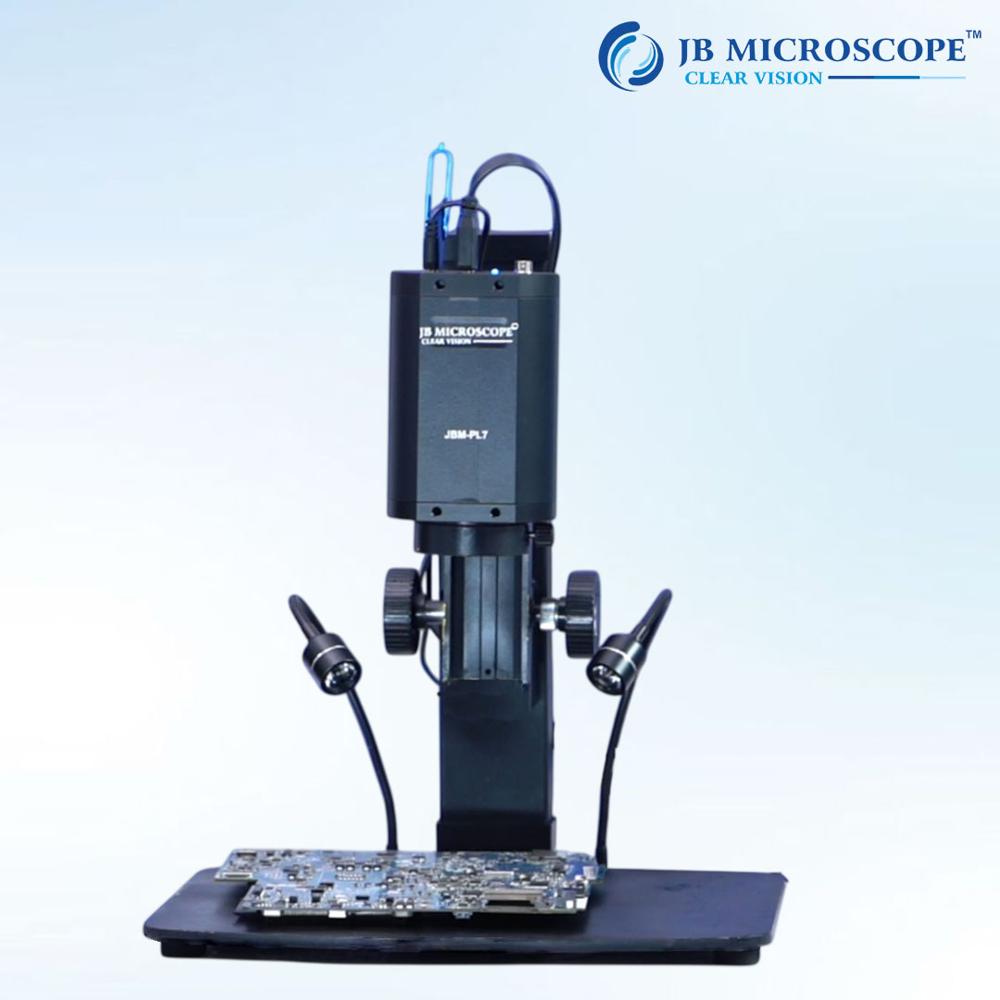

Auto Focus 28x HDMI 4K Digital MicroscopeJBM-PL7

Send Inquiry

Request To Call Back

Auto Focus 28x HDMI 4K Digital MicroscopeJBM-PL7

Get a Price/Quote

MOQ : 1 Set

Auto Focus 28x HDMI 4K Digital MicroscopeJBM-PL7 Specification

Spare Parts
Power adapter, HDMI cable, USB cable, Remote control

View Head
Digital Viewing, Trinocular port

Features
Autofocus, 4K HDMI output, on-screen measurement, photo/video capture, convenient remote operation

Focus System
Auto Focus with manual override

Theory
Digital Microscope with advanced autofocus technology suitable for various high-precision inspection tasks.

Drawtube
Trinocular

Sensor
High-performance CMOS sensor

Resolution
4K Ultra HD 3840 x 2160 Pixels

Interface
HDMI, USB

Frame Rate
60fps at 1080p, 30fps at 4K

Focal Distance
10mm to 40mm (adjustable)

Magnification
28x Optical (Actual magnification in use depends on monitor and setup)

Dimensions
Height: Approx. 350mm, Length: 210mm, Width: 180mm

Focus Range
Auto Focus, Manual Fine Adjustment Supported

Eyepieces
Not applicable (Digital Output)

Illumination
Integrated LED Ring Light, Adjustable Brightness

Coarse Adjustment Range
Supported via Stand

Fine Adjustment Range
Precise motorized fine focus adjustment

Working Stage
Large flat anti-slip base stage

Still Image Capture Resolution
Up to 8 Megapixels

Video Capture Resolution
4K (3840x2160)

Image Format
JPEG for still images, MP4 for videos

Interpupillary Distance
Not applicable (Digital Viewing)

Objective Achromatic
Plan Achromatic Objective Lenses

Light Source
LED Ring Light (white light, adjustable)

Measurement Functions
On-screen calibration and measurement tools

Body Material
High-grade metal alloy

Display/output Mode
Real-time viewing on monitor, USB transfer for saved files

Power Consumption
<10W

Application Fields
Industrial inspection, PCB analysis, precision assembly, laboratory research, education, jewelry analysis

Remote Control Functions
Focus, zoom, capture image, video record, menu navigation

Display Compatibility
Compatible with HDMI monitors up to 65 inches

Weight
Approx. 2.5 kg

Camera Mount
C-mount digital camera system for flexibility

Supported OS
Windows, MAC OS (for USB image transfer)

Storage Temperature
-20C to 60C

Operating Voltage
100-240V AC, 50/60Hz

Working Temperature
0C to 40C

Auto Focus 28x HDMI 4K Digital MicroscopeJBM-PL7 Trade Information

Minimum Order Quantity
1 Set

Delivery Time
3 Days

About Auto Focus 28x HDMI 4K Digital MicroscopeJBM-PL7

Sensor resolution	8 MP
Resolution	8MP
Output interface	USB 3.0
Sensor size	1/2.8 inch
Magnification	28X
Model Name/Number	JBM-PL7
Is It Portable	Portable
Camera type	HDMI camera, CCD camera, C mount camera, USB camera
PC software	Windows Mac, Windows
Country of Origin	Made in India

Minimum order quantity: 1 Piece

4K FULL HD high speed camera with 1X 28X optics zoom lens.
Electric zoom, The magnification can be adjusted through a mouse or other I/O device.
UI design menu, easy to control by mouse.
Autofocus, when observation Objects of different heights, you do not need adjust the lenss Working distance.
When you adjust the Cameras Magnification, you do not need adjust the lenss Working distance

Ultra HD Clarity and Flexible Display Options

Experience uncompromised image quality with 4K Ultra HD resolution and 28x optical magnification, ideal for precise examination tasks. The microscope seamlessly connects to any HDMI monitor up to 65 inches, delivering real-time imaging for group viewing or solo analysis. It also supports USB transfer for convenient saving and sharing of captured images and videos, making data handling effortless.

Advanced Autofocus and Measurement Tools

Benefit from a sophisticated autofocus system with manual override for intricate focusing, ensuring sharp details every time. The integrated on-screen measurement and calibration tools streamline the analysis process, facilitating accurate assessments and high-precision tasks in industrial inspection, research, or education environments.

Durable Construction and Versatile Application

Built with a high-grade metal alloy body and a large anti-slip base stage, the JBM-PL7 offers robust durability and stability. Its versatility extends to industrial inspection, PCB analysis, jewelry evaluation, education, and laboratory research, making it a reliable choice for professionals across multiple disciplines.

FAQ's of Auto Focus 28x HDMI 4K Digital MicroscopeJBM-PL7:

Q: How do I connect the JBM-PL7 microscope to a display for real-time viewing?

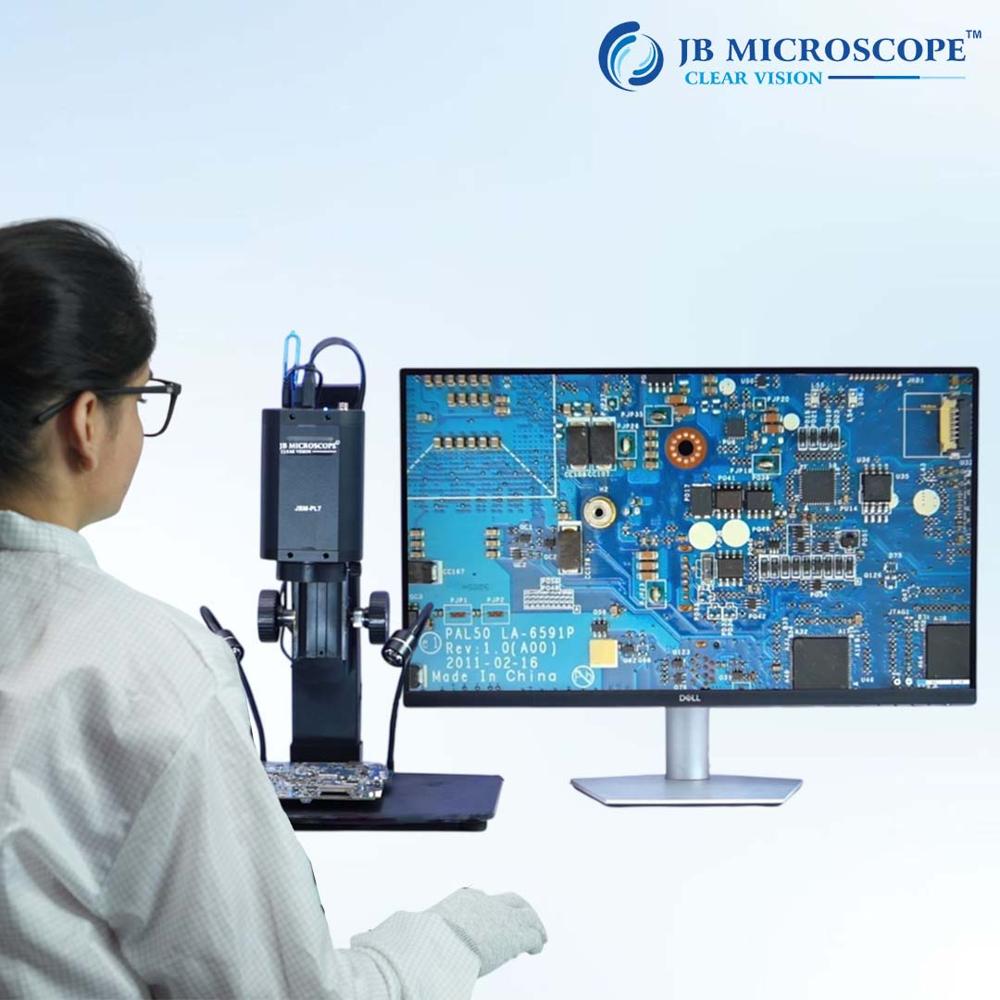

A: You can connect the microscope to any HDMI-compatible monitor up to 65 inches using the included HDMI cable. This enables real-time viewing, making it suitable for presentations, live demonstrations, or collaborative work.

Q: What is the process for capturing and transferring images or videos?

A: Still images and videos can be captured via remote control and saved directly to storage. For file transfer, simply connect the microscope to a computer using the USB cable. Both Windows and Mac OS are supported for USB image and video transfer.

Q: What benefits does the autofocus system provide?

A: The advanced autofocus mechanism ensures sharp and clear images even during complex inspections. It also allows for manual fine adjustments, offering precision for detailed measurement or documentation tasks where exact clarity is essential.

Q: Where can the JBM-PL7 microscope be used effectively?

A: This microscope demonstrates excellent performance in industrial inspection, laboratory research, precision assembly, educational environments, PCB analysis, and jewelry evaluation. Its robust design and advanced features adapt well to both professional and academic settings.

Q: What operating systems are supported for file transfer via USB?

A: The JBM-PL7 supports file transfer on Windows and Mac OS, ensuring compatibility with common operating environments in both industrial and educational institutions.

Q: How is measurement performed using this microscope?

A: On-screen calibration and measurement tools are built in, allowing you to perform precise measurements directly from the live or captured image. This feature is essential for tasks requiring accurate dimensional analysis.

Q: What items are included with the microscope for setup and operation?

A: The package includes a power adapter, HDMI cable, USB cable, and a remote control. These accessories facilitate immediate setup and easy remote operation for functions like focus, zoom, image capture, and menu navigation.
