Nodularity Software

Nodularity Software Specification

Features
Automatic Nodularity calculation, User friendly interface, Multiple report format, Image enhancement, Data export, Stepwise analysis, Graphical & statistical output.

Focus System
Coaxial coarse and fine adjustment

Spare Parts
Lamp, fuse, immersion oil bottle, dust cover

View Head
Trinocular, 30 inclined, rotatable

Theory
Image Analysis based calculation of Nodularity in cast iron microstructures.

Drawtube
Trinocular

Sensor
High Resolution Digital CMOS Sensor

Resolution
Up to 5.1 M pixels

Interface
USB 2.0

Frame Rate
Up to 30 fps

Focal Distance
180 mm

Magnification
40x to 1500x (using objectives and digital zoom)

Dimensions
430x280x390 mm

Focus Range
Coarse and Fine Adjustment

Eyepieces
WF 10x / 18 mm

Eyepiece Tube
Inclined at 30, 360 rotatable

Illumination
6V/20W Halogen lamp, adjustable

Coarse Adjustment Range
30 mm

Fine Adjustment Range
0.002 mm

Working Stage
Double layer mechanical stage, 140x140 mm

Still Image Capture Resolution
2592x1944 pixels

Video Capture Resolution
1280x960 pixels

Image Format
JPG, BMP, TIFF

Interpupillary Distance
48-75 mm

Objective Achromatic
4x, 10x, 40x, 100x (oil)

Condenser
NA 1.25 Abbe condenser

Light Source
Halogen or LED, adjustable

Data Storage
On local disk or network

Installation Support
Remote/onsite installation assistance

Software Updates
Free for 1 year

Export Formats
Excel, PDF, Image

User Management
Multi-user, password-protected access

Printer Support
All standard USB/network printers

Software Compatibility
Windows 7/8/10 & 11

Measurement Tools
Length, area, count, nodularity index, ferrite/pearlite ratio

Calibration
Auto calibration with included stage micrometer

Image Analysis Software
Advanced proprietary algorithm for accurate nodularity assessment

Power Supply
230V/50Hz

About Nodularity Software

Device Compatibility	Desktop Only
License Duration	1 Year
Minimum Ram	8GB
Shape	Rectangular
USB Dongle	Yes
Language support	English
Number of user	01
Service Mode	Pan India

Minimum order quantity: 1 Piece

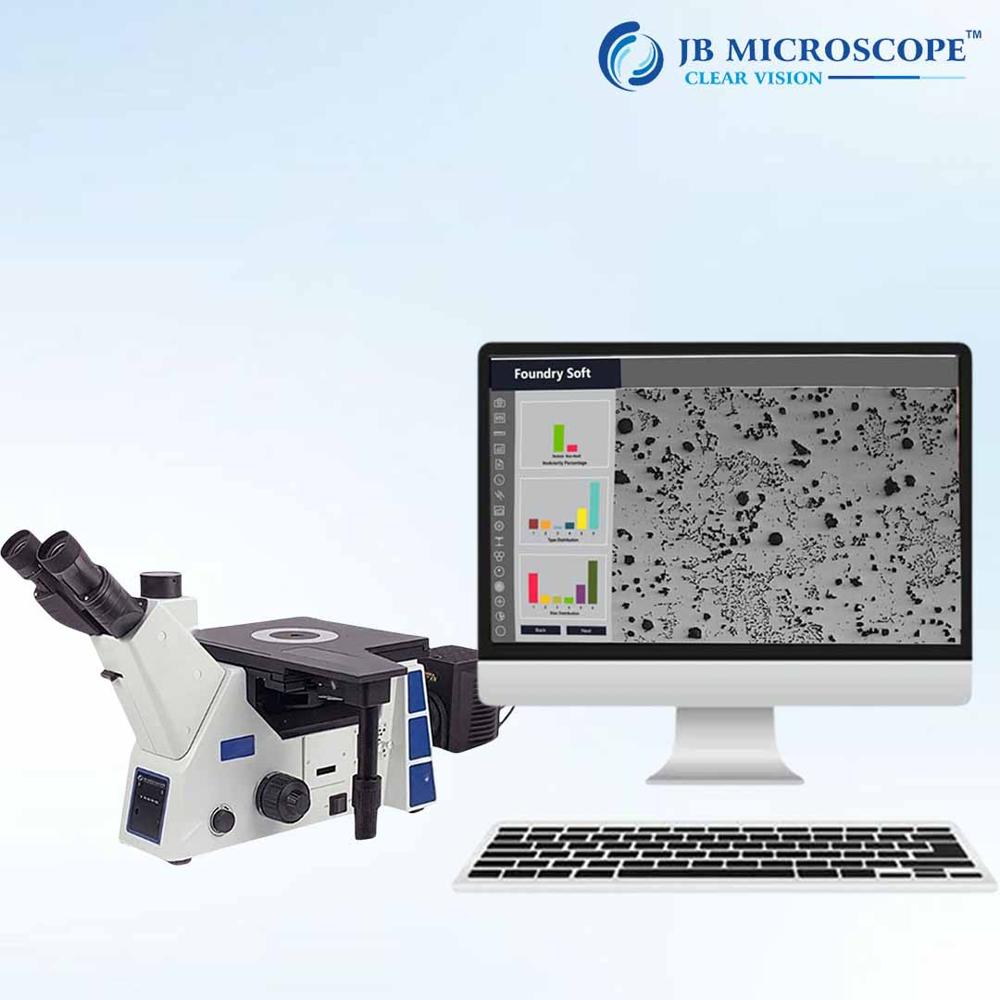

A software based on a touchscreen concept, Foundry Soft is the most comprehensive solution for cast iron industries. The software is used to estimate nodules, flake size and the class and number from 1 to 8 as per ASTM, JIS and ISO standards.Furthermore, the software includes various templates for reporting.

Advanced Nodularity Analysis Technology

Employing proprietary algorithms, Nodularity Software delivers highly accurate nodularity, ferrite/pearlite ratio, and index calculation based on image analysis. Its stepwise analysis and graphical statistical outputs ensure confident evaluations for metallurgists and quality-control professionals.

Comprehensive Hardware Integration

The system features a high-resolution digital CMOS sensor and trinocular view head, providing a crisp and detailed visualization of samples. Coaxial coarse and fine adjustments, a double-layer mechanical stage, and an adjustable halogen or LED light source ensure ergonomic and precise operation.

User-Centric Software Experience

Nodularity Software offers a user-friendly interface, seamless data export, multi-format report generation, and enhanced image tools. Easy local or network data storage, support for all standard USB or network printers, and password-protected, multi-user access simplify compliance and collaboration.

FAQ's of Nodularity Software:

Q: How does Nodularity Software ensure accurate nodularity assessment in cast iron?

A: Nodularity Software uses a proprietary image analysis algorithm and an auto calibration process with a stage micrometer. This combination allows for precise calculation of nodularity, ferrite/pearlite ratio, and other essential metrics in cast iron microstructures.

Q: What operating systems are compatible with Nodularity Software?

A: The software is compatible with Windows 7, 8, 10, and 11, ensuring broad usability in various laboratory and industrial environments. Installation assistance is available both remotely and onsite.

Q: When and where can data be exported or stored using the software?

A: Measurement data and reports can be exported any time in Excel, PDF, or image formats. You may choose to save results on your local computer or a networked location for collaborative access and secure long-term storage.

Q: What measurement tools and features does the software offer?

A: Nodularity Software provides automated and manual measurement tools for length, area, particle count, nodularity index, and ferrite/pearlite ratio. Stepwise analysis, image enhancement, and graphical/statistical reporting are also included.

Q: How does the user management system work for multiple users?

A: The software supports multiple users with password-protected access, allowing for secure, segmented usage. Each user can manage their data and reports without interfering with others' work, ideal for team environments.

Q: What are the benefits of the bundled microscope and imaging hardware?

A: The included trinocular microscope and high-resolution CMOS sensor (up to 5.1 MP) deliver sharp images and video at up to 30 fps. Features such as adjustable illumination and ergonomic controls enhance efficiency and comfort during analysis.

Q: What kind of support and updates are provided?

A: Free software updates are available for one year after purchase, with both remote and onsite installation support options. Spare parts like lamps, fuses, and other essentials are readily available from dealers and suppliers across India.
