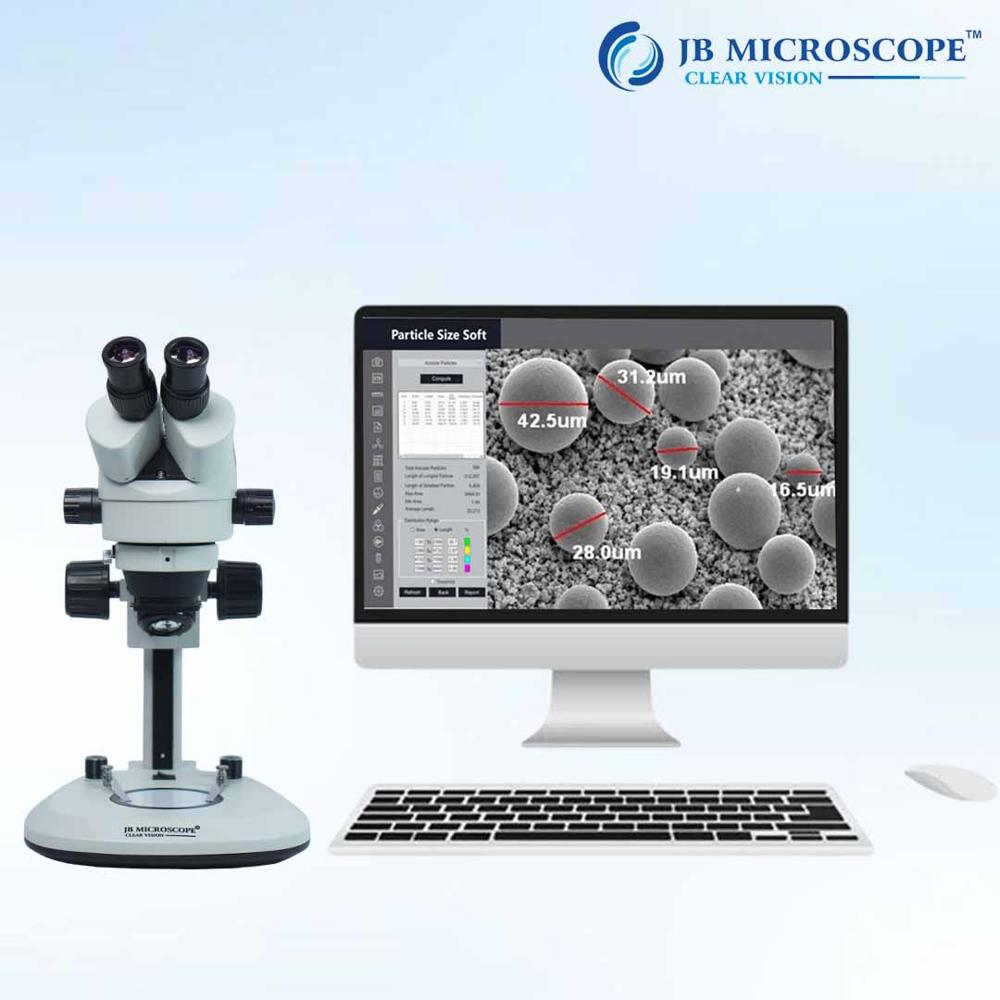

Particle Size Software

Particle Size Software Specification

Focus System
Coaxial coarse & fine adjustment

View Head
Trinocular/Monocular/Binocular (switchable)

Features
Live image display, measurement, statistical analysis, report generation, export option

Spare Parts
Power adapter, Eyepiece, Objectives, Dust cover

Theory
Based on accurate particle size analysis principles utilizing advanced imaging and algorithmic processing

Drawtube
Binocular

Sensor
High-resolution digital CMOS sensor

Resolution
1920 x 1080 pixels

Interface
USB 2.0/3.0, HDMI supported

Frame Rate
30 fps (Full HD)

Focal Distance
160 mm (fixed optical system)

Magnification
40x-1000x (objective-dependent)

Dimensions
360 x 250 x 220 mm

Focus Range
30 mm

Eyepieces
WF10x/20 mm

Eyepiece Tube
Inclined 30/360 rotatable

Illumination
LED (Adjustable intensity)

Coarse Adjustment Range
20 mm

Fine Adjustment Range
0.002 mm per division

Working Stage
Double layer mechanical (140 x 135 mm)

Still Image Capture Resolution
Up to 5MP

Video Capture Resolution
1080p FHD

Image Format
JPG, BMP, TIFF

Interpupillary Distance
55-75 mm

Objective Achromatic
4x, 10x, 40x (S), 100x (oil)

Condenser
Abbe condenser N.A. 1.25 with iris diaphragm

Light Source
Built-in LED, 3W or equivalent

Measurement Function
Automatic and manual particle size measurement with morphometric analysis

Operating Temperature
0-40C

Image Processing Tools
Contrast, brightness, color adjustment, segmentation, thresholding

Updates
Free software updates for 1 year

Security
Password-protected user accounts

Languages Supported
English, Chinese, multilingual support

Software License
Single/Multi-user license options

Software Compatibility
Windows 7/8/10/11 (32/64 bit)

Calibration
Included calibration slide/support

Product Weight
Approx. 5.5 kg

User Manual
Comprehensive digital/manual guide included

Power Supply
110-240V AC, 50/60Hz

Data Export
Excel, PDF, Image formats

Particle Size Software Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About Particle Size Software

Device Compatibility	Desktop Only
License Duration	1 Year
Minimum Ram	8GB
Shape	Rectangular
Usage/Application	Industries
Operating System	Window
Language Support	English
USB Dongle	Yes

Minimum order quantity: 1 Piece

Microscopic size and shape analysis of particles can be performed by using powerfulPharma Soft Image Analyse software. Thousands of Particles are automatically being detected & analysed in a matter of few seconds. Measurement methods are easily set-up in advance and performed using intuitive software wizard features, easily following the required operating procedures. Access to system configuration, calibration and measurement set-up are managed ensuring FDA 21 CFR Part 11compliancy. Results are displayed in both graphical and tabular format, stastical parameters and comparisons for particle size and shape Manufacturing are calculated

Advanced Imaging and Measurement Capabilities

Equipped with a high-resolution digital CMOS sensor and a robust fixed optical system, this particle size analyzer offers precise imaging at up to 1920 x 1080 pixels and magnification levels from 40x to 1000x. Image processing tools, including contrast, brightness, color adjustment, segmentation, and thresholding, facilitate accurate measurements and deep morphometric analysis for a wide range of samples.

Seamless Software Integration and Compatibility

The intuitive software supports Windows 7 to 11 (32/64 bit) machines and provides both automatic and manual particle size measurement options. Additionally, with single and multi-user licensing, multilingual support, and password-protected user accounts, the software ensures secure, collaborative, and accessible analysis for laboratories and institutions.

Comprehensive Data Management and Export

After analysis, users can conveniently export results in Excel, PDF, and popular image formats (JPG, BMP, TIFF), streamlining data sharing and report generation. Live image display, statistical analysis, and report generation functions simplify workflow, promoting data reliability and efficiency throughout the measurement process.

FAQ's of Particle Size Software:

Q: How does the automatic and manual measurement function work in the software?

A: The software allows both fully automatic particle size measurement using advanced image processing algorithms, and manual measurement for customized analysis. Users can select between modes based on sample requirements and benefit from tools like segmentation and thresholding to refine results.

Q: What is the process for calibrating the system before measurement?

A: Calibration is achieved using the included calibration slide. The system guides users through a straightforward validation process to ensure measurement accuracy, and support is available if needed, ensuring reliable results every time.

Q: Where can users export their measurement data for reporting and analysis?

A: Measurement data can be exported directly from the software to Excel spreadsheets, PDF documents, and image formats such as JPG, BMP, and TIFF, enabling seamless integration with external data analysis and reporting tools.

Q: When are software updates provided, and how do users access them?

A: Free updates are provided for one year after software installation. Users receive notifications about updates and can easily download and install them to enhance functionality and security.

Q: What benefits does the multilingual support offer to users in India and globally?

A: With English, Chinese, and other language support, the software enables a broader range of users across India and international locations to navigate and utilize measurement tools effectively, fostering collaboration and reducing language barriers.

Q: How does data security work in the software?

A: User accounts are secured by password protection, controlling access to sensitive measurement data and analysis records. Multi-user licenses also allow managed access rights for different team members.

Q: What are the main advantages of using this particle size measurement system?

A: This system offers highly accurate, reproducible measurements based on advanced imaging and analytical algorithms, comprehensive data export options, flexible licensing, and a range of language supports, making it ideal for laboratories, educational institutions, and industry professionals in fields like materials science and pharmaceuticals.
