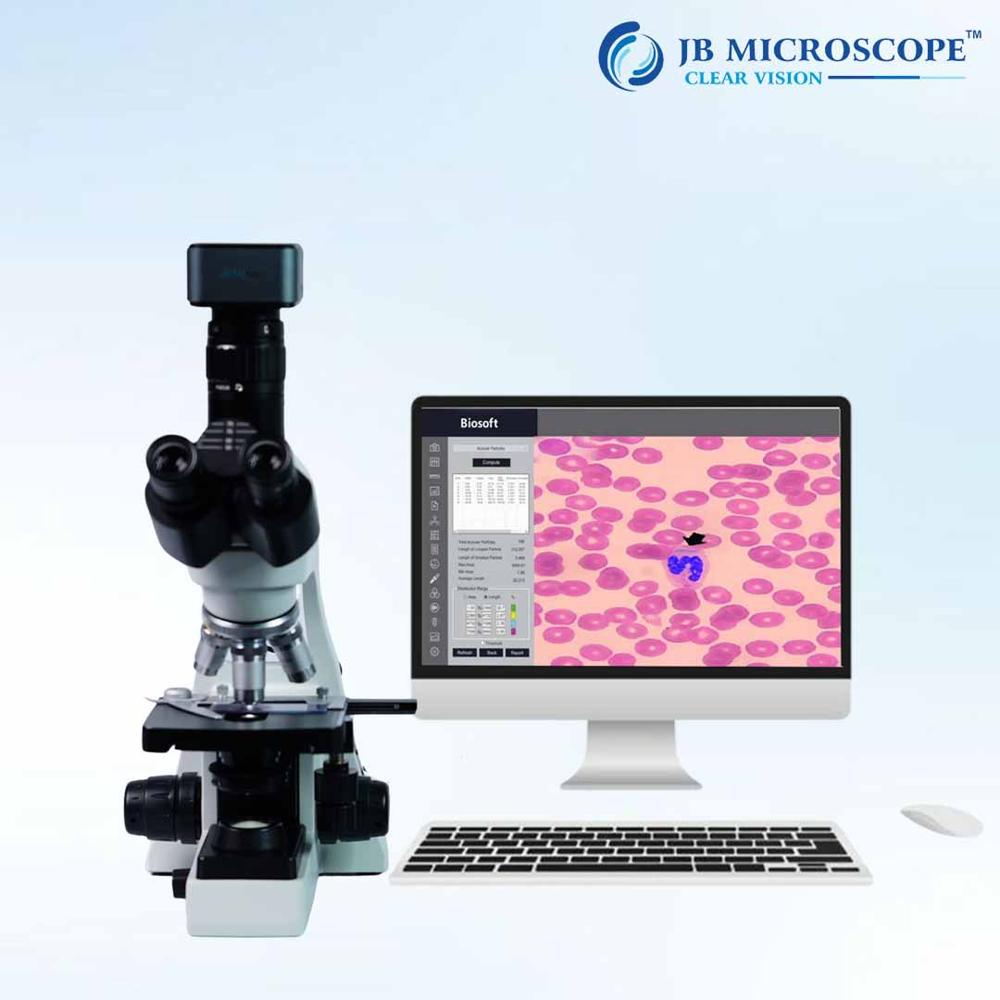

Pathological & Biological analysis software - BIO SOFT

Pathological & Biological analysis software - BIO SOFT Specification

View Head
Trinocular, 360 rotatable.

Features
User-friendly interface, multi-parameter measurement, real-time preview, annotation, imaging and report generation.

Spare Parts
Supplied with dust cover, spare bulb, fuse, immersion oil.

Focus System
Coaxial coarse and fine focus system.

Theory
Compatible with pathological and biological microscopic image analysis, providing quantitative and qualitative assessment tools.

Drawtube
Trinocular, supports camera attachment.

Sensor
High-sensitivity digital CMOS sensor.

Resolution
Up to 5.0 Megapixel (adjustable).

Interface
USB 2.0/3.0, compatible with Windows OS.

Frame Rate
30 fps live preview.

Focal Distance
Adjustable via software and hardware controls.

Magnification
Supports analysis from 40x to 1000x (objective-dependent).

Dimensions
380 x 250 x 150 mm (approximate).

Focus Range
Coarse and fine adjustment, automated via software control.

Eyepieces
Widefield 10x/18 mm (standard).

Eyepiece Tube
Inclined at 30, rotatable.

Illumination
LED illumination, adjustable intensity.

Coarse Adjustment Range
15 mm travel.

Fine Adjustment Range
0.002 mm precision.

Working Stage
Double layer mechanical stage, 140 x 140 mm.

Still Image Capture Resolution
2592 x 1944 pixels (5MP).

Video Capture Resolution
1280 x 720 pixels (HD).

Image Format
JPEG, PNG, BMP, TIFF supported for export.

Interpupillary Distance
55-75 mm adjustable.

Objective Achromatic
4x, 10x, 40x(S), 100x(S, Oil).

Condenser
Abbe condenser NA 1.25 with iris diaphragm.

Light Source
LED, variable intensity control.

Language Support
English (Default), more available on request.

License Type
Single or multi-user license available.

User Accounts
Multi-user support with data protection.

Software Compatibility
Works with most branded microscopes and imaging devices.

Measurement Tools
Area, perimeter, length, angle and cell counting functions.

Update Support
Free software updates for 1 year.

Auto Calibration
Integrated calibration for accurate measurements.

Installation
On-site/remote installation and training available.

Export Options
Direct export to Word, Excel, PDF and other file formats.

Pathological & Biological analysis software - BIO SOFT Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About Pathological & Biological analysis software - BIO SOFT

Device Compatibility	Desktop Only
License Duration	1 Year
Shape	Rectangular
Minimum Ram	8GB
Operating System	Yes
USB Dongle	yes
Number of user	01
Language Support	English
Service Mode	Pan India

Minimum order quantity: 1 Piece

Biosoft is simple image analysis software for microscopy with an intuitive user interface and simple to use navigation with a suite of image processing techniques, measurements and enhancement tools that set it apart from other mainstream softwares. Such image processing softwares are now being extensively used in a number of diverse fields such a medicine, biological research, cancer research, drug testing etc.

Threshold Particle Measurement

Manual, Auto bright and Auto dark methods to identity intensity range defined object to be measured. Various calculation & measurements available for selected Particle are; Dimensions, Area, Perimeter, Ferrite Length, Min/Max Radius, Thread Length, Thread Width, Fiber Length, Fiber Width.

Segmentation

Measure area fraction & volume fraction. Identify multiple phases within Microstructure. Also delineate phases from the histogram.

Report

Three options: Direct printout with original image processed Image & Tabular results

Export to MS Office or Excel for further modification.

Count & Classification

Identification of objects in an image, count them, obtain several features measurements. Objects identification by user or automatically. User defined classification on basis of size or intensity.

Image Editing

Cut/Copy/Paste, selected copy by free hand AOL. Resize, Crop/Duplicate/restore, conversion to other format like BMP,JPG,TIF, Annotation like, free hand drawing, straight line, square, Circle, arrow, Text, highlighter etc, pointer, eraser.

View

Zoom in/Zoom out, rotation 90,180,27, horizontal flip/vertical flip, Redo/Undo, Intensity histogram.

Image Processing

Background subtraction, contrast enhancement, boolean math, ADD,OR,XOR etc

Routine Filters

Invert, Brightness, Contrast, Hue, Saturation, Blur. Noise removal, Gamma RGB, etc.

Edge Detection & Morphology Function

Lap-lacing, sobel, Kirsh, Skelotizing, pruning, histograme equalization, histogram smoothing etc.

Comprehensive Measurement Tools

BIO SOFT offers a wide array of measurement functionalities, including area, perimeter, length, angle, and cell counting features. These precise tools enable accurate quantitative analyses, ideal for both pathological and biological image assessment. Integrated auto-calibration ensures consistently reliable results with minimal user intervention.

Extensive Compatibility and Export Options

Seamlessly working with most branded microscopes, imaging devices, and Windows OS, BIO SOFT streamlines lab workflows. Exporting results is simple, with support for Word, Excel, PDF, and multiple image file formats such as JPEG, PNG, BMP, and TIFF, making report generation both versatile and efficient.

Secure Multi-User Access and Support

The software supports multiple user accounts, safeguarding data privacy and facilitating collaborative research environments. BIO SOFT comes with free software updates for one year and offers both remote and on-site installation and training, ensuring users maximize the platform's potential and stay current with advancements.

FAQ's of Pathological & Biological analysis software - BIO SOFT:

Q: How does BIO SOFT ensure accurate measurements during image analysis?

A: BIO SOFT utilizes integrated auto-calibration, which aligns measurement tools such as area, perimeter, length, angle, and cell counting functions for precise results. This ensures every analysis is consistent and reliable.

Q: What are the steps involved in installing BIO SOFT and training users?

A: Installation is straightforward, with options for remote or on-site setup depending on user preference. Comprehensive training sessions are provided to familiarize users with all features, ensuring efficient adoption and operation.

Q: When can I expect software updates and how long are they free?

A: After installation, users are entitled to free software updates for one year. Updates are released periodically to introduce new features, enhance compatibility, and improve performance.

Q: Where can I use BIO SOFT and with which microscopes is it compatible?

A: BIO SOFT is designed to work with most branded microscopes and imaging devices. It is ideal for use in laboratories, research centers, medical facilities, and educational institutions across India.

Q: What export options does BIO SOFT provide for analyzed data?

A: Users can export analysis results directly into Word, Excel, PDF, and common image formats like JPEG, PNG, BMP, and TIFF, simplifying integration into reports and publications.

Q: What benefits does multi-user support offer in BIO SOFT?

A: Multi-user support enhances collaboration, allows individualized user accounts, and protects sensitive data, making the software suitable for institutions and teams needing secure data handling.

Q: How does BIO SOFT handle qualitative and quantitative pathological analysis?

A: BIO SOFT delivers robust tools for both qualitative and quantitative image assessments, enabling detailed measurements, annotation, real-time preview, and thorough report generation for comprehensive microscopic analysis.
