Textile Analysis Software

Textile Analysis Software Specification

Focus System
Digital and mechanical focus adjustment

Features
Automatic yarn thickness measurement, fiber length analysis, statistical reporting, export to Excel

View Head
Trinocular head for simultaneous digital imaging and observation

Spare Parts
Replacement LED, fuse, eyepiece, power cord provided

Theory
Digital analysis software for textile fiber structure assessment

Drawtube
Trinocular, adjustable for camera attachment

Sensor
High-resolution CMOS imaging sensor

Resolution
1920 x 1080 pixels (Full HD)

Interface
USB 3.0 and HDMI output supported

Frame Rate
Up to 60 fps

Focal Distance
70mm to 180mm (adjustable)

Magnification
Up to 1000x with digital zoom

Dimensions
500mm x 300mm x 180mm

Focus Range
Manual and auto focus supported

Eyepieces
WF10x/18mm standard widefield

Eyepiece Tube
Inclined 30, rotatable 360

Illumination
LED transmitted and reflected illumination

Coarse Adjustment Range
15mm travel range

Fine Adjustment Range
0.002 mm precision

Working Stage
Double layer mechanical stage, 135 x 120 mm

Still Image Capture Resolution
1920 x 1080 pixels

Video Capture Resolution
1920 x 1080 pixels at 30/60 fps

Image Format
JPG, PNG, BMP, TIFF

Interpupillary Distance
55-75mm

Objective Achromatic
4x, 10x, 40x, 100x objectives included

Condenser
Abbe condenser with adjustable aperture

Light Source
LED, 5W, with intensity control

Calibration Support
Digital and manual calibration included

Sample Holder
Universal textile sample holder with anti-slip design

User Profiles
Multi-user access with personalized settings

Operating System Compatibility
Windows 10/11, MacOS 12+ supported

Online Support
24/7 online user support available

Language Support
English, Spanish, Chinese

Update Policy
Free software updates for one year

Software Format
Standalone application, license-based

Data Export Options
CSV, Excel, PDF

Power Supply
110-240V AC, 50/60Hz adaptable

Microcontroller
Integrated microcontroller for real-time image processing

User Manual
Detailed digital user manual provided

Textile Analysis Software Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Days

About Textile Analysis Software

Operating Systems	For Windows
Minimum Ram	Required RAM- 8GB
Country of Origin	Made in India
Number of User	Single User
Language Support	English
USB Dongle	Yes
Training	In Person & Online
Brand	JB Microscope

Minimum order quantity: 1 Piece

Textile Analysis Software for Yarn

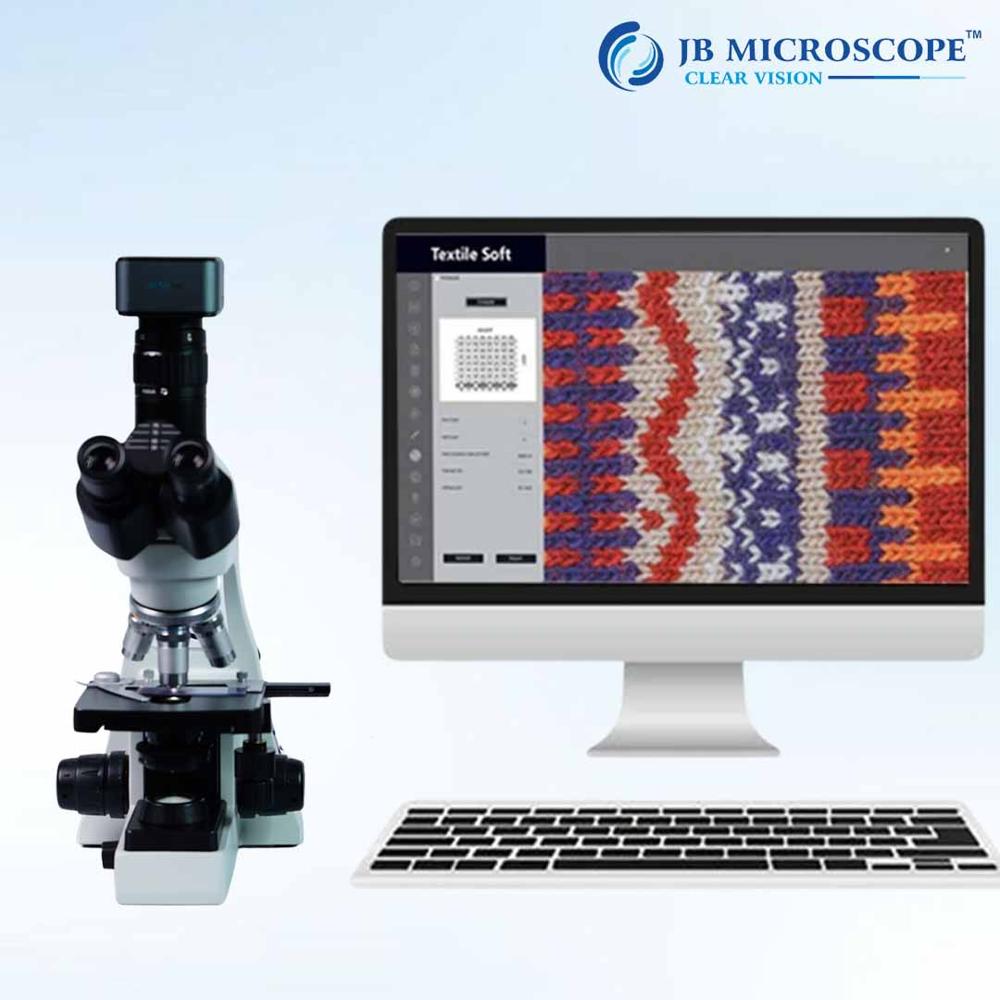

Textile Analysis Software is involves the determination of specific characteristics of a microstructure by making quantitative measurements on micrographs or metallographic images. Textile Analysis Software provides various superior tools for image capturing, visualization, enhancement, analysis, and report generation. Our Imaging Solution is a powerful integration of software and hardware that enables textile analyst to automatically capture images, performs metallurgical analysis, and generates reports. All modules are as per international standards. Customized report design support is available.

Modules of Textile Analysis Software

Micro measurement of fiber, yarn, threads, textile material, non-woven fabrics etc

full screen display of image, acquision, annotation, enhancement with hundred of filters, measurements, statistical processing of measured data

Measurements of length, surfaces, perimeters, angels, distance between two points or lines or objects.

Analyze the compactness of non-woven fabrics.

Macro analysis of a yarn section.

Measures the quality and shape of Lycra or synthetic multifilament single threads.

Comprehensive Compatibility and Connectivity

The software supports both Windows 10/11 and MacOS 12+ operating systems, ensuring broad accessibility. Users can connect via USB 3.0 or HDMI for seamless data transfer and display, while image and video files can be saved in multiple formats such as JPG, PNG, BMP, and TIFF. Its adaptive power supply and multilingual interface (English, Spanish, Chinese) further streamline integration into laboratories and production environments.

Advanced Imaging and Analysis Tools

Featuring a high-resolution 1920 x 1080 pixel CMOS sensor, the system provides crystal-clear images and videos for precision textile analysis. The trinocular head allows simultaneous digital imaging and direct observation. With up to 1000x magnification, adjustable LED illumination, and both manual and automatic focus controls, intricate textile structures can be accurately examined and assessed.

User-Centric Design and Support

Multi-user access with personalized settings caters to diverse workflow needs. A universal anti-slip sample holder, double-layer mechanical stage, and intuitive calibration options simplify the analysis process. Users benefit from 24/7 online support, a detailed digital manual, readily available replacement parts, and free software updates for the first year, ensuring efficient and uninterrupted operation.

FAQ's of Textile Analysis Software:

Q: How can I install and activate the Textile Analysis Software on my operating system?

A: You can install the Textile Analysis Software on Windows 10/11 or MacOS 12+ by following the steps in the detailed digital user manual provided. After installation, activate the software with your unique license key for full access to all features.

Q: What data export options are available for analysis results?

A: The software supports exporting analysis results in multiple formats, including CSV, Excel, and PDF. This ensures easy integration of data into reports, spreadsheets, or further statistical analysis.

Q: When is technical support available, and how can I get assistance?

A: Technical support is available 24/7 through online chat or email. You can reach out anytime for guidance on installation, troubleshooting, or using advanced features.

Q: Where can the Textile Analysis Software be used effectively?

A: This software is suitable for use in research labs, textile manufacturing facilities, quality control departments, educational institutions, and by dealers, importers, and suppliers across India and beyond.

Q: What is the process for calibrating the system for accurate measurements?

A: Calibration can be performed digitally through the software interface or manually as needed. Regular calibration ensures precise yarn thickness measurement and fiber length analysis, as described in the user manual.

Q: How does the multi-user feature benefit organizations?

A: Multi-user access allows different team members to have personalized profiles and settings, streamlining workflow management and ensuring that each user's preferences and data remain secure and organized.

Q: What are the advantages of automatic statistical reporting and image processing?

A: The built-in image analysis tools provide automatic yarn thickness and fiber length measurement, generating statistical reports with high accuracy. This enhances productivity and eliminates manual calculation errors, leading to reliable, reproducible results.
